2017 PEUGEOT 4008 Owners Manual

207
4008_en_Chap08_en-cas-de panne_ed01-2016
* the maxi-fuses provide additional protection for the electrical systems. All work on the
maxi-fuses must be carried out by a Pe ugeOt dealer or a qualified workshop.
Fuse N°
Rating Functions
18 7. 5 AReversing lamp(s).
19 15 AAccessory socket.
20* 30 A
ele
ctric window controls.
21 * 30 AHeated rear screen.
22 7. 5 AHeated door mirrors.
24 25 ADriver's and passenger's electric seats.
25 30 AHeated seats.
8
In the event of a breakdown

208
4008_en_Chap08_en-cas-de panne_ed01-2016
Engine compartment fuses
Access to the fuses
F unclip the cover and remove it completely. Fuse N°
Rating Functions
1 15 AFront foglamps.
4 10 AHorn.
5 7. 5 AAlternator.
6 20 AHeadlamp wash.
7 10 AAir conditioning.
9 20 AAlarm.
10 15 ADemisting, wipers.
11 -Not used.
12 -Not used.
th
e fusebox is placed in the engine
compartment (left-hand side).
In the event of a breakdown

209
4008_en_Chap08_en-cas-de panne_ed01-2016
Fuse N° Rating Functions
13 10 ADaytime running lamps.
14 10 ALeft-hand main beam headlamp.
15 10 ARight-hand main beam headlamp.
16 20 ALeft-hand dipped beam headlamp (xenon).
17 20 ARight-hand dipped beam headlamp (xenon).
18 10 ALeft-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.
19 10 ARight-hand dipped beam headlamp (halogen).
31 30 AAudio amplifier.
th

e maxi-fuses provide additional
protection for the electrical systems. All
work on the maxi-fuses must be carried
out by a P
e

uge
Ot

dealer or a qualified
workshop.
Carefully close the cover after replacing
a fuse so as to ensure the correct
sealing of the fusebox.
8
In the event of a breakdown

210
4008_en_Chap08_en-cas-de panne_ed01-2016
Spare fuses
the spare fuses are located under the engine
compartment fusebox cover.
th
e cover does not contain spare
fuses with an amperage of 7.5 A, 25 A
or 30 A. If one of the fuses with these
amperages develops a fault, replace it
with the following fuse:
A 7.5 A fuse must be replaced with the
10 A spare fuse , a 25 A fuse with the
20 A spare fuse and a 30 A fuse with
the audio system fuse (N° 31) .
Fuse N°
Rating
33 10 A
34 15 A
35 20 A
In the event of a breakdown

211
4008_en_Chap08_en-cas-de panne_ed01-2016
12 V battery
the battery is located under the bonnet.to g
ain access to it:
F

o
pen the bonnet using the interior release
lever, then the exterior catch,
F

s
ecure the bonnet stay,
Access to the battery
Procedure for charging your battery when it is flat or for starting the engine using another battery and jump leads.
F
r
emove the retaining pins A,
F

r
emove the protective cover B,
F

r
emove the retaining pins C,
F

r
emove the air duct D.
General
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
th
e batteries contain harmful
substances such as sulphuric acid and
lead.
th
ey must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
ta
ke used remote control batteries and
vehicle batteries to a special collection
point.
Before handling the battery, protect
your eyes and face.
All work on the battery must be carried
out in a ventilated area and away from
naked flames or sources of sparks, to
avoid any risk of explosion and fire.
Wash your hands when you have
finished.
8
In the event of a breakdown

212
4008_en_Chap08_en-cas-de panne_ed01-2016
Check the electrolyte level and top up if
necessary.
For more information on Checking levels ,
refer to the corresponding section.

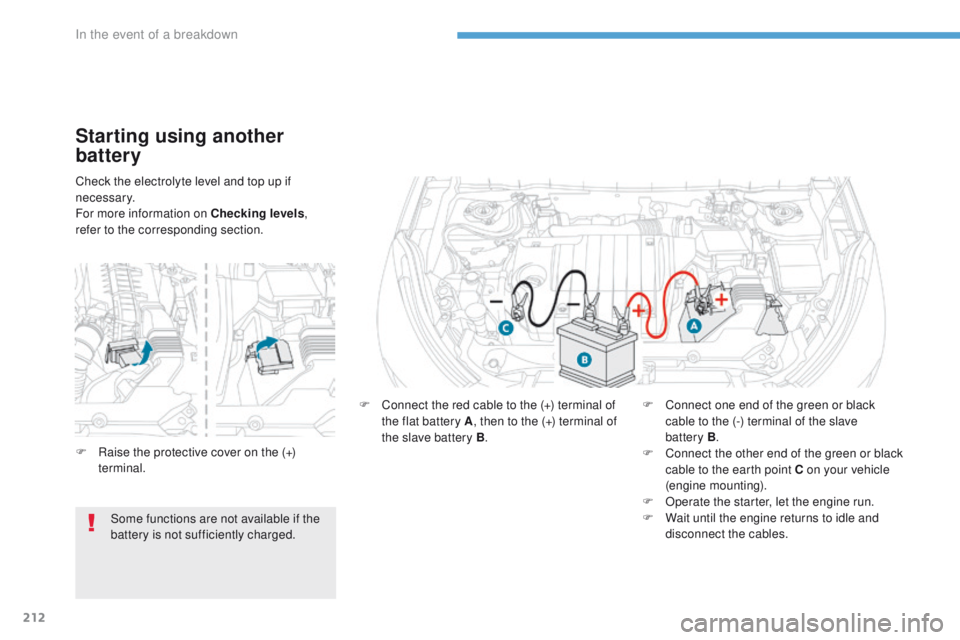

Starting using another
battery
F Connect the red cable to the (+) terminal of the flat battery A , then to the (+) terminal of
the slave battery B . F
C onnect one end of the green or black
cable to the (-) terminal of the slave
battery


B.
F

C
onnect the other end of the green or black
cable to the earth point C on your vehicle
(engine mounting).
F

O
perate the starter, let the engine run.
F

W
ait until the engine returns to idle and
disconnect the cables.
F

R

aise the protective cover on the (+)
terminal.
Some functions are not available if the
battery is not sufficiently charged.
In the event of a breakdown

213
4008_en_Chap08_en-cas-de panne_ed01-2016
If you intend to charge your vehicle's
battery yourself, use only a charger
compatible with lead batteries, with a
nominal voltage of 12 V. F

D
isconnect the battery from the vehicle, if
necessary.
F

F
ollow the instructions for use provided by
the manufacturer of the charger.
F

R
econnect, starting with the (-) terminal.
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them

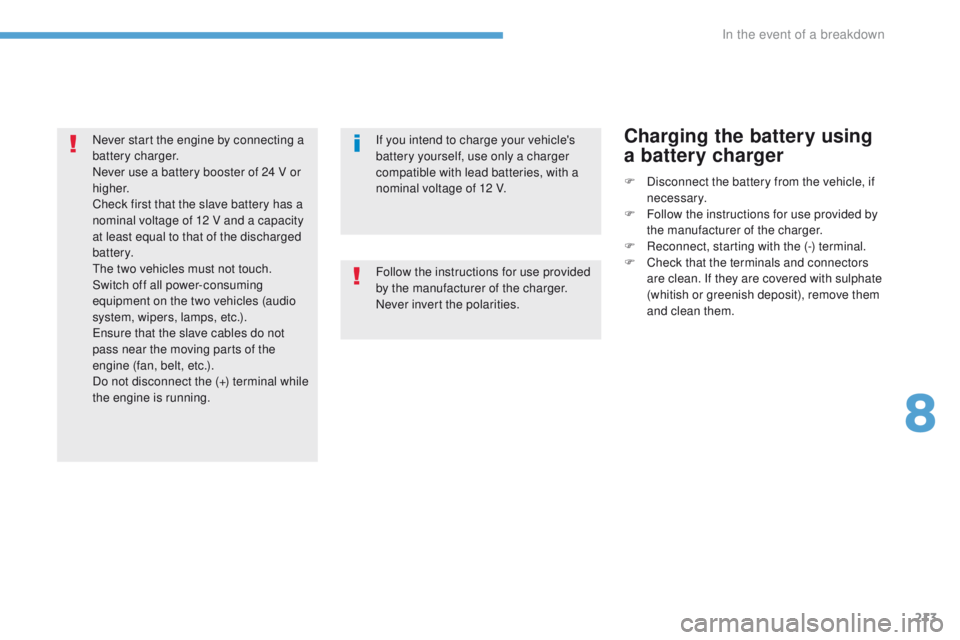

and clean them.Charging the battery using
a battery charger
Follow the instructions for use provided
by the manufacturer of the charger.
Never invert the polarities.
Never start the engine by connecting a
battery charger.
Never use a battery booster of 24 V or
higher.
Check first that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.th
e two vehicles must not touch.
Switch off all power-consuming
equipment on the two vehicles (audio
system, wipers, lamps, etc.).
en

sure that the slave cables do not
pass near the moving parts of the
engine (fan, belt, etc.).
Do not disconnect the (+) terminal while
the engine is running.
8
In the event of a breakdown

214
4008_en_Chap08_en-cas-de panne_ed01-2016
Do not invert the polarities and use only a 12 V charger.
Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CV
t

gearbox.
Disconnecting the battery
to maintain a sufficient level of charge
to start the engine, it is advisable to
disconnect the battery if the vehicle is not
going to be used for a very long period.
Before disconnecting the battery:
F

C
lose all the doors and windows, the
tailgate and the roof.
F

S
witch off all power-consuming
equipment (audio system, wipers,
lamps, etc.).
F

S
witch off the ignition and wait
4


minutes.
Once you have gained access to the
battery, start by disconnecting the (-)
terminal.
Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems.
However, if problems remain following this
operation, contact a P
e

uge
Ot
dealer or a
qualified workshop.
Referring to the corresponding section, you
must reinitialise certain equipment yourself,
such as:
-
t
h
e remote control key or the electronic
key (depending on version).
-
t
h
e electric blind(s).
-
t
h
e electric windows.
-
t
h
e date and time.
-
t
h
e stored radio stations. Some functions are not available if the
battery is not sufficiently charged.
Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a Pe
ugeOt dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
th

e Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of
the battery (up to about 8 hours).
