2017 PEUGEOT 4008 Owners Manual

199
4008_en_Chap08_en-cas-de panne_ed01-2016

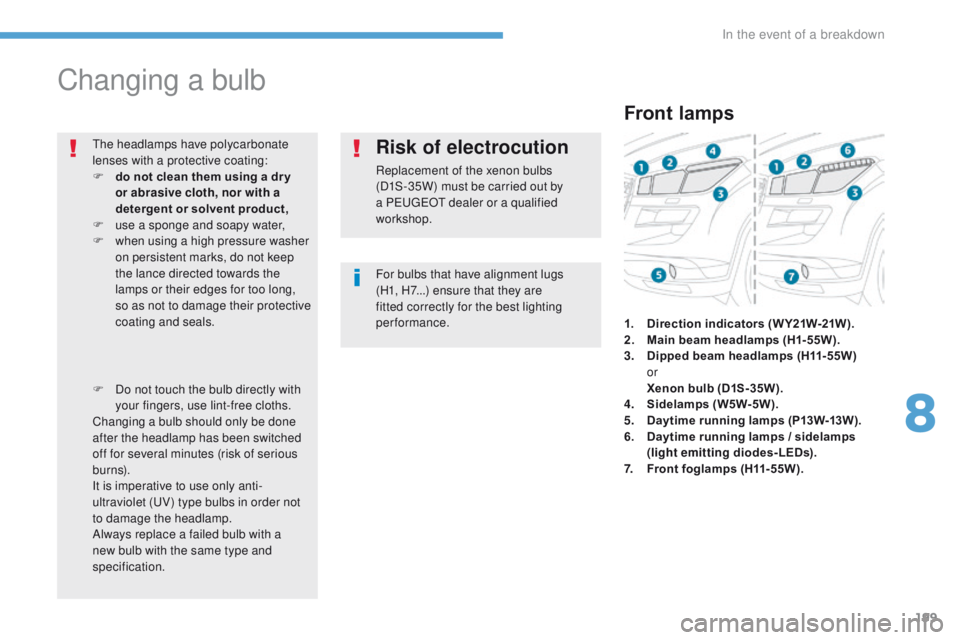

Changing a bulb
For bulbs that have alignment lugs
(H1, H7...) ensure that they are
fitted correctly for the best lighting
performance.
th

e headlamps have polycarbonate
lenses with a protective coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
F

D

o not touch the bulb directly with
your fingers, use lint-free cloths.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
It is imperative to use only anti-
ultraviolet (
uV

) type bulbs in order not
to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Risk of electrocution
Replacement of the xenon bulbs
(D1S-35W) must be carried out by
a P
e

uge
Ot
dealer or a qualified
workshop.
Front lamps
1. Direction indicators ( W Y21W-21W ).
2. M ain beam headlamps (H1-55W).
3.
D

ipped beam headlamps (H11-55W)


or
Xe

non bulb (D1S-35W).
4.
S

idelamps (W5W-5W).
5.
D

aytime running lamps (P13W-13W).
6.
D

aytime running lamps / sidelamps
(light emitting diodes-LEDs).
7.
F

ront foglamps (H11-55W).
8
In the event of a breakdown

200
4008_en_Chap08_en-cas-de panne_ed01-2016
Carry out the following operations for access
the bulb protective covers:
F

R
emove the retaining pins A .
F

R
emove the protective cover B .
Access to bulbs Changing direction indicator
bulbs (1)
F turn the bulb holder a quarter of a turn to
the left and pull it out.
F

P
ull out the bulb and change it.Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
to

reassemble, carry out these
operations in reverse order.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
In the event of a breakdown

201
4008_en_Chap08_en-cas-de panne_ed01-2016

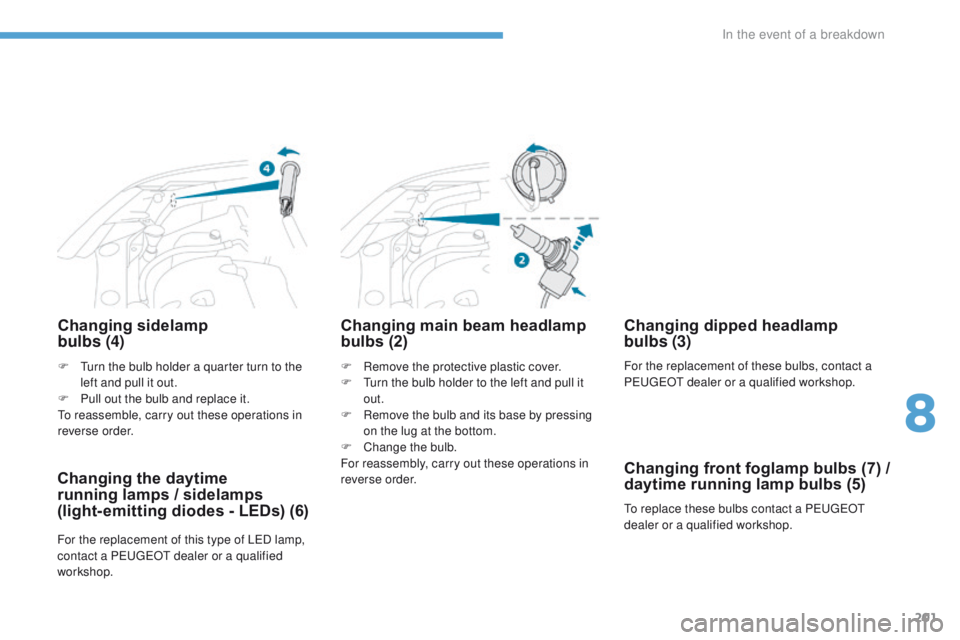

Changing sidelamp
bulbs (4)
F Remove the protective plastic cover.
F
tu rn the bulb holder to the left and pull it
out.
F

R
emove the bulb and its base by pressing
on the lug at the bottom.
F

C
hange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (2)
F turn the bulb holder a quarter turn to the left and pull it out.
F

P
ull out the bulb and replace it.
to r

eassemble, carry out these operations in
reverse order.
Changing the daytime
running lamps / sidelamps
(light- emitting diodes - LEDs) (6)
For the replacement of this type of LeD l amp,
contact a Pe ugeOt dealer or a qualified
workshop.
Changing dipped headlamp
bulbs (3)
For the replacement of these bulbs, contact a
Pe ugeOt dealer or a qualified workshop.
to r

eplace these bulbs contact a P
e
uge
Ot

dealer or a qualified workshop.
Changing front foglamp bulbs (7) /
daytime running lamp bulbs (5)
8
In the event of a breakdown

202
4008_en_Chap08_en-cas-de panne_ed01-2016

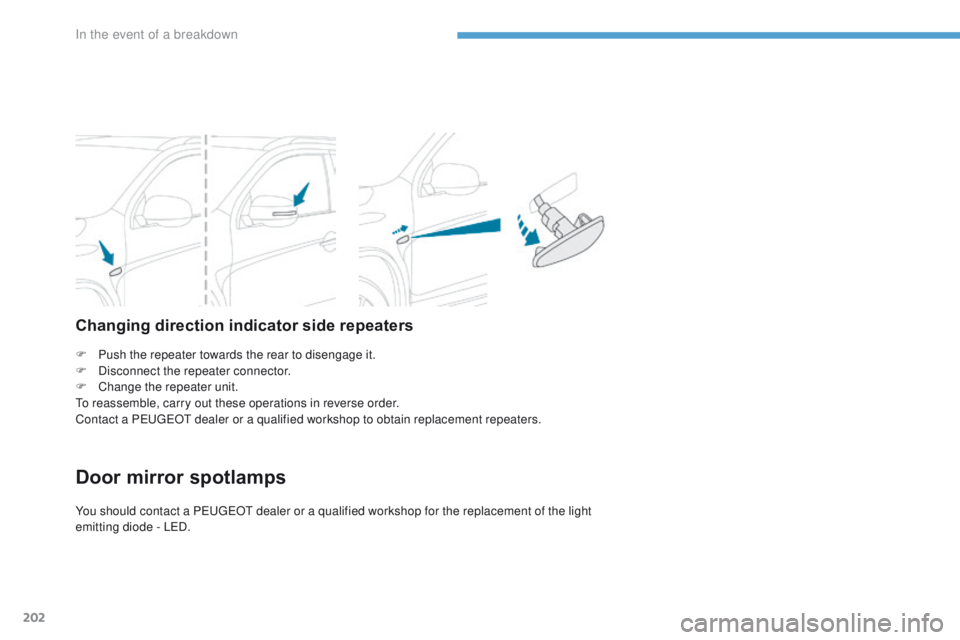

F Push the repeater towards the rear to disengage it.
F
D isconnect the repeater connector.
F

C
hange the repeater unit.
to

reassemble, carry out these operations in reverse order.
Contact a P
e

uge
Ot
dealer or a qualified workshop to obtain replacement repeaters.
Changing direction indicator side repeaters
Door mirror spotlamps
You should contact a Pe ugeOt dealer or a qualified workshop for the replacement of the light
emitting diode - LeD .
In the event of a breakdown

203
4008_en_Chap08_en-cas-de panne_ed01-2016

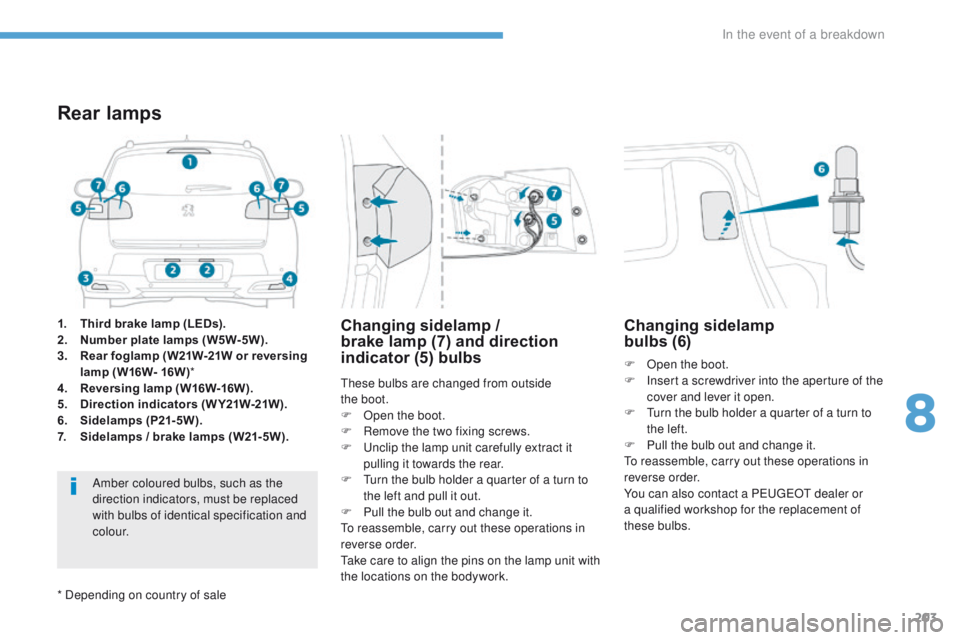

1. Third brake lamp (LEDs).
2.
N umber plate lamps (W5W-5W).
3.
R

ear foglamp (W21W-21W or reversing
lamp (W16W- 16W) *
4.

R
eversing lamp (W16W-16W).
5.
D

irection indicators (WY21W-21W).
6.

S
idelamps (P21-5W).
7.

S
idelamps / brake lamps (W21-5W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r.
th
ese bulbs are changed from outside
the

boot.
F
O
pen the boot.
F
R
emove the two fixing screws.
F u
n
clip the lamp unit carefully extract it
pulling it towards the rear.
F tu rn the bulb holder a quarter of a turn to
the left and pull it out.
F

P
ull the bulb out and change it.
to r

eassemble, carry out these operations in
reverse order.
ta

ke care to align the pins on the lamp unit with
the locations on the bodywork.
Changing sidelamp /
brake lamp (7) and direction
indicator (5) bulbs
F Open the boot.
F
I nsert a screwdriver into the aperture of the
cover and lever it open.
F
t
u
rn the bulb holder a quarter of a turn to
the left.
F

P
ull the bulb out and change it.
to r

eassemble, carry out these operations in
reverse order.
You can also contact a P
e

uge
Ot
dealer or
a qualified workshop for the replacement of
these


bulbs.
Changing sidelamp
bulbs (6)
* Depending on country of sale
8
In the event of a breakdown

204
4008_en_Chap08_en-cas-de panne_ed01-2016
Changing number plate lamp
bulbs (2)
F Push the lens to the left and then down.
F
tu rn the bulb holder a quarter turn to the
left and pull it out.
F

R
emove the bulb and change it.
to r

efit, carry out these operations in reverse
order and press on the lens to clip it in place.
Third brake lamp (light emitting
diodes - LEDs) (1)
Contact a Pe ugeOt dealer or qualified
workshop for the replacement of this type
of


lamp.
Changing a foglamp or reversing
lamp bulb (3)*
* Depending on country of sale
Changing a reversing lamp bulb (4)
Access is by passing a hand under the bumper.
F tu rn the bulb holder a quarter of a turn and
pull it out.
F

D
isconnect the connector on the bulb
h o l d e r.
F

P
ull the bulb out and change it.
to r

efit, carry out these operations in reverse
o r d e r.
You can also contact a P
e

uge
Ot
dealer or a
qualified workshop for the replacement of this
bulb. You can also contact a Pe
ugeOt dealer or
a qualified workshop for the replacement of
this


bulb.
Access is by passing your hand under the
b u m p e r.
F
t
u
rn the bulb holder a quarter of a turn and
pull it out.
F

D
isconnect the bulb holder.
F

P
ull the bulb out and change it.
to r

eassemble, carry out these operations in
reverse order.
In the event of a breakdown

205
4008_en_Chap08_en-cas-de panne_ed01-2016
Changing a fuse
the extraction tweezer and spare fuses are
located in the engine compartment fusebox.
to g

ain access to them:
F

O
pen the bonnet.
F

or more information about the Bonnet ,
refer to the corresponding section.
F
u
n
clip and remove the cover.
F

R
emove the tweezer.
F

C
arefully close the cover to ensure correct
sealing of the fusebox.
Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
F

C
heck that the switch is in the " LOCK"
position or that the vehicle mode is " OFF".
F

I
dentify the faulty fuse by checking the
condition of its filament.
F
u
s
e the special tweezer to extract the fuse
from its location.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck that the number etched on the box,
the rating etched on the top and the tables
below all agree.
Changing a fuse
Good Failed
P
e
uge
Ot
will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
e

uge
Ot
and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds
10


milliamperes.
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
e

uge
Ot
dealer or
a qualified workshop.
th
e replacement of a fuse not
mentioned in the following tables may
cause a serious fault on your vehicle.
Contact a P
e
uge
Ot
dealer or a
qualified workshop.
8
In the event of a breakdown

206
4008_en_Chap08_en-cas-de panne_ed01-2016
Dashboard fuses
the fusebox is located in the lower dashboard
(left-hand side).
Access to the fuses
F unclip the cover and remove it completely
by pulling it towards you. Fuse N°
Rating Functions
1 * 30 ACabin fan.
2 15 ABrake lamps, third brake lamp.
3 10 ARear foglamp.
4 30 AWindscreen wiper, screenwash.
6 20 ACentral locking, electric door mirrors.
7 15 AAudio equipment, telematics, u
S
B unit, hands-free system.
8 7. 5 ARemote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
9 15 AInstrument panel and interior lighting.
10 15 AHazard warning lamps.
11 15 ARear wiper.
12 7. 5 AInstrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.
13 15 ACigarette lighter, accessory socket.
15 20 A
ele

ctric blind.
16 10 ADoor mirrors, audio equipment.
