2017 PEUGEOT 4008 Owners Manual

167
4008_en_Chap06_securite_ed01-2016

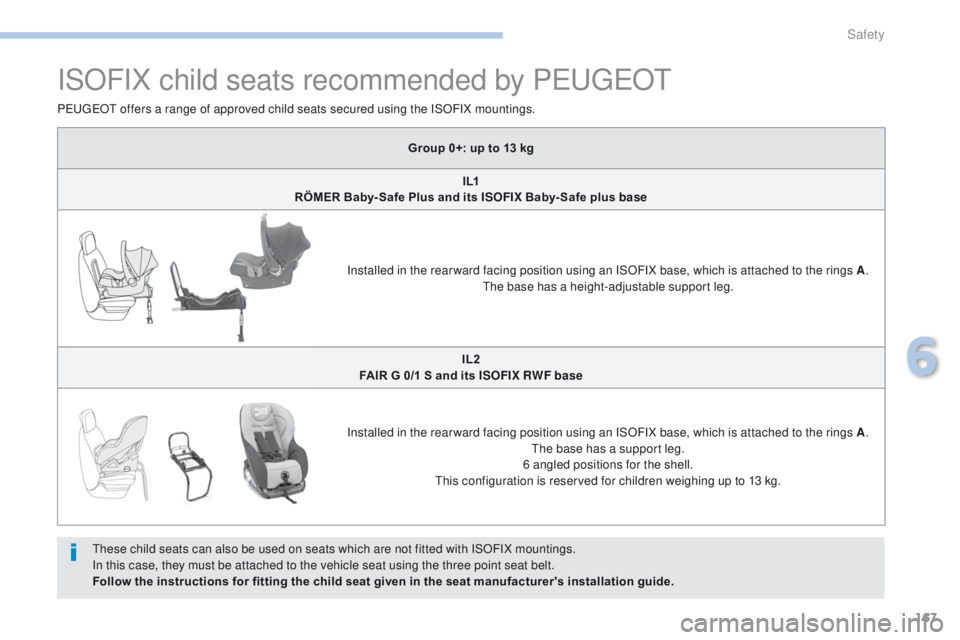

ISOFIX child seats recommended by PeugeOt
these child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
P
e

uge
Ot
offers a range of approved child seats secured using the ISOFIX mountings.
Group 0+: up to 13 kgI L1
RÖMER Baby- Safe Plus and its ISOFIX Baby- Safe plus base
Installed in the rear ward facing position using an ISOFIX base, which is attached to the rings A .
th
e base has a height-adjustable support leg.
IL2
FAIR G 0/1 S and its ISOFIX RWF base
Installed in the rear ward facing position using an ISOFIX base, which is attached to the rings A .
th
e base has a support leg.
6 angled positions for the shell.
th
is configuration is reserved for children weighing up to 13 kg.
6
Safety

168
4008_en_Chap06_securite_ed01-2016
Group 1: from 9 to 18 kgIL3
RÖMER Duo Plus ISOFIX
Installed forward facing.
Attached to the rings A , as well as ring B, known as the
t
O
P tet
HeR
, using an upper strap.
3 angled positions for the shell.
IL4
FAIR G 0/1 S and its ISOFIX FWF base
Installed in the rear ward facing position using an ISOFIX base, which is attached to the rings A .
th

e base has a support leg.
6 angled positions for the shell.
th

is configuration is suitable for children weighing more than 13 kg.
th

ese child seats can also be used on seats which are not fitted with ISOFIX mountings.
In this case, they must be attached to the vehicle seat using the three point seat belt.
Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.
Safety

169
4008_en_Chap06_securite_ed01-2016
Locations for ISOFIX child seats
In accordance with european Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX
mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter between A and G , is indicated on the
child seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg
(group 0+)
up t

o approx. 1 yearFrom 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat infant car seat "rearward facing"
"rearward facing""forward facing"
ISOFIX size categor y FG C D E C D A B B1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seat s X
XI L1IL2 X IUF
I UF:

s

eat suitable for the installation of an I sofix Universal seat, " For ward facing" secured using the
"
to

p
t
e

ther" upper strap.
IL-: only the child seats indicated can be installed using the ISOFIX mountings.
For advice on securing of the "
to

p
t
e

ther" upper strap, refer to the "ISOFIX mountings" section.
X: seat not suitable for the installation of an ISOFIX seat of the size category indicated. Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
6
Safety

170
4008_en_Chap06_securite_ed01-2016
the incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum,
even for short journeys.
For optimum installation of the forward
facing child seat, ensure that the back of the
child seat is in contact with the back of the
vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Advice on child seats
Installing a booster cushion
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
en

sure that the lap part of the seat belt
passes correctly over the child's thighs.
P
e

uge
Ot
recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
Children at the front
the legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's airbag when a
rear ward facing child seat is installed on the
front seat. Otherwise, the child would risk
being seriously injured or killed if the airbag
were to inflate.
to p

revent accidental opening of the doors,
use the Child lock.
ta

ke care not to open the rear windows by
more than one third.
to p

rotect young children from the rays of
the sun, fit side blinds on the rear windows.
Safety

171
4008_en_Chap06_securite_ed01-2016
Child lock
Mechanical system to prevent opening of the rear doors using their interior controls.the control is located on the edge of each rear door.
Child lock on
F Move the control A towards position 1 .
Child lock off
F Move the control A towards position 2 .
6
Safety

4008_en_Chap07_info-pratiques_ed01-2016
RECOMMENDS
PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER
BETTER PERFORMANCE!
2015 was marked by PEUGEOT's return to Rally-Raid,
one of the most difficult motorsport disciplines in the
world. To obtain the best performance in these trials,
PEUGEOT Sport chose TOTAL QUARTZ for the
PEUGEOT 2008 DKR, a lubricant of high technology
which protects the engine in the most severe
conditions.
TOTAL QUARTZ protects your engine against the
effects of time.
TOTAL QUARTZ Ineo First is a high performance lubricant,
the result of work done together by PEUGEOT and TOTAL
R&D. Specially formulated for the engines in PEUGEOT
vehicles, its innovative technology significantly reduces
CO
2 emissions and keeps your engine clean.

173
4008_en_Chap07_info-pratiques_ed01-2016
When the symbol begins to flash
rapidly (approximately twice per
second), there is not much fuel
remaining in your tank (approximately
5 li t r e s).
You must fill the tank to avoid running
out of fuel.

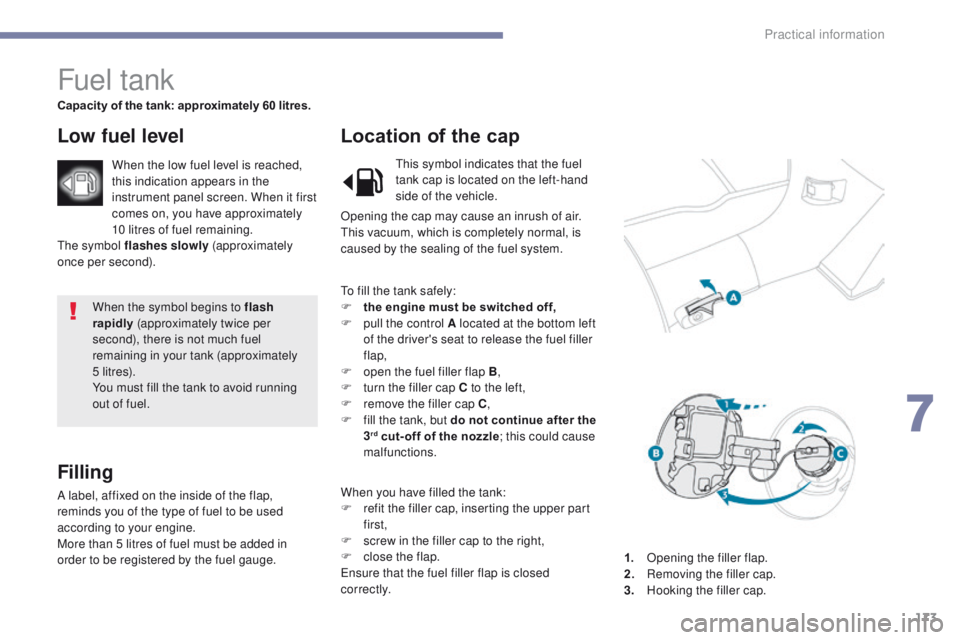

Fuel tank
Capacity of the tank: approximately 60 litres.
Low fuel level
Filling
A label, affixed on the inside of the flap,
reminds you of the type of fuel to be used
according to your engine.
More than 5 litres of fuel must be added in
order to be registered by the fuel gauge.
Location of the cap
When the low fuel level is reached,
this indication appears in the
instrument panel screen. When it first
comes on, you have approximately
10 litres of fuel remaining.
th

e symbol flashes slowly (approximately
once per second).
1.
O

pening the filler flap.
2.
R

emoving the filler cap.
3.
H

ooking the filler cap.
to f
ill the tank safely:
F

t
he engine must be switched off,
F

p
ull the control A located at the bottom left
of the driver's seat to release the fuel filler
flap,
F

o
pen the fuel filler flap B,
F

t
urn the filler cap C to the left,
F

r
emove the filler cap C,
F

f
ill the tank, but do not continue after the
3
rd cut- off of the nozzle ; this could cause
malfunctions.
When you have filled the tank:
F

r

efit the filler cap, inserting the upper part
first,
F

s

crew in the filler cap to the right,
F

c

lose the flap.
en

sure that the fuel filler flap is closed
c o r r e c t l y.
th
is symbol indicates that the fuel
tank cap is located on the left-hand
side of the vehicle.
Opening the cap may cause an inrush of air.
th

is vacuum, which is completely normal, is
caused by the sealing of the fuel system.
7
Practical information

174
4008_en_Chap07_info-pratiques_ed01-2016
Fuel used for petrol engines
the petrol engines are compatible with
bio-fuels that conform to current and future
eu
ropean standards and can be obtained from
filling stations:
Travelling abroad
Cer tain fuels could damage the engine of
your vehicle. In cer tain countries, the use of
a par ticular fuel may be required (specific
octane rating, specific sales name…) to
ensure correct operation of the engine.
For any additional information, contact your
dealer. -

Pe
trol that meets the e
N
228
standard, mixed with a bio-
fuel meeting the e
N
15376
standard.
th
e only petrol additives authorised for
use are those that meet the B715001
standard.
Fuel used for Diesel
engines
the Diesel engines are compatible with
biofuels that conform to current and future
eu

ropean standards and can be obtained from
filling stations:th e use of B20 or B30 fuel
meeting standard eN 16709
is possible in your Diesel
engine*. However, this use,
even occasional, requires strict
application of the special servicing
conditions referred to as "Arduous
conditions".
-

D
iesel fuel that meets
standard
e
N
590 mixed with
a biofuel that meets standard
eN

14214 (possibly containing
up to 7 % Fatty Acid Methyl
es

ter),
-

D
iesel fuel that meets
standard
e
N
16734 mixed with
a biofuel that meets standard
eN

14214 (possibly containing
up to 10 % Fatty Acid Methyl
es

ter),
-

P
araffinic Diesel fuel that
meets standard
e
N
15940
mixed with a biofuel that
meets standard
e
N
14214
(possibly containing up
to 7 % Fatty Acid Methyl
es

ter). For more information, contact a P
e

uge
Ot

dealer or a qualified workshop.
th

e use of any other type of (bio)
fuel (vegetable or animal oils, pure or
diluted, domestic fuel, etc.) is strictly
prohibited (risk of damage to the engine
and fuel system).
th

e only Diesel additives authorised for
use are those that meet the B715000
standard.
*
e
x
cept MMCD150 -M6MMC-S
t
t
d e
ngine.
