towing the vehicle
Towing your vehicle
2 wheel drive (2WD) versions: towing
with the wheels on the ground
General recommendations
towing with the wheels on the ground
is only possible on 2 wheel drive (2WD)
versions.
F

F

it the towing bar to the towing eye on the
chassis, located under the front bumper.
Observe the legislation in force in your
c o unt r y.
en

sure that the weight of the towing vehicle is
higher than that of the towed vehicle.
th

e driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on
the ground, always use an approved towing
bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
-

v

ehicle broken down on a motor way or
fast road,
-

4 w

heel drive vehicle,
-

w

hen it is not possible to put the gearbox
into neutral, unlock the steering, or
release the parking brake,
-
t
owing with only two wheels on the
ground,
-

w

here there is no approved towing bar
available... F

P
ut the gear lever into neutral (position N
for the CV
t
gearbox).
F u
n
lock the steering by turning the ignition
switch to the " ON" position (or to " ON"
mode for vehicles fitted with the "Keyless
en
try and Starting" system).
F
R
elease the parking brake.
F S witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and travel slowly for a short
distance only.
8
In the event of a breakdown

216
4008_en_Chap08_en-cas-de panne_ed01-2016
Vehicles fitted with the 4 wheel drive
system must always be towed on a flatbed.Never have the vehicle towed with the
four wheels on the ground, this could
damage the transmission.
th

e vehicle must not be towed with
the front or rear wheels on the ground
evenif it is in front "2WD" (2 wheel
d r i ve)


m o d e.
4 wheel drive (4WD) versions: towing on a flatbed
In the event of a breakdown

217
4008_en_Chap08_en-cas-de panne_ed01-2016
Towing another vehicle
F On the rear bumper, remove the cover
by pulling at the bottom using the jack
handle


1. F
S crew in the towing eye 2 fully using the
wheelbrace 3 .
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and travel slowly for a short
distance only.Access to the tooling
the towing eye and the tools are stored under
the boot floor.
to g

ain access to them:
F

o
pen the boot,
F

l
ift and remove the boot floor,
F

t
ake out the towing eye and the tools
required.
List of tools
1.
J

ack handle.
2.


t
o
wing eye.
3.


Wheelbrace.
8
In the event of a breakdown

218
4008_en_Chap08_en-cas-de panne_ed01-2016

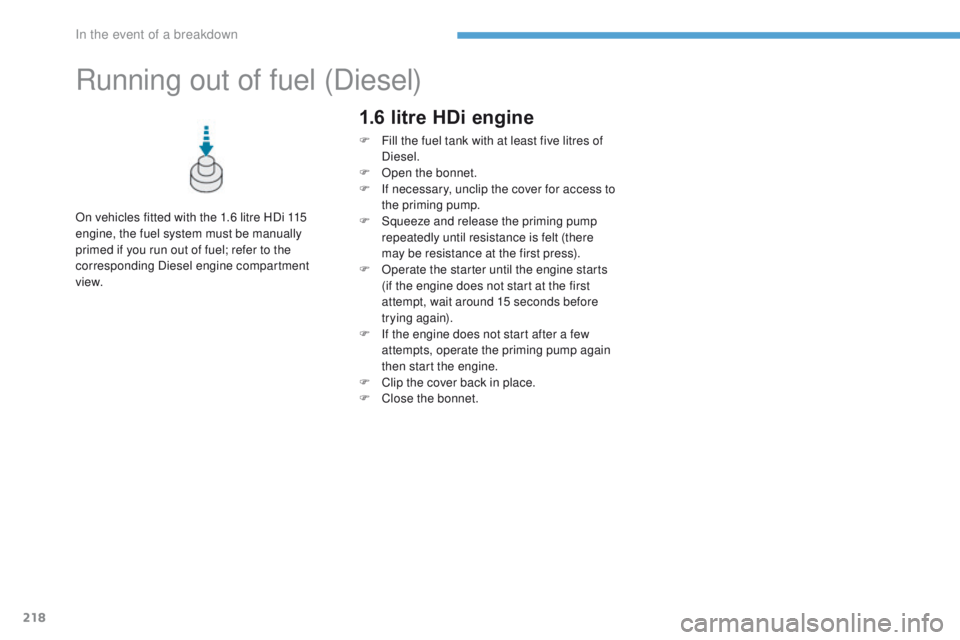

Running out of fuel (Diesel)
On vehicles fitted with the 1.6 litre HDi 115
engine, the fuel system must be manually
primed if you run out of fuel; refer to the
corresponding Diesel engine compartment
view.
1.6 litre HDi engine
F Fill the fuel tank with at least five litres of
Diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the cover for access to
the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter until the engine starts
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

C
lip the cover back in place.
F

C
lose the bonnet.
In the event of a breakdown

219
4008_en_Chap09_caracteristiques-techniques_ed01-2016
* the maximum power corresponds to the value type-approved on a test bed, under conditions defined in eu ropean legislation
(Directive 1999/99/eC ).
engines and gearboxes
.../S: model fitted with the Stop & Start (AS&g) f unction.
PETROL ENGINES
1.6 litre 1152.0 litre 150
GEARBOXES Manual
(5-speed) CV
t(
6-speed)
Manual
(5-speed) CV
t(
6-speed)
Model codes : BU... NKZ0

NKZ0/S NKZ9
NKZ9/S AFYR

AFZ7 AFYV
AFZM AFYT

AFZH AFZ9 AFYW

AFZP
AFZC
Transmission mode 2WD2WD2WD 4WD2WD 4WD
Cubic capacity (cc) 1 5901 998
Bore x stroke (mm) 75 x 9086 x 86
Max power*: eu standard (kW)
86 113
Max power engine speed (rpm) 6 0006 000
Max torque: eu standard (Nm)
15 4 19 9
Max torque engine speed (rpm) 4 0004 200
Fuel
u
nleaded
u
nleaded
Catalytic converter Ye sYe s
OIL CAPACITY (in litres)
eng
ine (with filter replacement)
4.24.3
9
technical data

220
4008_en_Chap09_caracteristiques-techniques_ed01-2016
Petrol weights and towed loads (kg)
the values for approved towed weights vary
according to the sales zone (see the tables on
the following pages).
th
e exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
th

ey are also mentioned in sales brochures.
For more details, contact a P
e

uge
Ot
dealer
or a qualified workshop.th e kerb weight is equal to the unladen
weight + driver (75 kg).th e gtW a nd towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
th

e speed of a towing vehicle must not exceed
62 mph (100 km/h) (comply with the legislation
in force in your country).
High exterior temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the exterior temperature is
above 37 °C, limit the towed load.
th

e weight of the braked trailer can be
increased, within the
gt
W l
imit, if the
gV

W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding .
technical data

221
4008_en_Chap09_caracteristiques-techniques_ed01-2016
For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas territories.
PETROL ENGINES1.6 litre 1152.0 litre 150
Gearboxes Manual
(5 - speed) Manual (5-speed)
CVT (6-speed)
Model codes: BU... NKZ7

NKZ0 AFZ7
AFZM AFZH

AFZ9 AFZP

AFZC
Transmission mode 2WD2WD 4WD2WD 4WD
-
u
n
laden weight 1 3101 355 1 4201 385 1 450
-

K
erb weight 1 3851 430 1 4951 460 1 525
-
g
r
oss vehicle weight (
gV
W)1 8701 9701 9701 9701 970
-
g
r
oss vehicle weight (
gV
W) when towing1 9252 035 2 0352 0352 035
-
g
r
oss train weight (
g
t
W
)
o

n a 12% gradient 3 025
3 335 3 3353 3353 335
-

B
raked trailer (within gt
W l
imit)
o

n a 10% or 12% gradient 1 10 0
1 300 1 3001 3001 300
-


u
nb
raked trailer 68571574 5725 750
-
R

ecommended nose weight 5565656565
9
Technical data

222
4008_en_Chap09_caracteristiques-techniques_ed01-2016
For: Australia, New Zealand.
PETROL ENGINES2.0 litre 150
Gearboxes CVT (6-speed)
Model codes: BU... AFZHAFZP
Transmission mode 2WD4WD
-
u
n
laden weight 1 3801 445
-

K
erb weight 1 4551 520
-
g
r
oss vehicle weight (
gV
W) 1 970 1 970
-
g
r
oss vehicle weight (
gV
W) when towing 2 035 2 035
-
g
r
oss train weight (
g
t
W
)
o

n a 12% gradient 3 020
3 020
-

B
raked trailer (within gt
W l
imit)
o

n a 10% or 12% gradient 1 050
1 050
-


u
nb
raked trailer 750750
-
R

ecommended nose weight 6565
technical data
