2017 PEUGEOT 4008 automatic transmission

27
4008_en_Chap01_Instruments-de-bord_ed01-2016
Screen 1 Screen 2Cause Solution - ActionObservations
You have moved off with the parking
brake not fully released. Release the parking brake.
th

e oil pressure is too low or there
is a fault with the engine lubrication
system. Stop the vehicle and contact
a P
e

uge
Ot
dealer or a qualified
workshop.
Battery charge fault. Stop the vehicle and contact
a P
e

uge
Ot
dealer or a qualified
workshop.
Airbag or pretensioner fault. Contact a P
e

uge
Ot
dealer or
a qualified workshop to have the
systems checked.
Fault with automatic headlamp
adjustment system. Contact a P
e

uge
Ot
dealer or
a qualified workshop. Only on vehicles fitted with xenon
headlamps.
Fault with the stability control
system (ASC). Contact a P
e

uge
Ot
dealer or
a qualified workshop.
Fault with the four wheel drive
transmission system. Contact a P
e

uge
Ot
dealer or
a qualified workshop.
1
Instruments

28

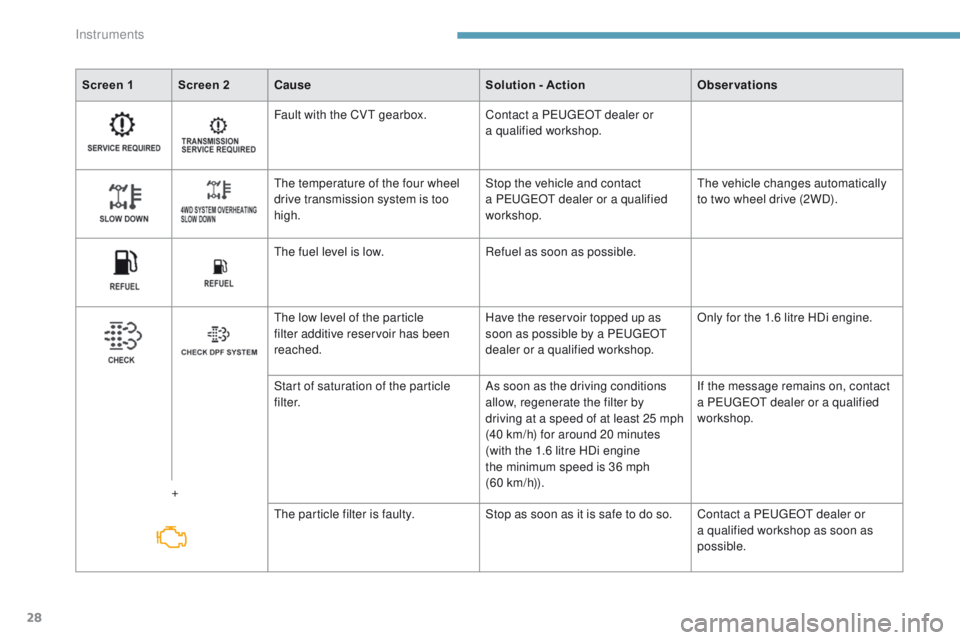

Screen 1 Screen 2Cause Solution - ActionObservations
Fault with the CV
t
gearbox. Contact a P
e
uge
Ot
dealer or
a qualified workshop.
th

e temperature of the four wheel
drive transmission system is too
high. Stop the vehicle and contact
a P
e

uge
Ot
dealer or a qualified
workshop.
th

e vehicle changes automatically
to two wheel drive (2WD).
th

e fuel level is low.Refuel as soon as possible.
th

e low level of the particle
filter additive reservoir has been
reached. Have the reservoir topped up as
soon as possible by a P
e

uge
Ot

dealer or a qualified workshop. Only for the 1.6 litre HDi engine.
+ Start of saturation of the particle
f i l t e r.
As soon as the driving conditions
allow, regenerate the filter by
driving
at a speed of at least 25 mph
(40 km/h) for around 20 minutes
(with the 1.6 litre HDi engine
the
minimum speed is 36 mph
(60 km/h)). If the message remains on, contact
a P
e

uge
Ot
dealer or a qualified
workshop.
th

e particle filter is faulty.Stop as soon as it is safe to do so. Contact a P
e

uge
Ot
dealer or
a qualified workshop as soon as
possible.
Instruments

118
4008_en_Chap04_conduite_ed01-2016

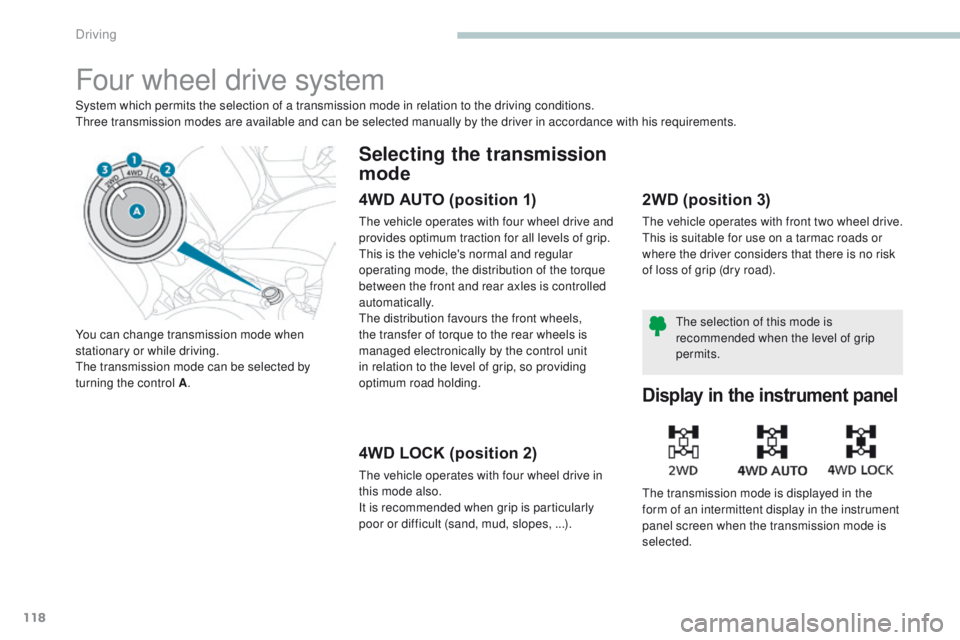

Four wheel drive system
System which permits the selection of a transmission mode in relation to the driving conditions.three transmission modes are available and can be selected manually by the driver in accordance with his requirements.
You can change transmission mode when
stationary or while driving.
th

e transmission mode can be selected by
turning the control A .
Selecting the transmission
mode
4WD AUTO (position 1)
the vehicle operates with four wheel drive and
provides optimum traction for all levels of grip.
th

is is the vehicle's normal and regular
operating mode, the distribution of the torque
between the front and rear axles is controlled
automatically.
th

e distribution favours the front wheels,
the transfer of torque to the rear wheels is
managed electronically by the control unit
in relation to the level of grip, so providing
optimum road holding.
4WD LOCK (position 2)
the vehicle operates with four wheel drive in
this mode also.
It is recommended when grip is particularly
poor or difficult (sand, mud, slopes, ...).
2WD (position 3)
the vehicle operates with front two wheel drive.th is is suitable for use on a tarmac roads or
where the driver considers that there is no risk
of loss of grip (dry road).
Display in the instrument panel
the transmission mode is displayed in the
form of an intermittent display in the instrument
panel screen when the transmission mode is
selected.
th
e selection of this mode is
recommended when the level of grip
permits.
Driving

119
4008_en_Chap04_conduite_ed01-2016

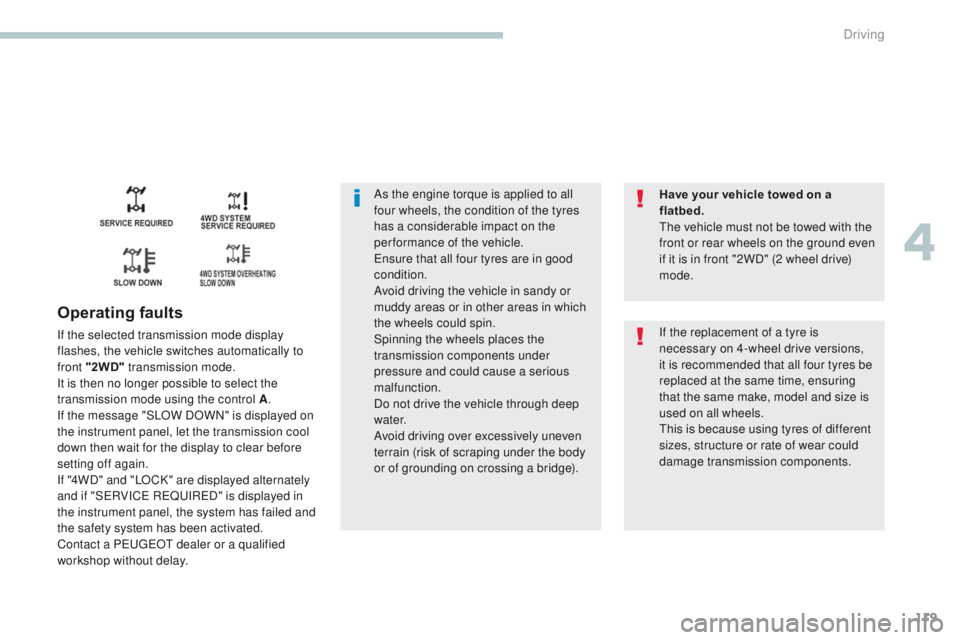

As the engine torque is applied to all
four wheels, the condition of the tyres
has a considerable impact on the
performance of the vehicle.
en
sure that all four tyres are in good
condition.
Avoid driving the vehicle in sandy or
muddy areas or in other areas in which
the wheels could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a serious
malfunction.
Do not drive the vehicle through deep
water.
Avoid driving over excessively uneven
terrain (risk of scraping under the body
or of grounding on crossing a bridge).
Operating faults
If the selected transmission mode display
flashes, the vehicle switches automatically to
front "2WD" transmission mode.
It is then no longer possible to select the
transmission mode using the control A .
If the message "SLOW DOWN" is displayed on
the instrument panel, let the transmission cool
down then wait for the display to clear before
setting off again.
If "4WD" and "LOCK" are displayed alternately
and if "S
eR

VIC
e
R
eQuI
R
eD
" is displayed in
the instrument panel, the system has failed and
the safety system has been activated.
Contact a P
e

uge
Ot
dealer or a qualified
workshop without delay. Have your vehicle towed on a
flatbed.
th

e vehicle must not be towed with the
front or rear wheels on the ground even
if it is in front "2WD" (2 wheel drive)
mode.If the replacement of a tyre is
necessary on 4-wheel drive versions,
it is recommended that all four tyres be
replaced at the same time, ensuring
that the same make, model and size is
used on all wheels.
th

is is because using tyres of different
sizes, structure or rate of wear could
damage transmission components.
4
Driving

05
276
4008_EN_CHAP10B_MITSU6_ED01-2016

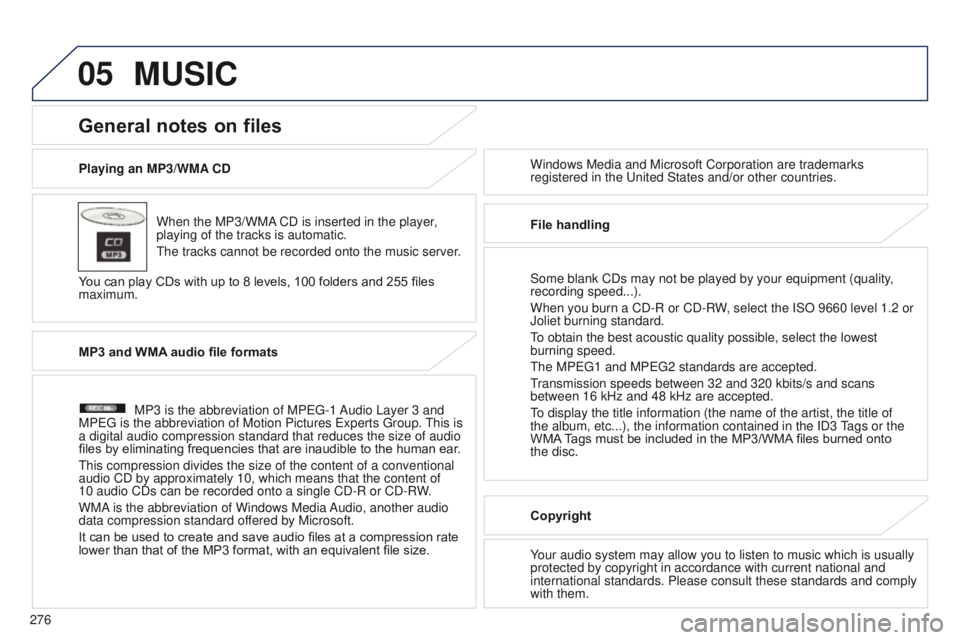

Playing an MP3/WMA CDWhen the MP3/WMA CD is inserted in the player,
playing of the tracks is automatic.
t

he tracks cannot be recorded onto the music server.
You can play CDs with up to 8 levels, 100 folders and 255 files
maximum. Windows Media and Microsoft Corporation are trademarks
registered in the
u nited States and/or other countries.
General notes on files
MP3 and WMA audio file formats
MP3 is the abbreviation of MP eg -1 Audio Layer 3 and
MP
eg is the abbreviation of Motion Pictures e xperts g roup.
t
his is
a digital audio compression standard that reduces the size of audio
files by eliminating frequencies that are inaudible to the human ear .
t

his compression divides the size of the content of a conventional
audio CD by approximately 10, which means that the content of
10 audio CDs can be recorded onto a single CD-R or CD-RW.
WMA is the abbreviation of Windows Media Audio, another audio
data compression standard offered by Microsoft.
It can be used to create and save audio files at a compression rate
lower than that of the MP3 format, with an equivalent file size.
File handling
Some blank CDs may not be played by your equipment (quality,
recording speed...).
When you burn a CD-R or CD-RW, select the ISO 9660 level 1.2 or
Joliet burning standard.to obtain the best acoustic quality possible, select the lowest
burning speed.
t
he MP eg 1 and MP eg 2 standards are accepted.
transmission speeds between 32 and 320 kbits/s and scans
between 16 kHz and 48 kHz are accepted.
to display the title information (the name of the artist, the title of
the album, etc...), the information contained in the ID3 tags or the
WMA T

ags must be included in the MP3/WMA files burned onto
the
disc.
Copyright
Your audio system may allow you to listen to music which is usually
protected by copyright in accordance with current national and
international standards. Please consult these standards and comply
with them.
