2017 NISSAN TITAN XD Owners Manual

WIRELESS HEADPHONE
OPERATION
Installing the batteries
Before attempting to operate the headphones,
install the batteries as described below.1. Remove headphone battery cover
A.
2. Install two “AAA” batteries into the head- phones. Make sure the proper polarity (+ or
–) is observed.
3. Reinstall headphone battery cover.
Headphone operation
Press the power buttonAon the headphones to
turn on and off the headphones. The red LED will
illuminate when the headphone is turned on. Set
the select switch
Bto “A” or “B” for use with the
“A” monitor or “B” monitor respectively. Use the
volume thumb wheel
Cto adjust the volume level
for the headphone audio.
NOTE:
If the headphones are accidentally left on
and system is powered off, a battery saver
feature will automatically turn off the head-
phones after approximately 3 minutes.

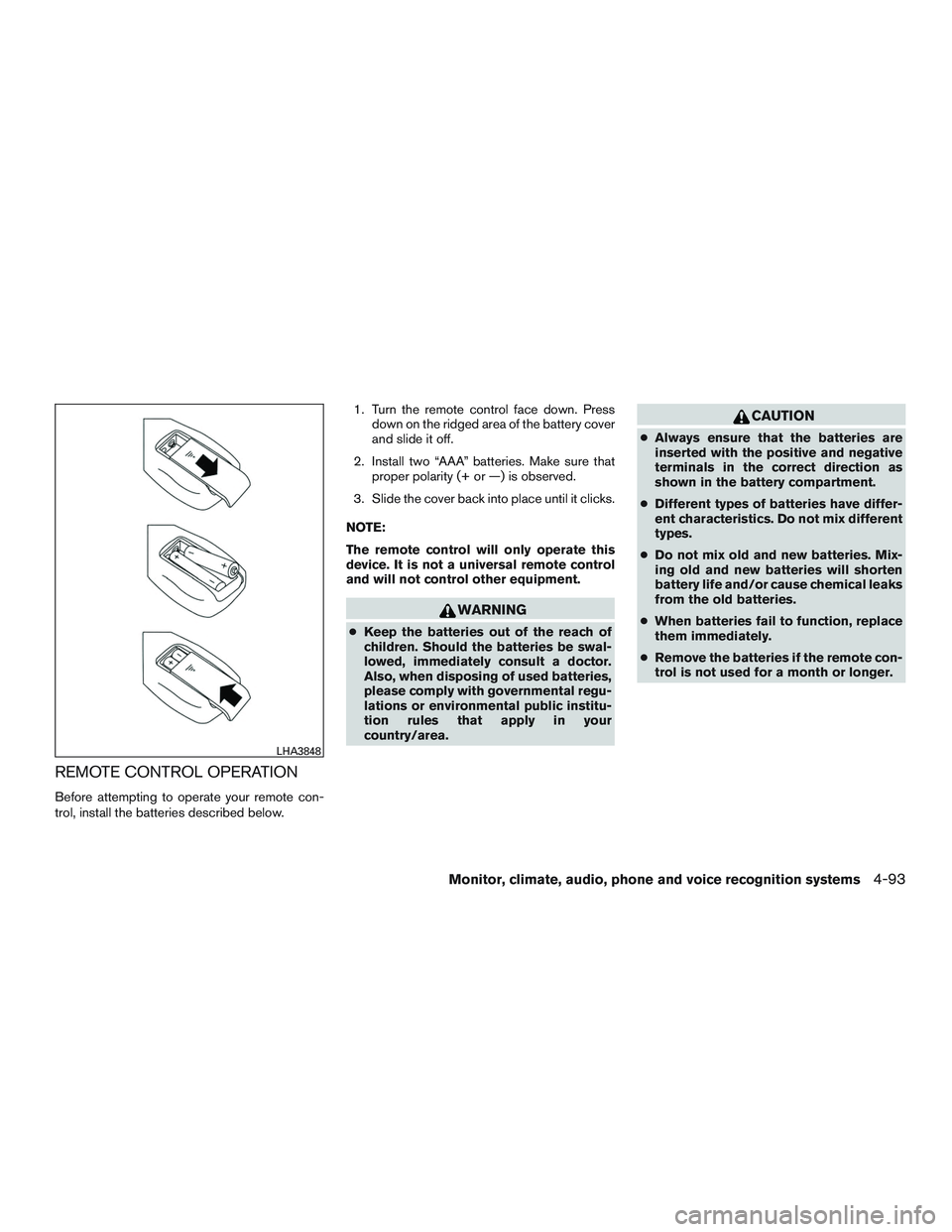

REMOTE CONTROL OPERATION
Before attempting to operate your remote con-
trol, install the batteries described below.1. Turn the remote control face down. Press
down on the ridged area of the battery cover
and slide it off.
2. Install two “AAA” batteries. Make sure that proper polarity (+ or —) is observed.
3. Slide the cover back into place until it clicks.
NOTE:
The remote control will only operate this
device. It is not a universal remote control
and will not control other equipment.
