2017 NISSAN TITAN XD Owners Manual

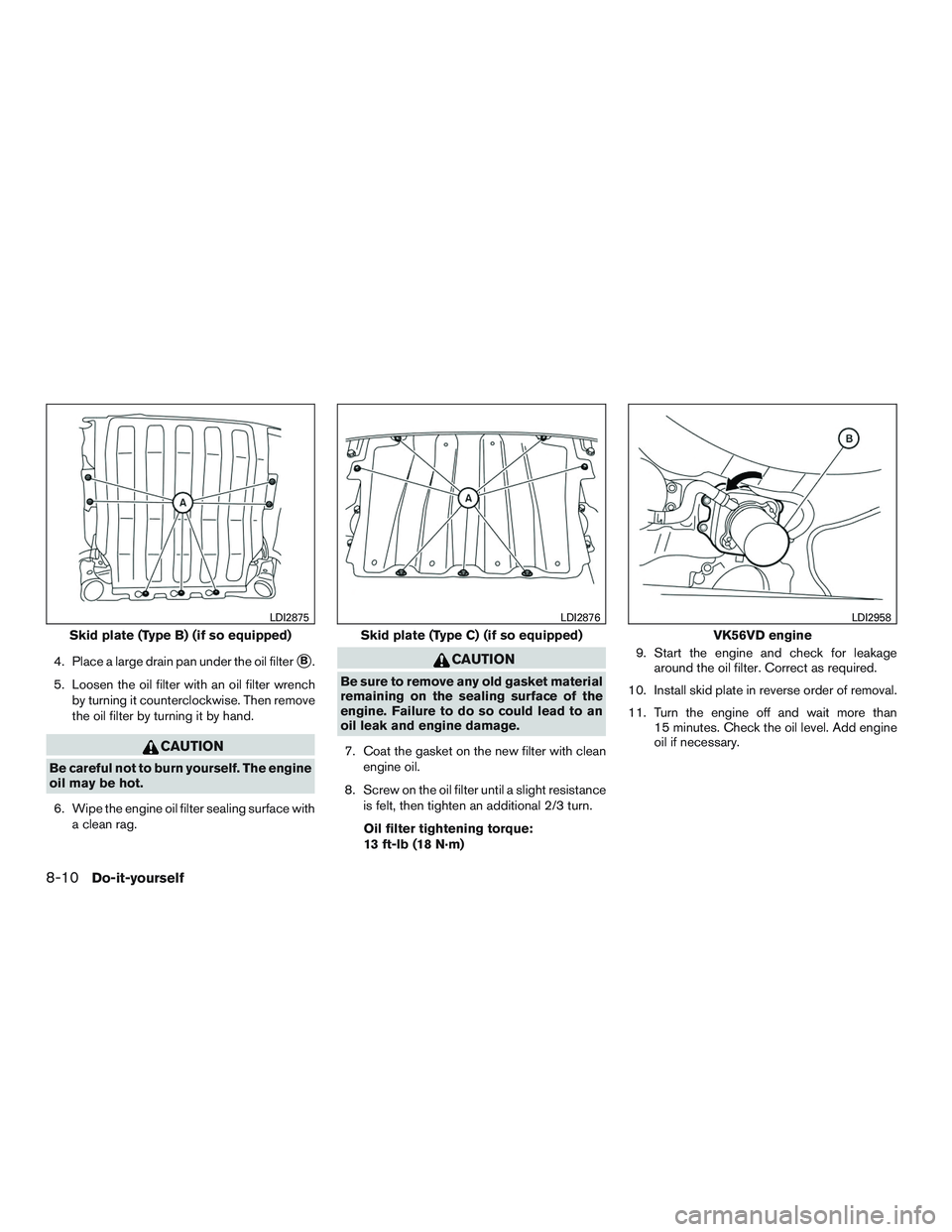

4. Place a large drain pan under the oil filterB.
5. Loosen the oil filter with an oil filter wrench by turning it counterclockwise. Then remove
the oil filter by turning it by hand.

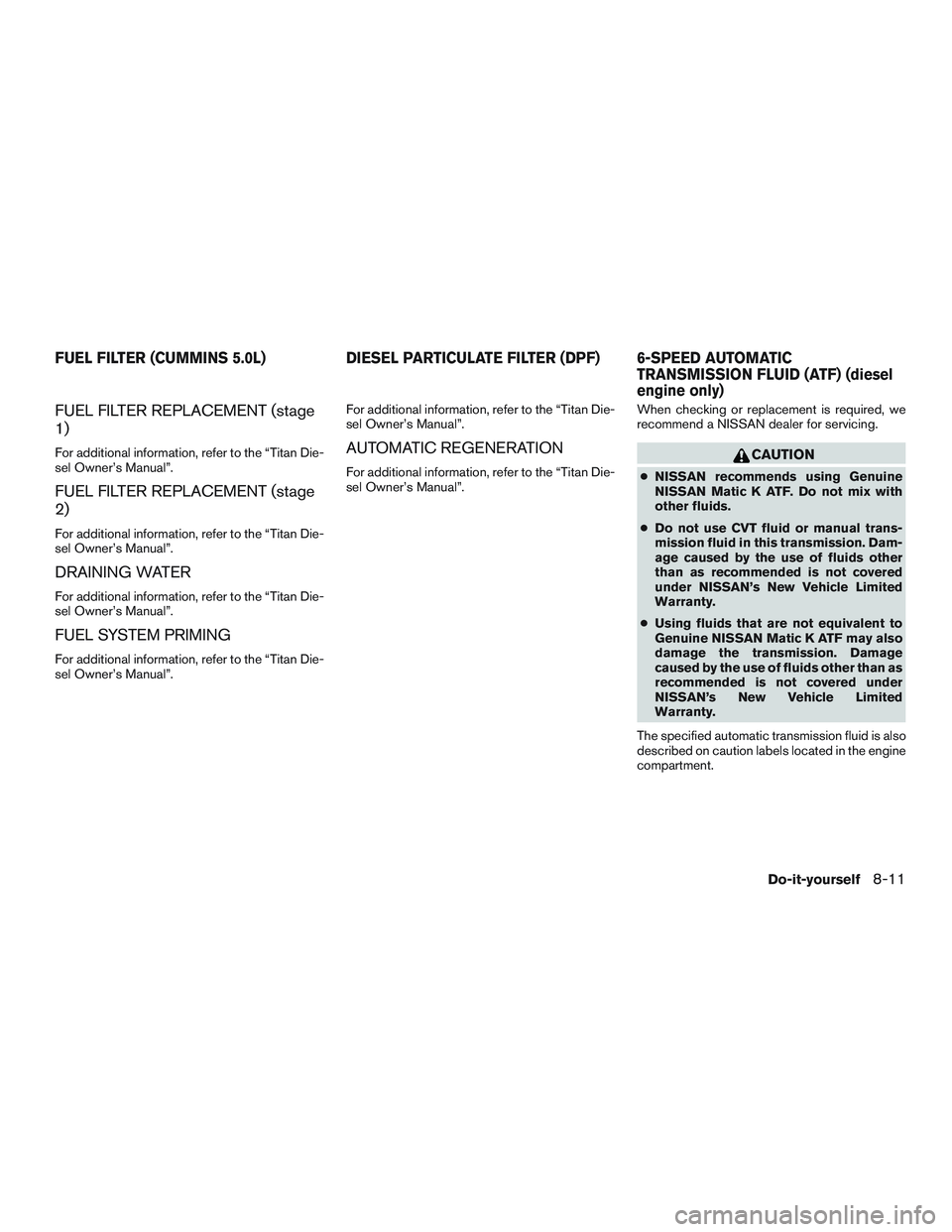

FUEL FILTER REPLACEMENT (stage
1)
For additional information, refer to the “Titan Die-
sel Owner’s Manual”.
FUEL FILTER REPLACEMENT (stage
2)
For additional information, refer to the “Titan Die-
sel Owner’s Manual”.
DRAINING WATER
For additional information, refer to the “Titan Die-
sel Owner’s Manual”.
FUEL SYSTEM PRIMING
For additional information, refer to the “Titan Die-
sel Owner’s Manual”.For additional information, refer to the “Titan Die-
sel Owner’s Manual”.
AUTOMATIC REGENERATION
For additional information, refer to the “Titan Die-
sel Owner’s Manual”.

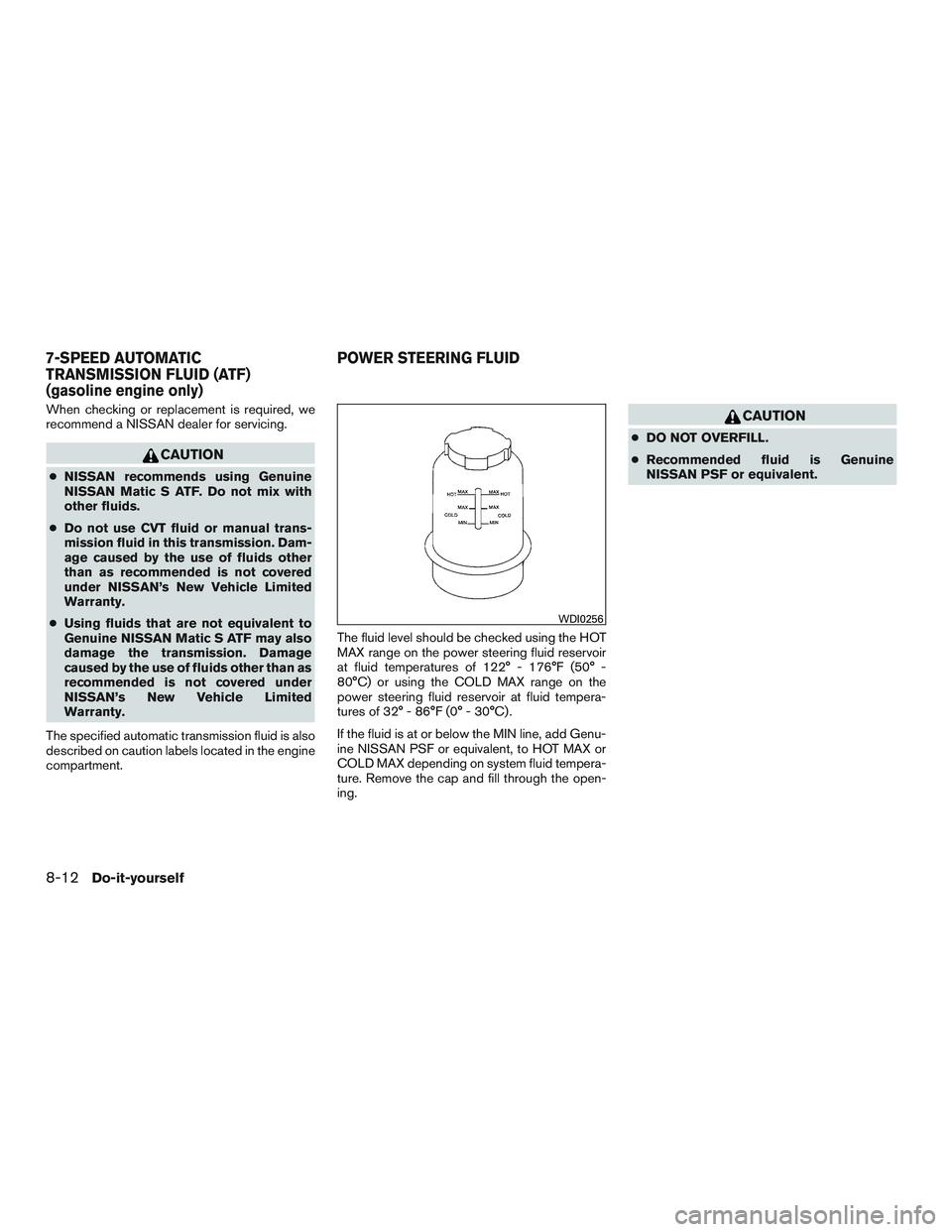

When checking or replacement is required, we
recommend a NISSAN dealer for servicing.

When checking or replacement is required, we
recommend a NISSAN dealer for servicing.

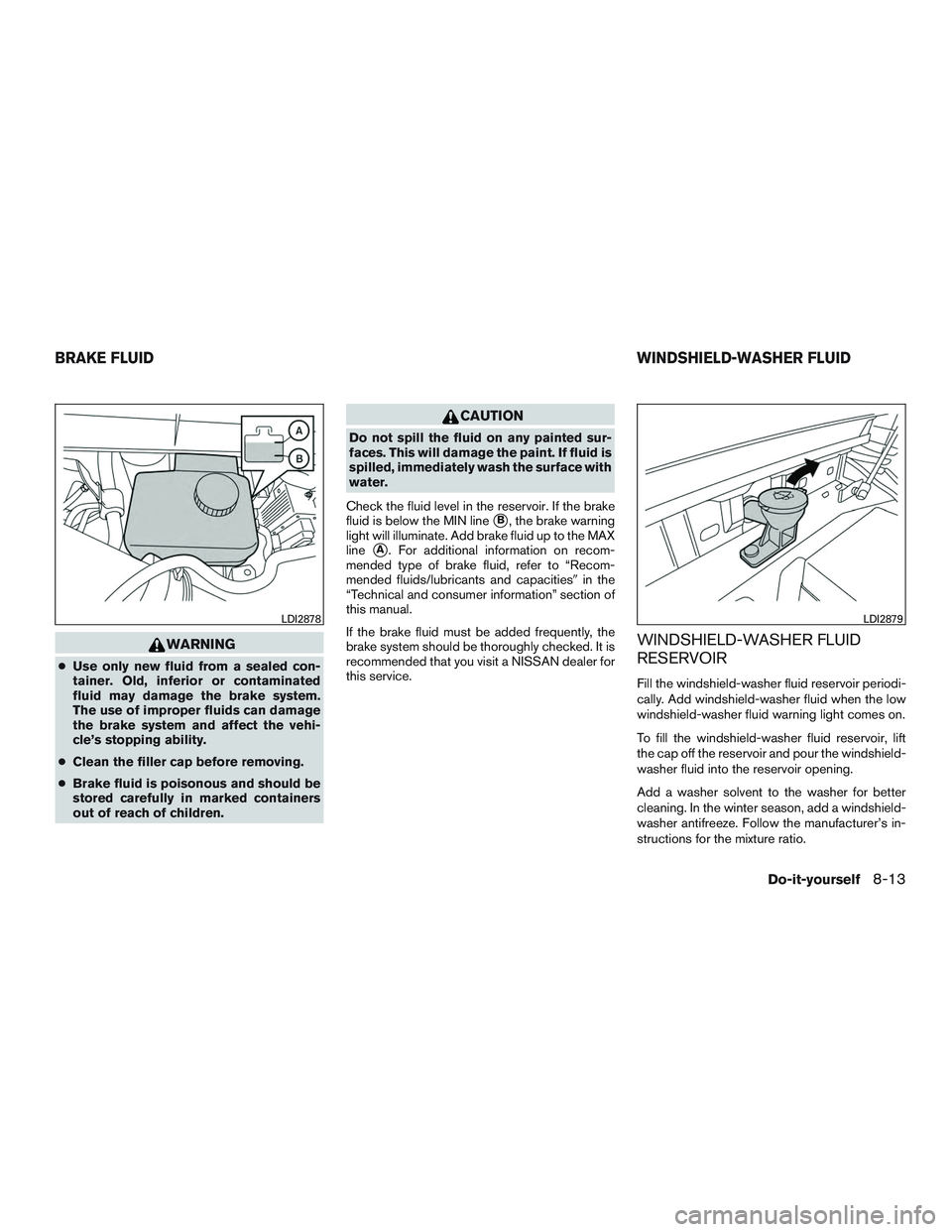

WARNING
●Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system and affect the vehi-
cle’s stopping ability.
● Clean the filler cap before removing.
● Brake fluid is poisonous and should be
stored carefully in marked containers
out of reach of children.

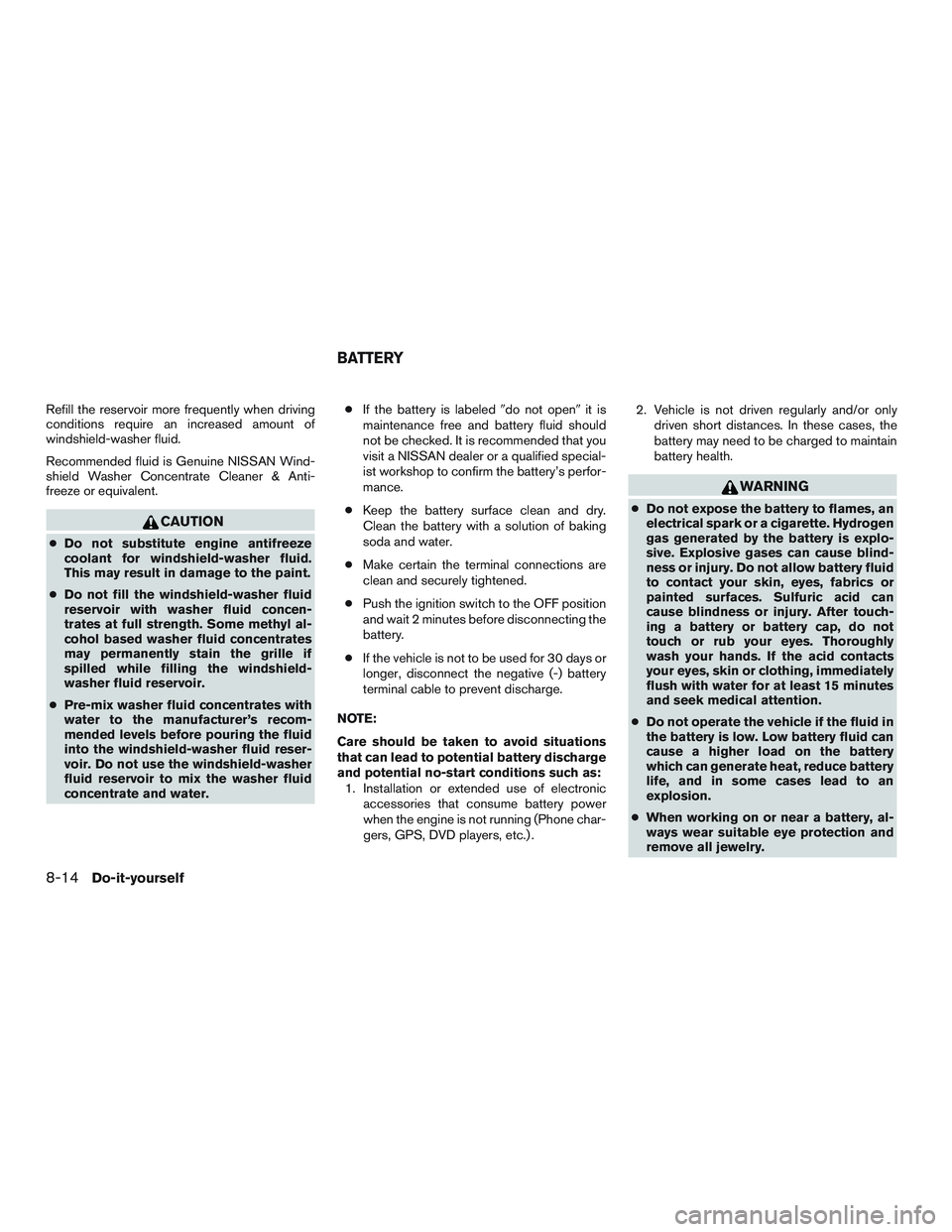

Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Anti-
freeze or equivalent.

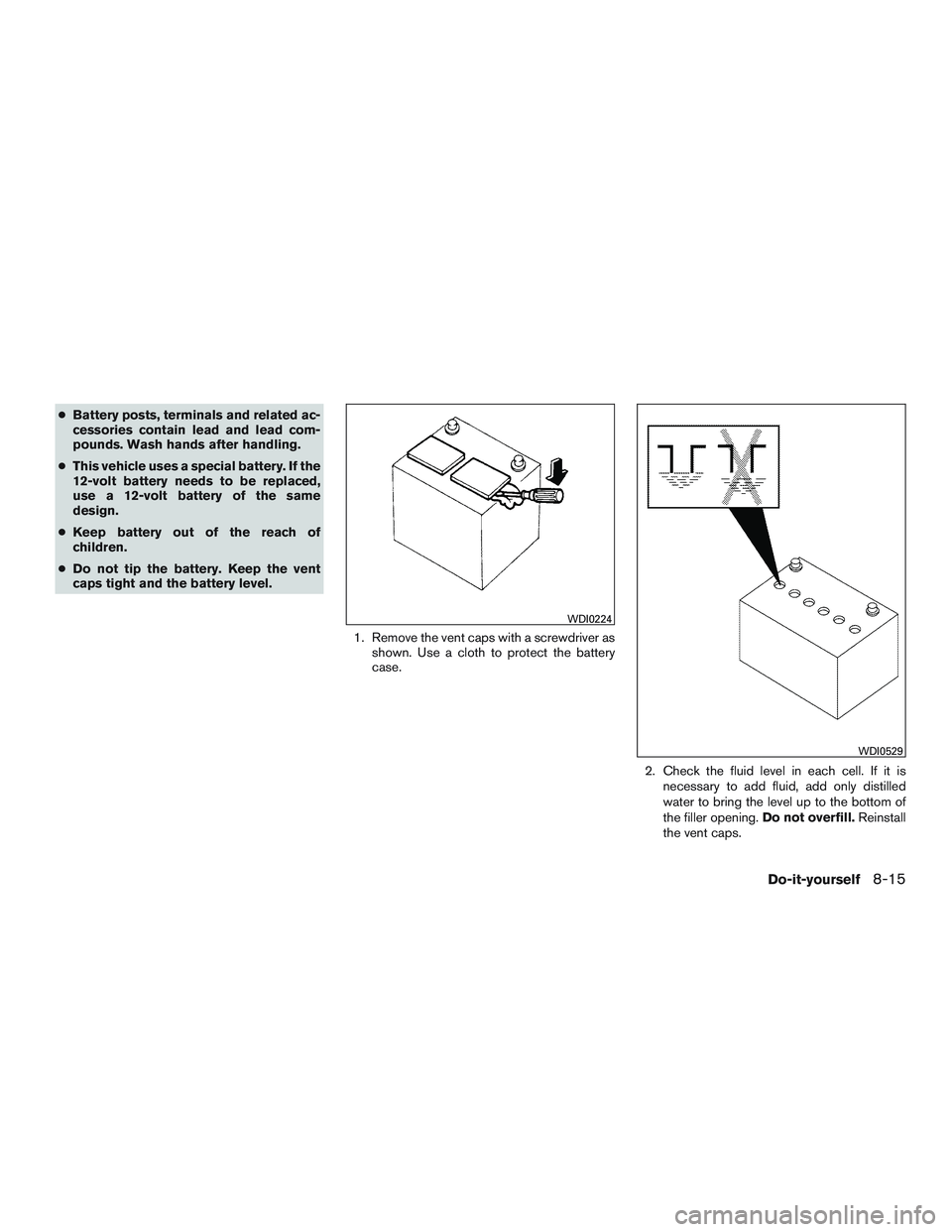

●Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
● This vehicle uses a special battery. If the
12-volt battery needs to be replaced,
use a 12-volt battery of the same
design.
● Keep battery out of the reach of
children.
● Do not tip the battery. Keep the vent
caps tight and the battery level.
1. Remove the vent caps with a screwdriver asshown. Use a cloth to protect the battery
case.
2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.Reinstall
the vent caps.

Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTING
If jump starting is necessary, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the engine does not start by jump
starting, the battery may have to be replaced. It is
recommended that you visit a NISSAN dealer for
this service.

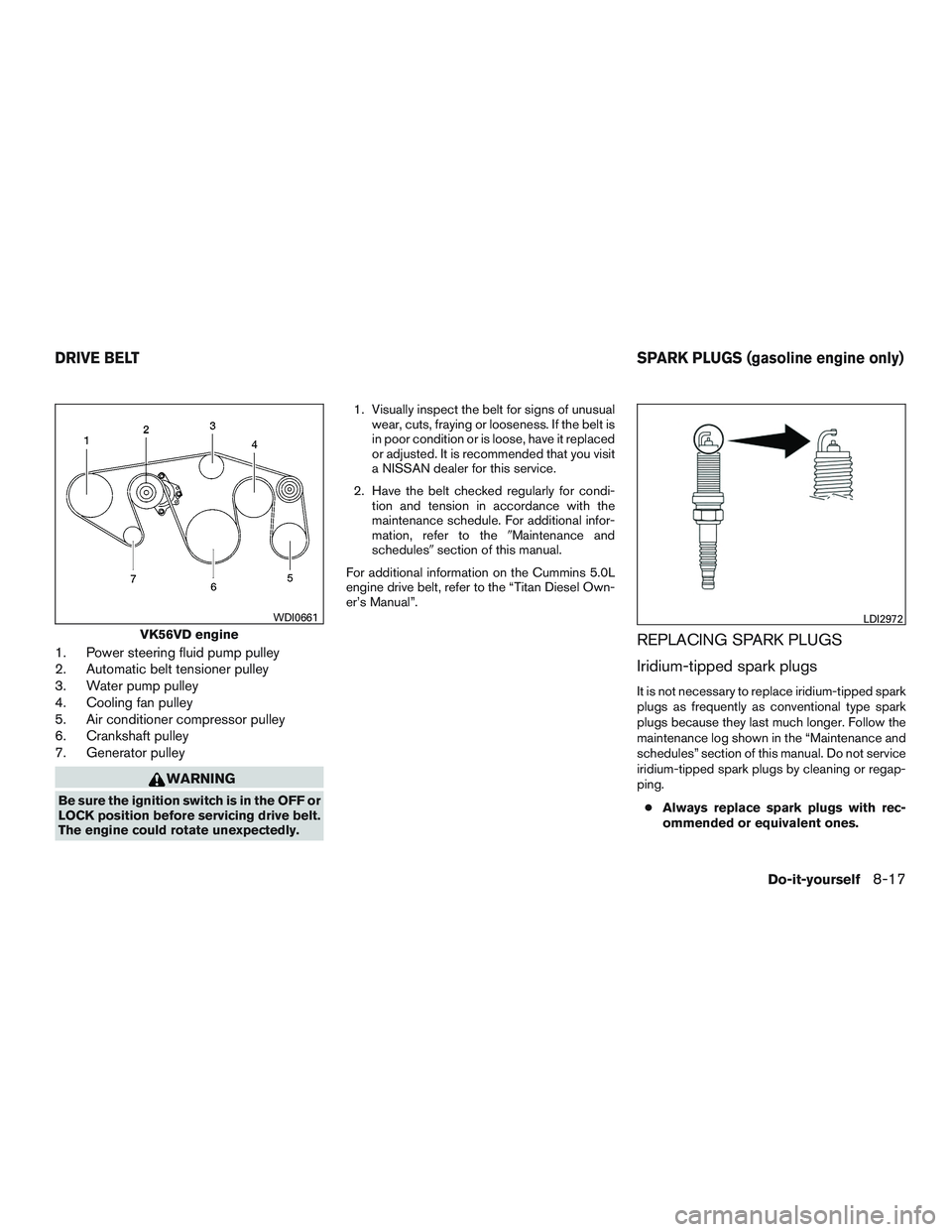

1. Power steering fluid pump pulley
2. Automatic belt tensioner pulley
3. Water pump pulley
4. Cooling fan pulley
5. Air conditioner compressor pulley
6. Crankshaft pulley
7. Generator pulley
