2017 NISSAN TITAN XD Owners Manual

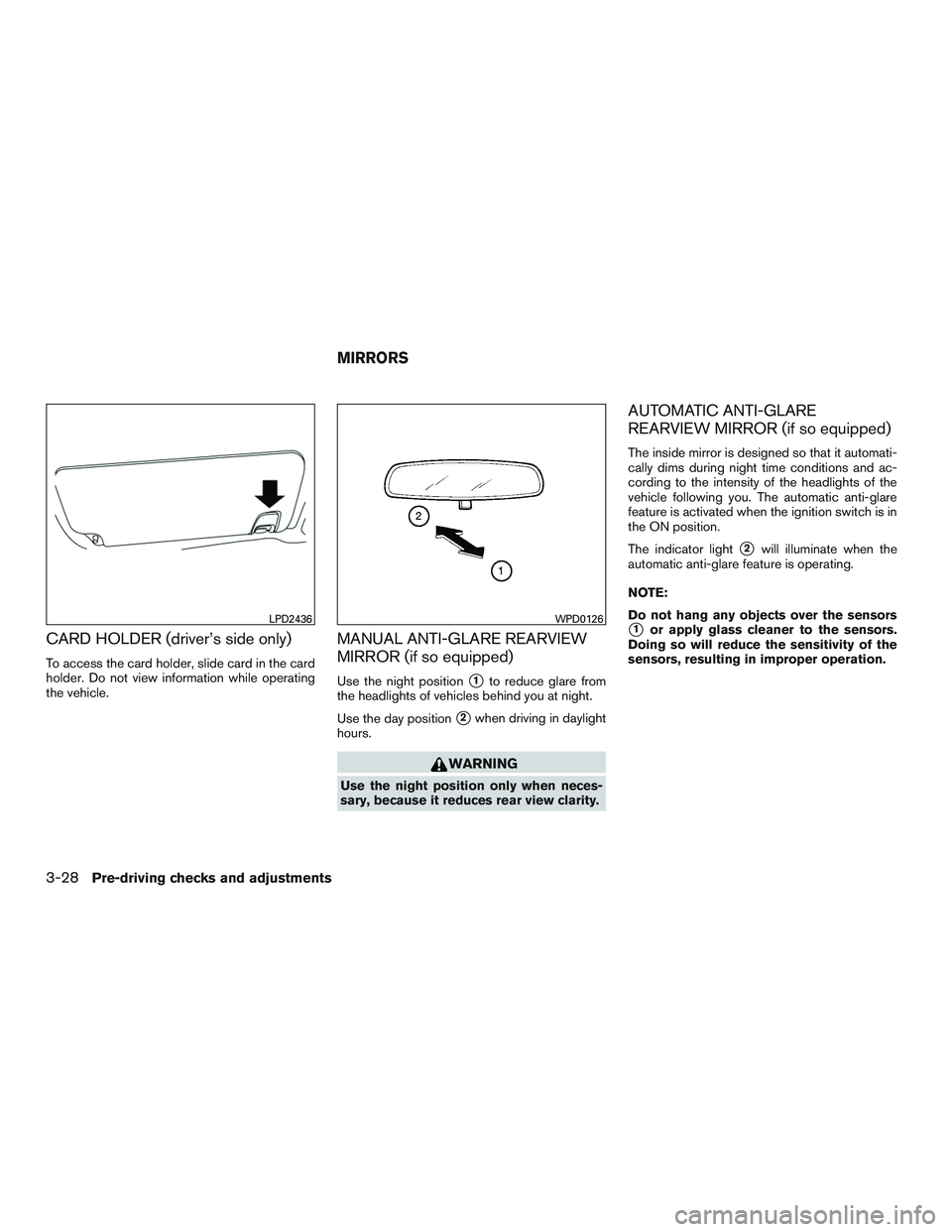

CARD HOLDER (driver’s side only)
To access the card holder, slide card in the card
holder. Do not view information while operating
the vehicle.
MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare from
the headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.

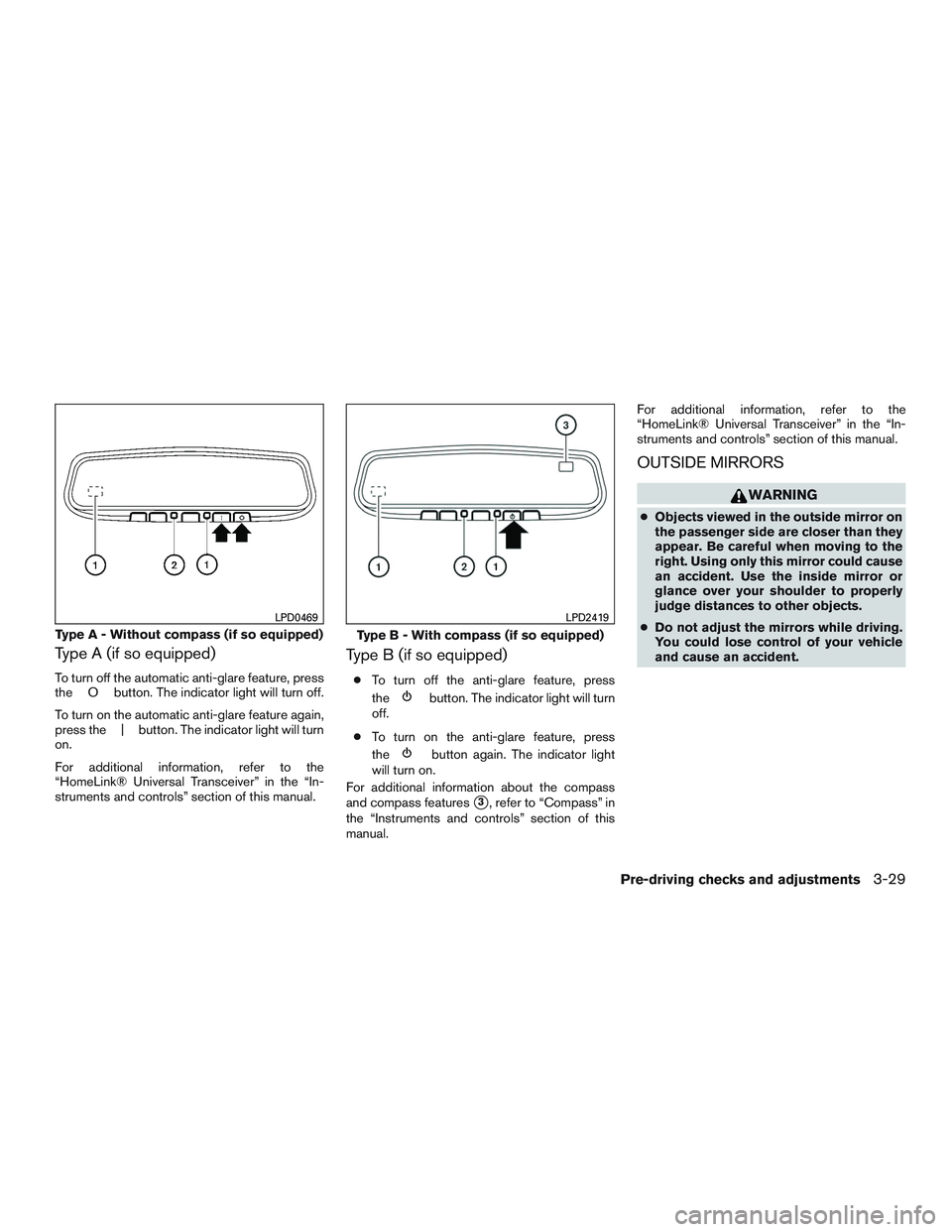

Type A (if so equipped)
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off.
To turn on the automatic anti-glare feature again,
press the | button. The indicator light will turn
on.
For additional information, refer to the
“HomeLink® Universal Transceiver” in the “In-
struments and controls” section of this manual.
Type B (if so equipped)
●To turn off the anti-glare feature, press
the

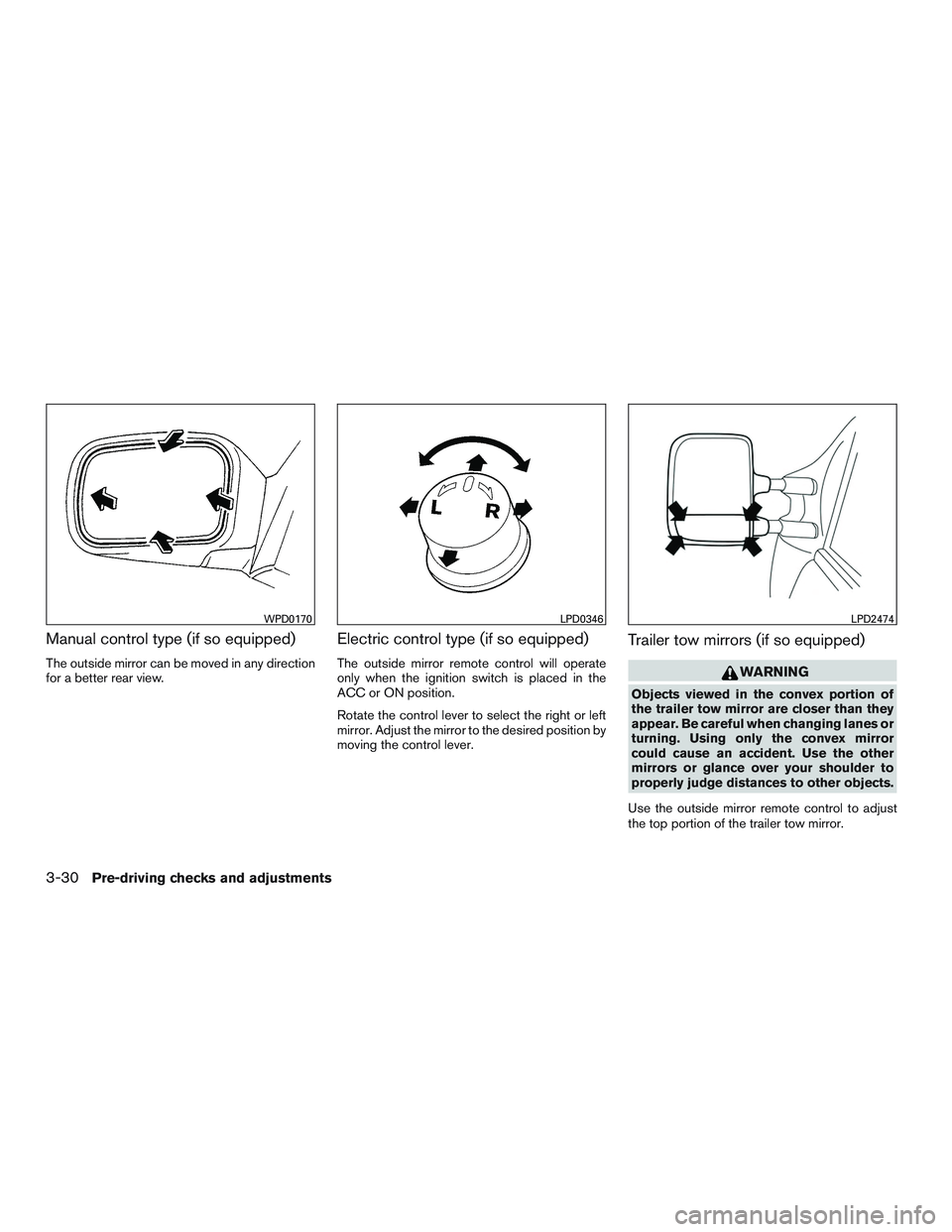

Manual control type (if so equipped)
The outside mirror can be moved in any direction
for a better rear view.
Electric control type (if so equipped)
The outside mirror remote control will operate
only when the ignition switch is placed in the
ACC or ON position.
Rotate the control lever to select the right or left
mirror. Adjust the mirror to the desired position by
moving the control lever.
Trailer tow mirrors (if so equipped)

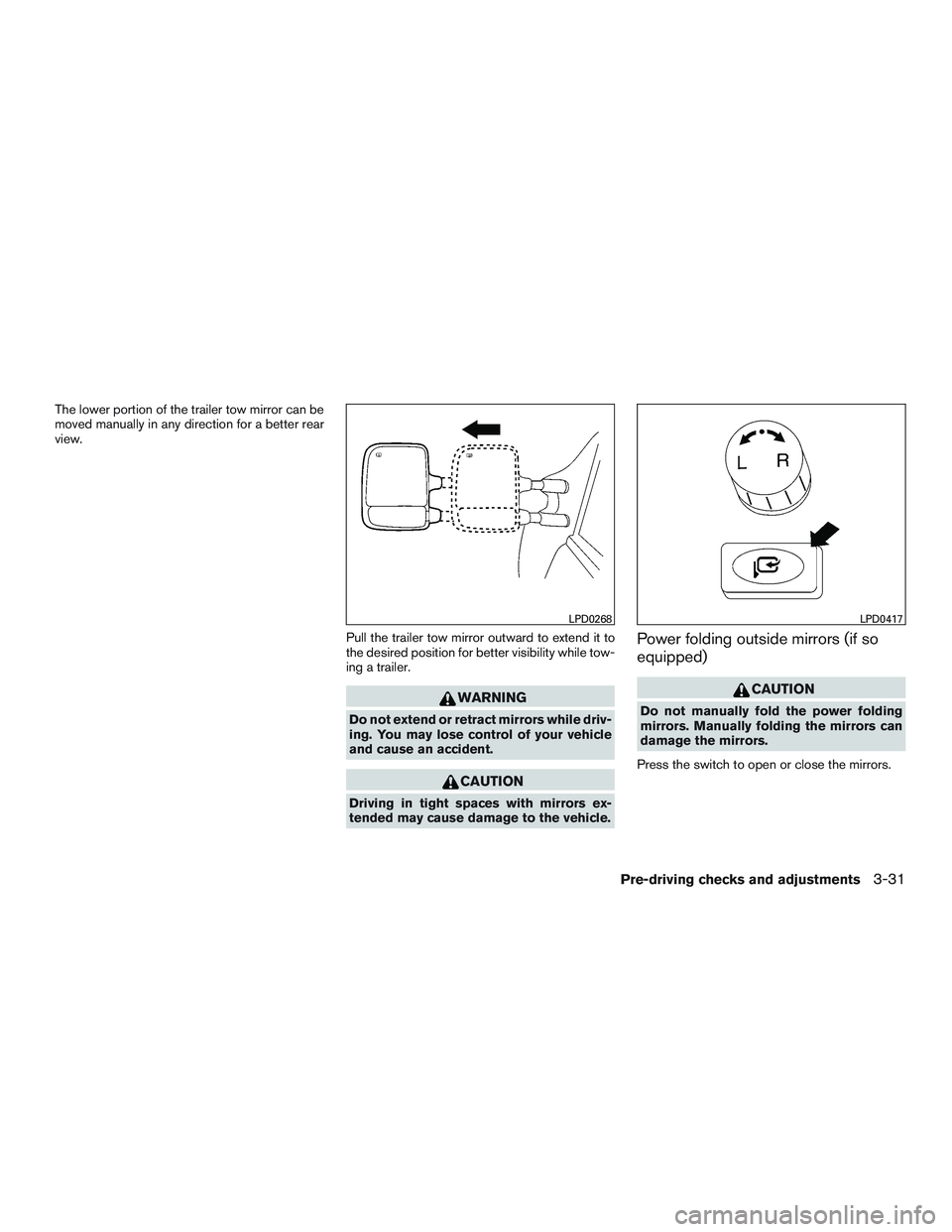

The lower portion of the trailer tow mirror can be
moved manually in any direction for a better rear
view.Pull the trailer tow mirror outward to extend it to
the desired position for better visibility while tow-
ing a trailer.

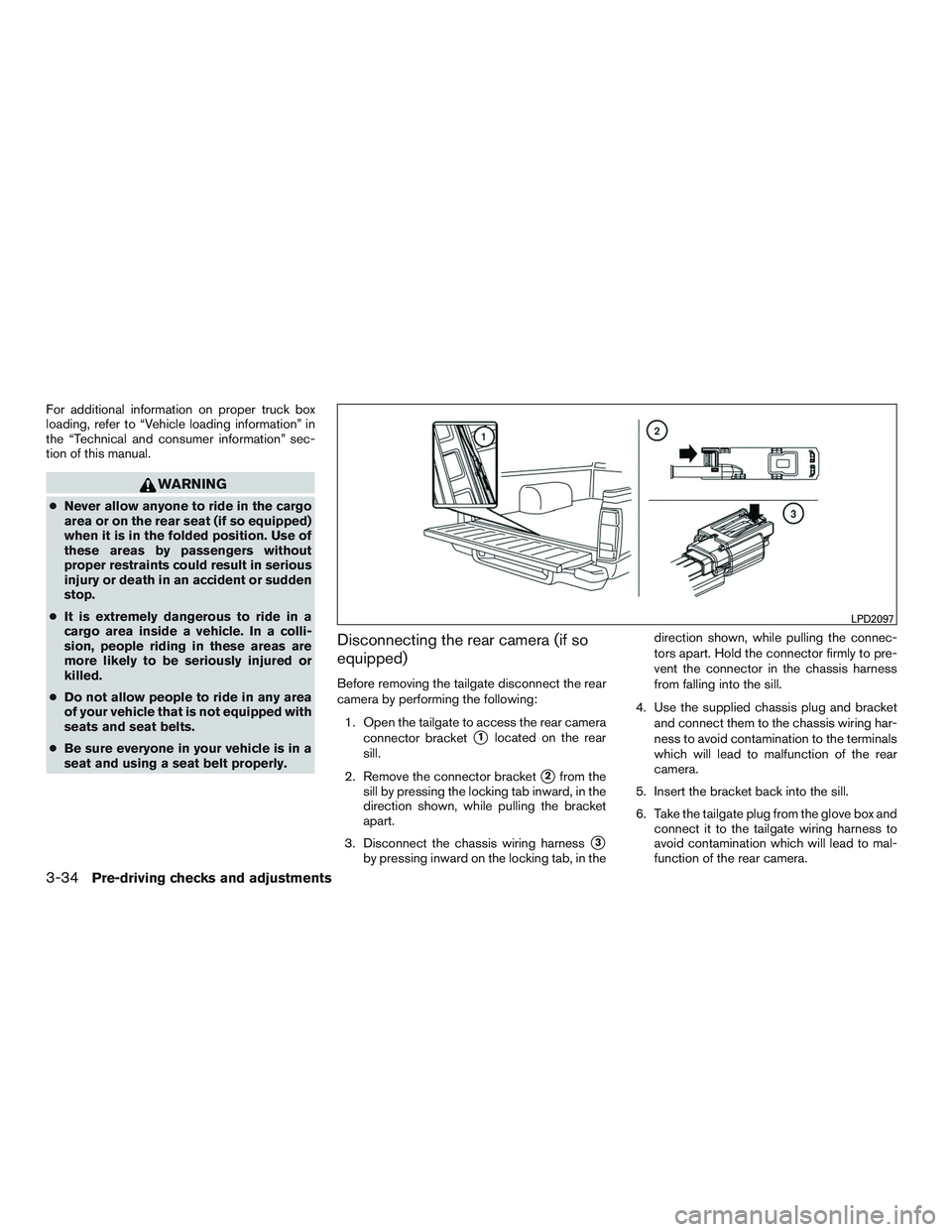

For additional information on proper truck box
loading, refer to “Vehicle loading information” in
the “Technical and consumer information” sec-
tion of this manual.

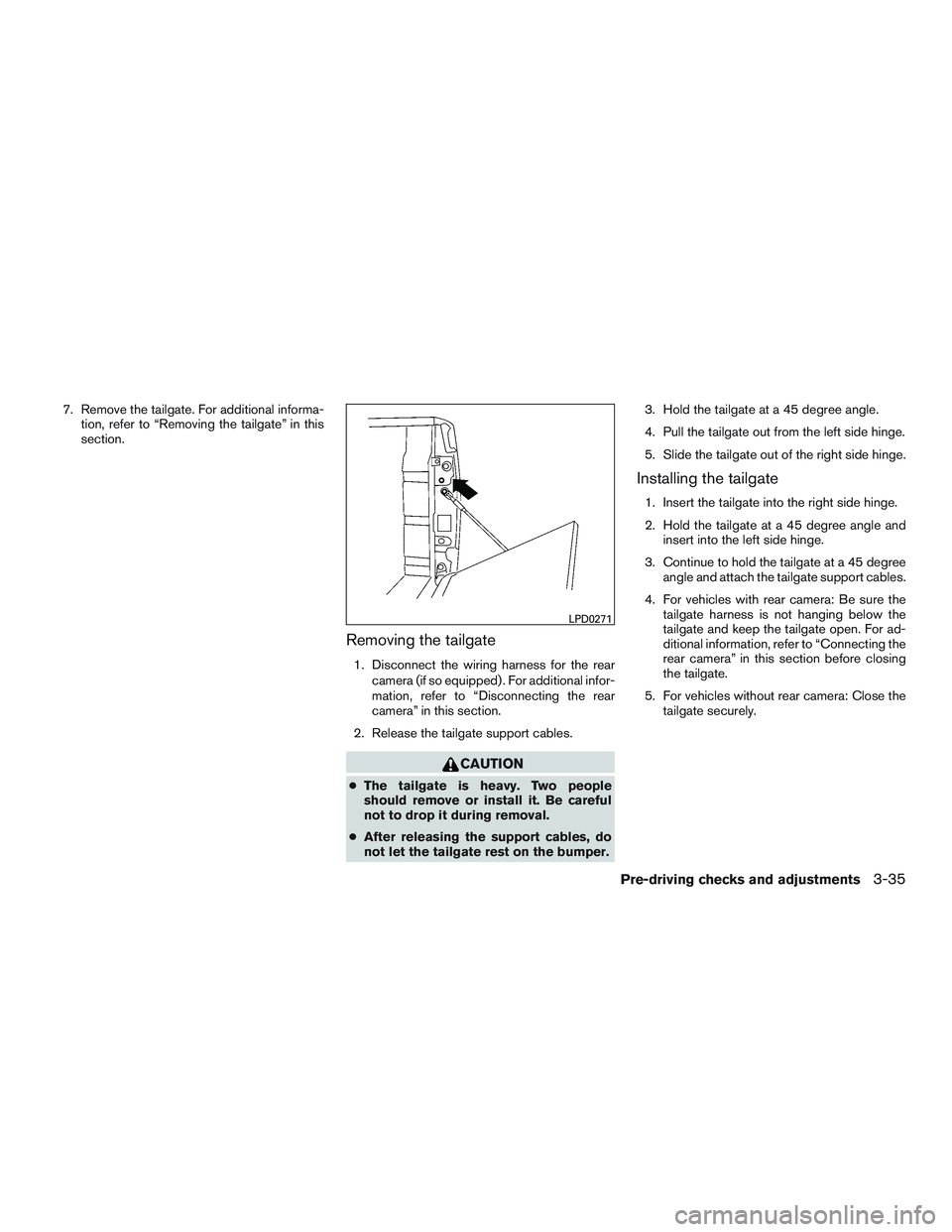

7. Remove the tailgate. For additional informa-tion, refer to “Removing the tailgate” in this
section.
Removing the tailgate
1. Disconnect the wiring harness for the rear
camera (if so equipped) . For additional infor-
mation, refer to “Disconnecting the rear
camera” in this section.
2. Release the tailgate support cables.
