FUEL FILTER REPLACEMENT (stage
2)
NOTE:● It is possible the “Low Fuel Pressure
Service Fuel System” message will dis-
play on the vehicle information display
after fuel filter replacement due to air
being introduced into the fuel system. ●
If the “Low Fuel Pressure Service Fuel
System” message is displayed on the
vehicle information display with the
engine running, complete a full key
cycle and restart the vehicle. If the mes-
sage is still displayed or the Malfunc-
tion Indicator Light is illuminated after
a full key cycle , it is recommended that
you visit a NISSAN dealer for service.
● For additional information on the loca-
tion of the fuel filter (stage 2) , refer to
the “Engine compartment check loca-
tions” in this section.

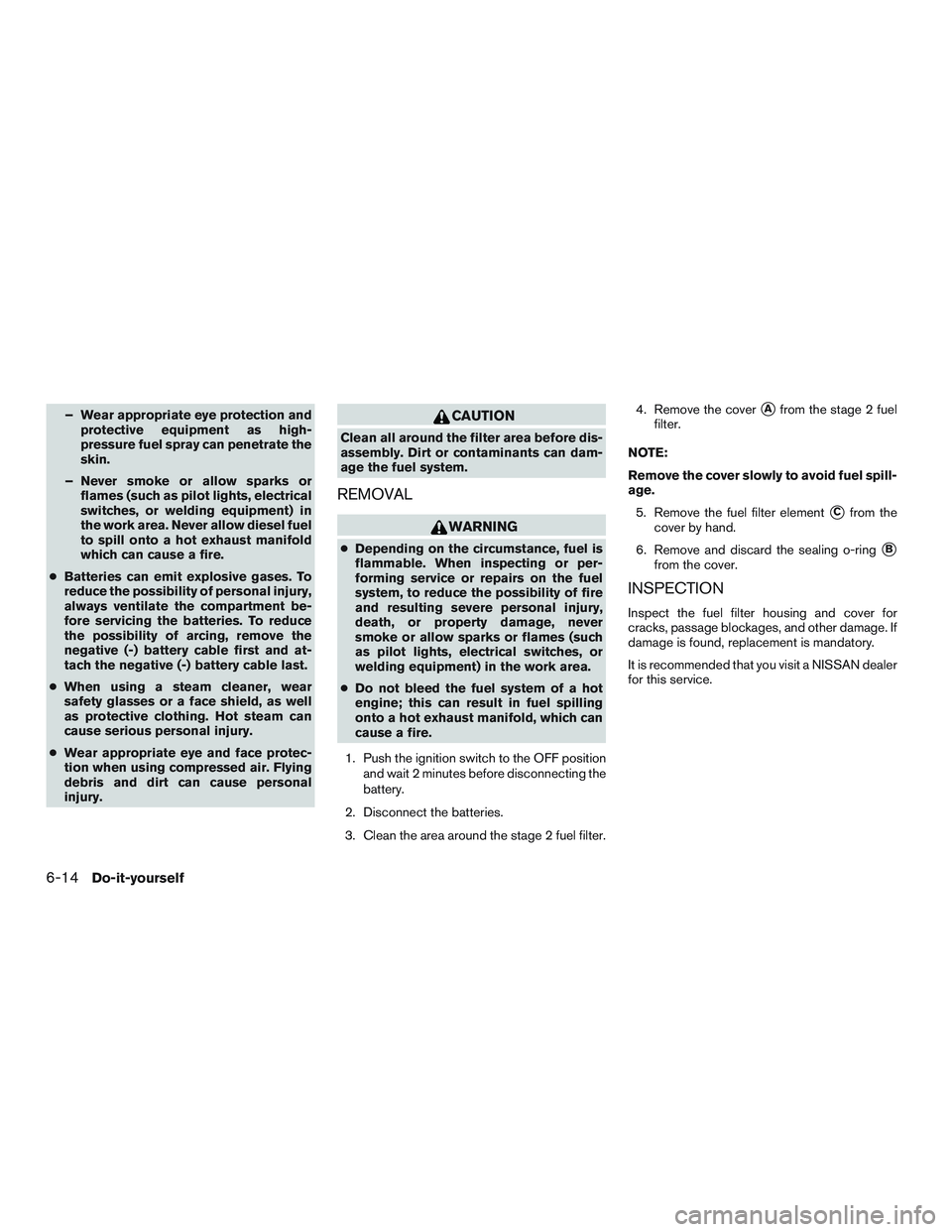

– Wear appropriate eye protection andprotective equipment as high-
pressure fuel spray can penetrate the
skin.
– Never smoke or allow sparks or flames (such as pilot lights, electrical
switches, or welding equipment) in
the work area. Never allow diesel fuel
to spill onto a hot exhaust manifold
which can cause a fire.
● Batteries can emit explosive gases. To
reduce the possibility of personal injury,
always ventilate the compartment be-
fore servicing the batteries. To reduce
the possibility of arcing, remove the
negative (-) battery cable first and at-
tach the negative (-) battery cable last.
● When using a steam cleaner, wear
safety glasses or a face shield, as well
as protective clothing. Hot steam can
cause serious personal injury.
● Wear appropriate eye and face protec-
tion when using compressed air. Flying
debris and dirt can cause personal
injury.

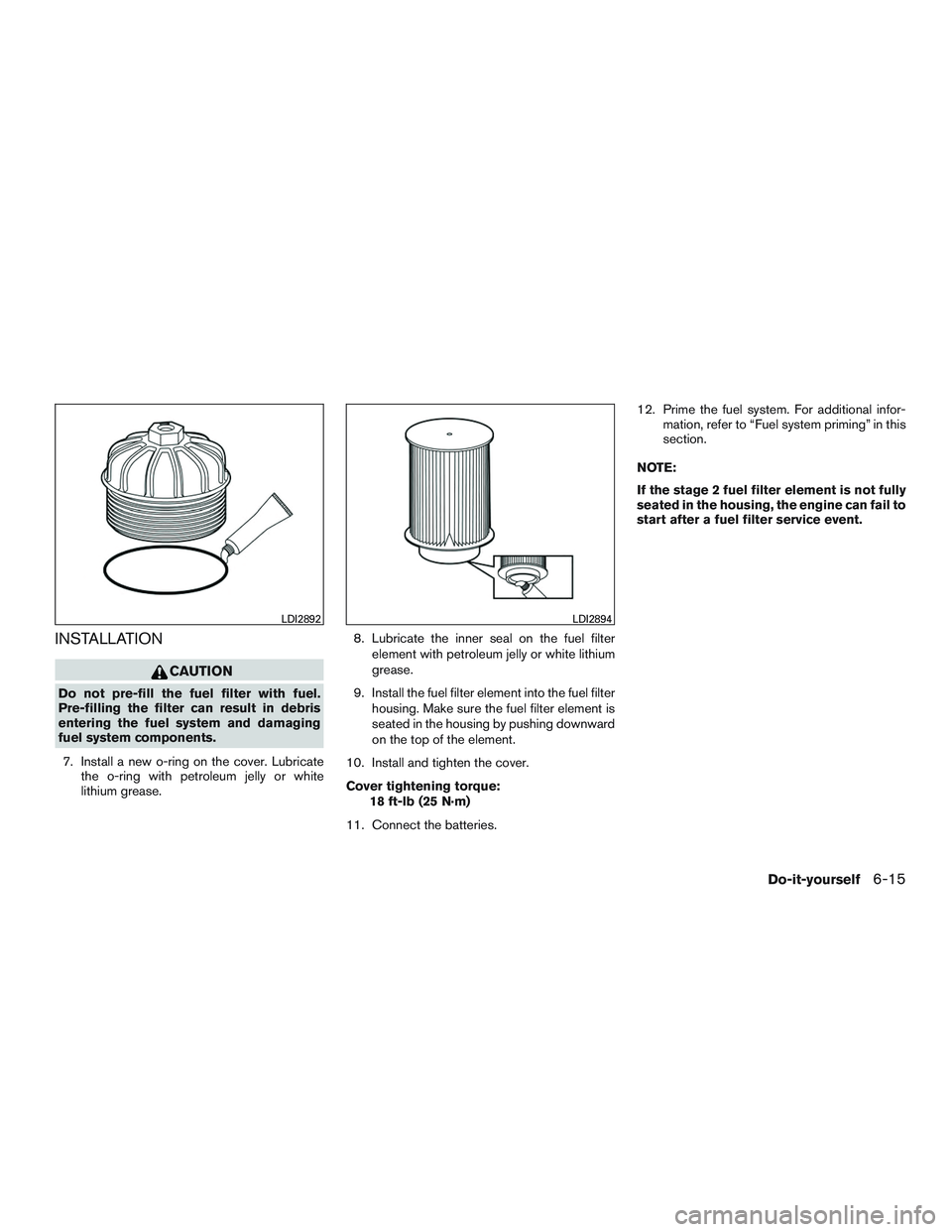

INSTALLATION

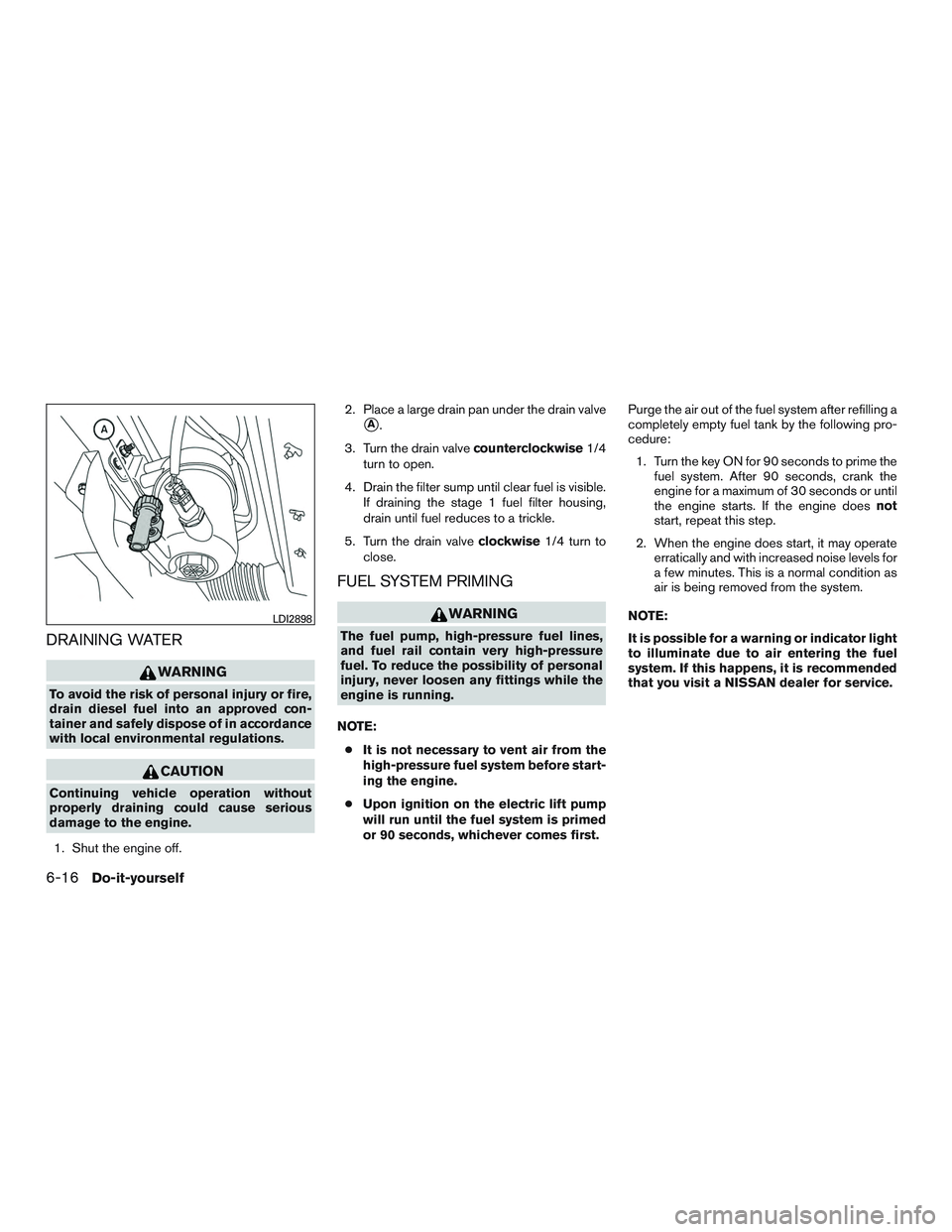

DRAINING WATER

WARNING
●Stay clear from the exhaust outlet and
exhaust gases. These can cause burns
or personal injury.
● To avoid the risk of personal injury or
fire, do not park the vehicle over flam-
mable materials such as dry grass,
waste paper or rags, as hot vehicle com-
ponents may ignite them.

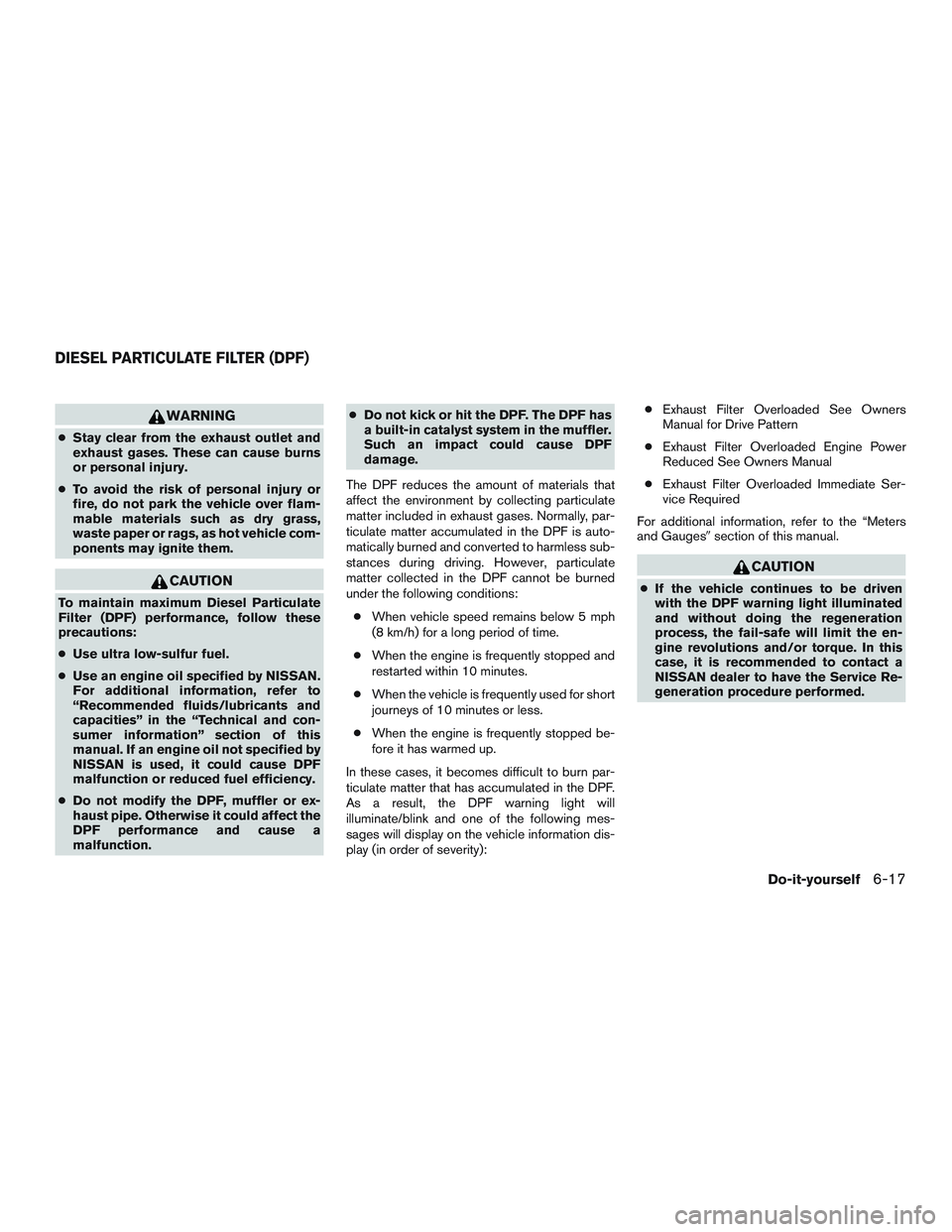

AUTOMATIC REGENERATION
Automatic regeneration occurs when the control
module detects the exhaust filter needs to be
cleaned. This is a normal process and will not
typically require any operator interaction.
If the automatic regeneration is not able to clean
the exhaust filter the vehicle information display
will display the following messages in order of
severity:● Exhaust Filter Overloaded See Owners
Manual for Drive Pattern
● Exhaust Filter Overloaded Engine Power
Reduced See Owners Manual
● Exhaust Filter Overloaded Immediate Ser-
vice Required
The instructions for these messages in the “Me-
ters and Gauges” section of this manual will
inform the driver to modify their driving pattern to
enable the automatic regeneration process.
1. Idler pulley
2. Cooling fan pulley
3. Idler pulley
4. Power steering fluid pump pulley
5. Air conditioner compressor pulley
6. Water pump pulley
7. Crankshaft pulley
8. Automatic belt tensioner pulley
9. Generator pulley

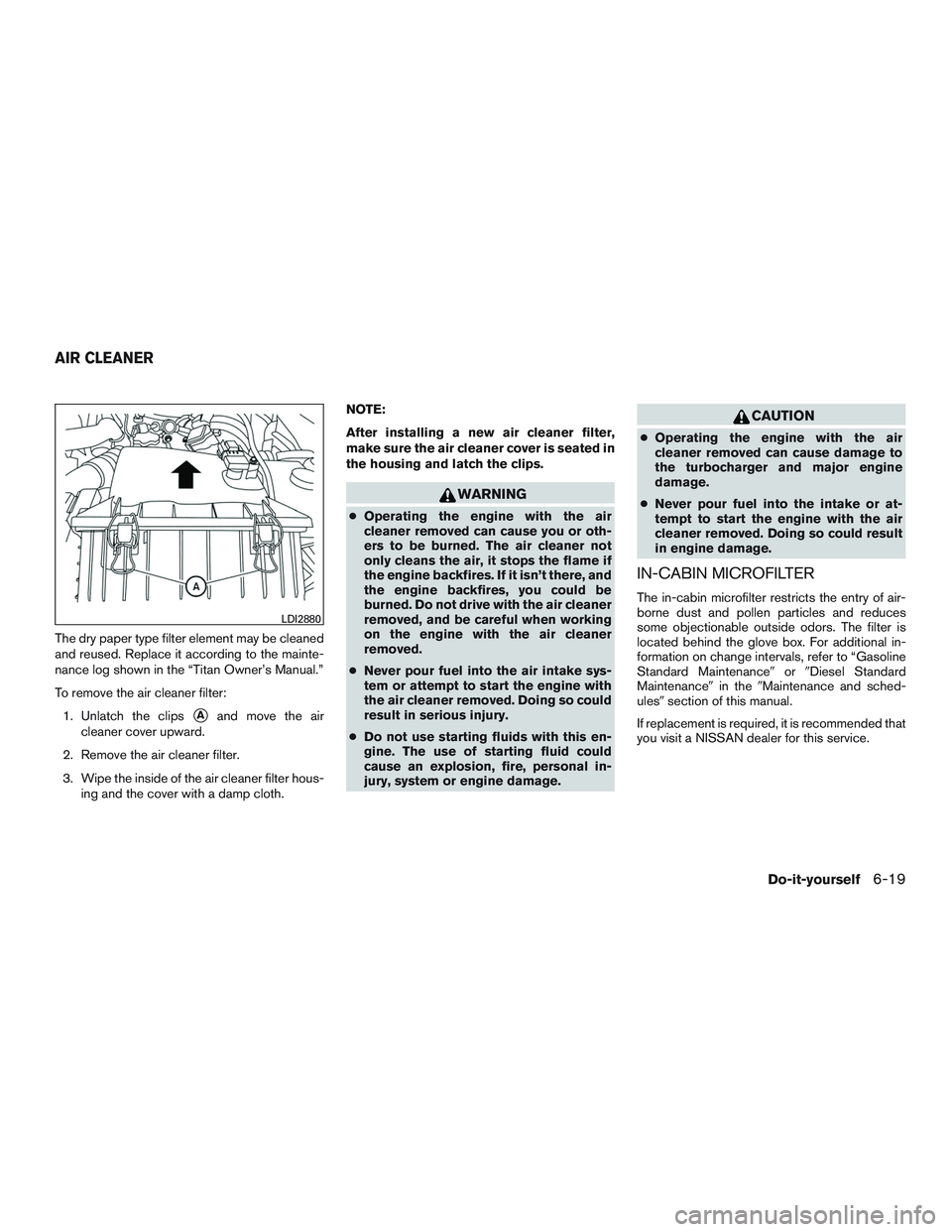

The dry paper type filter element may be cleaned
and reused. Replace it according to the mainte-
nance log shown in the “Titan Owner’s Manual.”
To remove the air cleaner filter:1. Unlatch the clips
Aand move the air
cleaner cover upward.
2. Remove the air cleaner filter.
3. Wipe the inside of the air cleaner filter hous- ing and the cover with a damp cloth. NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is seated in
the housing and latch the clips.
