2017 NISSAN TITAN XD Owners Manual

The non-viewable area2is highlighted in yellow
for several seconds after the bird’s-eye view is
displayed. It will be shown only the first time after
the ignition switch is placed in the ON position.
The driver can check the approximate direction
and angle of the tire on the display by the tire icon
3when driving the vehicle forward or backward.

Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to the position
Aif the object projects over the
actual backing up course.

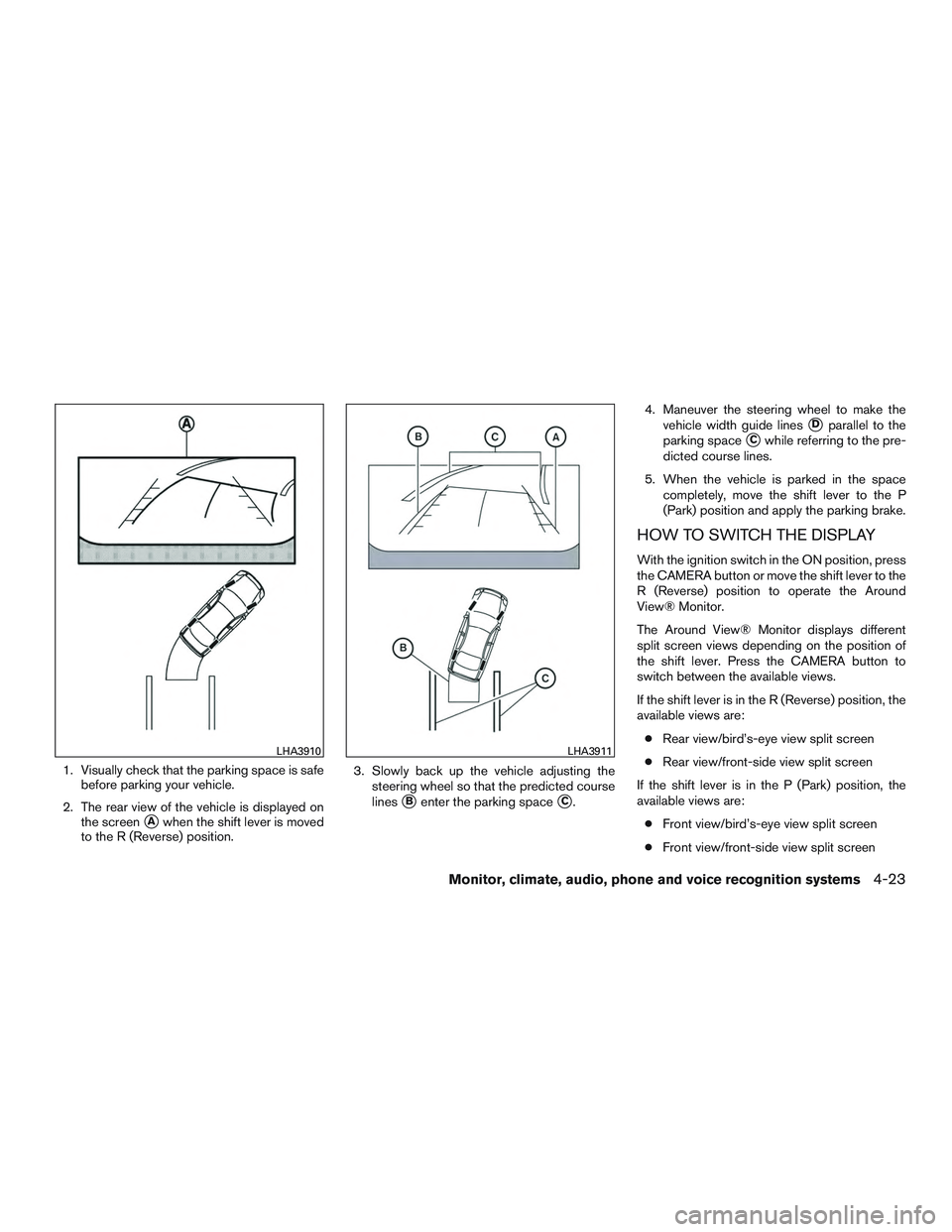

HOW TO PARK WITH PREDICTED
COURSE LINES

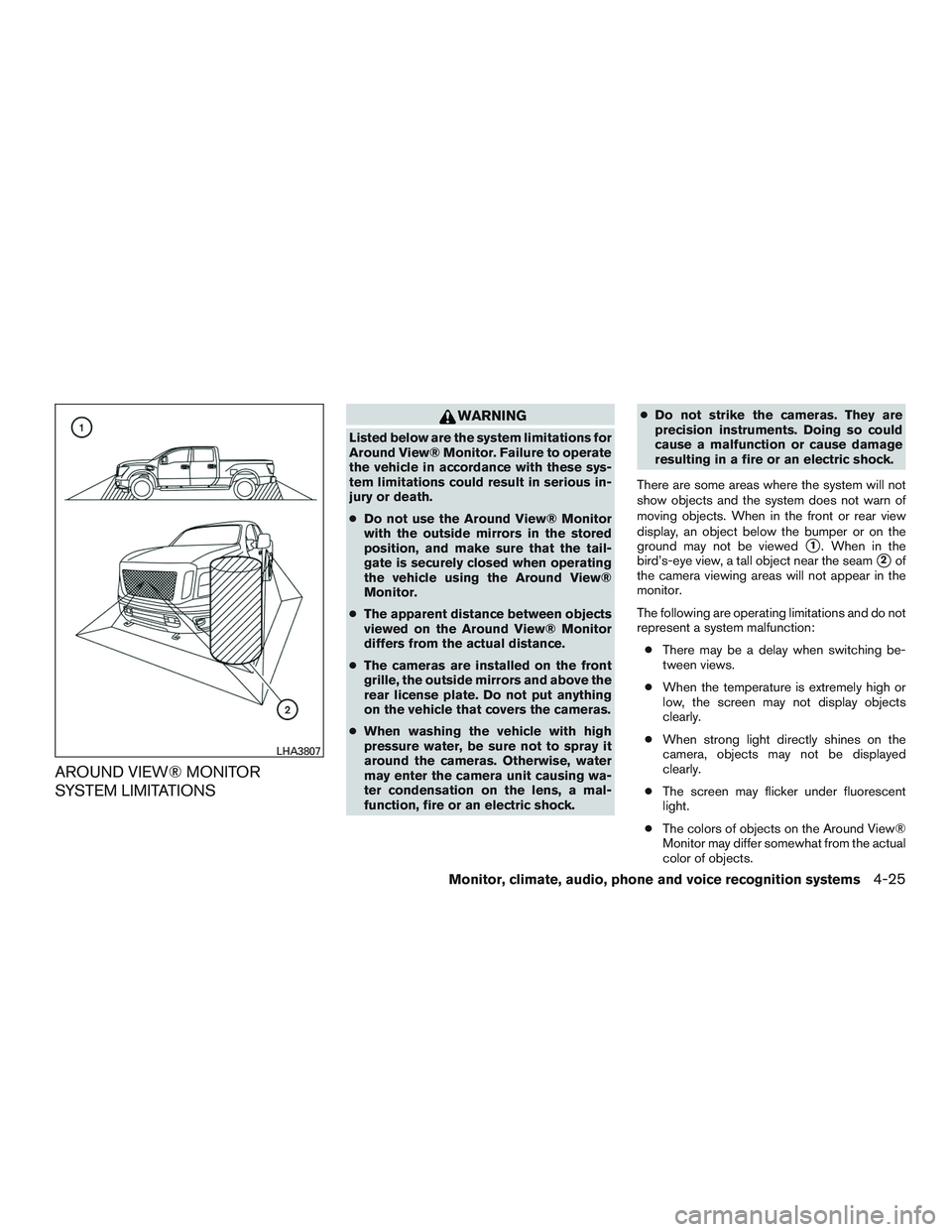

AROUND VIEW® MONITOR
SYSTEM LIMITATIONS

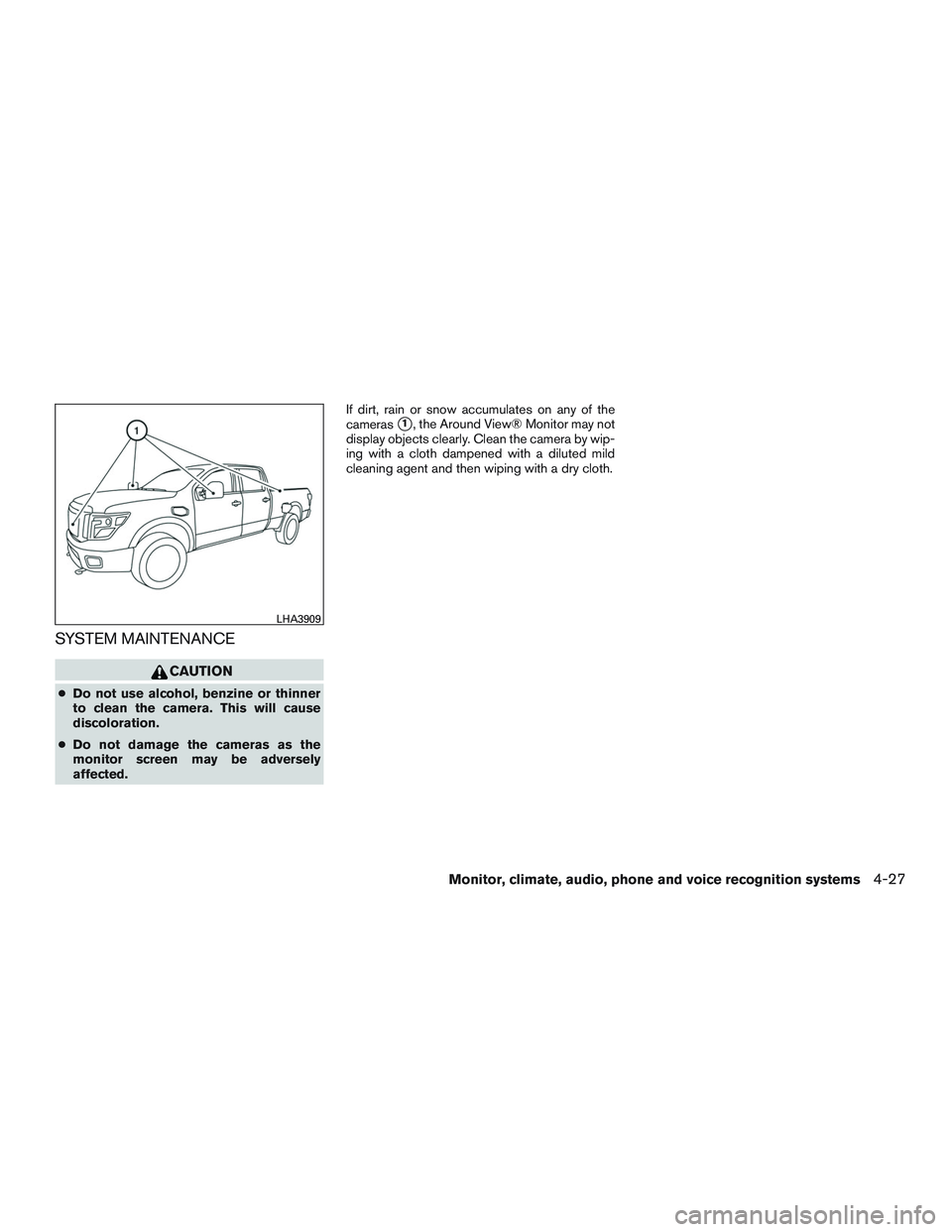

SYSTEM MAINTENANCE
