2017 NISSAN GT-R display


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVH1371X

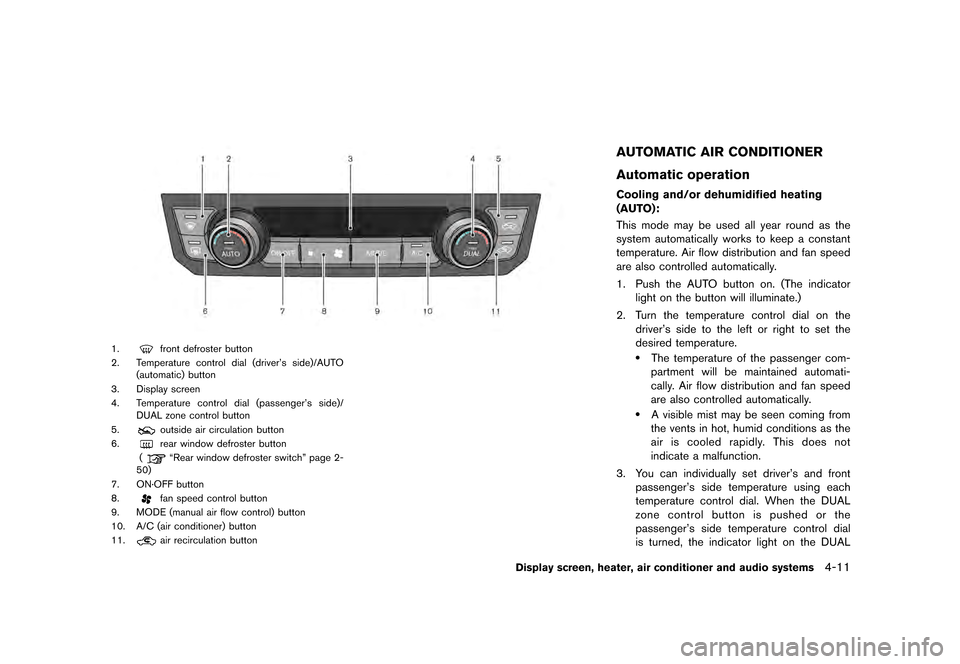

1.front defroster button
2. Temperature control dial (driver's side)/AUTO (automatic) button
3. Display screen
4. Temperature control dial (passenger's side)/
DUAL zone control button
5.
outside air circulation button
6.
rear window defroster button
(
ªRear window defroster switchº page 2-
50)
7. ON´OFF button
8.
fan speed control button
9. MODE (manual air flow control) button
10. A/C (air conditioner) button
11.
air recirculation button
AUTOMATIC AIR CONDITIONERGUID-67E194D9-873D-4841-A1A6-6F42B8471034
Automatic operationGUID-07C7A6DE-1D71-4ADA-B622-88DB2EF0DD77
Cooling and/or dehumidified heating
(AUTO):
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution and fan speed
are also controlled automatically.
1. Push the AUTO button on. (The indicator light on the button will illuminate.)
2. Turn the temperature control dial on the driver's side to the left or right to set the
desired temperature.
.The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
.A visible mist may be seen coming from
the vents in hot, humid conditions as the
air is cooled rapidly. This does not
indicate a malfunction.
3. You can individually set driver's and front passenger's side temperature using each
temperature control dial. When the DUAL
zone control button is pushed or the
passenger's side temperature control dial
is turned, the indicator light on the DUAL
Display screen, heater, air conditioner and audio systems4-11


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
4-12Display screen, heater, air conditioner and audio systems

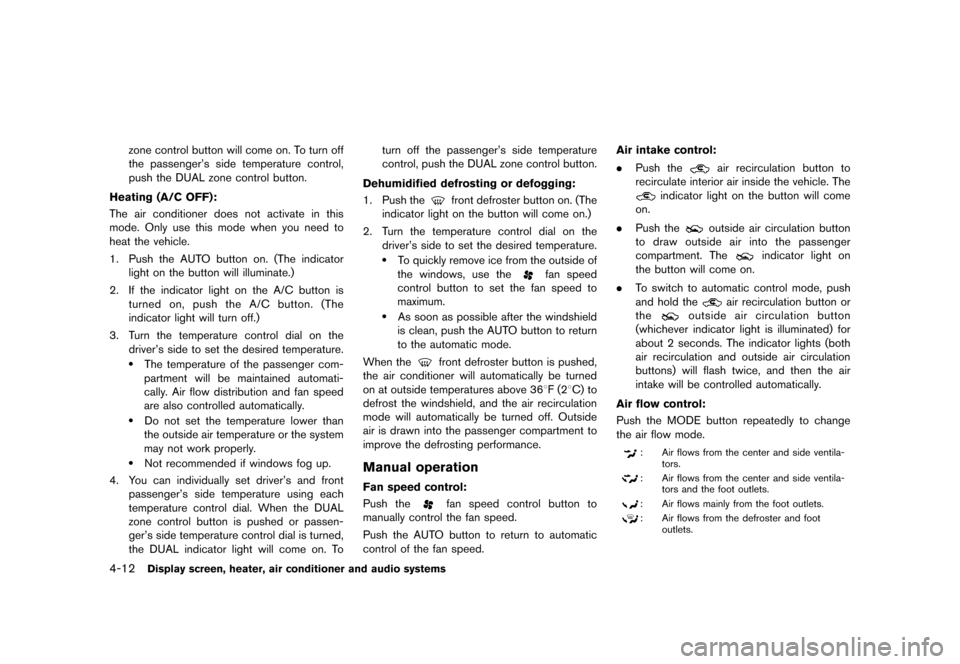

zone control button will come on. To turn off
the passenger's side temperature control,
push the DUAL zone control button.
Heating (A/C OFF):
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The air conditioner does not activate in this
mode. Only use this mode when you need to
heat the vehicle.
1. Push the AUTO button on. (The indicator light on the button will illuminate.)
2. If the indicator light on the A/C button is turned on, push the A/C button. (The
indicator light will turn off.)
3. Turn the temperature control dial on the driver's side to set the desired temperature.
.The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
.Do not set the temperature lower than
the outside air temperature or the system
may not work properly.
.Not recommended if windows fog up.
4. You can individually set driver's and front passenger's side temperature using each
temperature control dial. When the DUAL
zone control button is pushed or passen-
ger's side temperature control dial is turned,
the DUAL indicator light will come on. To turn off the passenger's side temperature
control, push the DUAL zone control button.
Dehumidified defrosting or defogging:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. Push thefront defroster button on. (The
indicator light on the button will come on.)
2. Turn the temperature control dial on the driver's side to set the desired temperature.
.To quickly remove ice from the outside of
the windows, use the
fan speed
control button to set the fan speed to
maximum.
.As soon as possible after the windshield
is clean, push the AUTO button to return
to the automatic mode.
When the
front defroster button is pushed,
the air conditioner will automatically be turned
on at outside temperatures above 368F (28C) to
defrost the windshield, and the air recirculation
mode will automatically be turned off. Outside
air is drawn into the passenger compartment to
improve the defrosting performance.
Manual operationGUID-30F047BE-C865-4A7A-B732-C613CB8070B7
Fan speed control:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Push thefan speed control button to
manually control the fan speed.
Push the AUTO button to return to automatic
control of the fan speed. Air intake control:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9.
Push theair recirculation button to
recirculate interior air inside the vehicle. The
indicator light on the button will come
on.
. Push the
outside air circulation button
to draw outside air into the passenger
compartment. The
indicator light on
the button will come on.
. To switch to automatic control mode, push
and hold the
air recirculation button or
the
outside air circulation button
(whichever indicator light is illuminated) for
about 2 seconds. The indicator lights (both
air recirculation and outside air circulation
buttons) will flash twice, and then the air
intake will be controlled automatically.
Air flow control:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Push the MODE button repeatedly to change
the air flow mode.
: Air flows from the center and side ventila- tors.
: Air flows from the center and side ventila-tors and the foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defroster and footoutlets.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Turning the system on/offGUID-72751DA5-938A-4F26-BB7C-6DACDCEC4EA0Push the ON´OFF button.
NAI0808
JVH1369X
OPERATING TIPSGUID-5715812E-C11D-4B4D-AFA3-E1DAFE66322FWhen the engine coolant temperature and
outside air temperature are low, the air flowfrom the foot outlets may not operate. However,
this is not a malfunction. After the coolant
temperature warms up, the air flow from the
foot outlets will operate normally.
The sensors
*Aand*Blocated on the
instrument panel help maintain a constant
temperature. Do not put anything on or around
the sensors.
IN-CABIN MICROFILTERGUID-0A40EBE2-192F-4D7B-A8E1-21E6544D25DDThe air conditioning system is equipped with an
in-cabin microfilter which collects dirt, dust, etc.
To make sure the air conditioner heats, defogs,
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the NISSAN Service and Maintenance Guide. It
is recommended to see a NISSAN dealer or
GT-R certified NISSAN dealer to replace the
filter.
The filter should be replaced if air flow is
extremely decreased or when windows fog
up easily when operating heater or air
conditioning system.
Display screen, heater, air conditioner and audio systems4-13


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
4-14Display screen, heater, air conditioner and audio systems

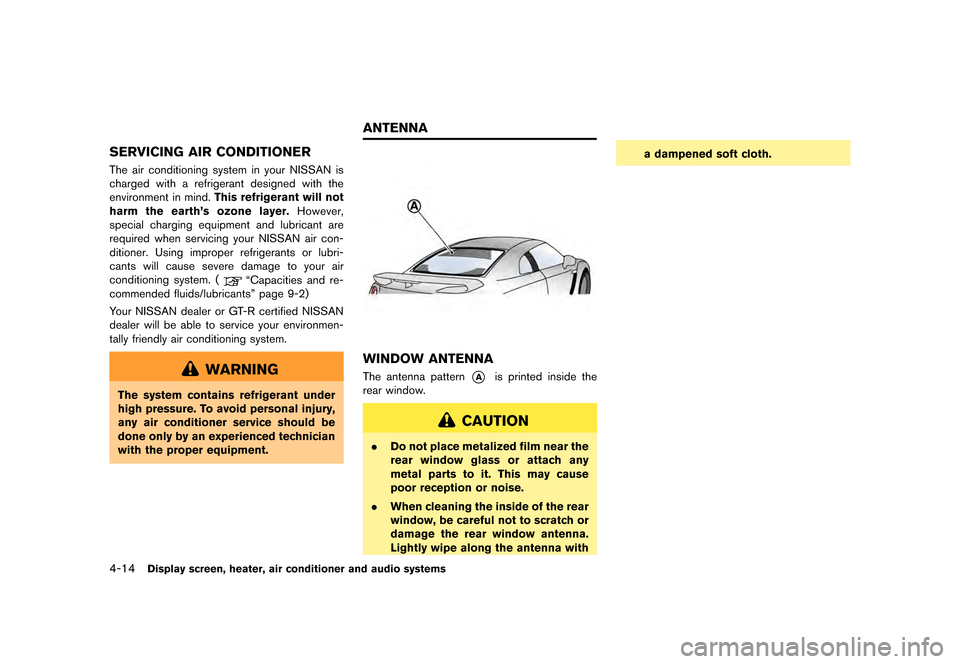

SERVICING AIR CONDITIONERGUID-03CDA6BF-7319-45F3-8632-6A4800B3C7D3The air conditioning system in your NISSAN is
charged with a refrigerant designed with the
environment in mind.This refrigerant will not
harm the earth's ozone layer. However,
special charging equipment and lubricant are
required when servicing your NISSAN air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to your air
conditioning system. (
ªCapacities and re-
commended fluids/lubricantsº page 9-2)
Your NISSAN dealer or GT-R certified NISSAN
dealer will be able to service your environmen-
tally friendly air conditioning system.
WARNING
The system contains refrigerant under
high pressure. To avoid personal injury,
any air conditioner service should be
done only by an experienced technician
with the proper equipment.
GUID-7591B1D1-35D9-4E5D-91A1-49DDAD92CE74
JVH1380X
WINDOW ANTENNAGUID-2F8E57A7-381D-46FA-9DDB-773004E4BF07The antenna pattern*Ais printed inside the
rear window.
CAUTION
. Do not place metalized film near the
rear window glass or attach any
metal parts to it. This may cause
poor reception or noise.
. When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a dampened soft cloth.
ANTENNA


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVH1370X

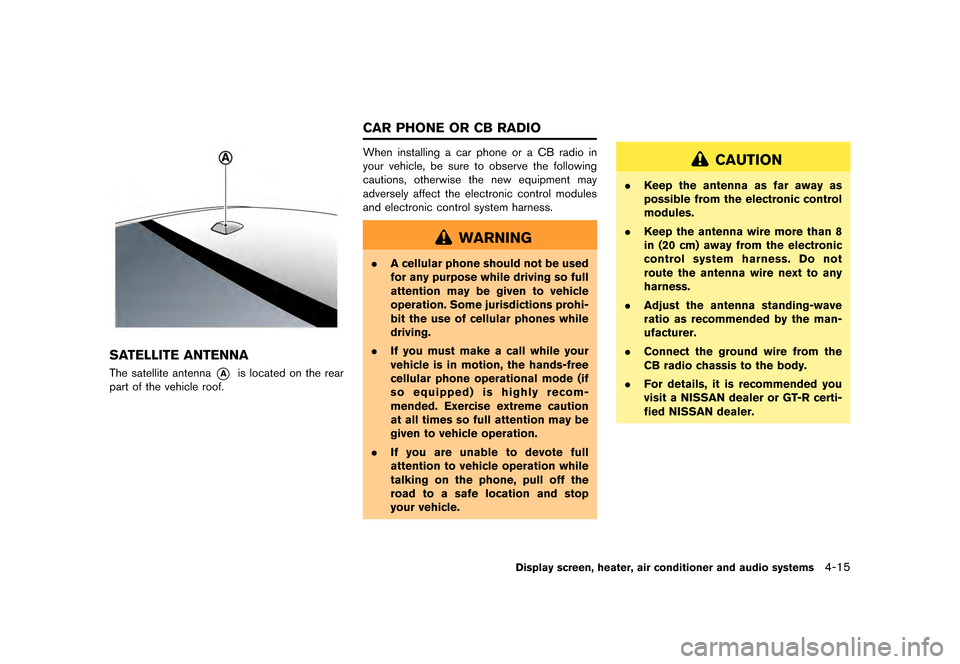

SATELLITE ANTENNAGUID-72FC56D7-A2DD-4B3D-8DAE-58BAF3051BDFThe satellite antenna*Ais located on the rear
part of the vehicle roof.
GUID-40B9A06B-2757-4357-A886-E847EE8FC74DWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
. A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, it is recommended you
visit a NISSAN dealer or GT-R certi-
fied NISSAN dealer.
Display screen, heater, air conditioner and audio systems4-15
CAR PHONE OR CB RADIO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
4-16Display screen, heater, air conditioner and audio systems

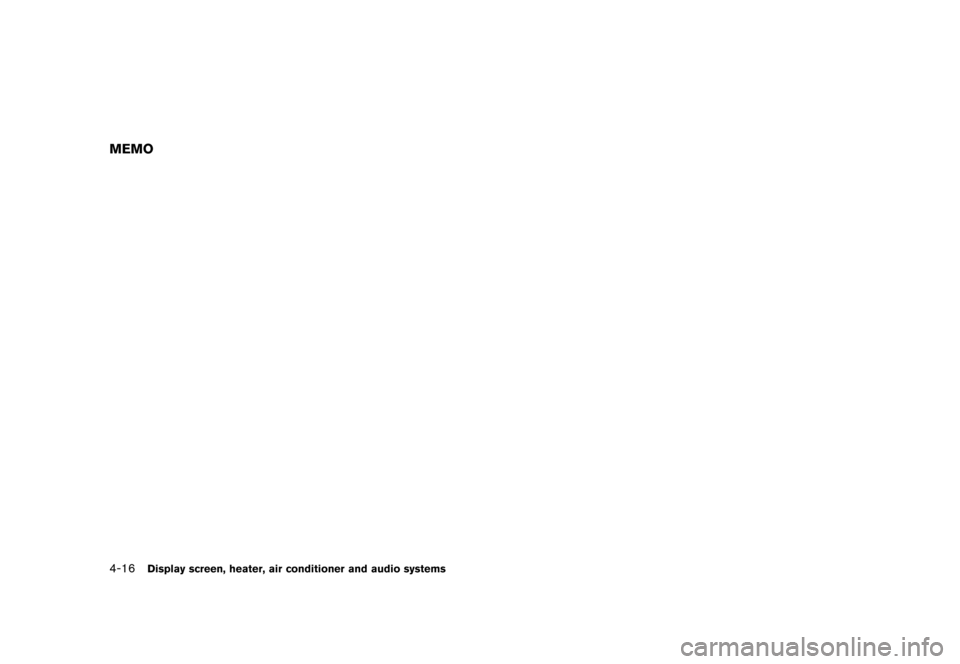

MEMO


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5 Starting and driving
Precautions when starting and driving................................... 5-3
Exhaust gas (carbon monoxide) ....
..................................... 5-3
Three-way catalyst ................................................................. 5-3
Tire Pressure Monitoring System (TPMS) ....
................... 5-4
Avoiding collision and rollover ............................................ 5-7
Off-road recovery ................................................................... 5-8
Rapid air pressure loss ....
..................................................... 5-8
Drinking alcohol/drugs and driving ....
................................ 5-9
All-Wheel Drive (AWD) driving safety precautions ....
.... 5-9
Push-button ignition switch ....
................................................ 5-10
Operating range for engine start .................................... 5-10
Ignition switch operation ................................................... 5-10
Ignition switch positions .................................................... 5-11
Emergency engine shut off ....
........................................... 5-11
Intelligent Key battery discharge ..................................... 5-12
Before starting the engine ...................................................... 5-13
Starting the engine ................................................................... 5-13
Driving the vehicle .................................................................... 5-15
Dual clutch transmission ................................................... 5-15
Driving tips ............................................................................\
5-21
VDC, transmission and suspension setup switches ....
.... 5-25
How to switch the modes ................................................ 5-25
Features of each mode ....
.................................................. 5-27
Turbocharger system ....
............................................................ 5-31 R mode start function
............................................................. 5-32
How to use R mode start function ....
........................... 5-33
Parking brake ....
........................................................................\
. 5-33
Cruise control ....
........................................................................\
5-34
Precautions on cruise control ....
.................................... 5-35
Steering-wheel-mounted controls ................................ 5-35
Indicators and display ...................................................... 5-36
Cruise control operations ............................................... 5-36
Hill Start Assist System ....
...................................................... 5-38
Break-in schedule .................................................................... 5-39
Wheel alignment ............................................................... 5-39
Fuel Efficient Driving Tips ...................................................... 5-40
Increasing fuel economy ....
..................................................... 5-41
All-Wheel Drive (AWD) .......................................................... 5-41
AWD warning light ........................................................... 5-41
Tight corner braking phenomenon ............................... 5-43
Tires ....
........................................................................\
.......... 5-43
AWD system characteristics ....
...................................... 5-43
Limited Slip Differential (LSD) .............................................. 5-44
Parking/parking on hills ....
....................................................... 5-45
Sonar system ....
........................................................................\
. 5-47
Sonar indicator .................................................................. 5-48
Sonar system OFF switch .............................................. 5-49
Sonar system setting ....................................................... 5-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

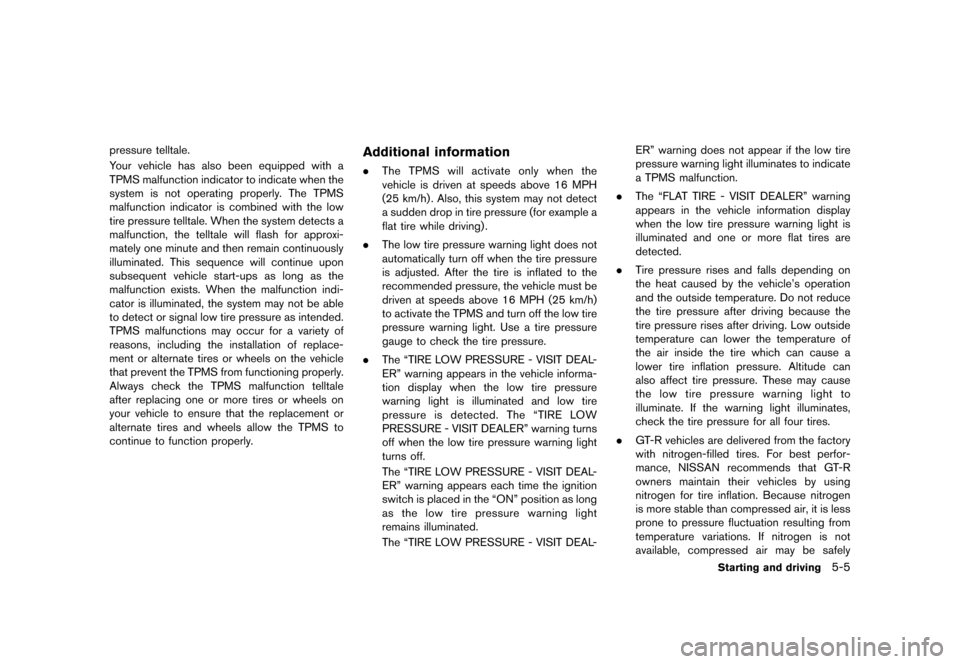

pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.Additional informationGUID-853D6301-F8DB-4961-A1F9-51FC1CE15E41.The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h) . Also, this system may not detect
a sudden drop in tire pressure (for example a
flat tire while driving) .
. The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
. The ªTIRE LOW PRESSURE - VISIT DEAL-
ERº warning appears in the vehicle informa-
tion display when the low tire pressure
warning light is illuminated and low tire
pressure is detected. The ªTIRE LOW
PRESSURE - VISIT DEALERº warning turns
off when the low tire pressure warning light
turns off.
The ªTIRE LOW PRESSURE - VISIT DEAL-
ERº warning appears each time the ignition
switch is placed in the ªONº position as long
as the low tire pressure warning light
remains illuminated.
The ªTIRE LOW PRESSURE - VISIT DEAL- ERº warning does not appear if the low tire
pressure warning light illuminates to indicate
a TPMS malfunction.
. The ªFLAT TIRE - VISIT DEALERº warning
appears in the vehicle information display
when the low tire pressure warning light is
illuminated and one or more flat tires are
detected.
. Tire pressure rises and falls depending on
the heat caused by the vehicle's operation
and the outside temperature. Do not reduce
the tire pressure after driving because the
tire pressure rises after driving. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. Altitude can
also affect tire pressure. These may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates,
check the tire pressure for all four tires.
. GT-R vehicles are delivered from the factory
with nitrogen-filled tires. For best perfor-
mance, NISSAN recommends that GT-R
owners maintain their vehicles by using
nitrogen for tire inflation. Because nitrogen
is more stable than compressed air, it is less
prone to pressure fluctuation resulting from
temperature variations. If nitrogen is not
available, compressed air may be safely
Starting and driving5-5
