2017 NISSAN GT-R display


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0068X

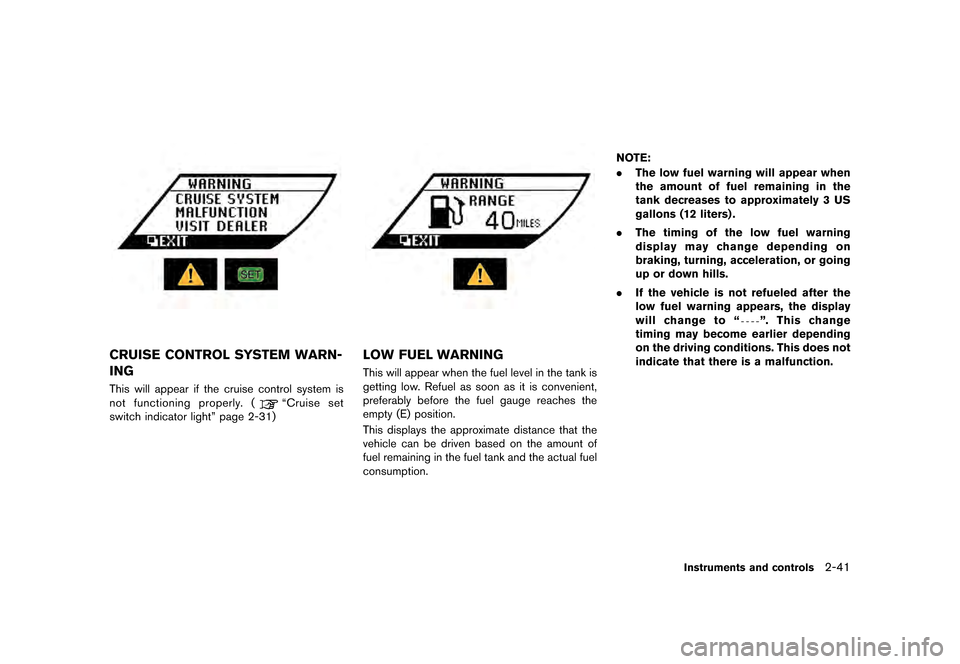

CRUISE CONTROL SYSTEM WARN-
ING
GUID-78AA912E-E0DB-4D77-921C-48A452E497F3This will appear if the cruise control system is
not functioning properly. (
ªCruise set
switch indicator lightº page 2-31)
JVI0153X
LOW FUEL WARNINGGUID-34CEC7A2-F981-48F6-8EE4-49AEA78A8643This will appear when the fuel level in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the
empty (E) position.
This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption. NOTE:
.
The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
. The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to ª
º. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
Instruments and controls2-41


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0072X
NO KEY WARNINGGUID-C743FC36-2E48-4434-9D40-A60E75999F3AThis will appear in either of the following
conditions.
No key inside the vehicleGUID-DB6FD108-20A8-45A3-8786-D06E653CE40AThe warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent KeyGUID-B83F80AA-04F8-4F8E-928C-DB8711C04A15The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by thesystem. You cannot start the engine with an
unregistered Intelligent Key.
(
ªIntelligent Key systemº page 3-8)
GUID-25CBCCB0-E450-4CEB-9314-F90D4BA72FDBThese displays appear when an appropriate
operation is required in starting or stopping the
engine.
Instruments and controls2-43
OPERATION DISPLAYS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-50Instruments and controls
NOTE:
.In the MIST position, the wipers oper-
ate while the lever is lifted up. When
the lever is released, it automatically
returns to the OFF position and the
wipers stop.
. When the speed sensing wiper interval
function is turned on, the intermittent
operation speed varies in accordance
with the vehicle speed. (For example,
when the vehicle speed is high, the
intermittent operation speed will be
faster.) To turn this function on and
off, see the separate Multi Function
Display Owner's Manual.
. If the wiper operation is interrupted by
snow or ice, the wiper may stop moving
to protect its motor. If this occurs, turn
the wiper switch to the OFF position
and remove the snow or ice on and
around the wiper arms. In approxi-
mately 1 minute, turn the switch on
again to operate the wiper.
JVI0907X
USING THE WASHERGUID-74E5C3EC-28DC-4109-A2BD-256046160FCBPull the lever toward you to operate the washer.
Then the wiper will also operate several times.
NOTE:
When the level of washer fluid is low, a
warning display appears on the vehicle
information display. (
ªLow washer
fluid warningº page 2-42)
GUID-758F14E8-AEB1-4436-AC9B-B9A128AA7C5B
JVI1459X
To defog/defrost the rear window, start the
engine and push the switch on. The indicator
light on the switch will come on. Push the switch
again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
NOTE:
When the rear window defroster switch is
pressed, the heated outside mirrors also
operate at the same time. (
ªOutside
mirrorsº page 3-28)
REAR WINDOW DEFROSTER
SWITCH


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

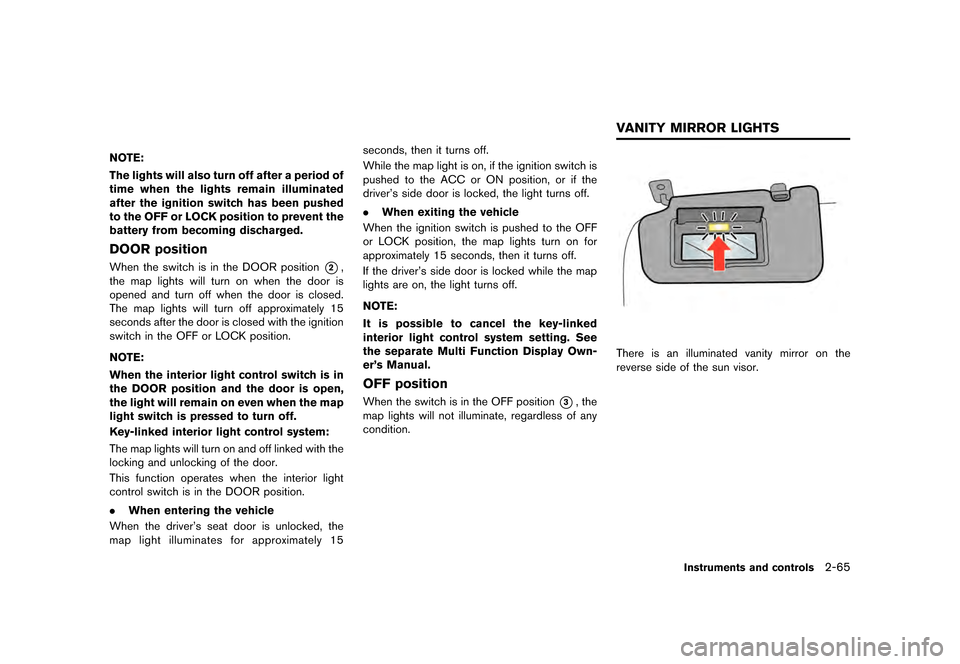

NOTE:
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
DOOR positionGUID-31F69CCA-C199-4829-8D83-95C634DA50F6When the switch is in the DOOR position*2,
the map lights will turn on when the door is
opened and turn off when the door is closed.
The map lights will turn off approximately 15
seconds after the door is closed with the ignition
switch in the OFF or LOCK position.
NOTE:
When the interior light control switch is in
the DOOR position and the door is open,
the light will remain on even when the map
light switch is pressed to turn off.
Key-linked interior light control system:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The map lights will turn on and off linked with the
locking and unlocking of the door.
This function operates when the interior light
control switch is in the DOOR position.
. When entering the vehicle
When the driver's seat door is unlocked, the
map light illuminates for approximately 15 seconds, then it turns off.
While the map light is on, if the ignition switch is
pushed to the ACC or ON position, or if the
driver's side door is locked, the light turns off.
.
When exiting the vehicle
When the ignition switch is pushed to the OFF
or LOCK position, the map lights turn on for
approximately 15 seconds, then it turns off.
If the driver's side door is locked while the map
lights are on, the light turns off.
NOTE:
It is possible to cancel the key-linked
interior light control system setting. See
the separate Multi Function Display Own-
er's Manual.
OFF positionGUID-A8A74054-EE3F-40C1-8FC1-F9AA774B30AEWhen the switch is in the OFF position*3, the
map lights will not illuminate, regardless of any
condition.
GUID-955EF2DF-5A59-475A-BDE9-62BBF322A7CF
GEC0002
There is an illuminated vanity mirror on the
reverse side of the sun visor.
Instruments and controls2-65
VANITY MIRROR LIGHTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

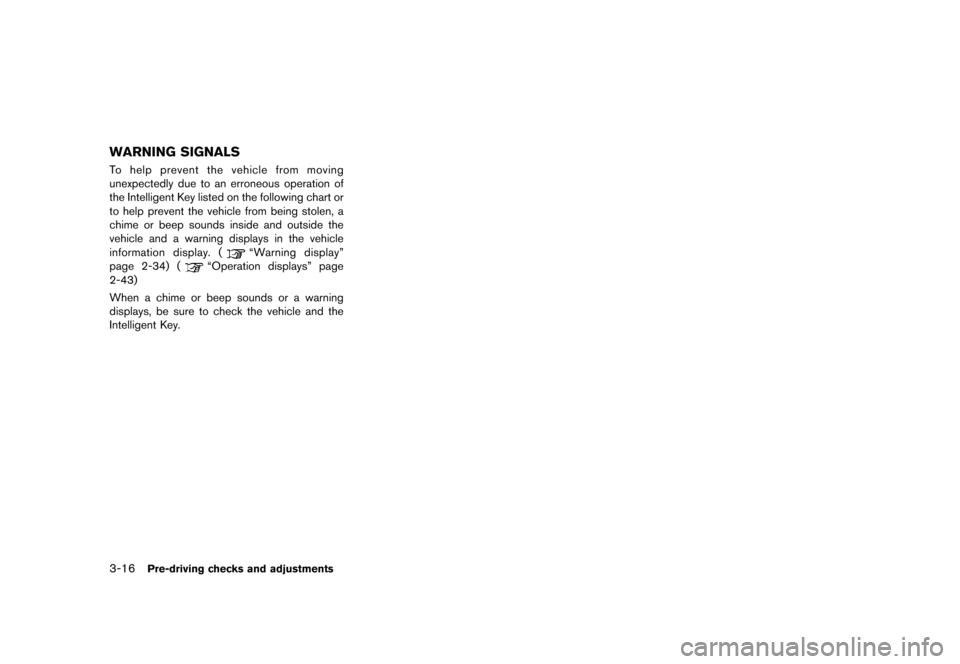

3-16Pre-driving checks and adjustments
WARNING SIGNALSGUID-9FC0174F-90A1-4725-B6C4-E358F47319C1To help prevent the vehicle from moving
unexpectedly due to an erroneous operation of
the Intelligent Key listed on the following chart or
to help prevent the vehicle from being stolen, a
chime or beep sounds inside and outside the
vehicle and a warning displays in the vehicle
information display. (
ªWarning displayº
page 2-34) (
ªOperation displaysº page
2-43)
When a chime or beep sounds or a warning
displays, be sure to check the vehicle and the
Intelligent Key.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
TROUBLESHOOTING GUIDEGUID-210C929A-9DA9-408A-94E5-F34BFF8E36A7
SymptomPossible causeAction to take
When pushing the ignition
switch to stop the engine The SHIFT P warning appears on the display and
the inside warning chime sounds continuously.
The shift lever is not in the
&Pposition.
Shift the shift lever to the&Pposition.
When opening the driver's door
to get out of the vehicle The inside warning chime sounds continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF
position.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the
Intelligent Key port.
When closing the door after
getting out of the vehicle The NO KEY warning appears on the display, the
outside chime sounds 3 times and the inside
warning chime sounds for approximately 3 sec-
onds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the display and
the outside chime sounds continuously. The ignition switch is in the ACC or
OFF position and the shift lever is not
in the
&Pposition.Move the shift lever to the
&Pposition and
push the ignition switch to the OFF
position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for approximately 3
seconds and all the doors unlock. The Intelligent Key is inside the vehicle
or trunk.
Carry the Intelligent Key with you.
When pushing the door handle
request switch to lock the door The outside chime sounds for approximately 2
seconds. The Intelligent Key is inside the vehicle
or trunk.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
The door handle request switch is
pushed before the door is closed. Push the door handle request switch after
the door is closed.
When closing the trunk lid The outside chime sounds for approximately 10
seconds and the trunk lid opens.
The Intelligent Key is inside the trunk.
Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-17


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

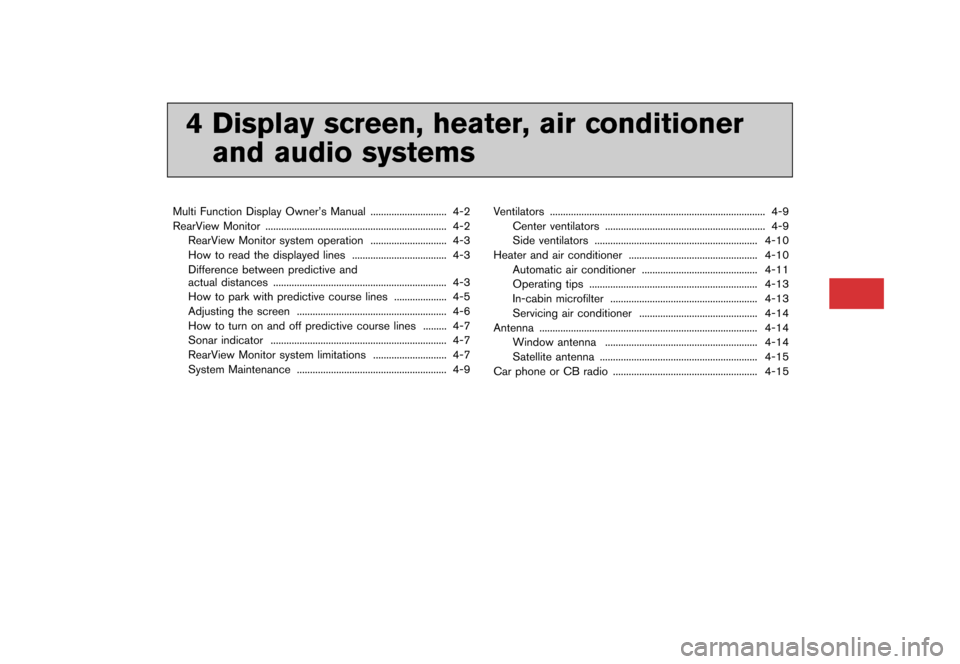

4 Display screen, heater, air conditionerand audio systems
Multi Function Display Owner's Manual ....
............................. 4-2
RearView Monitor ....
..................................................................... 4-2
RearView Monitor system operation ................................. 4-3
How to read the displayed lines ........................................ 4-3
Difference between predictive and
actual distances ....
.................................................................. 4-3
How to park with predictive course lines ........................ 4-5
Adjusting the screen ............................................................. 4-6
How to turn on and off predictive course lines ............. 4-7
Sonar indicator ....................................................................... 4-7
RearView Monitor system limitations ................................ 4-7
System Maintenance ............................................................. 4-9 Ventilators
....
........................................................................\
.......... 4-9
Center ventilators .... ............................................................. 4-9
Side ventilators .................................................................. 4-10
Heater and air conditioner ..................................................... 4-10
Automatic air conditioner ................................................ 4-11
Operating tips .................................................................... 4-13
In-cabin microfilter ............................................................ 4-13
Servicing air conditioner ................................................. 4-14
Antenna ....
........................................................................\
........... 4-14
Window antenna ....
.......................................................... 4-14
Satellite antenna ....
............................................................ 4-15
Car phone or CB radio ....
....................................................... 4-15


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

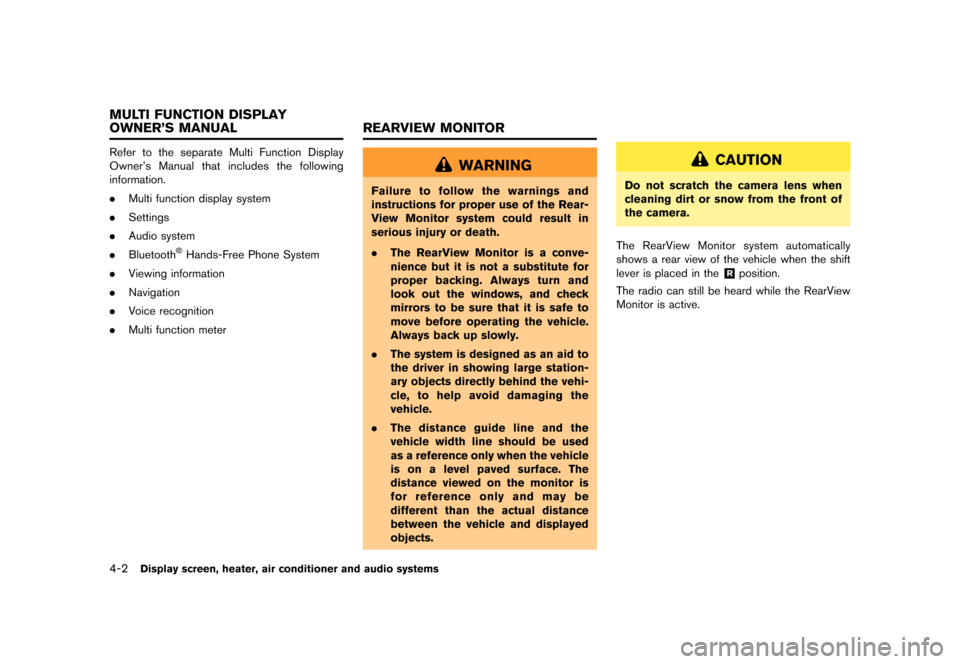

4-2Display screen, heater, air conditioner and audio systems
GUID-30A72A03-E081-4007-821D-9B3D8D910228Refer to the separate Multi Function Display
Owner's Manual that includes the following
information.
.Multi function display system
. Settings
. Audio system
. Bluetooth
