Page 117 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-14Instruments and controls
JVI0115X
When the oil level sensor malfunc-
tion occurs
GUID-6D73513A-706C-44BE-845D-F61A3418CCFCIf the message shown above is displayed, the
engine oil level sensor may be malfunctioning.
It is recommended you contact a GT-R certified
NISSAN dealer immediately.
JVI0116X
TRANSMISSION SYSTEM CHECK
DISPLAY
GUID-DFE5FFBC-0C09-4816-99FD-92EB9AF21B11This is displayed after the engine is started while
the transmission system is being checked. It
turns off after a few seconds.
NOTE:
.During the system check, the shift lever
cannot be moved out of the
&Pposition.
Operate the shift lever after the system
check indicator turns off.
. The shift lever cannot be moved if the
shift lever button is pushed while the
system check is being performed, even after the system check is finished.
Release the button and push it again
to operate the shift lever.
. During winter or at other times when
the temperature is extremely low,
changes in the hydraulic response
characteristics may increase the
amount of time that is required for the
system check. During the system check,
a thudding operating noise may occur
or the engine speed may decrease,
however this does not indicate that
there is a malfunction.
Page 118 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-3DE793C2-AEDA-4CCD-A84D-820BAA585B40
JVI0042X

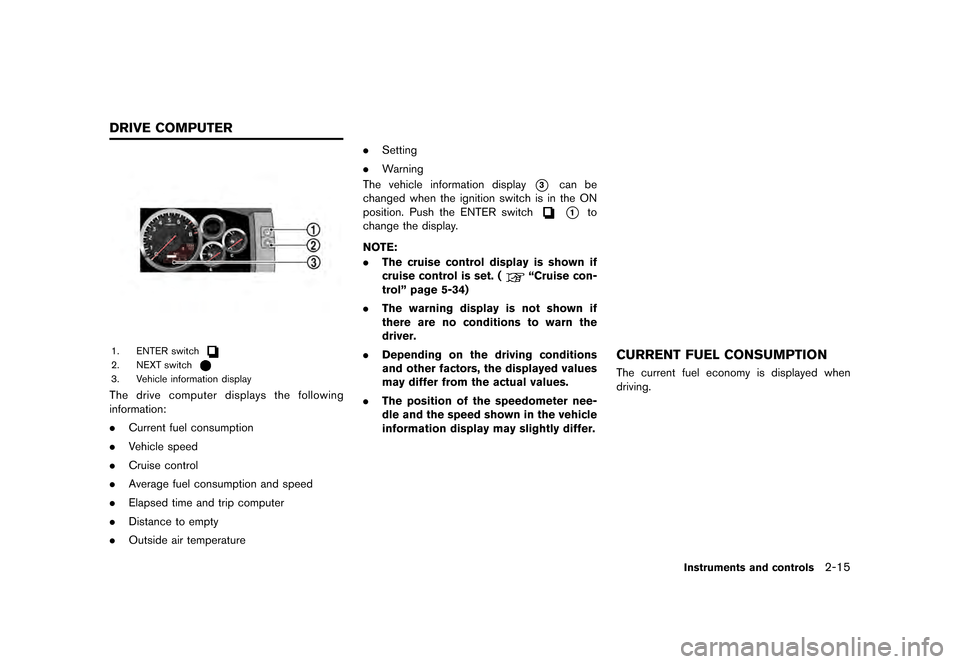

1. ENTER switch
2. NEXT switch
3. Vehicle information display
The drive computer displays the following
information:
.Current fuel consumption
. Vehicle speed
. Cruise control
. Average fuel consumption and speed
. Elapsed time and trip computer
. Distance to empty
. Outside air temperature .
Setting
. Warning
The vehicle information display
*3can be
changed when the ignition switch is in the ON
position. Push the ENTER switch
*1to
change the display.
NOTE:
. The cruise control display is shown if
cruise control is set. (
ªCruise con-
trolº page 5-34)
. The warning display is not shown if
there are no conditions to warn the
driver.
. Depending on the driving conditions
and other factors, the displayed values
may differ from the actual values.
. The position of the speedometer nee-
dle and the speed shown in the vehicle
information display may slightly differ.
JVI0138X
CURRENT FUEL CONSUMPTIONGUID-950E72DF-5990-46E9-9081-1B64DC07C5CBThe current fuel economy is displayed when
driving.
Instruments and controls2-15
DRIVE COMPUTER
Page 119 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-16Instruments and controls
JVI0139X

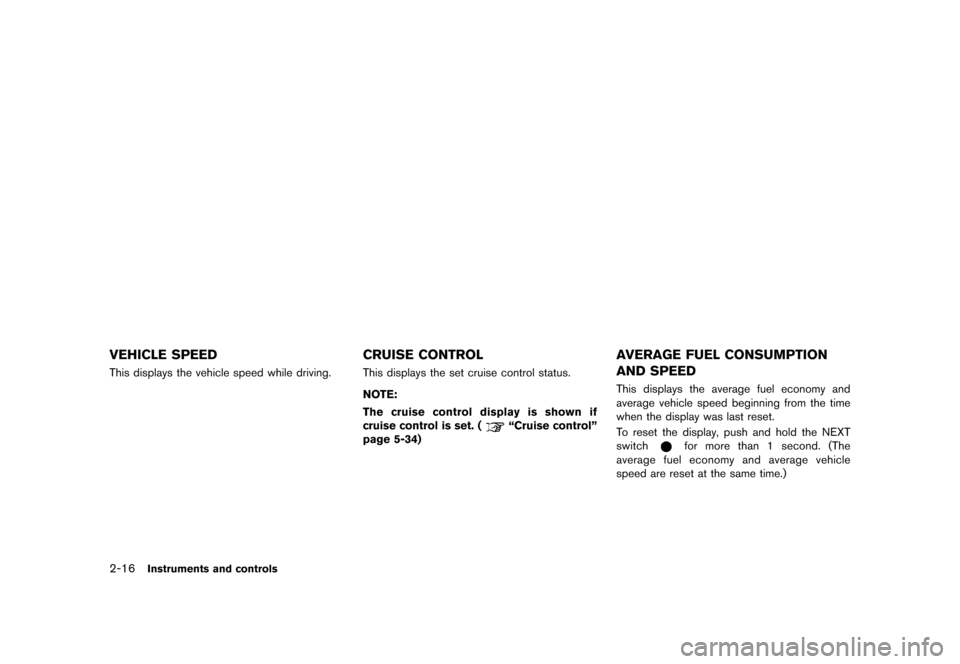

VEHICLE SPEEDGUID-6B383C6F-3752-46E0-BB3B-61F2BACD8707This displays the vehicle speed while driving.
JVI0140X
CRUISE CONTROLGUID-9E0E565C-C647-4717-8467-DCAC6C9BF7D9This displays the set cruise control status.
NOTE:
The cruise control display is shown if
cruise control is set. (
ªCruise controlº
page 5-34)
JVI0141X
AVERAGE FUEL CONSUMPTION
AND SPEED
GUID-8DF59551-C162-4B70-8BAD-73E14CF8EE57This displays the average fuel economy and
average vehicle speed beginning from the time
when the display was last reset.
To reset the display, push and hold the NEXT
switch
for more than 1 second. (The
average fuel economy and average vehicle
speed are reset at the same time.)
Page 120 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

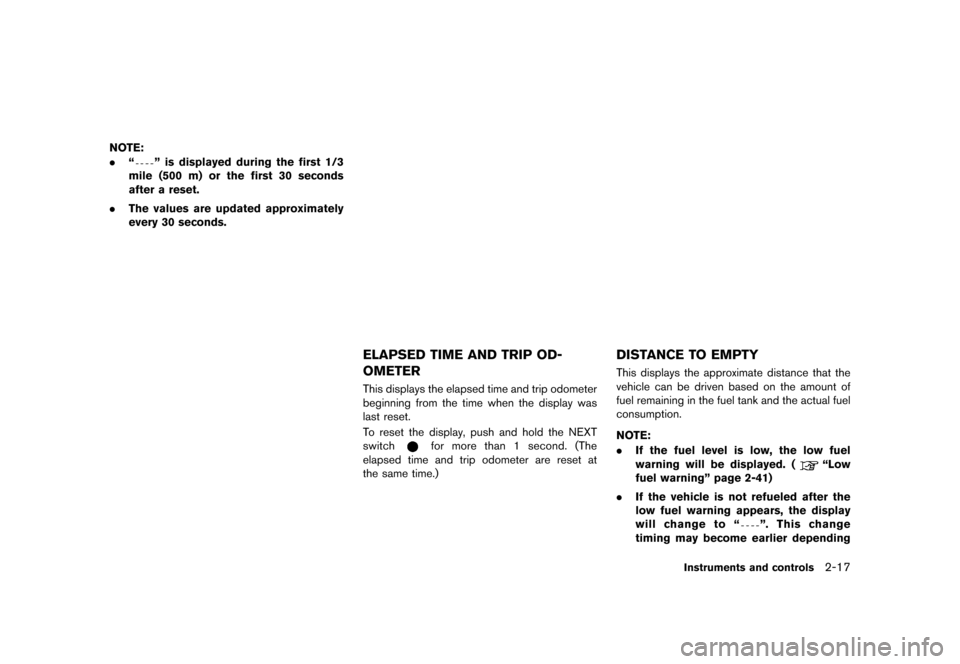

NOTE:
.ª
º is displayed during the first 1/3
mile (500 m) or the first 30 seconds
after a reset.
. The values are updated approximately
every 30 seconds.
JVI0142X
ELAPSED TIME AND TRIP OD-
OMETER
GUID-0D5DF9ED-31E8-410A-9709-3D3BDF05D2E9This displays the elapsed time and trip odometer
beginning from the time when the display was
last reset.
To reset the display, push and hold the NEXT
switch
for more than 1 second. (The
elapsed time and trip odometer are reset at
the same time.)
JVI0143X
DISTANCE TO EMPTYGUID-37C2E545-55DB-40C3-ACF0-2E2BA781B4D4This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption.
NOTE:
. If the fuel level is low, the low fuel
warning will be displayed. (
ªLow
fuel warningº page 2-41)
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to ª
º. This change
timing may become earlier depending
Instruments and controls2-17
Page 121 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-18Instruments and controls

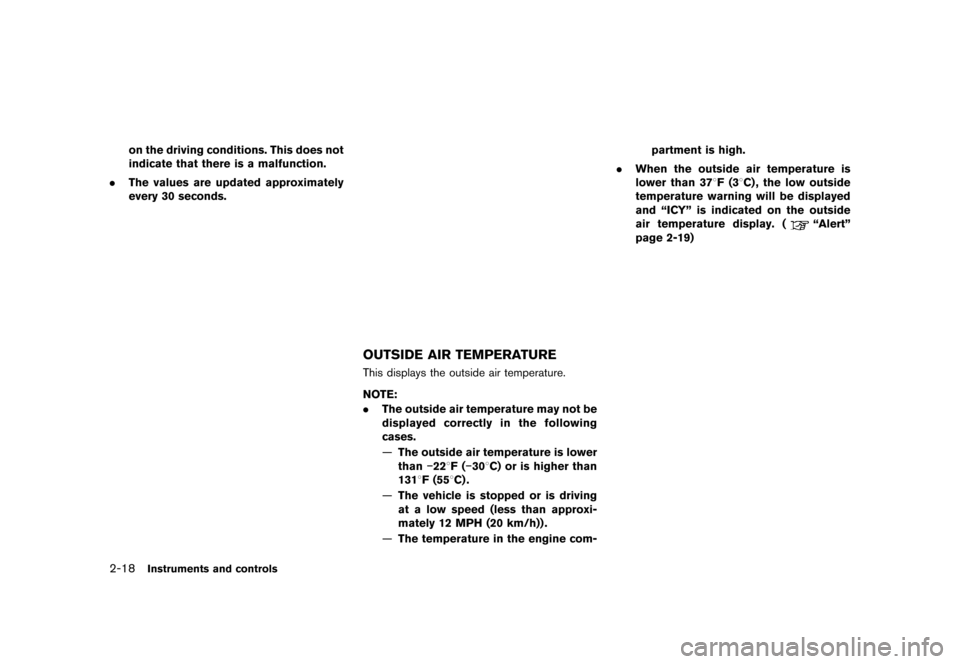

on the driving conditions. This does not
indicate that there is a malfunction.
. The values are updated approximately
every 30 seconds.
JVI0144X
OUTSIDE AIR TEMPERATUREGUID-8F3AAC6A-FFE5-4450-A9B5-5AE80392BE94This displays the outside air temperature.
NOTE:
.The outside air temperature may not be
displayed correctly in the following
cases.
ÐThe outside air temperature is lower
than
Page 122 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0050X

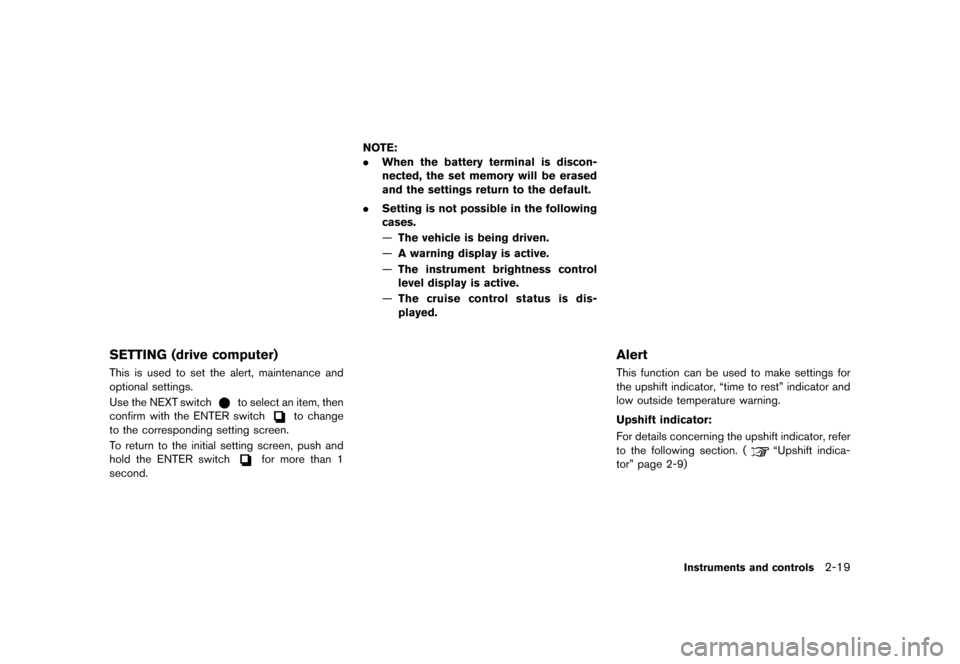

SETTING (drive computer)GUID-5C91174D-1872-40AD-86BA-15A1604602FAThis is used to set the alert, maintenance and
optional settings.
Use the NEXT switch
to select an item, then
confirm with the ENTER switch
to change
to the corresponding setting screen.
To return to the initial setting screen, push and
hold the ENTER switch
for more than 1
second. NOTE:
.
When the battery terminal is discon-
nected, the set memory will be erased
and the settings return to the default.
. Setting is not possible in the following
cases.
ÐThe vehicle is being driven.
Ð A warning display is active.
Ð The instrument brightness control
level display is active.
Ð The cruise control status is dis-
played.
JVI0117X
AlertGUID-27C91327-D7AF-4F11-A91B-EAA7AD858C1CThis function can be used to make settings for
the upshift indicator, ªtime to restº indicator and
low outside temperature warning.
Upshift indicator:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9For details concerning the upshift indicator, refer
to the following section. (
ªUpshift indica-
torº page 2-9)
Instruments and controls2-19
Page 123 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-20Instruments and controls
JVI0118X
ªTIMERº indicator:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9This alert informs the driver that the set driving
time has elapsed.
On the TIMER screen, push the NEXT switch
to change the time. Push and hold the
switch to increase the number every 1 hour. A
maximum of 6 hours can be set.
NOTE:
The default setting is OFF.
JVI0145X
Low outside temperature warning:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9This alert informs the driver when the outside air
temperature is lower than 378F (38C) .
On the ICY screen, push the NEXT switch
to turn this warning ON/OFF.
NOTE:
The default setting is ON.
JVI0146X
MaintenanceGUID-A0EBEFAC-C28F-4C84-8DBE-2F7D9B6AB155This function can be used to set the various
maintenance intervals and to check the engine
oil level. The reminders shown below are used to
notify the driver of the maintenance intervals.
NOTE:
Because these are displayed based on the
mileage driven, they do not indicate the
actual conditions of the vehicle. Use these
functions only as a reference.
Page 124 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Input the maintenance distance using the
following items:
.On each setting screen, push the NEXT
switch
to change the mileage. Push and
hold the switch to increase the number every
600 miles (1,000 km) .
. Set to ªÐº to set no reminders.
. To reset the accumulated mileage to zero,
go to the RESET screen, then push the
NEXT switch
and confirm with the
ENTER switch
.
NOTE:
. To restore the mileage to the original
figure after resetting, push the NEXT
switch
again.
. When the battery terminal is discon-
nected, the set mileage will be erased
and the settings will return to their
default settings.
JVI0124X
Engine oil level:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9This can be used to check the pre-start oil level
while the engine is running. Select SETTING >
MAINTENANCE > OIL > ENGINE OIL >
LEVEL.
If the low level reminder appears, check the level
using the engine oil dipstick. (
ªChecking
engine oil levelº page 8-13)
JVI0125X
Engine oil:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the customer set mileage approaches,
the reminder will appear on the display and the
remaining distance is displayed at regular
intervals. Select SETTING > MAINTENANCE
> OIL > ENGINE OIL to set or reset the mileage
for the engine oil change.
NOTE:
The default setting is 9,500 miles (15,000
km) . The maximum mileage that can be set
is 9,500 miles (15,000 km) .
Instruments and controls2-21
