0-8Illustrated table of contents
GUID-50D5BA99-EF96-4950-99FC-63C78CF5F854
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-C3855887-79FB-4A86-BDCD-A507F4515BA8
JVC0090X

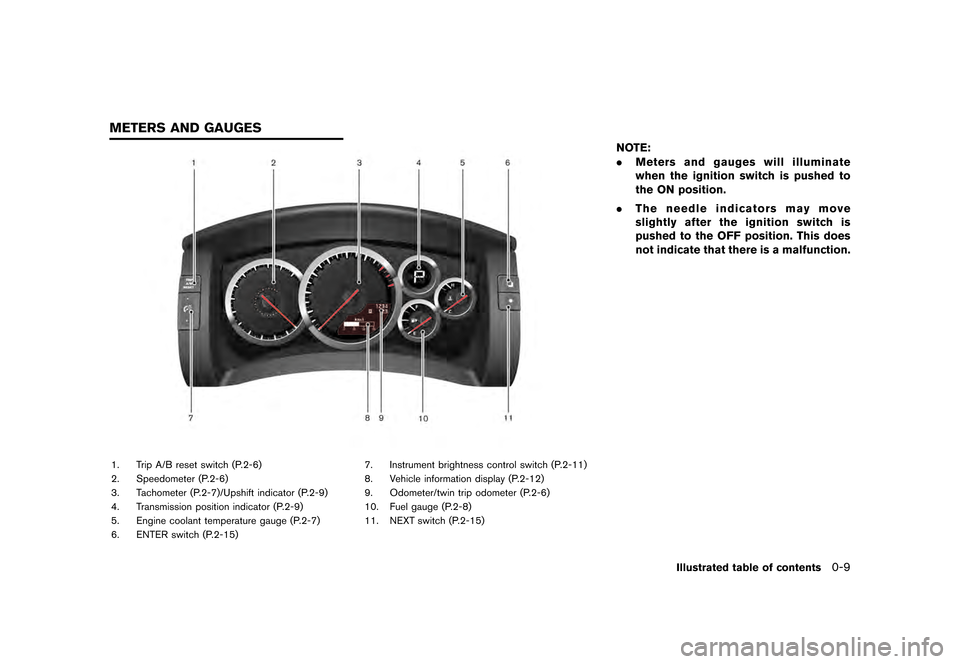

1. Trip A/B reset switch (P.2-6)
2. Speedometer (P.2-6)
3. Tachometer (P.2-7)/Upshift indicator (P.2-9)
4. Transmission position indicator (P.2-9)
5. Engine coolant temperature gauge (P.2-7)
6. ENTER switch (P.2-15)7. Instrument brightness control switch (P.2-11)
8. Vehicle information display (P.2-12)
9. Odometer/twin trip odometer (P.2-6)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Illustrated table of contents0-9
METERS AND GAUGES


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GPR0083

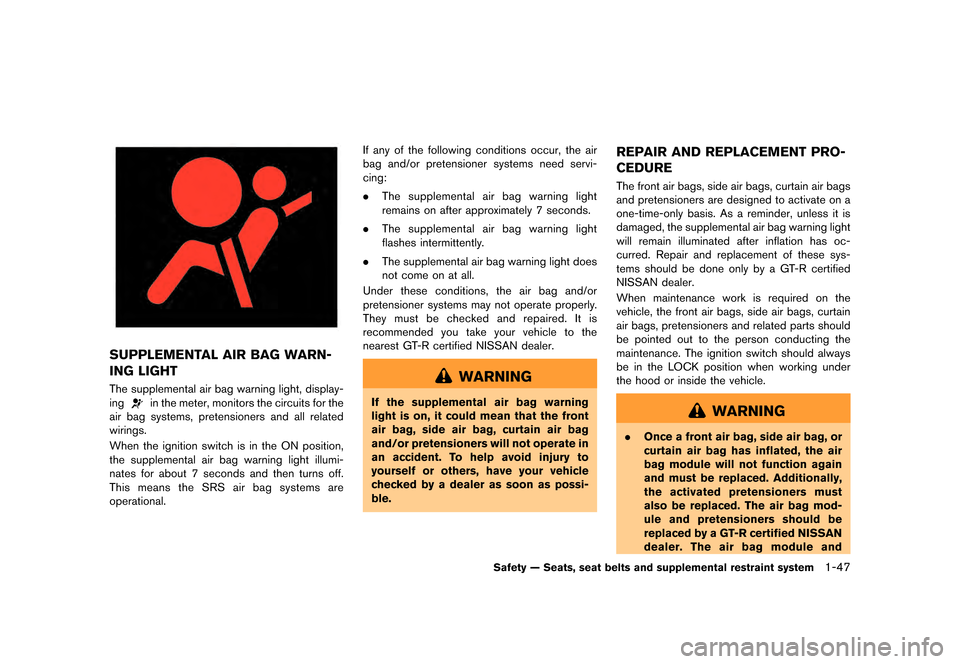

SUPPLEMENTAL AIR BAG WARN-
ING LIGHT
GUID-82359632-46CE-4C81-B9FB-07D0ED5D4EB5The supplemental air bag warning light, display-
ing
in the meter, monitors the circuits for the
air bag systems, pretensioners and all related
wirings.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the SRS air bag systems are
operational. If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. It is
recommended you take your vehicle to the
nearest GT-R certified NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioners will not operate in
an accident. To help avoid injury to
yourself or others, have your vehicle
checked by a dealer as soon as possi-
ble.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-52C90909-0DB6-4BD4-9AC0-8CF05E0220C1The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a GT-R certified
NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags, pretensioners and related parts should
be pointed out to the person conducting the
maintenance. The ignition switch should always
be in the LOCK position when working under
the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioners should be
replaced by a GT-R certified NISSAN
dealer. The air bag module and
Safety Ð Seats, seat belts and supplemental restraint system1-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2 Instruments and controls
Cockpit............................................................................\
............... 2-3
Instrument panel ....
....................................................................... 2-4
Meters and gauges ....
.................................................................. 2-5
Speedometer ....
....................................................................... 2-6
Odometer/twin trip odometer ............................................. 2-6
Tachometer ............................................................................\
.. 2-7
Engine coolant temperature gauge ................................... 2-7
Fuel gauge ............................................................................\
... 2-8
Transmission position indicator .......................................... 2-9
Upshift indicator ..................................................................... 2-9
Instrument brightness control .......................................... 2-11
Vehicle information display ..................................................... 2-12
Engine oil level display ....
................................................... 2-12
Transmission system check display ....
............................ 2-14
Drive computer .......................................................................... 2-15
Current fuel consumption ................................................. 2-15
Vehicle speed ....
................................................................... 2-16
Cruise control ....
................................................................... 2-16
Average fuel consumption and speed ........................... 2-16
Elapsed time and trip odometer ....
.................................. 2-17
Distance to empty ............................................................... 2-17
Outside air temperature .................................................... 2-18
Setting (drive computer) ................................................... 2-19
Warning (drive computer) ....
............................................. 2-23 Warning lights, indicator lights and
audible reminders
.... ................................................................. 2-25
Checking lights ....
.............................................................. 2-25
Warning lights ....
................................................................ 2-25
Indicator lights ................................................................... 2-31
Audible reminders ............................................................. 2-33
Warning display ........................................................................ 2-34
Engine oil low pressure warning ....
............................... 2-35
Engine system warning ................................................... 2-35
Shift lever position warning ............................................ 2-35
Reverse warning ....
............................................................ 2-36
Transmission system warning ........................................ 2-36
Transmission oil high temperature warning ................ 2-36
Transmission clutch high temperature warning ....
..... 2-37
Parking brake release warning ...................................... 2-37
Low brake fluid warning .................................................. 2-37
Anti-lock Braking System (ABS) warning .................. 2-38
Vehicle Dynamic Control (VDC)
system warning ....
.............................................................. 2-38
AWD clutch high temperature warning ....
................... 2-38
Front/rear tire size discrepancy warning ....
................. 2-39
AWD system warning ...................................................... 2-39
Low tire pressure warning .............................................. 2-40
Run-flat tire warning ....
..................................................... 2-40


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Tire Pressure Monitoring System
(TPMS) warning....
............................................................... 2-40
Cruise control system warning ........................................ 2-41
Low fuel warning ................................................................. 2-41
Door/trunk open warning .................................................. 2-42
Headlight system warning ....
............................................. 2-42
Low washer fluid warning ................................................. 2-42
No key warning ....
................................................................ 2-43
Operation displays ....
................................................................ 2-43
Engine start operation indicator ...................................... 2-44
Shift ªPº warning ................................................................. 2-44
ªPUSHº warning .... .............................................................. 2-44
Steering lock release malfunction indicator ................. 2-45
Intelligent Key insertion indicator .................................... 2-45
Intelligent Key removal indicator ....
.................................. 2-45
Intelligent Key battery discharge indicator ....
................ 2-46
Security systems ....................................................................... 2-46
Vehicle security system ..................................................... 2-46
NISSAN Vehicle Immobilizer System ............................. 2-47
Wiper and washer switch ....
................................................... 2-49
Using the wipers ................................................................. 2-49
Using the washer ................................................................ 2-50
Rear window defroster switch ....
........................................... 2-50
Headlight and turn signal switch .......................................... 2-51
Headlight switch ....
.............................................................. 2-51
Turn signal switch ............................................................... 2-54
Horn ....
........................................................................\
.................. 2-54 Heated seats
............................................................................\
. 2-55
Turning on the heaters ....
................................................. 2-55
Turning off the heaters ....
................................................. 2-55
Sonar system off switch ......................................................... 2-56
Exhaust sound control switch (if so equipped) ....
............ 2-56
Power outlets ............................................................................\
2-56
Storage ............................................................................\
........... 2-58
Cup holders ....
.................................................................... 2-58
Sunglasses holder ............................................................ 2-59
Door pocket ....
.................................................................... 2-59
Glove box ....
........................................................................\
2-60
Console box ....................................................................... 2-60
Coat hooks ......................................................................... 2-61
Windows ............................................................................\
........ 2-61
Power windows ................................................................. 2-61
Interior lights ............................................................................\
.. 2-64
Map lights ........................................................................... 2-64
Interior light control switch ............................................. 2-64
Vanity mirror lights ....
................................................................ 2-65
HomeLink


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-29959B49-CCE4-4C25-B217-0AC7FFC4712B
JVC0924X

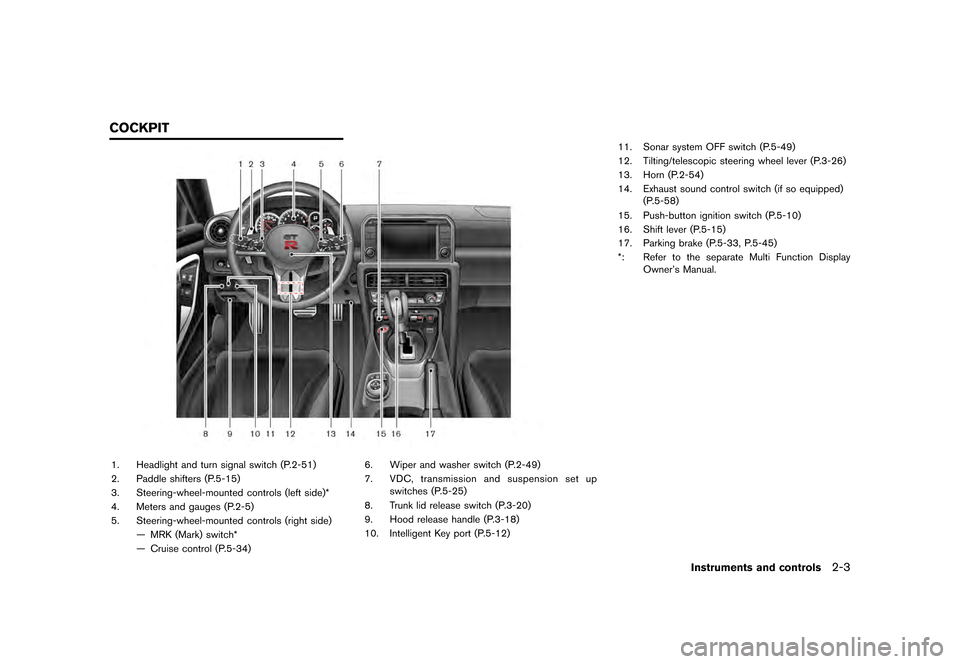

1. Headlight and turn signal switch (P.2-51)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-49)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-20)
9. Hood release handle (P.3-18)
10. Intelligent Key port (P.5-12) 11. Sonar system OFF switch (P.5-49)
12. Tilting/telescopic steering wheel lever (P.3-26)
13. Horn (P.2-54)
14. Exhaust sound control switch (if so equipped)
(P.5-58)
15. Push-button ignition switch (P.5-10)
16. Shift lever (P.5-15)
17. Parking brake (P.5-33, P.5-45)
*: Refer to the separate Multi Function Display Owner's Manual.
Instruments and controls2-3
COCKPIT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-4Instruments and controls
GUID-58BCEE9C-BB3E-469E-B94B-C18DC03CDF5C
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-4BB57835-EAEE-4DF7-9293-EA074338642D
JVC0090X
1. Trip A/B reset switch (P.2-6)
2. Speedometer (P.2-6)
3. Tachometer (P.2-7)/Upshift indicator (P.2-9)
4. Transmission position indicator (P.2-9)
5. Engine coolant temperature gauge (P.2-7)
6. ENTER switch (P.2-15)7. Instrument brightness control switch (P.2-11)
8. Vehicle information display (P.2-12)
9. Odometer/twin trip odometer (P.2-6)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Instruments and controls2-5
METERS AND GAUGES
