2-22Instruments and controls
JVI0126X
Engine oil filter:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The reminder is displayed when the customer
set mileage is exceeded. Select SETTING >
MAINTENANCE > FILTER to set or reset the
mileage for the engine oil filter change.
NOTE:
The default setting is 9,500 miles (15,000
km) . The maximum mileage that can be set
is 9,500 miles (15,000 km) .
JVI0127X
Transmission oil:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The reminder is displayed when the customer
set mileage is exceeded. Select SETTING >
MAINTENANCE > OIL > T/M OIL to set or
reset the mileage for the transmission oil
change.
NOTE:
The default setting is 37,000 miles (60,000
km) . The maximum mileage that can be set
is 55,500 miles (90,000 km) .
JVI0147X
Tires:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9This reminder appears when the customer set
distance comes for maintaining tires. You can
set or reset the distance for maintaining tires.
(See
ªSetting (drive computer)º page 2-19
earlier in this section.)
WARNING
The tire maintenance indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº in the ª8.
Maintenance and do-it-yourselfº sec-
tion. Many factors including tire infla-



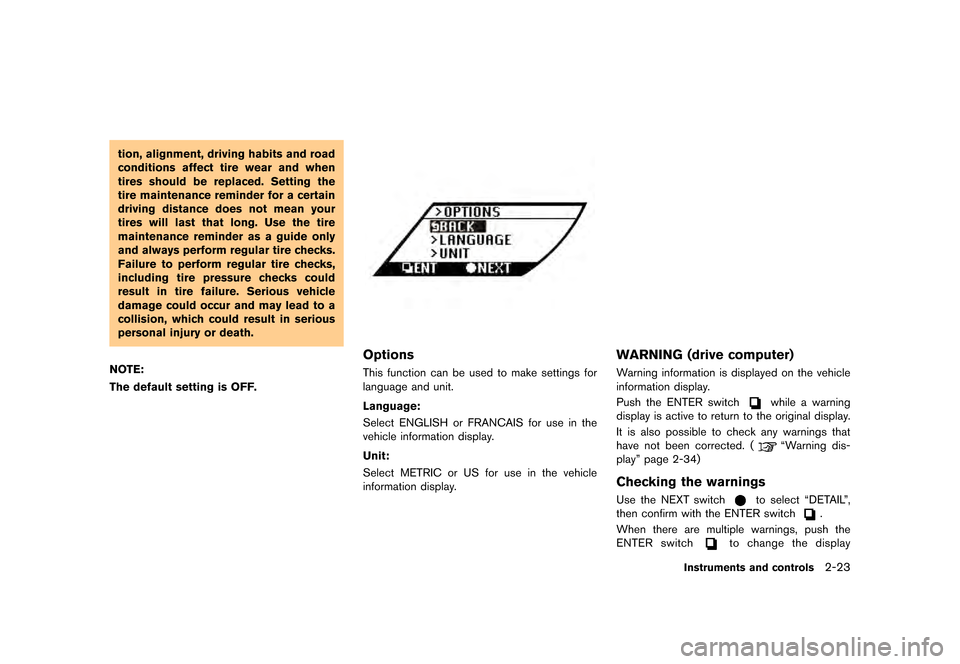

> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
tion, alignment, driving habits and road
conditions affect tire wear and when
tires should be replaced. Setting the
tire maintenance reminder for a certain
driving distance does not mean your
tires will last that long. Use the tire
maintenance reminder as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
NOTE:
The default setting is OFF.
JVI0121X
OptionsGUID-81B05E42-18B8-45F0-BA6B-B18D4407BAB9This function can be used to make settings for
language and unit.
Language:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Select ENGLISH or FRANCAIS for use in the
vehicle information display.
Unit:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Select METRIC or US for use in the vehicle
information display.
JVI0051X
WARNING (drive computer)GUID-2D104353-F7D4-4147-B63C-50AAE98FDF87Warning information is displayed on the vehicle
information display.
Push the ENTER switch
while a warning
display is active to return to the original display.

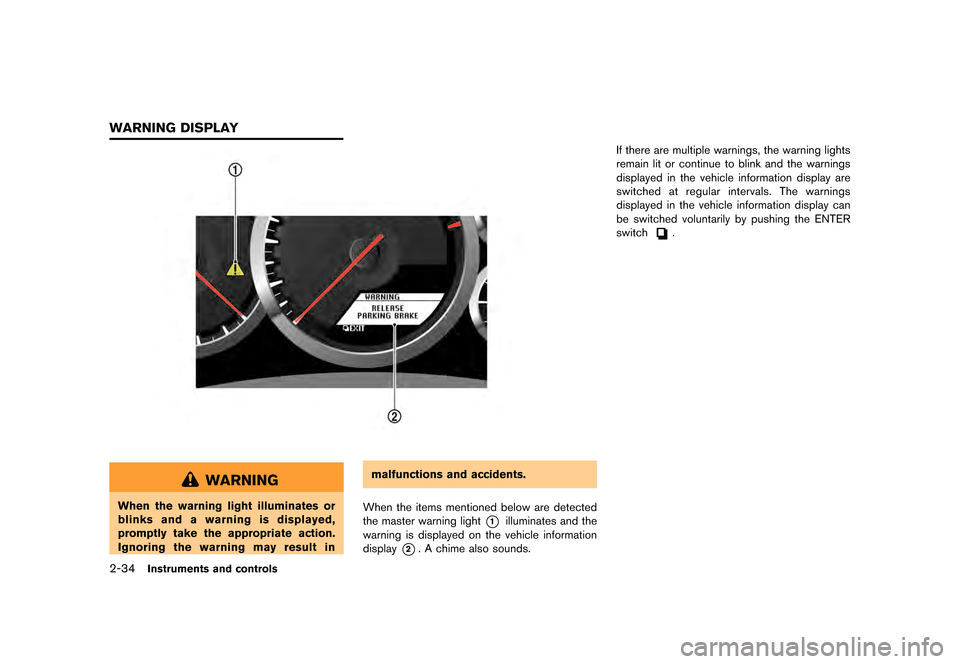

It is also possible to check any warnings that
have not been corrected. (
ªWarning dis-
playº page 2-34)
Checking the warningsGUID-A840BB7C-825F-4117-88B1-664DE34AA25EUse the NEXT switchto select ªDETAILº,
then confirm with the ENTER switch
.
When there are multiple warnings, push the
ENTER switch
to change the display
Instruments and controls2-23


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

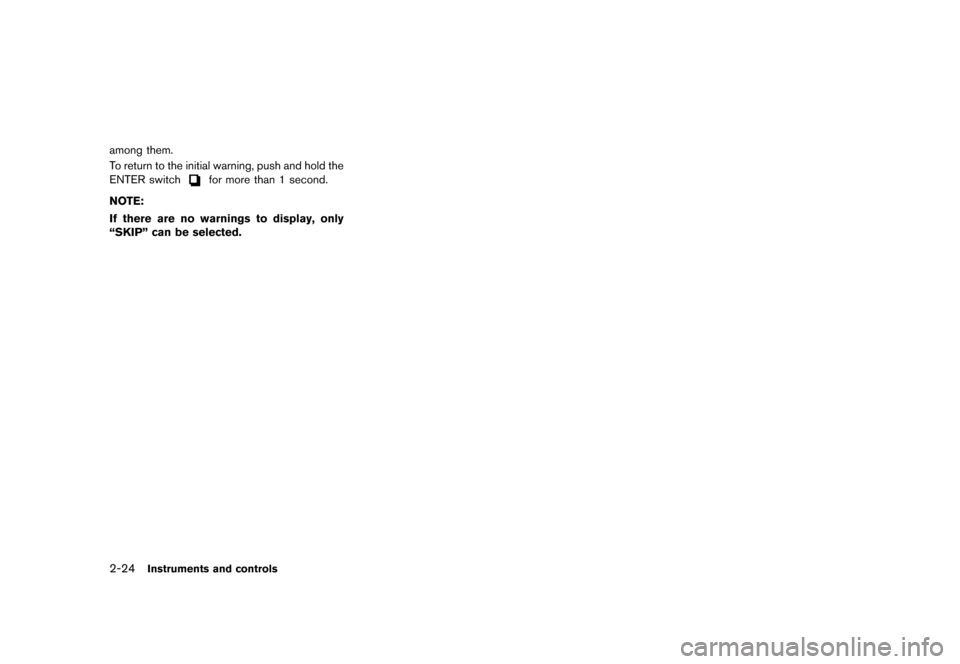

2-24Instruments and controls
among them.
To return to the initial warning, push and hold the
ENTER switch
for more than 1 second.
NOTE:
If there are no warnings to display, only
ªSKIPº can be selected.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
checked, and if necessary repaired, by a GT-R
certified NISSAN dealer promptly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26)
WARNING
. Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning lightGUID-133A62B2-7E8B-4EF3-9103-A37320F99DAEIf the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, it is
recommended you see a GT-R certified NISSAN
dealer immediately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
GUID-D66D6512-DD02-407A-B4CC-E2B0D6F8CFBBThis light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a GT-R certified NISSAN
dealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
ªEngine oil level displayº page 2-12)
(
ªChecking engine oil levelº page 8-13)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-25C0AA6B-82C8-42D5-8984-4E4E27CAAB43After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, it is
recommended you contact a GT-R certified
NISSAN dealer for repair as soon as possible.
Low tire pressure warning lightGUID-BB3B0771-5818-4948-9BC3-7EB1194EB378Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
Instruments and controls2-27


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-28Instruments and controls
tire pressure and flat tire, or indicates that the
TPMS is not functioning properly.
After the ignition switch is pushed to the ON
position, the warning light illuminates for about 1
second and turns off.
Low tire pressure warning:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all 4 wheels to the
recommended COLD tire pressure shown
on the Tire and Loading Information label
located in the driver's door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is
inflated to the recommended pressure,
the vehicle must be driven at speeds above
16 MPH (25 km/h) to activate the TPMS
and turn off the low tire pressure warning
light. Use a tire pressure gauge to check
the tire pressure. (
ªTire Pressure
Monitoring System (TPMS)º page 5-4)
(
ªTire Pressure Monitoring System
(TPMS)º page 6-3) Run-flat tire warning:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The run-flat tire warning warns of a flat tire.
If the vehicle is being driven with one or more flat
tires, the warning light will illuminate continu-
ously and a chime will sound for 10 seconds.
The chime will only sound at the first indication
of a flat tire and the warning light will illuminate
continuously. When the flat tire warning is
activated, it is recommended you have the
system reset and the tire checked and replaced
if necessary by a GT-R certified NISSAN dealer.
Even if the tire is inflated to the specified COLD
tire pressure, the warning light will continue to
illuminate until the system is reset by a GT-R
certified NISSAN dealer.
If you select the tire pressure information in the
touch screen display, the warning screen will be
displayed. The tire pressure for each tire will also
be displayed. Refer to the separate Multi
Function Display Owner's Manual.
Your vehicle can be driven for a limited time on a
flat tire. (
ªRun-flat tiresº page 6-4)
(
ªRun-flat tiresº page 8-39)
TPMS malfunction:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed to the ON position. The light will remain on after the 1 minute. It is recommended you
have the system checked by a GT-R certified
NISSAN dealer. (
ªTire Pressure Monitoring
System (TPMS)º page 5-4) (
ªTire pres-
sureº page 8-32)
WARNING
. If the light does not illuminate with
the ignition switch pushed to the ON
position, it is recommended you
have the vehicle checked by a GT-R
certified NISSAN dealer as soon as
possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
shown on the Tire and Loading
Information label located in the
driver's door opening to turn the
low tire pressure warning light off. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat (
ªRun-flat
tiresº page 6-4) or the TPMS may be
malfunctioning. If no tire is flat and
all tires are properly inflated, it is
recommended you have the vehicle
checked by a GT-R certified NISSAN
dealer.
. Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors. .
If you detect any unusual sounds or
vibrations while driving with a punc-
tured run-flat tire, pull off the road
to a safe location and stop the
vehicle as soon as possible. The tire
may be seriously damaged and
need to be replaced.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after the 1 minute. It
is recommended you contact a GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. Be sure to install the specified size of tires on the four wheels.
NOTE:
. If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h) , the
TPMS may not operate correctly.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen gas. It is
recommended you contact a GT-R cer-
tified NISSAN dealer for information on
filling the tires with nitrogen gas.
Master warning lightGUID-54C35BD0-66E0-47B9-AC81-C5DFFFC306B6When the ignition switch is in the ON position,
the master warning light illuminates if any of the
warning displays appear on the vehicle informa-
tion display. (
ªWarning displayº page 2-
34)
Seat belt warning light and
chime
GUID-CC353921-3EB0-45DF-B7CF-CAE4A3F25FBCThe light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver's seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver's seat belt
Instruments and controls2-29


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-34Instruments and controls
GUID-C3DF3171-3EE9-4A6E-9B44-2FB330C4983C
JVI0089X
WARNING
When the warning light illuminates or
blinks and a warning is displayed,
promptly take the appropriate action.
Ignoring the warning may result inmalfunctions and accidents.
When the items mentioned below are detected
the master warning light
*1illuminates and the
warning is displayed on the vehicle information
display
*2. A chime also sounds. If there are multiple warnings, the warning lights
remain lit or continue to blink and the warnings
displayed in the vehicle information display are
switched at regular intervals. The warnings
displayed in the vehicle information display can
be switched voluntarily by pushing the ENTER
switch
.
WARNING DISPLAY


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0053X
ENGINE OIL LOW PRESSURE
WARNING
GUID-34CBE14F-B9C1-4537-B210-F2AAABAE4FB8This will appear if the engine oil pressure is low.
(
ªEngine oil pressure warning lightº page
2-27)
JVI1497X
ENGINE SYSTEM WARNINGGUID-F79474B3-A4C2-4F86-9A01-DCC9408ABD90This will appear if a potential emission control or
the muffler with electronic control valve (if so
equipped) malfunction is detected, the fuel-filler
cap is loose or missing, or the vehicle runs out of
fuel. (
ªMalfunction Indicator Light (MIL)º
page 2-32)
JVI0054X
SHIFT LEVER POSITION WARNINGGUID-CF9F088A-D172-4365-8953-C0A42B186E6AThis will appear if the system cannot detect the
shift lever position.
Stop the vehicle in a safe location. Depress the
brake pedal and move this shift lever to another
position then move the lever back to the desired
position. If the warning is still displayed after the
above operation is performed, it is recom-
mended you have the system checked by a
GT-R certified NISSAN dealer. (
ªDriving
the vehicleº page 5-15)
Instruments and controls2-35
