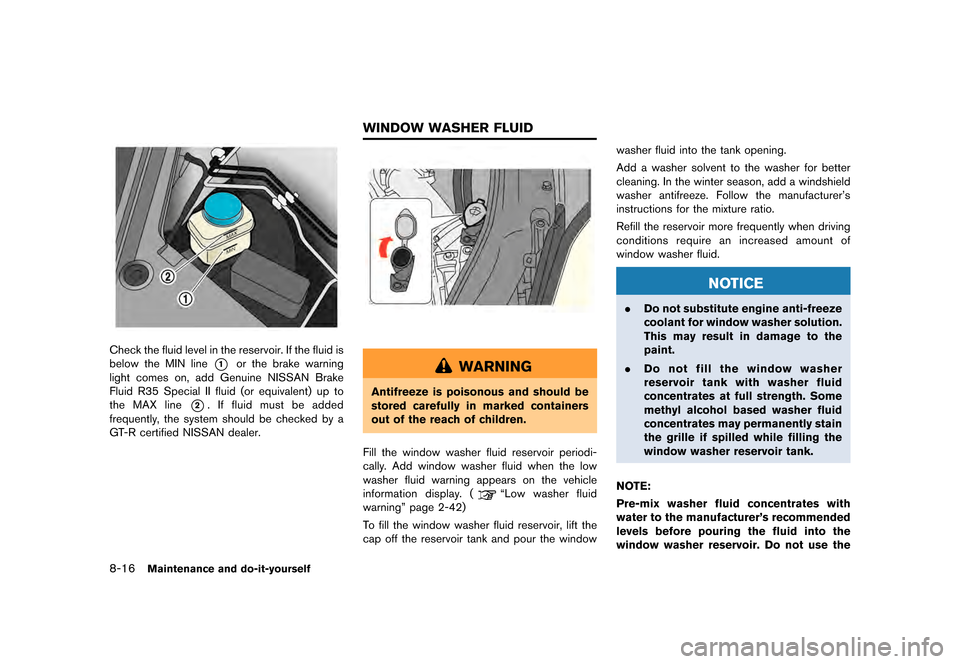

8-16Maintenance and do-it-yourself
GMD0021
Check the fluid level in the reservoir. If the fluid is
below the MIN line
*1or the brake warning
light comes on, add Genuine NISSAN Brake
Fluid R35 Special II fluid (or equivalent) up to
the MAX line
*2. If fluid must be added
frequently, the system should be checked by a
GT-R certified NISSAN dealer.
GUID-0065E715-7CFD-4060-8CDE-667C0E40B99D
GMD0001
WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
washer fluid warning appears on the vehicle
information display. (
ªLow washer fluid
warningº page 2-42)
To fill the window washer fluid reservoir, lift the
cap off the reservoir tank and pour the window washer fluid into the tank opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer's
instructions for the mixture ratio.
Refill the reservoir more frequently when driving
conditions require an increased amount of
window washer fluid.
NOTICE
.
Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
NOTE:
Pre-mix washer fluid concentrates with
water to the manufacturer's recommended
levels before pouring the fluid into the
window washer reservoir. Do not use the
WINDOW WASHER FLUID


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-32Maintenance and do-it-yourself
GUID-FA6175CA-B213-4ECE-863E-635EEF1FE21FIf you have a flat tire, see the following
section. (
ªFlat tireº page 6-3)
CAUTION
A GT-R certified NISSAN dealer should
perform a tire change. It will be neces-
sary to reset the tire pressure sensors.
To change the tires, it is recommended
you contact a GT-R certified NISSAN
dealer.
Be sure to use the tires and wheels together as
a set that are designated for use with this
vehicle.
When tire replacement is required, replacing the
tires as a set of four with new tires is
recommended. However, if a tire is punctured
or damaged, it may be possible to replace only
the damaged tire. Determining whether one tire
or a complete set of tires should be replaced is
based on a number of factors including tire wear
and condition. It is recommended you contact
your GT-R certified NISSAN dealer. They can
recommend if an individual tire or a complete set
should be replaced.
NOTICE
Make sure the tire valve stem cap is
installed and that the valve stem is
tight. When installing the cap, make
sure to tighten the cap by hand. If a tool
is used to tighten the cap, the cap may
be damaged.
TIRE PRESSUREGUID-524F51D3-3740-4280-B73B-13DACCD59EB9
Tire Pressure Monitoring System
(TPMS)
GUID-49C37FD6-6A53-4877-8974-3E290A8057A5This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires. When the low tire pressure
warning light is lit, one or more of your tires is
significantly under-inflated. The system also
displays pressure of all tires on the touch screen
display by sending a signal from a sensor that is
installed in each wheel.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure. (
ªLow tire pressure warn-
ing lightº page 2-27) (
ªTire Pressure
Monitoring System (TPMS)º page 5-4)
(
ªFlat tireº page 6-3)
Tire inflation pressureGUID-EBF83A20-58CD-45AB-9465-0CC2CBF3A2FD
Check the tire pressure often and always
prior to long distance trips. The recom-
mended tire pressure specifications are
shown on the F.M.V.S.S./C.M.V.S.S. la-
bel or the Tire and Loading Information
label (if so equipped) under the ªCold
Tire Pressureº heading. The Tire and
Loading Information label is affixed to the
driver side door end. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
WHEELS AND TIRES


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

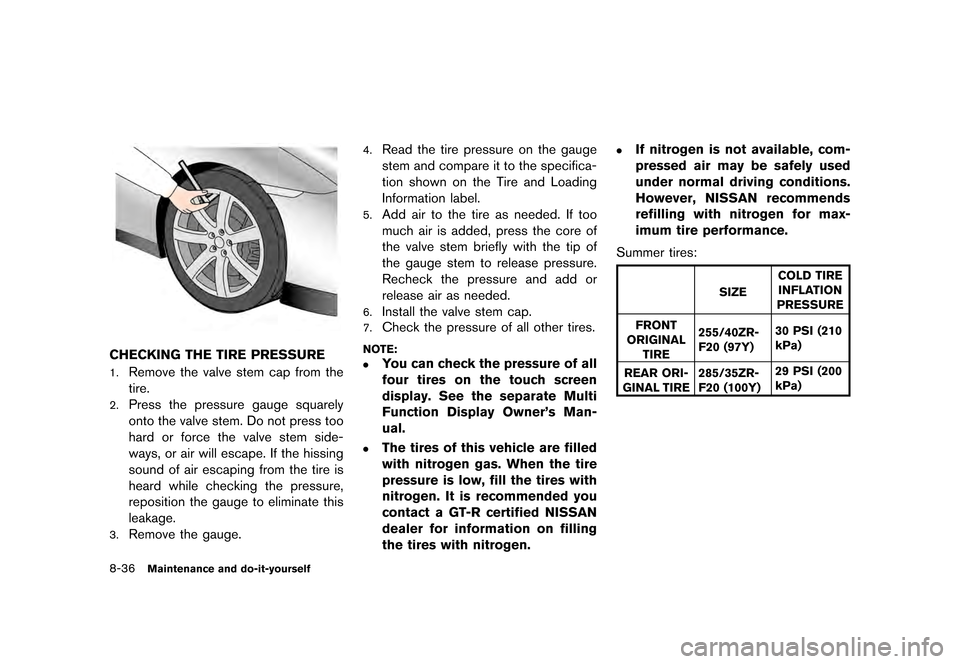

8-36Maintenance and do-it-yourself
GMD0017
CHECKING THE TIRE PRESSUREGUID-9660404A-CCE9-48DF-B05F-387147B1D4CA1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely
onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or
release air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires.
NOTE:
.
You can check the pressure of all
four tires on the touch screen
display. See the separate Multi
Function Display Owner's Man-
ual.
.The tires of this vehicle are filled
with nitrogen gas. When the tire
pressure is low, fill the tires with
nitrogen. It is recommended you
contact a GT-R certified NISSAN
dealer for information on filling
the tires with nitrogen.
.If nitrogen is not available, com-
pressed air may be safely used
under normal driving conditions.
However, NISSAN recommends
refilling with nitrogen for max-
imum tire performance.
Summer tires:
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL
TIRE 255/40ZR-
F20 (97Y)
30 PSI (210
kPa)
REAR ORI-
GINAL TIRE 285/35ZR-
F20 (100Y) 29 PSI (200
kPa)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-40Maintenance and do-it-yourself
ling stability. If necessary, contact a GT-R
certified NISSAN dealer for assistance.
Frequently check the tire pressure information
on the touch screen display and adjust pressure
of each tire properly. See the separate Multi
Function Display Owner's Manual.
It can be difficult to tell if a run-flat tire is under-
inflated or flat. Check the tire pressures as
described earlier in this section. If the tire
becomes under-inflated while driving, the low
tire pressure warning light will come on. If the
tire becomes flat while driving, the low tire
pressure warning light and the run-flat tire
warning display will come on.
Low tire pressure:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the vehicle is being driven with low tire
pressure, the low tire pressure warning light will
illuminate and the low tire pressure warning will
appear in the vehicle information display.
Flat tire:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the vehicle is being driven with one or more flat
tires, the low tire pressure warning light will
illuminate continuously and a chime will sound
for 10 seconds. The run-flat tire warning also
appears in the vehicle information display.
The chime will only sound at the first indication
of a flat tire and the run-flat tire warning display
will illuminate continuously. When the flat tirewarning is activated, it is recommended you
have the system reset and the tire checked and
replaced if necessary by a GT-R certified
NISSAN dealer. Even if the tire is inflated to
the specified COLD tire pressure, the warning
light will continue to illuminate until the system is
reset by a GT-R certified NISSAN dealer.
If the low tire pressure and the run-flat tire
warning appears on the vehicle information
display:
.
Do not exceed 50 MPH (80 km/h) .
. Increase your following distance to allow for
increased stopping distances.
. Avoid sudden maneuvers, hard cornering
and hard braking.
WARNING
.Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tire.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. Drive safely at reduced speeds.
Avoid hard cornering or braking,
which may cause you to lose control
of the vehicle.
NOTICE
.Never install tire chains on a punc-
tured run-flat tire, as this could
damage your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smal-
ler than normal.
. Do not enter an automated car wash
with a punctured run-flat tire.
. It is recommended you have the
punctured tire replaced by a GT-R
certified NISSAN dealer as soon as
possible, as the tire's performance
capability is reduced.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-2
Coolant level and mixture ratio...
......................... GTR-14
Corrosion protection ...
.................................................. 7-10
Cracks on brake pad ...
........................................... GTR-26
Cracks on the disc rotors ...
.................................. GTR-26
Cruise control ...
.................................................. 2-16, 5-34
Cruise control operations ...
......................................... 5-36
Cruise control system warning ...
............................... 2-41
Cup holders ...
................................................................. 2-58
Current fuel consumption ...
......................................... 2-15
D
Differential oil ...
........................................................... GTR-4
Dimensions ...
................................................................... 9-10
Distance to empty ...
...................................................... 2-17
Door pocket ...
................................................................. 2-59
Door/trunk open warning ...
.......................................... 2-42
Doors ...
............................................................................... 3-4
Draining of coolant water ...
......................................... 5-56
Drinking alcohol/drugs and driving ...
.......................... 5-9
Drive belts ...
.................................................................... 8-19
Drive computer ...
............................................................ 2-15
Driving All-Wheel Drive driving safety precautions ...
...... 5-9
Cold weather driving ...
.......................................... 5-56
Drinking alcohol/drugs and driving ...
.................... 5-9
Driving on snow or ice ...
....................................... 5-56
Driving the vehicle ...
............................................... 5-15
Driving tips ...
............................................................ 5-21
Precautions when starting and driving ...
............. 5-3
Driving after replacing tires ...
................................ GTR-11 Dry carbon fiber parts
...
................ GTR-7, GTR-27, 7-6
Dual clutch transmission ...
........................ GTR-27, 5-15
E
Elapsed time and trip odometer ...
............................. 2-17
Emergency engine shut off ...
............................. 5-11, 6-3
Emergency trunk lid release ...
.................................... 3-22
Emission control information label ...
......................... 9-12
Emission control system warranty ...
.......................... 9-18
Engine ...
............................................................................. 9-8
Before starting the engine ...
................................ 5-13
Changing engine coolant ...
.................................. 8-12
Changing engine oil and filter ...
.......................... 8-14
Checking engine coolant level ...
......................... 8-11
Checking engine oil level ...
.................................. 8-13
Emergency engine shut off ...
...................... 5-11, 6-3
Engine block heater ...
............................................ 5-57
Engine compartment ...
........................................... 8-24
Engine compartment check locations ...
............... 8-8
Engine coolant temperature gauge ...
................... 2-7
Engine cooling system ...
....................................... 8-10
Engine oil ...
................................................ GTR-3, 8-13
Engine oil and oil filter recommendation ...
.......... 9-6
Engine oil level display ...
....................................... 2-12
Engine oil low pressure warning ...
..................... 2-35
Engine serial number ...
.......................................... 9-12
Engine start operation indicator ...
...................... 2-44
Engine system warning ...
...................................... 2-35
Operating range for engine start ...
..................... 5-10
Starting the engine ...
............................................. 5-13 Engine and powertrain
...
...................... GTR-14, GTR-22
Engine oil maintenance ...
......................................... GTR-4
Engine output ...
........................................................ GTR-23
Engine output according to the
coolant temperature ...
............................................. GTR-23
Engine speed is restricted ...
................................. GTR-23
Environmental factors influence the rate
of corrosion ...
.................................................................. 7-10
Event Data Recorders (EDR) ...
.................................. 9-20
Exhaust gas ...
.................................................................... 5-3
Exhaust muffler and trunk carpet ...
........................ GTR-6
Exhaust sound control switch ...
................................. 2-56
Exhaust sound control system ...
................................ 5-58
Explanation of maintenance items ...
............................ 8-4
Extended storage fuse switch ...
................................. 8-26
Exterior and interior lights ...
........................................ 8-30
F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Features of each mode ...
............................................. 5-27
Flat tire ...
............................................................................ 6-3
Flat towing ...
.................................................................... 9-17
Floor mats ...
....................................................................... 7-8
Fluid
Brake fluid ...
.............................................. GTR-4, 8-15
Fluid level check ...
.................................................. 8-18
Low brake fluid warning ...
.................................... 2-37
Low washer fluid warning ...
................................. 2-42
Power steering fluid ...
............................................ 8-14
Window washer fluid ...
.......................................... 8-16


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-4
Interior lights...
................................................................ 2-64
J
Jacking vehicle and removing wheels ...
................... 8-44
Jump starting ...
...................................................... 6-5, 8-19
K
Key
Intelligent Key ...
.......................................................... 3-2
Intelligent Key battery discharge ...
..................... 5-12
Intelligent Key battery discharge indicator ...
.... 2-46
Intelligent Key battery replacement ...
................. 8-27
Intelligent Key functions ...
........................................ 3-9
Intelligent Key insertion indicator ...
..................... 2-45
Intelligent Key removal indicator ...
...................... 2-45
Intelligent Key system ...
............................................ 3-8
Keys ...
........................................................................... 3-2
Locking with mechanical key ...
............................... 3-6
No key warning ...
.................................................... 2-43
Remote keyless entry system ...
........................... 3-12
L
Larger children ...
............................................................ 1-14
Light
AWD warning light ...
.............................................. 5-41
Exterior and interior lights ...
................................. 8-30
Headlight and turn signal switch ...
..................... 2-51
Headlight switch ...
.................................................. 2-51
Headlights ...
............................................................. 8-30 Indicator lights
...
...................................................... 2-31
Interior light control switch ...
............................... 2-64
Interior lights ...
......................................................... 2-64
Lights ...
...................................................................... 8-29
Map lights ...
.............................................................. 2-64
Supplemental air bag warning light ...
................ 1-47
Vanity mirror lights ...
............................................... 2-65
Warning lights ...
...................................................... 2-25
Warning lights, indicator lights and
audible reminders ...
................................................ 2-25
Limited Slip Differential ...
............................................. 5-44
Loading tips ...
................................................................. 9-16
Lock
Anti-lock Braking System ...
.................................. 5-52
Anti-lock Braking System warning ...
.................. 2-38
Automatic door lock system ...
................................ 3-5
Freeing a frozen door lock ...
................................ 5-56
Locking with inside lock knob ...
............................. 3-5
Locking with mechanical key ...
............................... 3-6
Locking with power door lock switch ...
............... 3-5
Steering lock release
malfunction indicator ...
........................................... 2-45
Wheel lock nuts ...
................................................... 8-49
Low brake fluid warning ...
........................................... 2-37
Low fuel warning ...
........................................................ 2-41
Low tire pressure warning ...
....................................... 2-40
Low washer fluid warning ...
........................................ 2-42
Lower anchors and tethers for
children system ...
........................................................... 1-18
M
Maintenance
Explanation of maintenance items ...
...................... 8-4
General maintenance ...
................................... 8-3, 8-4
Maintenance information ...
................................. GTR-3
Maintenance precautions ...
..................................... 8-6
Maintenance requirements ...
................................... 8-3
Readiness for
Inspection/Maintenance test ...
............................. 9-20
Scheduled maintenance ...
....................................... 8-3
Seat belt maintenance ...
....................................... 1-13
Map lights ...
..................................................................... 2-64
Matte paint care ...
............................................................ 7-2
Measurement of weights ...
.......................................... 9-16
Meters and gauges ...
...................................................... 2-5
Mirror Inside mirror ...
.......................................................... 3-27
Mirrors ...
.................................................................... 3-27
Outside mirrors ...
.................................................... 3-28
Vanity mirror ...
.......................................................... 3-29
Vanity mirror lights ...
............................................... 2-65
Most common factors contributing to
vehicle corrosion ...
......................................................... 7-10
Multi Function Display Owner's Manual ...
................. 4-2
N
NISSAN Advanced Air Bag System ...
..................... 1-40
NISSAN Vehicle Immobilizer System ...
.................... 2-47
No key warning ...
........................................................... 2-43
Noises are heard while driving ...
......................... GTR-24


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
O
Odometer/twin trip odometer...
.................................... 2-6
Off-road recovery ...
......................................................... 5-8
Oil Changing engine oil and filter ...
.......................... 8-14
Checking engine oil level ...
.................................. 8-13
Differential oil ...
..................................................... GTR-4
Engine oil ...
................................................ GTR-3, 8-13
Engine oil and oil filter recommendation ...
.......... 9-6
Engine oil level display ...
....................................... 2-12
Engine oil low pressure warning ...
..................... 2-35
Transmission oil ...
..................................... GTR-4, 8-14
Transmission oil high temperature warning ...
.... 2-36
Opening and closing the trunk ...
............................... 3-22
Opening the doors ...
....................................................... 3-7
Opening the fuel-filler door ...
...................................... 3-25
Opening the hood ...
...................................................... 3-18
Operating range for engine start ...
............................ 5-10
Operation displays ...
..................................................... 2-43
Outside air temperature ...
............................................ 2-18
Outside door handles ...
.................................................. 7-6
Outside mirrors ...
........................................................... 3-28
Outside temperature display indicates
higher temperature ...
............................................... GTR-23
Overheat If your vehicle overheats ...
....................................... 6-8
Owner's Manual/Service Manual
order information ...
......................................................... 9-22
P
Parking
Parking brake ...
........................................................ 5-33
Parking brake break-in ...
....................................... 5-51
Parking brake release warning ...
......................... 2-37
Parking/parking on hills ...
...................................... 5-45
Passenger compartment ...
........................................... 8-25
Power
Locking with power door lock switch ...
............... 3-5
Power outlets ...
........................................................ 2-56
Power steering ...
..................................................... 5-50
Power steering fluid ...
............................................ 8-14
Power windows ...
.................................................... 2-61
Trunk release power cancel switch ...
................ 3-21
Precautions ...
.................................................................. 8-17
All-Wheel Drive driving safety precautions ...
...... 5-9
Braking precautions ...
............................................ 5-51
Maintenance precautions ...
..................................... 8-6
Precautions on child restraints ...
........................ 1-16
Precautions on cruise control ...
.......................... 5-35
Precautions on seat belt usage ...
.......................... 1-6
Precautions on supplemental
restraint system ...
.................................................... 1-34
Precautions when starting and driving ...
............. 5-3
Precautions before driving ...
................................. GTR-10
Precautions on performance driving ...
................ GTR-12
Pregnant women ...
........................................................... 1-9
Push starting ...
.................................................................. 6-7
ªPUSHº warning ...
......................................................... 2-44
Push-button ignition switch ...
..................................... 5-10
R
R mode start function ...
................................................ 5-32
Rapid air pressure loss ...
............................................... 5-8
Readiness for Inspection/Maintenance test ...
........ 9-20
Rear window defroster switch ...
................................ 2-50
Rear-facing child restraint installation
using LATCH ...
............................................................... 1-20
Rear-facing child restraint installation using the
seat belts ...
...................................................................... 1-22
RearView Monitor ...
......................................................... 4-2
Recommended fluids and
maintenance interval ...
............................................ GTR-19
Reducing tight corner braking phenomenon ...
....... 5-43
Refueling precautions ...
.......................................... GTR-13
Remote keyless entry system ...
.................................. 3-12
Removing spots ...
............................................................ 7-4
Removing the cowl top cover ...
................................... 8-9
Repair and replacement procedure ...
....................... 1-47
Replacement of brake pads and disc rotors ...
.... GTR-5
Replacing spark plugs ...
.............................................. 8-20
Replacing the brake pads ...
........................................ 8-24
Replacing the wiper blades ...
..................................... 8-22
Reporting safety defects ...
......................................... 9-19
Reverse warning ...
......................................................... 2-36
Roadside assistance program ...
................................... 6-2
Run-flat tire warning ...
.................................................. 2-40
Run-flat tires ...
.................................................................. 6-4
10-5


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-8
Vehicle information display...
....................................... 2-12
Vehicle load capacity ...
................................................. 9-15
Vehicle loading information ...
...................................... 9-14
Vehicle recovery ...
............................................................ 6-9
Vehicle security system ...
............................................. 2-46
Vehicle speed ...
.............................................................. 2-16
Vehicle status data recorder ...
.................................... 9-21
Ventilators ...
....................................................................... 4-9
W
Warning
Anti-lock Braking System warning ...
.................. 2-38
AWD clutch high temperature warning ...
......... 2-38
AWD system warning ...
......................................... 2-39
AWD warning light ...
.............................................. 5-41
Brake pad wear warning ...
................................... 8-23
Cruise control system warning ...
........................ 2-41
Door/trunk open warning ...
................................... 2-42
Engine oil low pressure warning ...
..................... 2-35
Engine system warning ...
...................................... 2-35
Front/rear tire size discrepancy warning ...
....... 2-39
Hazard warning flasher switch ...
............................ 6-2
Low brake fluid warning ...
.................................... 2-37
Low fuel warning ...
................................................. 2-41
Low tire pressure warning ...
................................ 2-40
Low washer fluid warning ...
................................. 2-42
No key warning ...
.................................................... 2-43
Parking brake release warning ...
......................... 2-37
ªPUSHº warning ...
.................................................. 2-44
Reverse warning ...
.................................................. 2-36 Run-flat tire warning
...
........................................... 2-40
Shift lever position warning ...
.............................. 2-35
Shift ªPº warning ...
................................................. 2-44
Supplemental air bag warning labels ...
............. 1-46
Supplemental air bag warning light ...
................ 1-47
Tire Pressure Monitoring System warning ...
.... 2-40
Transmission clutch high
temperature warning ...
........................................... 2-37
Transmission oil high temperature warning ...
.... 2-36
Transmission system warning ...
........................... 2-36
Vehicle Dynamic Control system warning ...
..... 2-38
Warning (drive computer) ...
................................. 2-23
Warning display ...
................................................... 2-34
Warning lights ...
...................................................... 2-25
Warning lights, indicator lights and
audible reminders ...
................................................ 2-25
Warning signals ...
................................................... 3-16
Warranty information ...
.............................................. GTR-3
Washing ...
.......................................................................... 7-3
Waxing ...
............................................................................ 7-4
Wheel alignment ...
.......................................... GTR-9, 5-39
Wheel alignment inspection and adjustment
(if necessary) (including tire
pressure adjustment) ...
............................................. GTR-8
Wheel lock nuts ...
.......................................................... 8-49
Wheels ...
............................................................................ 7-5
Wheels and tires ...
........... GTR-16, GTR-22, 8-32, 9-9
When traveling or registering in
another country ...
........................................................... 9-11
Where to go for service ...
............................................. 8-3
Window washer fluid ...
................................................. 8-16 Windows
...
....................................................................... 2-61
Windshield wiper blades ...
.......................................... 8-22
Wiper Replacing the wiper blades ...
.............................. 8-22
Using the wipers ...
.................................................. 2-49
Windshield wiper blades ...
................................... 8-22
Wiper and washer switch ...
................................. 2-49
Wiper and washer switch ...
........................................ 2-49
