2017 NISSAN GT-R display


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
hill start assist will stop operating completely.
Hill start assist will not operate when the shift
lever is moved to the
&Nor&Pposition or on a
flat and level road.
NOTE:
This system does not function when the
Vehicle Dynamic Control VDC) system
warning appears on the vehicle informa-
tion display located in the tachometer.
(
ªVehicle Dynamic Control (VDC) sys-
tem warningº page 2-38)
GUID-D6223DEC-E503-4824-AF95-56C96903CD3E
NOTICE
Follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and econo-
my of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and
reduced vehicle performance.
Please observe the following types of driving
until the mileage shown below has been
reached.
Until 300 miles (500 km):
. Do not depress the accelerator pedal more
than halfway and avoid rapid acceleration.
. Drive with the engine speed kept at less
than 3,500 RPM.
. Avoid unnecessary quick steering, abrupt
braking and driving on poor roads.
300 to 600 miles (500 to 1,000 km):
. Avoid rapid acceleration in a low gear (1st to
3rd gears) with the accelerator pedal fully
depressed. Depress the pedal slowly.
. Avoid unnecessary quick steering and
abrupt braking. .
Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
600 to 1,200 miles (1,000 to 2,000 km):
. Drive with the engine speed kept relatively
high with the shift lever in the
&Mposition.
Shifting is recommended between 1st and
4th gears.
. Avoid unnecessary quick steering and
abrupt braking.
. Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
Even though the mileage reaches over 1,200
miles (2,000 km) , the clutch may take longer to
properly engage if the vehicle is mainly driven in
town at a low speed. NISSAN recommends
breaking in the clutch at a GT-R certified
NISSAN dealer.
WHEEL ALIGNMENTGUID-521F5854-07A2-4AA7-8ABC-458B6FD6D6B7Do not adjust the wheel alignment until the
mileage reaches 1,000 miles (1,600 km). Until
then, the suspension may not engage enough
and the height may be higher.
However, make sure to adjust the alignment
after 1,000 miles (1,600 km) .
The wheel alignment can be adjusted by a GT-R
Starting and driving5-39

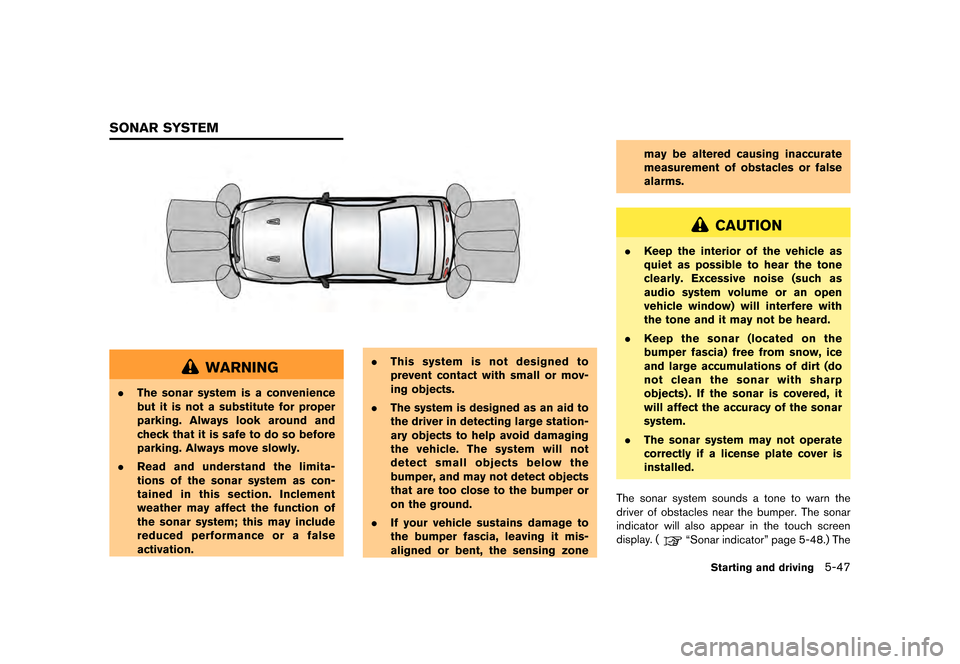

BREAK-IN SCHEDULE


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-AE4FE14D-BC9F-463F-B5FA-17F74108C7B7
JVS0801X
WARNING
.The sonar system is a convenience
but it is not a substitute for proper
parking. Always look around and
check that it is safe to do so before
parking. Always move slowly.
. Read and understand the limita-
tions of the sonar system as con-
tained in this section. Inclement
weather may affect the function of
the sonar system; this may include
reduced performance or a false
activation. .
This system is not designed to
prevent contact with small or mov-
ing objects.
. The system is designed as an aid to
the driver in detecting large station-
ary objects to help avoid damaging
the vehicle. The system will not
detect small objects below the
bumper, and may not detect objects
that are too close to the bumper or
on the ground.
. If your vehicle sustains damage to
the bumper fascia, leaving it mis-
aligned or bent, the sensing zone may be altered causing inaccurate
measurement of obstacles or false
alarms.
CAUTION
.
Keep the interior of the vehicle as
quiet as possible to hear the tone
clearly. Excessive noise (such as
audio system volume or an open
vehicle window) will interfere with
the tone and it may not be heard.
. Keep the sonar (located on the
bumper fascia) free from snow, ice
and large accumulations of dirt (do
not clean the sonar with sharp
objects) . If the sonar is covered, it
will affect the accuracy of the sonar
system.
. The sonar system may not operate
correctly if a license plate cover is
installed.
The sonar system sounds a tone to warn the
driver of obstacles near the bumper. The sonar
indicator will also appear in the touch screen
display. (
ªSonar indicatorº page 5-48.) The
Starting and driving5-47
SONAR SYSTEM


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5-48Starting and driving
system detects front obstacles when the shift
lever is in the
&Aposition or&Nposition and both
front and rear obstacles when the shift lever is in
the
&Rposition.
The system may not detect objects at speeds
above 6 MPH (10 km/h) and may not detect
certain angular or moving objects.
Refer to the illustration for approximate zone
coverage areas. As you move closer to the
obstacle, the rate of the tone increases. When
you move even closer to the obstacle, the tone
will sound continuously.
The sensitivity level of the sonar can be adjusted
(higher or lower) in the sonar setting display.
(
ªSonar system settingº page 5-49)
The intermittent tone will stop in 3 seconds
when an obstacle is detected by only the corner
sensor and the distance does not change.
JVS0802X
*1Sonar display
*ACorner sonar indicator
*BCenter sonar indicator
*2RearView Monitor display
SONAR INDICATORGUID-8AAFCA2B-C300-4087-BA53-F6F5415AF187With the ªAutomatic Display with Sonarº key ON
in the touch screen display, when the front sonar
detects obstacles near the bumper, a tone will
sound and the sonar indicator will appear in the
touch screen display
*1. When the RearView
Monitor is displayed, the sonar indicator will
appear in the upper corner of the display
*2.
The sonar indicators
*Aand*Bindicate the
position of the object and the distance to the
object with its color and rate of blinking.
When an object is detected, the indicator
(green) appears and blinks (the tone sounds
intermittently) . When the vehicle moves closer
to the object, the color of the indicator turns
yellow and the rate of blinking increases (the
rate of the tone increases) . When the vehicle
moves even closer to the object, the indicator
stops blinking and turns red (the tone sounds
continuously) .
When the RearView Monitor is displayed,
the colors of the sonar indicator and the
distance guide lines in the rear view
indicate different distance to the object.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVS0803X
SONAR SYSTEM OFF SWITCHGUID-F5BD627B-131E-4061-BC6B-9D61B3732614The sonar system OFF switch on the lower side
of the instrument panel allows the driver to turn
the sonar system on and off. To turn the sonar
system on and off, the ignition switch must be in
the ON position. The indicator light
*1on the
switch will turn off when the system is turned off.
If the indicator light flashes it may indicate a
malfunction in the sonar system.
The sonar system will turn on automatically
under the following conditions.
. When the shift lever is placed in the
&R
position. .
When vehicle speed decreases below
approximately 6 MPH (10 km/h) .
. When the ignition switch is placed in the
OFF position and turned back to the ON
position again.
JVS0804X
SONAR SYSTEM SETTINGGUID-1D3CB2D5-558E-42C5-AA60-ED92AEF4DCF5Sonar settings can be adjusted.
1. Touch the ªSettingsº key on the Launch Bar
in the touch screen display.
2. Select the ªSonarº key.
Select a menu item to change from the following
options.
. Sonar
. Only FR Sensor Use
. Automatic Display with Sonar
. Sonar Sensitivity
. Volume
Starting and driving5-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5-50Starting and driving
JVS0805X
SonarGUID-2E11EC8E-E4F9-4570-9DFD-3BD0BD9D5C47When this item is turned ON, the front and rear
sonar is activated. When this item is turned to
OFF (indicator turns off) , the front and rear sonar
is deactivated.
ON (default) - OFF
Only FR Sensor UseGUID-C6DFCF82-2172-43C6-AE62-75B585597490When this item is turned on, only the rear sonar
is turned off. The amber markers are displayed at
the rear corners of the vehicle icon.
ON - OFF (default)
Automatic Display with SonarGUID-37C01432-B875-4354-846D-ED5B2428BE45Automatically shows the sonar view on the touch
screen display when the sonar is activated.
ON (default) - OFF
Sonar SensitivityGUID-7CAB5DC2-24EB-4EBE-BB41-89F4D47F0E1CAdjust the sensitivity level of the sonar.
higher (right) - lower (left)
VolumeGUID-73D59E47-6CD2-4D45-8021-9966DB118F32Adjust the volume of the tone.
higher (right) - lower (left)
GUID-755C05A2-D7F9-4B95-B705-800C6A84D706
WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.
The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steering.
If the engine stops or the drive belt breaks, you
will still have control of the vehicle. However,
much greater steering effort is needed, espe-
cially in sharp turns and at low speeds.
POWER STEERING


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-085C69DD-2BC4-4777-91E0-016C301E5BC6To shut off the engine in an emergency situation
while driving, perform the following procedure:
.Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.GUID-55CD71FC-2B20-402E-8C3E-4E014863C437
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
GUID-1B80F6F9-6628-49F3-9926-C56CCCA4DCF8This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires. When the low tire pressure
warning light is lit, one or more of your tires is
significantly under-inflated. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light (in the meter) or the
warning message (on the display) . This system
will activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h) . (
ªLow
tire pressure warning lightº page 2-27)
(
ªTire Pressure Monitoring System
(TPMS)º page 5-4)
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
off. If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat (
ªRun-
flat tiresº page 6-4) or the TPMS
may be malfunctioning. If no tire is
flat and all tires are properly in-
flated, it is recommended you have
the vehicle checked by a GT-R
certified NISSAN dealer.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after 1 minute. It is
recommended you contact a GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
6-4In case of emergency
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
tified NISSAN dealer for information on
filling the tires with nitrogen.
. If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.RUN-FLAT TIRESGUID-5496C5A2-F48A-4E72-92DF-C1714EE153C7Run-flat tires are those tires that can be used
temporarily if they are punctured. (
ªRun-flat
tiresº page 8-39)
Also, see the tire safety information in the
Warranty Information Booklet.
WARNING
. Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. Drive safely at reduced speeds.
Avoid hard cornering or braking,
which may cause you to lose control
of the vehicle.
NOTICE
.Never install tire chains on a punc-
tured run-flat tire, as this could
damage your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smal-
ler than normal.
. Do not enter an automated car wash
with a punctured run-flat tire.
. It is recommended you have the
punctured tire replaced by your
GT-R certified NISSAN dealer as
soon as possible, as the tire's
performance capability is reduced.
If you have a flat tire and have to stop the
vehicle, follow the instructions below.
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the
&Pposition.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-4Maintenance and do-it-yourself
GUID-3E2B76F7-5036-45A1-A71E-B1240A4ECE40During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or it is
recommended you have a GT-R certified
NISSAN dealer do it promptly. In addition, you
should notify a GT-R certified NISSAN dealer if
you think that repairs are required.
(
ªMaintenance precautionsº page 8-6)
EXPLANATION OF MAINTENANCE
ITEMS
GUID-86F8A64E-0E92-4949-8242-B20713B799A0Additional information on the following
items with ª*º is found later in this section.
Outside the vehicleGUID-95B37F87-9545-4A90-8719-22BF60997173The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently. Lights*:
Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires cannot be rotated because
your vehicle is equipped with different sized tires
in the front and rear.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires to the
pressure specified. Check carefully for damage,
cuts or excessive wear.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
tified NISSAN dealer for information on
filling the tires with nitrogen. .
If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace grommet
seal of transmitter in TPMS, when replacing
each tire by reaching the wear limit.
Tire, wheel alignment and balance: If the
vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the War-
ranty Information Booklet.
Windshield: Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
GENERAL MAINTENANCE
