> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVH1362X

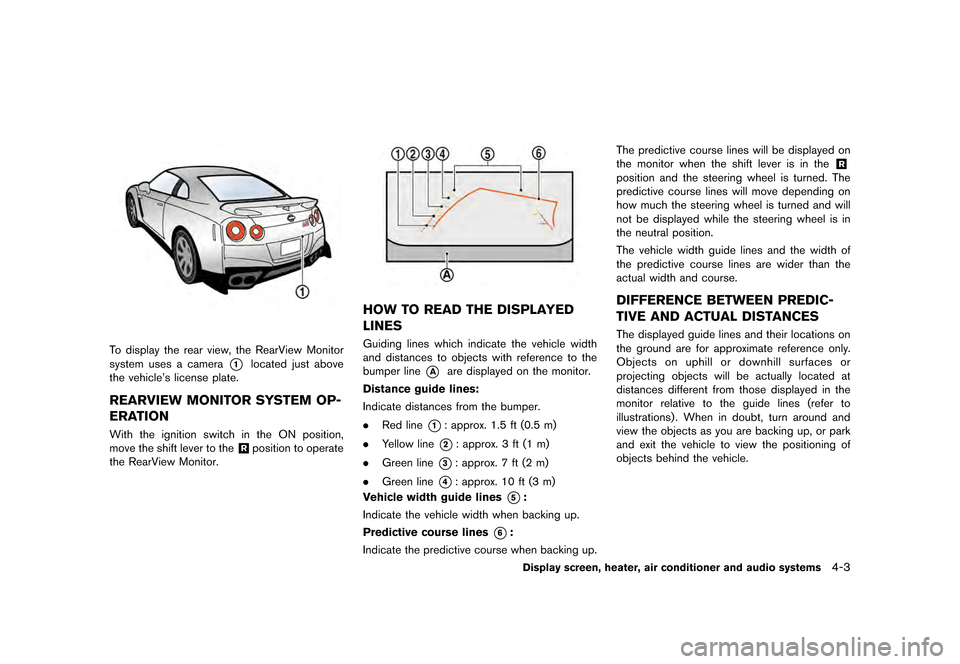

To display the rear view, the RearView Monitor
system uses a camera
*1located just above
the vehicle's license plate.
REARVIEW MONITOR SYSTEM OP-
ERATION
GUID-4BA186D9-4086-4B5B-B3DD-1DFEBBF44429With the ignition switch in the ON position,
move the shift lever to the
&Rposition to operate
the RearView Monitor.
LNL0001X
HOW TO READ THE DISPLAYED
LINES
GUID-6E61F031-88D7-44C4-B598-9E293DCD758EGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when backing up. The predictive course lines will be displayed on
the monitor when the shift lever is in the
&R
position and the steering wheel is turned. The
predictive course lines will move depending on
how much the steering wheel is turned and will
not be displayed while the steering wheel is in
the neutral position.
The vehicle width guide lines and the width of
the predictive course lines are wider than the
actual width and course.
DIFFERENCE BETWEEN PREDIC-
TIVE AND ACTUAL DISTANCES
GUID-9F0BAE5F-99DD-4531-8DBF-B78BCB8459FCThe displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations) . When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.
Display screen, heater, air conditioner and audio systems4-3
Page 207 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
4-4Display screen, heater, air conditioner and audio systems
JVH1363X

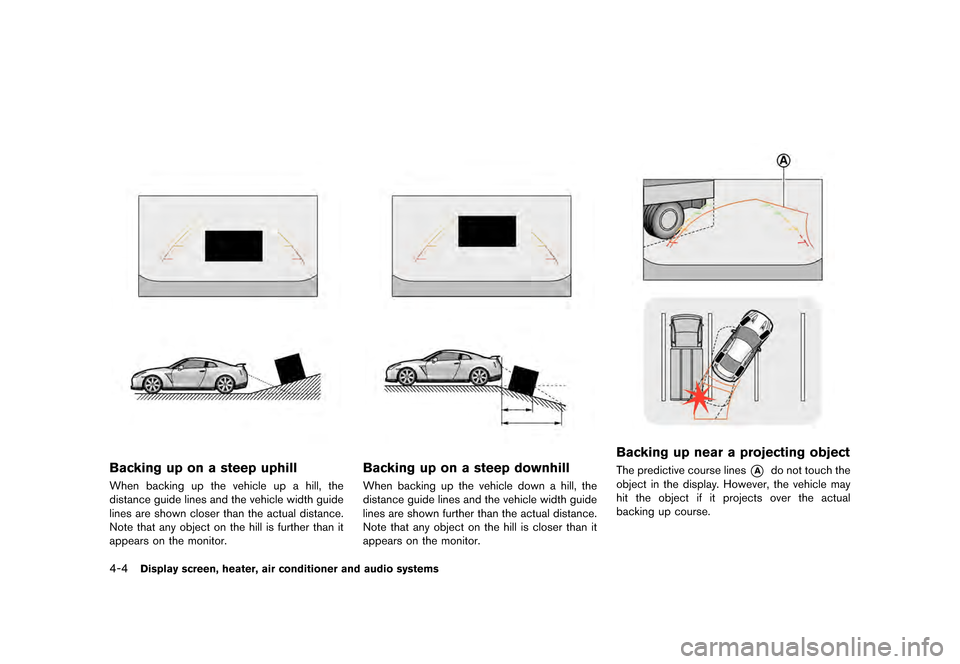

Backing up on a steep uphillGUID-385110DE-5027-48FA-852E-2B2CB3F06CBEWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
JVH1364X
Backing up on a steep downhillGUID-FFB8F59D-437B-4A92-B6EC-5C3CB6DEDCB8When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
LNL0022X
Backing up near a projecting objectGUID-A02C4F79-F72C-46BA-BB95-ECE7E8C0C402The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
Page 208 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
LNL0023X

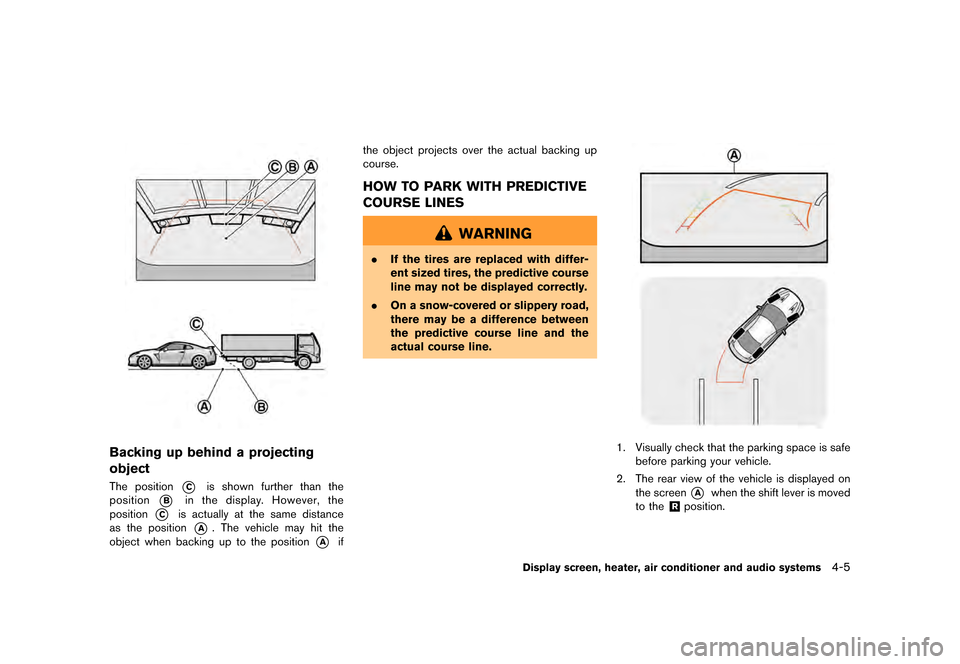

Backing up behind a projecting
object
GUID-53E668D7-7E95-4CB1-B74C-6DDB8F027259The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif the object projects over the actual backing up
course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-3D0C158B-6D60-47F8-8784-EAB5BAD3E7DF
WARNING
.
If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
LNL0024X
1. Visually check that the parking space is safe
before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
*Awhen the shift lever is moved
to the
&Rposition.
Display screen, heater, air conditioner and audio systems4-5
Page 209 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
4-6Display screen, heater, air conditioner and audio systems
JVO0045X

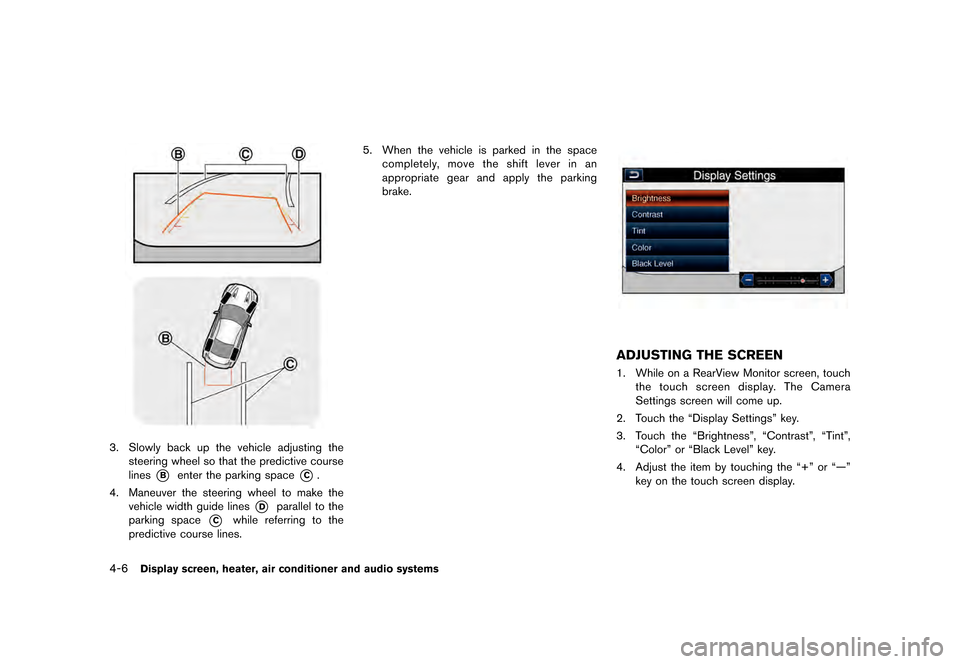

3. Slowly back up the vehicle adjusting thesteering wheel so that the predictive course
lines
*Benter the parking space*C.
4. Maneuver the steering wheel to make the vehicle width guide lines
*Dparallel to the
parking space
*Cwhile referring to the
predictive course lines. 5. When the vehicle is parked in the space
completely, move the shift lever in an
appropriate gear and apply the parking
brake.
JVH1365X
ADJUSTING THE SCREENGUID-1DA67A8C-3E22-4538-B860-29240C9B6E121. While on a RearView Monitor screen, touchthe touch screen display. The Camera
Settings screen will come up.
2. Touch the ªDisplay Settingsº key.
3. Touch the ªBrightnessº, ªContrastº, ªTintº, ªColorº or ªBlack Levelº key.
4. Adjust the item by touching the ª+º or ªÐº key on the touch screen display.
Page 210 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

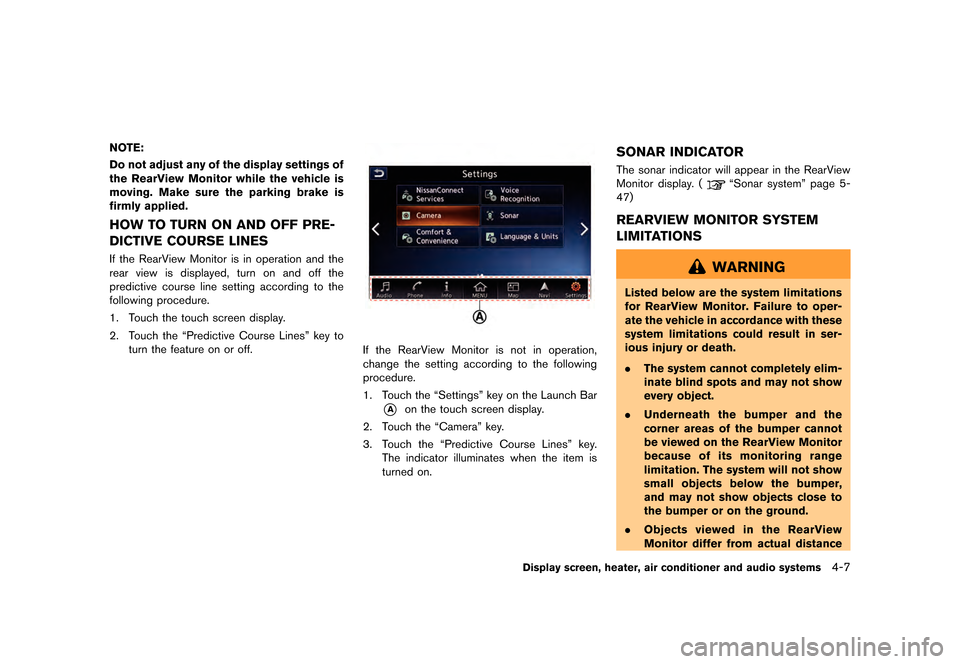

NOTE:
Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.
HOW TO TURN ON AND OFF PRE-
DICTIVE COURSE LINES
GUID-4F0FD643-416C-4E12-A9B8-82AFCC4E7853If the RearView Monitor is in operation and the
rear view is displayed, turn on and off the
predictive course line setting according to the
following procedure.
1. Touch the touch screen display.
2. Touch the ªPredictive Course Linesº key toturn the feature on or off.
JVH1366X
If the RearView Monitor is not in operation,
change the setting according to the following
procedure.
1. Touch the ªSettingsº key on the Launch Bar
*Aon the touch screen display.
2. Touch the ªCameraº key.
3. Touch the ªPredictive Course Linesº key. The indicator illuminates when the item is
turned on.
SONAR INDICATORGUID-EA99C137-D7C3-497F-9AC9-4DACBB3CA928The sonar indicator will appear in the RearView
Monitor display. (
ªSonar systemº page 5-
47)
REARVIEW MONITOR SYSTEM
LIMITATIONS
GUID-9AA2965F-1AF5-458C-84D0-EC1A9FEFB417
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.
. The system cannot completely elim-
inate blind spots and may not show
every object.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
Display screen, heater, air conditioner and audio systems4-7
Page 211 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
4-8Display screen, heater, air conditioner and audio systems

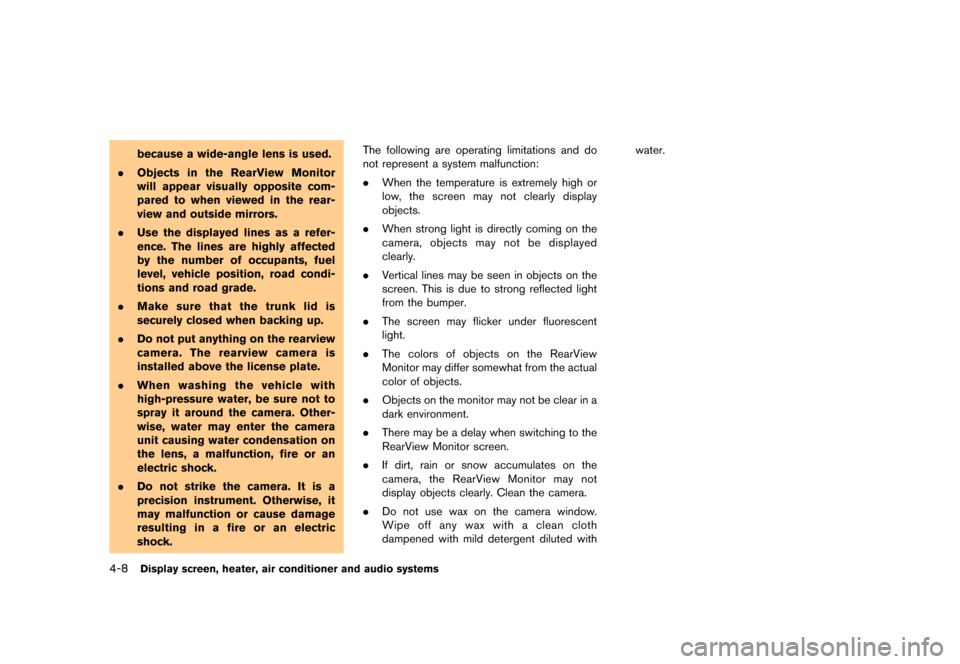

because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite com-
pared to when viewed in the rear-
view and outside mirrors.
. Use the displayed lines as a refer-
ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tions and road grade.
. Make sure that the trunk lid is
securely closed when backing up.
. Do not put anything on the rearview
camera. The rearview camera is
installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock. The following are operating limitations and do
not represent a system malfunction:
.
When the temperature is extremely high or
low, the screen may not clearly display
objects.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper.
. The screen may flicker under fluorescent
light.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects.
. Objects on the monitor may not be clear in a
dark environment.
. There may be a delay when switching to the
RearView Monitor screen.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display objects clearly. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with water.
Page 212 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVH1362X

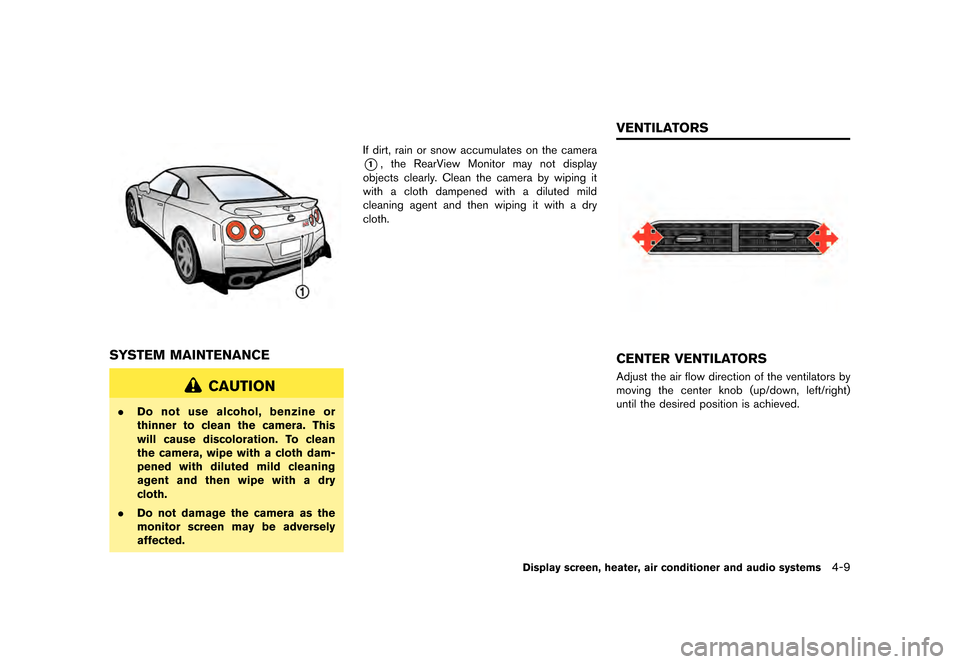

SYSTEM MAINTENANCEGUID-E00FE443-6DF8-4F93-809A-FFEE605DE24C
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected. If dirt, rain or snow accumulates on the camera
*1, the RearView Monitor may not display
objects clearly. Clean the camera by wiping it
with a cloth dampened with a diluted mild
cleaning agent and then wiping it with a dry
cloth.
GUID-E15191DC-8F1B-4F9B-88E3-1633BCD2EA62
JVH1367X
CENTER VENTILATORSGUID-DB9AA6AC-8D67-4A23-BA6E-3E5D43851F18Adjust the air flow direction of the ventilators by
moving the center knob (up/down, left/right)
until the desired position is achieved.
Display screen, heater, air conditioner and audio systems4-9
VENTILATORS
Page 213 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
4-10Display screen, heater, air conditioner and audio systems
JVH1368X
SIDE VENTILATORSGUID-6A03F340-47A8-47B6-BF4B-42C0DB27DDFBTurning the center knob clockwise or counter-
clockwise will close or open the ventilators.
Adjust the air flow direction by moving the
ventilators until the desired position is achieved.
GUID-F12FD0F3-CD09-4012-A89D-050E444A528D
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
NOTE:
. Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents. .
When parking, set the heater and air
conditioner controls to turn off air
recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.
HEATER AND AIR CONDITIONER
