2017 MITSUBISHI ASX Owner's Manual (in English)

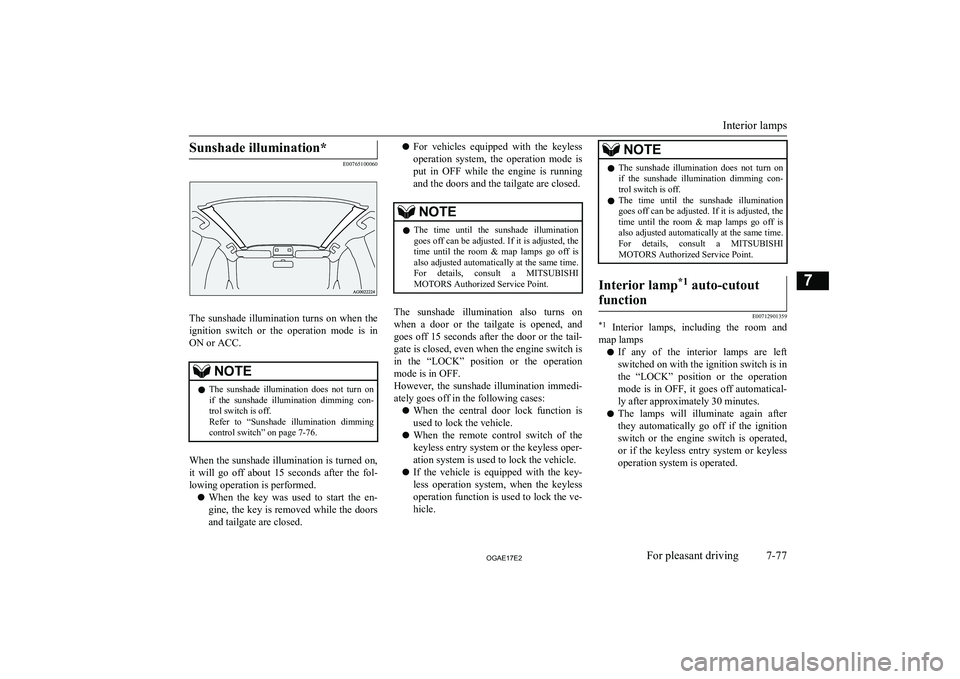

Sunshade illumination*
E00765100060
The sunshade illumination turns on when the
ignition switch or the operation mode is in
ON or ACC.
NOTEl The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
Refer to “Sunshade illumination dimming
control switch” on page 7-76.
When the sunshade illumination is turned on,
it will go off about 15 seconds after the fol-
lowing operation is performed.
l When the key was used to start the en-
gine, the key is removed while the doors
and tailgate are closed.
l For vehicles equipped with the keyless
operation system, the operation mode is
put in OFF while the engine is running and the doors and the tailgate are closed.NOTEl The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, thetime until the room & map lamps go off is also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.
The sunshade illumination also turns on
when a door or the tailgate is opened, and
goes off 15 seconds after the door or the tail-
gate is closed, even when the engine switch is
in the “LOCK” position or the operation mode is in OFF.
However, the sunshade illumination immedi- ately goes off in the following cases:
l When the central door lock function is
used to lock the vehicle.
l When the remote control switch of the
keyless entry system or the keyless oper- ation system is used to lock the vehicle.
l If the vehicle is equipped with the key-
less operation system, when the keyless operation function is used to lock the ve-hicle.
NOTEl The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
l The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, thetime until the room & map lamps go off is also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.Interior lamp *1
auto-cutout
function
E00712901359
*1 Interior lamps, including the room and
map lamps
l If any of the interior lamps are left
switched on with the ignition switch is in
the “LOCK” position or the operation
mode is in OFF, it goes off automatical- ly after approximately 30 minutes.
l The lamps will illuminate again after
they automatically go off if the ignition switch or the engine switch is operated, or if the keyless entry system or keylessoperation system is operated.
Interior lamps
7-77OGAE17E2For pleasant driving7

NOTElThe interior lamp auto cut-out function can
be deactivated. The time until the lamps au- tomatically go off can be adjusted. For de-
tails and support, consult your nearest MITSUBISHI MOTORS Authorized Serv-
ice Point.Storage spaces
E00713101664CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including soft drink or
beer cans) may rupture. Also, spectacles with plastic lenses or materials could deform
or crack.
l Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEl When leaving your vehicle, do not leave val-
uables in the storage spaces.
1- Luggage floor boxes
2- Floor console box
3- Glove box
Glove box
E00726200200
To open, pull the lever (A).
NOTEl When the lamps are illuminated with the
lamp switch in the “”, “”, or “AU-
TO” position (vehicles with automatic lamp control), the glove box lamp illuminates.
To use the warming and cooling
function*
The glove box can be used to keep its con- tents (e.g. drink bottles) warm or cool with
the warm or cold air from the air condition- ing. 1. Turn the dial in the glove box to the
“
” position.
Turn the dial to the “
” position when
not using the warming and cooling func- tion.
2. Turn the air conditioning temperature
control dial (A) to the desired tempera- ture.
Storage spaces
7-78OGAE17E2For pleasant driving7

3.Turn the air conditioning blower speed
selection dial (B) to the desired air flow.Manual air conditioningAutomatic air conditioning
For detailed information on how to use
the air conditioning, refer to “Heater/Air
conditioning” on page 7-03.
NOTEl The glove box has the same temperature as
the air that comes out of the air conditioningventilators, so it is not possible to greatly heat or cool the contents.
For efficient warming or cooling, select the
“
” mode.
Refer to “Mode selection dial” on page 7-03.
l When placing drinks in the glove box, read
the precautions on the container first.
l Do not place in the glove box chocolate,
sweets, or other items which are susceptible
to temperature changes or which may rot.
Pen holder
There is a pen holder inside the glove box.
NOTEl There is a limit to the size of pens that can
be stored in the holder. Forcibly inserting large pens could damage the holder.
Card holder
There is a card holder inside the glove box.
Storage spaces
7-79OGAE17E2For pleasant driving7 LHD RHD

Floor console box
E00723300978
Type 1
To open the console box, lift the release lever (A) and raise the lid.
Type 2
Upper and lower boxes are located inside the
floor console box.
The floor console box can also be used as an
armrest.
1- Upper box
2- Lower box
NOTEl The Auxiliary Audio connector (RCA) is lo-
cated in the floor console box (if so equip-
ped). For details, refer to “Use AUX*” on page 7-38.Upper box
To open the upper box, lift the right release
lever (A) and raise the lid.
Lower box
To open the lower box, lift the left release lever (B) and raise the lid.
Storage spaces
7-80OGAE17E2For pleasant driving7 1 2

Tissue holder
The tissue holder (C) is located on the under-
side of the floor console box lid.
Type 1Type 2Luggage floor box*
E00718701809
The box for storing articles is located inside the luggage compartment.
To use the box, raise the luggage floor board.
Cup holder
E00714502327WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUTIONl Do not drink beverages while driving. This
is distracting and could cause an accident.
For the front seat
The cup holders are located in front of the
floor console box.
For the rear seat*
E00716901575
In order to use the cup holder, allow the arm-
rest (A) to drop down.
Refer to “Armrest” on page 4-06.Bottle holder
E00718201501WARNINGlDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire.
If you accidentally spill a beverage, wipe up as much liquid as possible and imme-
diately consult a MITSUBISHI MOTORS
Authorized Service Point.
Cup holder
7-81OGAE17E2For pleasant driving7

CAUTIONlDo not drink beverages while driving. This
is distracting and could cause an accident.
l Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on the front
doors.
NOTEl Tightly close the cap on drink bottles before
storing them.
l Some bottles may be too big or the wrong
shape to fit in the holder.Rear shelf panel*
E00715400114CAUTIONlDo not place luggage or other items on the
rear shelf panel. Any items on the rear shelf
panel would obstruct your rearward view, and they could fly forward and cause inju-
ries or other mishap in the event of hard
braking.
To install
1. Insert the concave portion (A) on the un-
derside of the rear shelf panel into the inside protruding portion (B) of the tail-
gate.
CAUTIONl Lightly push the rear shelf panel to make
sure that the concave portion (A) is set firm-ly in the protruding portion (B) of the tail- gate. If the rear shelf panel is not securely
locked in place, it could unhook while driv- ing and cause injuries.
2. Hang the strap (C) of the rear shelf panel
on the hook (D).
To remove
Follow this procedure in reverse to remove.
Rear shelf panel*
7-82OGAE17E2For pleasant driving7

Assist gripsE00732800256
The assist grips (located above the doors on the headliner) are not designed to support
body weight. They are intended for use only while seated in the vehicle.CAUTIONl Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.Coat hook*
E00725600597
There is a coat hook on the rear seat assist
grip of the driver’s side.WARNINGl Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on the coat hook (without using a hanger).
Make sure there are no heavy or sharp objects in the pockets of clothes that you
hang on the coat hook.Luggage hooks
E00715700537
There are 4 hooks located on the side walls of
the luggage compartment.
Use the hooks on the floor for securing the luggage.CAUTIONl Do not pile up the luggage beyond the seat-
back height. Also, firmly secure the luggage.
Otherwise, serious accidents could result due
to hindered rearward view or flying objects
during sudden braking.
Assist grips
7-83OGAE17E2For pleasant driving7
