2017 MITSUBISHI ASX Owner's Manual (in English)

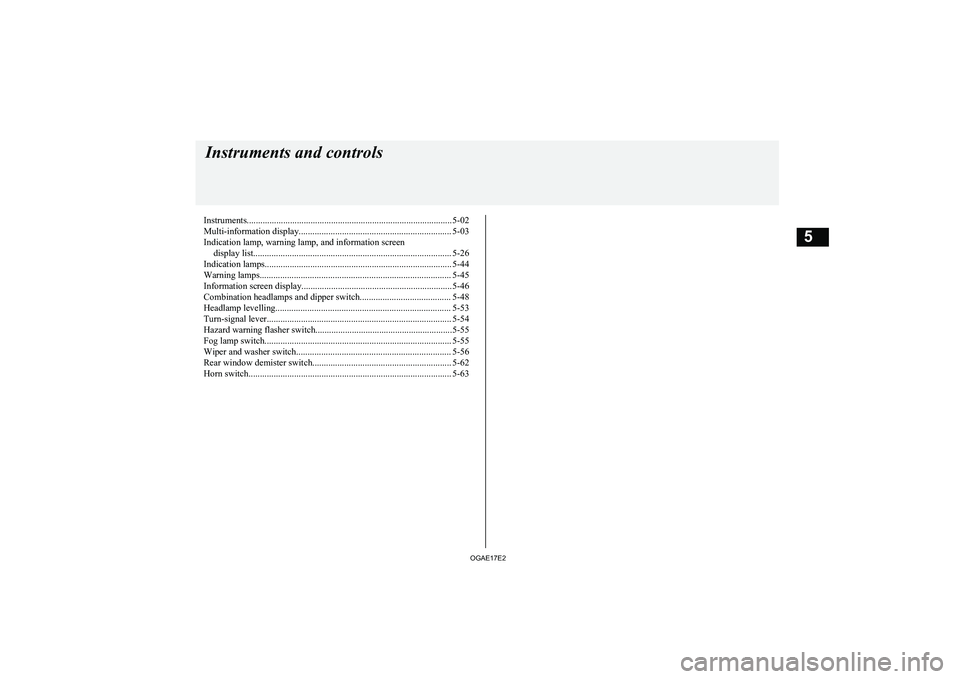

Instruments.......................................................................................... 5-02
Multi-information display................................................................... 5-03 Indication lamp, warning lamp, and information screen display list....................................................................................... 5-26
Indication lamps.................................................................................. 5-44
Warning lamps.................................................................................... 5-45
Information screen display.................................................................. 5-46
Combination headlamps and dipper switch........................................ 5-48
Headlamp levelling............................................................................. 5-53
Turn-signal lever................................................................................. 5-54
Hazard warning flasher switch............................................................5-55 Fog lamp switch.................................................................................. 5-55
Wiper and washer switch.................................................................... 5-56
Rear window demister switch............................................................. 5-62
Horn switch......................................................................................... 5-63Instruments and controls
OGAE17E25

InstrumentsE00500101147
1- Tachometer ® p. 5-02
2- Multi-information display ® p. 5-03
Information screen display list
® p. 5-28
3- Speedometer (km or mph + km/h)
4- Daytime dipper button (meter illumina- tion control) ® p. 5-02
Tachometer
E00500301123
The tachometer indicates the engine speed
(r/min). The tachometer helps you to obtain
more economical driving and also warns you
of excessive engine speeds (Red zone).
CAUTIONl When driving, watch the tachometer to make
sure that the engine speed indication does not rise into the red zone (excessive enginerpm).Daytime dipper button (meter
illumination control)
E00519801267
Each time you press this button, there is a sound and the brightness of the instruments
changes.
NOTEl You can adjust to 8 different levels for when
the position lamps are illuminated and 8 for
when they are not.
l When the lamp switch is in a position other
than the “OFF” position, the meter illumina-
tion switches automatically to the adjusted brightness, depending on the brightness out- side the vehicle.
l The brightness level of the instruments is
stored when the ignition switch is turned to
the “LOCK” position or the operation mode is put in OFF.
l If you press and hold the button for longer
than about 1 second when the position lamps are illuminated, the brightness level changesto the maximum level. Pressing and holding
the button for longer than about 1 second again returns the brightness level to the pre-
vious level.
1- Brightness display
2- Rheostat illumination button
Instruments
5-02OGAE17E2Instruments and controls5

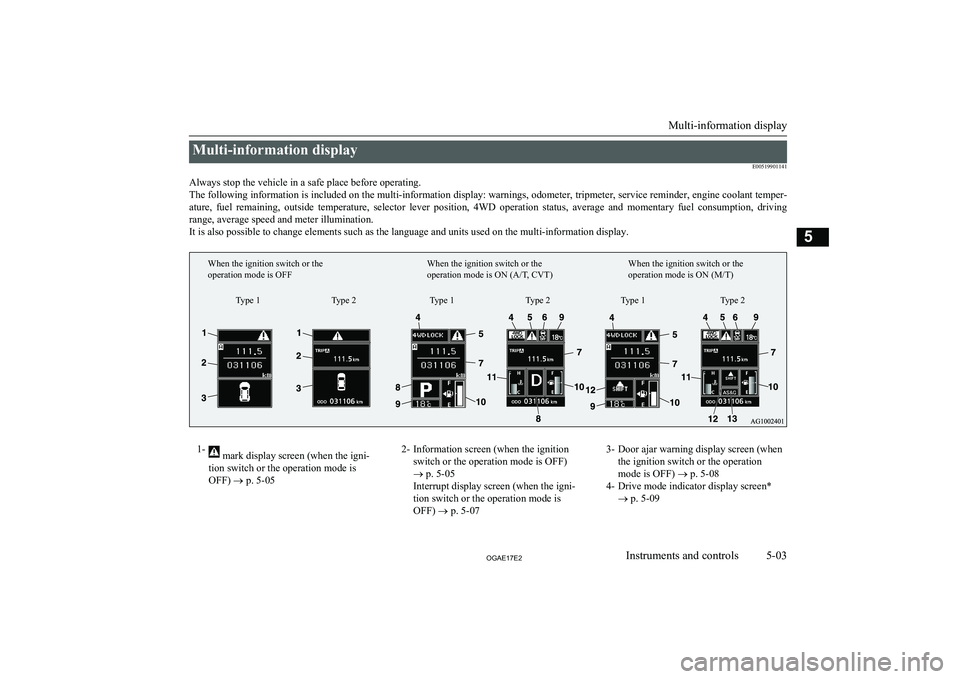

Multi-information displayE00519901141
Always stop the vehicle in a safe place before operating. The following information is included on the multi-information display: warnings, odometer, tripmeter, service reminder, engine coolant temper- ature, fuel remaining, outside temperature, selector lever position, 4WD operation status, average and momentary fuel consumption, driving
range, average speed and meter illumination. It is also possible to change elements such as the language and units used on the multi-information display.1- mark display screen (when the igni-
tion switch or the operation mode is
OFF) ® p. 5-052- Information screen (when the ignition
switch or the operation mode is OFF)
® p. 5-05
Interrupt display screen (when the igni-
tion switch or the operation mode is OFF) ® p. 5-073- Door ajar warning display screen (when
the ignition switch or the operation
mode is OFF) ® p. 5-08
4- Drive mode indicator display screen* ® p. 5-09
Multi-information display
5-03OGAE17E2Instruments and controls5Type 1
When the ignition switch or the
operation mode is OFF
When the ignition switch or the
operation mode is ON (A/T, CVT)When the ignition switch or the
operation mode is ON (M/T)
Type 2 Type 1 Type 2 Type 1 Type 2

5- mark display screen (when the igni-
tion switch or the operation mode is ON)
® p. 5-09
6- Active Stability Control (ASC) OFF dis- play screen* ® p. 5-09
7- Information screen (when the ignition switch or the operation mode is ON)
® p. 5-10
Interrupt display screen (when the igni-
tion switch or the operation mode is ON)
® p. 5-148- Selector lever position display screen*
® p. 5-15
Gearshift indicator display screen* ® p. 6-29
9- Outside temperature display screen ® p. 5-15
10- Fuel remaining display screen ® p. 5-15
11- Engine coolant temperature display* ® p. 5-1112- Gearshift indicator display screen*
® p. 6-23
13- Auto Stop & Go (AS&G) display screen* ® p. 6-19
Auto Stop & Go (AS&G) OFF display
screen* ® p. 6-22NOTEl The fuel units, temperature units, display language, and other settings can be changed.
Refer to “Changing the function settings (when the ignition switch or the operation mode is ON)” on page 5-19.
l The display screen is different depending on whether the ignition switch or the operation mode is OFF or ON.
Refer to “Information screen (when the ignition switch or the operation mode is OFF)” on page 5-05.
Refer to “Warning display list (when the ignition switch or the operation mode is OFF)” on page 5-28.
Refer to “Information screen (when the ignition switch is turned from the “LOCK” position to the “ON” position or the operation mode is changed from OFF to ON)” on page 5-08.
Refer to “Information screen (when the ignition switch or the operation mode is ON)” on page 5-10.
Refer to “Warning display list (when the ignition switch or the operation mode is ON)” on page 5-32.

Multi-information display
5-04OGAE17E2Instruments and controls5

Multi-information meterswitch
E00520000608
Each time the multi-information meter switch
is operated, a sound is emitted and the multi-
information display changes between infor- mation such as warnings, odometer (Type 1),
tripmeter, service reminder, engine coolant temperature (Type 1), average and momenta-
ry fuel consumption, driving range, and aver-
age speed.
It is also possible to change elements such as the language and units used on the multi-in-formation display by operating the multi-in-
formation meter switch.
mark display screen (when
the ignition switch or the oper- ation mode is OFF)
E00520100553
If you press the multi-infor-
mation meter switch and re-turn from the warning dis-
play screen to the previous screen, the
mark is dis-
played.
Refer to “To return to the screen displayed before the warning display” on page 5-07.
This mark is also displayed if there is another
warning other than the one displayed. When
the cause of the warning display is elimina- ted, the
mark goes out automatically.
NOTEl When the mark is displayed, the warning
display screen can be redisplayed on the in- formation screen.
Refer to “Information screen (when the igni-
tion switch or the operation mode is OFF)” on page 5-05.
Refer to “Information screen (when the igni- tion switch or the operation mode is ON)”
on page 5-10.Information screen (when the
ignition switch or the operation mode is OFF)
E00520200570
Each time you lightly press the multi-infor-
mation meter switch, the display screenswitches in the following order.
Type 1Type 2When there is no
warning displayWhen there is a
warning displayWhen there is no
warning displayWhen there is a
warning display
1- Odometer (Type 1)/Tripmeter
2- Odometer (Type 1)/Tripmeter
Multi-information display
5-05OGAE17E2Instruments and controls5

3- Service reminder
4- Redisplay of a warning display screenOdometer/Tripmeter
E00521201516
Each time you lightly press the multi-infor- mation meter switch, the display screenswitches.

Odometer/Tripmeter
→ Odometer/Trip-
meter
→ Service reminder → Redisplay
of a warning display screen → Odometer/ Tripmeter
Odometer
The odometer indicates the distance travel-led.
Tripmeter
The tripmeter indicates the distance travelled
between two points.

Example usage of tripmeter
and tripmeter
It is possible to measure two currently
travelled distances, from home using
tripmeter
and from a particular point
on the way using tripmeter
.
To reset the tripmeter
To return the display to 0, hold down the
multi-information meter switch for about 2
seconds or more. Only the currently dis-
played value will be reset.

Example
If tripmeter
is displayed, only tripmeter
will be reset.
Type 1Type 2
NOTEl If there is no warning display, the switching
sequence is: Odometer/Tripmeter →
Odometer/Tripmeter
→ Service remind-
er → Odometer/Tripmeter
.
l Both tripmeters
and can count up to
9999.9 km (9999.9 miles).
When a tripmeter goes past 9999.9 km
(9999.9 miles), it returns to 0.0 km (0.0 miles).
l When disconnecting the battery terminal, the
memories of tripmeter display
and dis-
play
are erased, and their displays return
to 0.0 km (0.0 miles).
Service reminder
E00521301126
This displays the distance
and number of months until
the next periodic inspection. Refer to “Service reminder” on page 5-16.
Multi-information display
5-06OGAE17E2Instruments and controls5 Type 1Type 2

Interrupt display screen (whenthe ignition switch or the oper- ation mode is OFF)
E00520500616
When there is information to be announced,
such as lamp reminders, the buzzer sounds and the multi-information display switches to the warning display screen. Refer to the ap-
propriate page and take the necessary meas- ures.
When the cause of the warning display is
eliminated, the warning display goes out au- tomatically.
Refer to “Warning display list (when the ig-
nition switch or the operation mode is OFF)” on page 5-28.
Type 1Type 2
1- Information generated
2- Cause eliminated
To return to the screen dis-
played before the warning dis-
play
Even if the cause of the warning display is
not eliminated, you can return to the screen
that was displayed before the warning dis-
play.
If you press the multi-information meter switch, the display screen switches to the
screen that was displayed before the warning display and the
mark (A) is displayed.
Type 1Type 2
NOTEl Warning display screens with a “” or “”
mark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-informa-tion meter switch as follows.
“
”: Press lightly.
“
”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the mark is displayed, if you lightly
press the multi-information meter switch a
few times, the warning display screen you switched from is displayed again.
Refer to “Information screen (when the igni-
tion switch or the operation mode is OFF)” on page 5-05.
Multi-information display
5-07OGAE17E2Instruments and controls5

Door ajar warning displayscreen (when the ignition switch or the operation mode isOFF)
E00520600473
If any of the doors or the tailgate is not com-
pletely closed, this displays the open door or tailgate.
Type 1Type 2
1- Doors and tailgate are closed
2- Doors or tailgate are open
Information screen (when the
ignition switch is turned fromthe “LOCK” position to the“ON” position or the operation mode is changed from OFF toON)
E00520700881
When the ignition switch is turned to the
“ON” position or the operation mode is put in ON, the display screen switches in the fol-
lowing order.
Type 1Type 2
1- Screen when the ignition switch or the operation mode is OFF
2- System check screen
3- Screen when the ignition switch or the operation mode is ON
System check screen
When the ignition switch is turned to the
“ON” position or the operation mode is put in
ON, the system check screen is displayed for about 4 seconds. If there is no fault, informa- tion screen (when the ignition switch or the
operation mode is ON) is displayed.
If there is a fault, the screen changes to warn-
ing display.
Refer to “Warning display list (when the ig-
nition switch or the operation mode is ON)”
on page 5-32.
Type 1Type 2
NOTEl The system check screen display varies de-
pending on the customer’s equipment.
Multi-information display
5-08OGAE17E2Instruments and controls5
