2017 MAZDA MODEL 2 Owners Manual (in English)

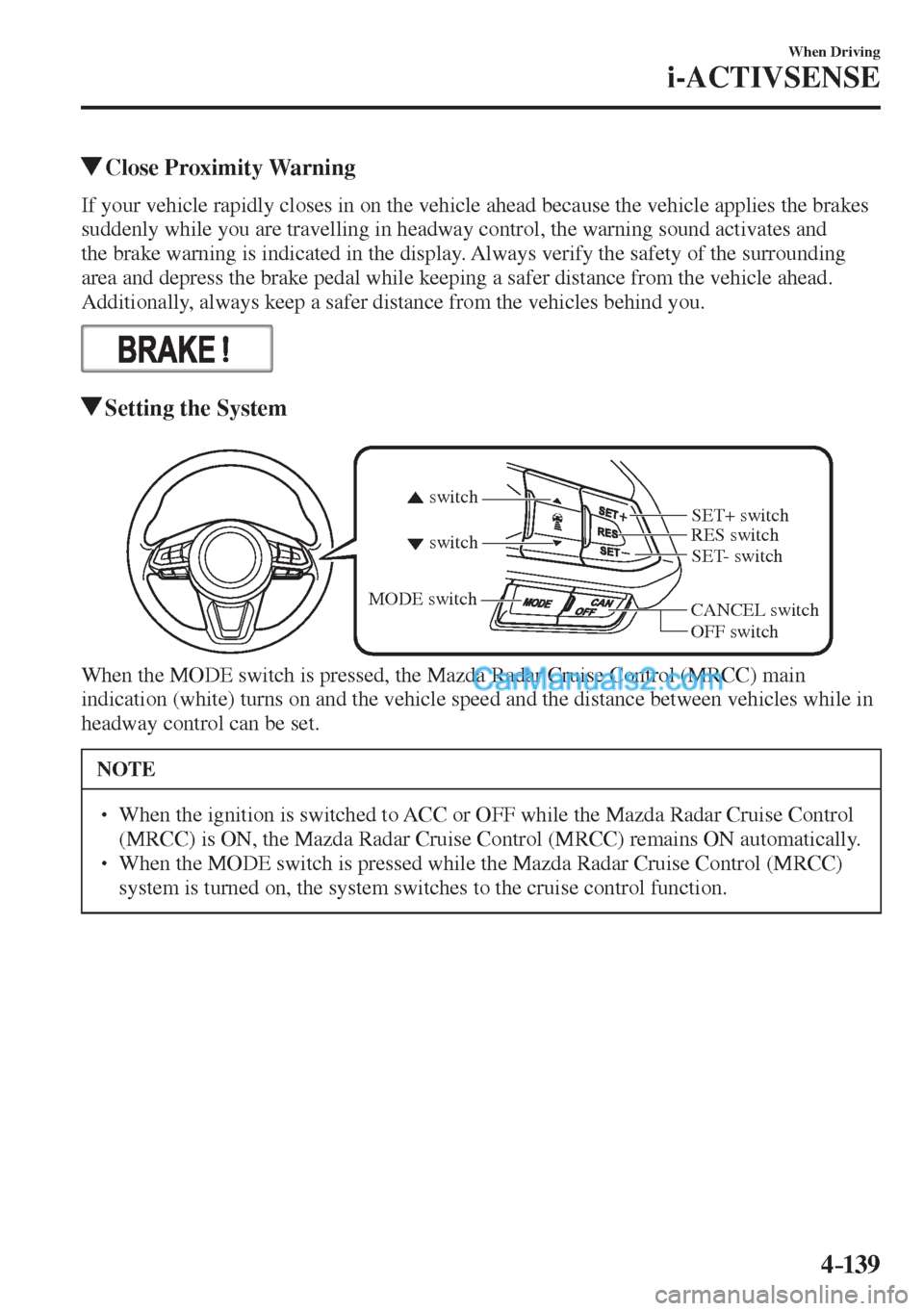

4–139
When Driving
i-ACTIVSENSE
Close Proximity Warning
If your vehicle rapidly closes in on the vehicle ahead because the vehicle applies the brakes
suddenly while you are travelling in headway control, the warning sound activates and
the brake warning is indicated in the display. Always verify the safety of the surrounding
area and depress the brake pedal while keeping a safer distance from the vehicle ahead.
Additionally, always keep a safer distance from the vehicles behind you.


Setting the System

CANCEL switchRES switch
OFF switch switch switchMODE switch
SET- switch SET+ switch

When the MODE switch is pressed, the Mazda Radar Cruise Control (MRCC) main
indication (white) turns on and the vehicle speed and the distance between vehicles while in
headway control can be set.
NOTE
  When the ignition is switched to ACC or OFF while the Mazda Radar Cruise Control
(MRCC) is ON, the Mazda Radar Cruise Control (MRCC) remains ON automatically.
  When the MODE switch is pressed while the Mazda Radar Cruise Control (MRCC)
system is turned on, the system switches to the cruise control function.

4–14 0
When Driving
i-ACTIVSENSE
How to Set the Speed
1. Adjust the vehicle speed to the desired setting using the accelerator pedal.
2. Headway control begins when the SET
or SET switch is pressed. The set speed and
the inter-vehicle distance display ¿ lled with white lines are displayed. The Mazda Radar
Cruise Control (MRCC) set indication (green) is indicated simultaneously.



Travel status Display
During travel at constant speed


During travel under headway control



NOTE
  If a vehicle ahead is detected while travelling at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed. Additionally, when a vehicle
ahead is no longer detected, the vehicle-ahead indication turns off and the system
switches back to travel at constant speed.
  Headway control is not possible if the vehicle ahead is driving faster than the set
speed. Adjust the system to the desired vehicle speed using the accelerator pedal.
  (European models)  When switching to a passing lane and operating the direction indicator, the system
provides more acceleration automatically if it determines that more acceleration is
required. Drive while being careful of the road ahead because you could approach the
vehicle ahead too closely.

4–141
When Driving
i-ACTIVSENSE
How to Set the Distance Between Vehicles During Headway Control
The distance between vehicles is set to a shorter distance each time the
switch is pressed.
The distance between vehicles is set to a longer distance by pressing the
switch. The
distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely short
distance.

Distance-between-vehicles guideline
(at 80 km/h (50 mph) vehicle speed) Display
Long (about 50 m (164 ft))


Medium (about 40 m (131 ft))


Short (about 30 m (98 ft))


Extremely short (about 25 m (82 ft))



NOTE
  The distance between vehicles differs depending on the vehicle speed, and the slower
the vehicle speed, the shorter the distance.
  When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance between vehicles to the previous setting.

4–142
When Driving
i-ACTIVSENSE
Changing the Set Vehicle Speed
Changing the set vehicle speed using the
SET switch
Press the SET
switch to accelerate.
Press the SET
switch to decelerate.
The set vehicle speed changes as follows
each time the SET switch is pressed.

European
models Except
European
models
Short press 1 km/h (1 mph) 5 km/h (5 mph)
Long press 10 km/h (5 mph)

NOTE
For example, the set vehicle speed is
changed by pressing the SET switch
four times as follows:
(European models)
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
(Except European models)
The vehicle speed accelerates or
decelerates by 20 km/h (20 mph).
To accelerate using the accelerator
pedal
Depress the accelerator pedal and press
and release the SET
or SET switch at
the desired speed. If a switch cannot be
operated, the system returns to the set
speed when you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
NOTE
  When accelerating using the SET
switch while in headway control, the
set vehicle speed can be adjusted but
acceleration is not possible. If there
is no longer a vehicle ahead,
acceleration continues until reaching
the set vehicle speed. Check the set
vehicle speed by viewing the set
vehicle speed display in the active
driving display.
  When depressing the accelerator
pedal, the inter-vehicle distance
display in the active driving display
changes to the white-line display.
  The minimum settable speed is
30 km/h (19 mph). If the set vehicle
speed reaches 30 km/h (19 mph)
using the switch operation, constant
speed travel is maintained at about
30 km/h (19 mph) even if the SET

switch is pressed. The Mazda Radar
Cruise Control (MRCC) system is
not cancelled.
To Deactivate
The Mazda Radar Cruise Control (MRCC)
is deactivated when the OFF/CAN switch
is pressed twice.

4–14 3
When Driving
i-ACTIVSENSE
When the system is temporarily
cancelled
In the following cases, the Mazda Radar
Cruise Control (MRCC) is temporarily
cancelled, the Mazda Radar Cruise Control
(MRCC) set indication (green) is turned
off, and the Mazda Radar Cruise Control
(MRCC) main indication (white) is turned
on.



 The OFF/CAN switch is pressed once.



 The brake pedal is depressed.



 The parking brake is applied.



 (Automatic transaxle)
 The selector lever is shifted to park (P),
neutral (N) or reverse (R).



 (Manual transaxle)
 The shift lever is in the reverse (R)
position .



 In the following cases, the “MRCC
cancelled” indication is displayed and
the beep sounds one time.



 The vehicle speed decreases to less
than 25 km (16 mph).



 The DSC has operated.



 The TCS has operated for a certain
period of time.



 The Smart City Brake Support
[Forward] (SCBS F) has operated.



 The Smart Brake Support (SBS) has
operated.



 When travelling on a down slope for a
long period of time.



 There is a problem with the system.



 Any door is opened.



 The driver's seat belt is unfastened.



 (Manual transaxle)



 The shift lever is shifted to neutral
(N) for a certain period of time.



 The clutch is depressed for a certain
period of time.



 The engine stalls.

NOTE
  The Mazda Radar Cruise Control
(MRCC) system may be cancelled
during rain, fog, snow or other
inclement weather conditions, or the
front surface of the radiator grille is
dirty.
  If you have temporarily cancelled
the Mazda Radar Cruise Control
(MRCC), you can return to your
previously set speed by pressing
the RES switch and after all of the
operation conditions have been met.
  If the Mazda Radar Cruise Control
(MRCC) system is deactivated,
the system does not return to the
previously set speed even if the RES
switch is pressed.

4–14 4
When Driving
i-ACTIVSENSE
Shift-up/Shift-down Request Display (Manual Transaxle)
The shift-up or shift-down request display in the active driving display may be indicated
while the Mazda Radar Cruise Control (MRCC) is operating. When this occurs, shift gears
because the gear position is not appropriate.

Request Display
Shift up


Shift down



NOTE
  If the gears are not shifted up even though the shift-up request indication is displayed,
load will be applied to the engine and the Mazda Radar Cruise Control (MRCC)
system may be automatically cancelled or engine damage could occur.
  If the gears are not shifted down even though the shift-down request indication is
displayed, the Mazda Radar Cruise Control (MRCC) system may be automatically
cancelled or engine stalling could occur.

4–14 5
When Driving
i-ACTIVSENSE
Cruise Control Function
While this function is operating, the
headway control operation is cancelled
and only the cruise control function
operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise control function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WARNING
Do not use the cruise control function
in the following locations:
Otherwise, it could lead to an accident.

 Roads with sharp curves and where
vehicle traf¿ c is heavy and there is
insuf¿ cient space between vehicles.
(Driving under these conditions
using the cruise control function is
not possible)
  Steep down slopes (Set speed may be
exceeded because suf¿ cient engine
braking cannot be applied)
  Slippery roads such as ice or snow-
bound roads (Tyres could spin
causing you to lose vehicle control)

Always drive carefully:
The warnings and brake control
will not operate after the headway
control function is cancelled and the
system is switched to only the cruise
control function. Depress the brake
pedal to decelerate according to the
surrounding conditions while keeping
a safer distance from the vehicle ahead
and always driving carefully.
Switching to cruise control function
When the MODE switch is pressed while
the Mazda Radar Cruise Control (MRCC)
system is turned on, the system switches to
the cruise control function.
When the system switches to the cruise
control function, the cruise main indication
(white) is displayed in the instrument
cluster and the active driving display to
notify the driver as follows:



 The Mazda Radar Cruise Control
(MRCC) set indication (green) or the
Mazda Radar Cruise Control (MRCC)
main indication (white) is turned off,
and the cruise main indication (white) is
turned on.

WARNING
Always turn off the cruise control
function when it is not in use:
Leaving the cruise control function
turned on when it is not in use
is dangerous as it could operate
unexpectedly, resulting in an accident.
How to set the speed
Adjust the system to the desired vehicle
speed using the accelerator pedal.
When the SET
or SET switch is
pressed, the cruise set indication (green) is
turned on and headway control begins.

4–14 6
When Driving
i-ACTIVSENSE
NOTE
  The system may not be able to
maintain the set speed constantly
depending on driving conditions such
as steep up or down slopes.
  The speed will continue increasing
while the SET
switch is pressed
and held. The speed will continue
decreasing while the SET
switch is
pressed and held.
How to increase the set speed
The set speed can be increased using the
following operations:
To increase speed using the SET

switch
Press and hold the SET
switch and
release the switch at the desired speed.
The set speed can be adjusted
incrementally (1 km/h (1 mph)
increments) by pressing the switch and
releasing it immediately. For example, if
the switch is pressed 4 times, the set speed
increases by about 4 km/h (4 mph).
To increase speed using accelerator
pedal
Depress the accelerator pedal and press the
SET
or SET switch at the desired
speed.
If the switch is not operated, the system
returns to the set speed after you release
your foot from the accelerator pedal.
How to Decrease the Set Speed
Press the SET
switch continuously and
release the switch at the desired speed.
The set speed can be adjusted
incrementally (1 km/h (1 mph) increments)
by pressing the switch and releasing it
immediately. For example, if the switch
is pressed 4 times, the set vehicle speed
decreases by about 4 km/h (4 mph).
Cancelling the function
Cancelling using OFF/CAN switch
When the OFF/CAN switch is pressed
once, the cruise control function is
cancelled.
Cancelling using MODE switch
When the MODE switch is pressed, the
cruise control function is cancelled and
the headway control function is made
available for operation.
The cruise control function is cancelled
automatically in the following cases. If the
RES switch is pressed while the vehicle
speed is 25 km/h (16 mph) or higher, the
speed returns to the original set speed.



 The OFF/CAN switch is pressed once.



 The brake pedal is depressed.



 The parking brake is applied.

(Manual transaxle)



 The clutch pedal is depressed.



 The shift lever is shifted to neutral
position.

(Automatic transaxle)



 The selector lever is shifted to P or N
position.
