2017 MAZDA MODEL 2 Owners Manual (in English)

4–35
When Driving
Instrument Cluster and Display
*Some models.
Active Driving Display *

Optical receiver Mirror
Combiner

WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.
CAUTION
  Do not try to adjust the angle or open/close the active driving display manually.
Fingerprints on the display will make it dif¿ cult to view and using excessive force
when operating it could cause damage.
  Do not place objects in the vicinity of the active driving display. The active driving
display may not operate or any interference with its operation could cause damage.
  Do not place beverages near the active driving display. If water or other liquids are
splashed on the active driving display, it could cause damage.
  Do not place objects above the active driving display or apply stickers to the dust-
proof sheet/optical receiver as they will cause interference.
  A sensor is integrated to control the display's luminosity. If the optical receiver is
covered, the display's luminosity will lower making the display dif¿ cult to view.

 Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

4–36
When Driving
Instrument Cluster and Display

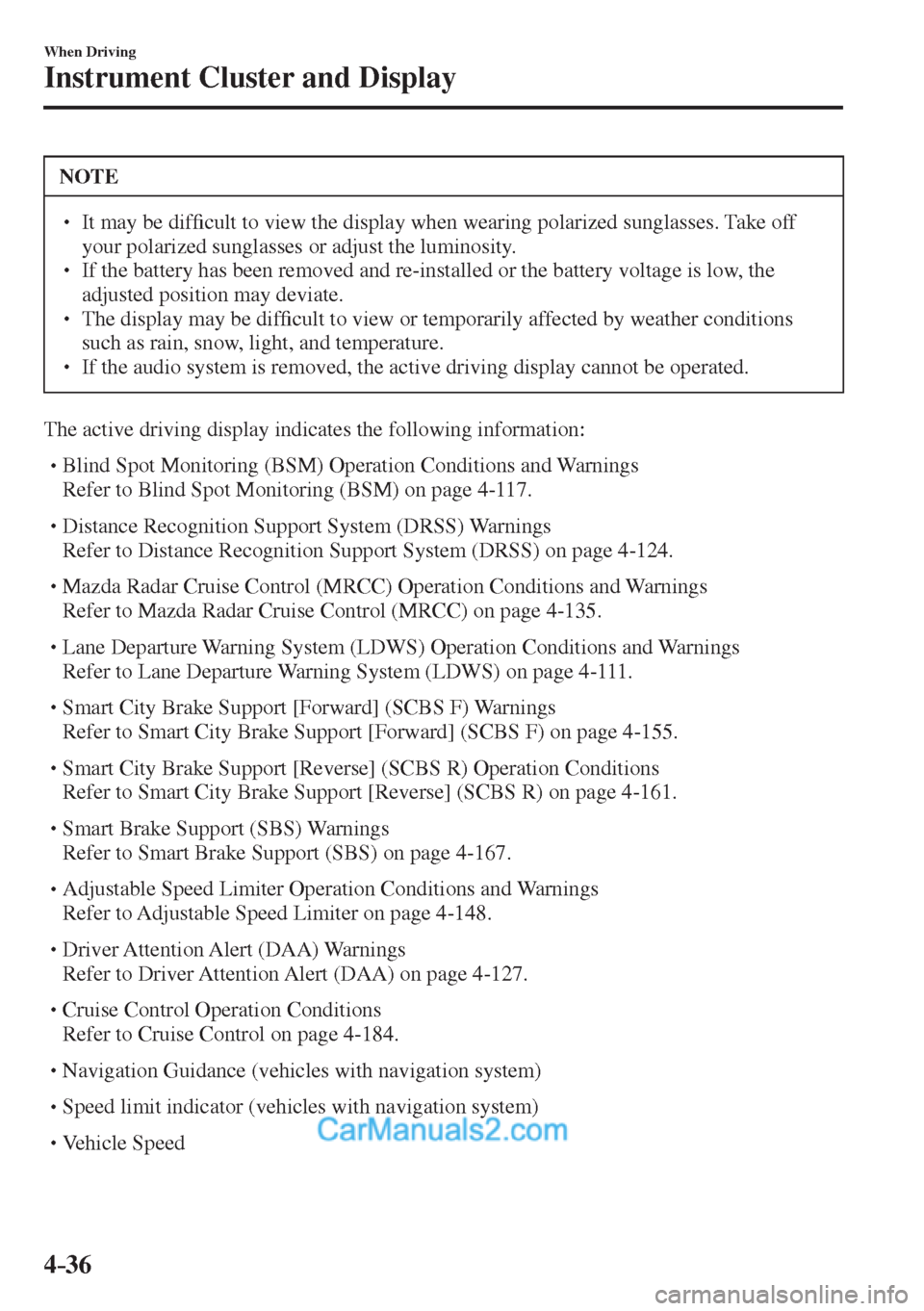

NOTE
  It may be dif¿ cult to view the display when wearing polarized sunglasses. Take off
your polarized sunglasses or adjust the luminosity.
  If the battery has been removed and re-installed or the battery voltage is low, the
adjusted position may deviate.
  The display may be dif¿ cult to view or temporarily affected by weather conditions
such as rain, snow, light, and temperature.
  If the audio system is removed, the active driving display cannot be operated.
The active driving display indicates the following information:



 Blind Spot Monitoring (BSM) Operation Conditions and Warnings
 Refer to Blind Spot Monitoring (BSM) on page 4-117 .



 Distance Recognition Support System (DRSS) Warnings
 Refer to Distance Recognition Support System (DRSS) on page 4-124 .



 Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-135 .



 Lane Departure Warning System (LDWS) Operation Conditions and Warnings
 Refer to Lane Departure Warning System (LDWS) on page 4-111 .



 Smart City Brake Support [Forward] (SCBS F) Warnings
 Refer to Smart City Brake Support [Forward] (SCBS F) on page 4-155 .



 Smart City Brake Support [Reverse] (SCBS R) Operation Conditions
 Refer to Smart City Brake Support [Reverse] (SCBS R) on page 4-161 .



 Smart Brake Support (SBS) Warnings
 Refer to Smart Brake Support (SBS) on page 4-167 .



 Adjustable Speed Limiter Operation Conditions and Warnings
 Refer to Adjustable Speed Limiter on page 4-148 .



 Driver Attention Alert (DAA) Warnings
 Refer to Driver Attention Alert (DAA) on page 4-127 .



 Cruise Control Operation Conditions
 Refer to Cruise Control on page 4-184 .



 Navigation Guidance (vehicles with navigation system)



 Speed limit indicator (vehicles with navigation system)



 Vehicle Speed

4–37
When Driving
Instrument Cluster and Display
Each setting/adjustment for the active driving display can be performed on the centre
display.

1. Select the icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.



 Method for adjusting screen brightness (automatically/manually)



 Screen brightness initial settings (automatic adjustment is selected)



 Screen brightness adjustment (manual adjustment is selected)



 Display position of active driving display (display height)



 Active driving display angle adjustment (display angle correction)



 Turn by turn (TBT) display/non-display (navigation guidance)



 Street name display timing can be changed (navigation guidance)



 Active driving display ON/OFF (indication)



 Reset settings (reset)
NOTE
The street name may not be displayed depending on the market and region.

4–38
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and speci¿ cations.

Type A
Type B
Type C (Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer)) Instrument Cluster

Warning Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.

Signal Warning Page

Brake System Warning Light *1*2 7-35

ABS Warning Light *1 Electronic Brake
Force Distribution
System Warning
7-35
ABS warning
7-38

Charging System Warning Light *1 7-35

Engine Oil Warning Light *1 7-35

4–39
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page


(Red) High Engine Coolant Temperature Warning Light *1 7-35

Power Steering Malfunction Warning Light *1 7-35

Master Warning Light *1 7-38

Check Engine Light *1 7-38


(Amber) * i-stop Warning Light *1 7-38


(Amber) * i-ELOOP Warning Light 7-38

* Automatic Transaxle Warning Light *1 7-38

Air Bag/Seat Belt Pretensioner System Warning Light *1 7-38

* Tyre Pressure Monitoring System Warning Light *1 Flashing
7-38
Turns on
7-43


(Red) KEY Warning Light *1 Malfunction
7-38
Except malfunction
7-43


(Amber) * High Beam Control System (HBC) Warning Light *1 7-38


(Amber) * Adaptive LED Headlights (ALH) Warning Light *1 7-38

* Lane Departure Warning System (LDWS) Warning Light *1 Flashing
4-115
Turns on
7-38


(Amber) * Mazda Radar Cruise Control (MRCC) Warning Light 7-38

4–40
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Page

* LED Headlight Warning Light *1 7-38

Low Fuel Warning Light 7-43

Seat Belt Warning Light (Front seat) 7-43


(Red) * Seat Belt Warning Light (Rear seat) 7-43

* Door-Ajar Warning Light 7-43

* Low Washer Fluid Level Warning Light 7-43

* 120 km/h Warning Light *1 7-43


(Amber)
* Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning
Light *1 7-43
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.
*2 The light turns on continuously when the parking brake is applied.

4–41
When Driving
Instrument Cluster and Display
*Some models.
Indicator Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.

Signal Indicator Lights Page

* Passenger Air Bag Deactivation Indicator Light *1 2-47


(Green) * Seat Belt Indicator Light (Rear seat) 2-18


(Green) KEY Indicator Light 4-5

Security Indicator Light *1 3-43

* Glow Indicator Light *1 4-45

* Diesel Particulate Filter Indicator Light *1 4-194

Wrench Indicator Light *1 4-44


(Blue) Low Engine Coolant Temperature Indicator Light 4-44


(Green) * i-stop Indicator Light 4-18


(Green) * i-ELOOP Indicator Light 4-92

* Vehicle Speed Alarm Indication 4-32

Shift Position Indication 4-52

Lights-On Indicator Light 4-61

4–42
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page

Headlight High-Beam Indicator Light Headlight High-Low
Beam
4-66
Flashing the
Headlights
4-66

Direction Indicator/Hazard Warning Indicator Lights Turn and Lane-
Change Signals
4-71
Hazard Warning
Flasher
4-80

* Front Fog Light Indicator Light 4-69

* Rear Fog Light Indicator Light 4-70

* TCS/DSC Indicator Light *1 Traction Control
System (TCS)
4-87
Dynamic Stability
Control (DSC)
4-88
Turns on
7-38

* DSC OFF Indicator Light *1 4-89


* Select Mode Indicator Light 4-100


(Green) * High Beam Control System (HBC) Indicator Light 4-106


(Green) * Adaptive LED Headlights (ALH) Indicator Light 4-110

* Blind Spot Monitoring (BSM) OFF Indicator Light *1 Malfunction
7-38
Except malfunction
4-123

* Lane Departure Warning System (LDWS) OFF Indicator Light *1 4-115
