2017 MAZDA MODEL 2 Owners Manual (in English)

2–55
Essential Safety Equipment
SRS Air Bags
Warning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-38 .
Refer to Warning Sound is Activated on page 7-50 .

2–56
Essential Safety Equipment
SRS Air Bags
*Some models.
SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)

SRS
equipment Types of collision
A severe frontal/near frontal collision A severe side collision
*2 A rear collision









Front
seat belt
pretensioner X
*1 (both sides) X *1 (impact side only)
No air bag and seat belt
pretensioner will be
activated in a rear collision.
Rear seat belt
pretensioner * X (both sides)
Driver air
bag X
Front
passenger
air bag X
*1
Side air bag
* X *1 (impact side only)
Curtain air
bag
* X (impact side only)
X : The SRS air bag equipment is designed to deploy in a collision.

*1 (With Front Passenger Air Bag Deactivation Switch)
The front passenger front and side air bags and the front seat belt pretensioner are designed to deploy depending
on the status of the front passenger air bag deactivation switch.
*2 (With Side/Curtain Air Bags)
In a side collision, the front seat belt pretensioners and the side/curtain air bags deploy (only on the side in
which the collision occurs).

2–57
Essential Safety Equipment
SRS Air Bags
NOTE
In a frontal offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.

2–58
Essential Safety Equipment
SRS Air Bags
Limitations to SRS Air Bag
In severe collisions such as those described previously in "SRS Air Bag Deployment
Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents,
the equipment may not deploy depending on the type of collision and its severity.

Limitations to front/near front collision detection:
The following illustrations are examples of front/near front collisions that may not be
detected as severe enough to deploy the SRS air bag equipment.


Impacts involving trees or polesFrontal offset impact to the vehicle



Rear-ending or running under a truck's tail gate

2–59
Essential Safety Equipment
SRS Air Bags

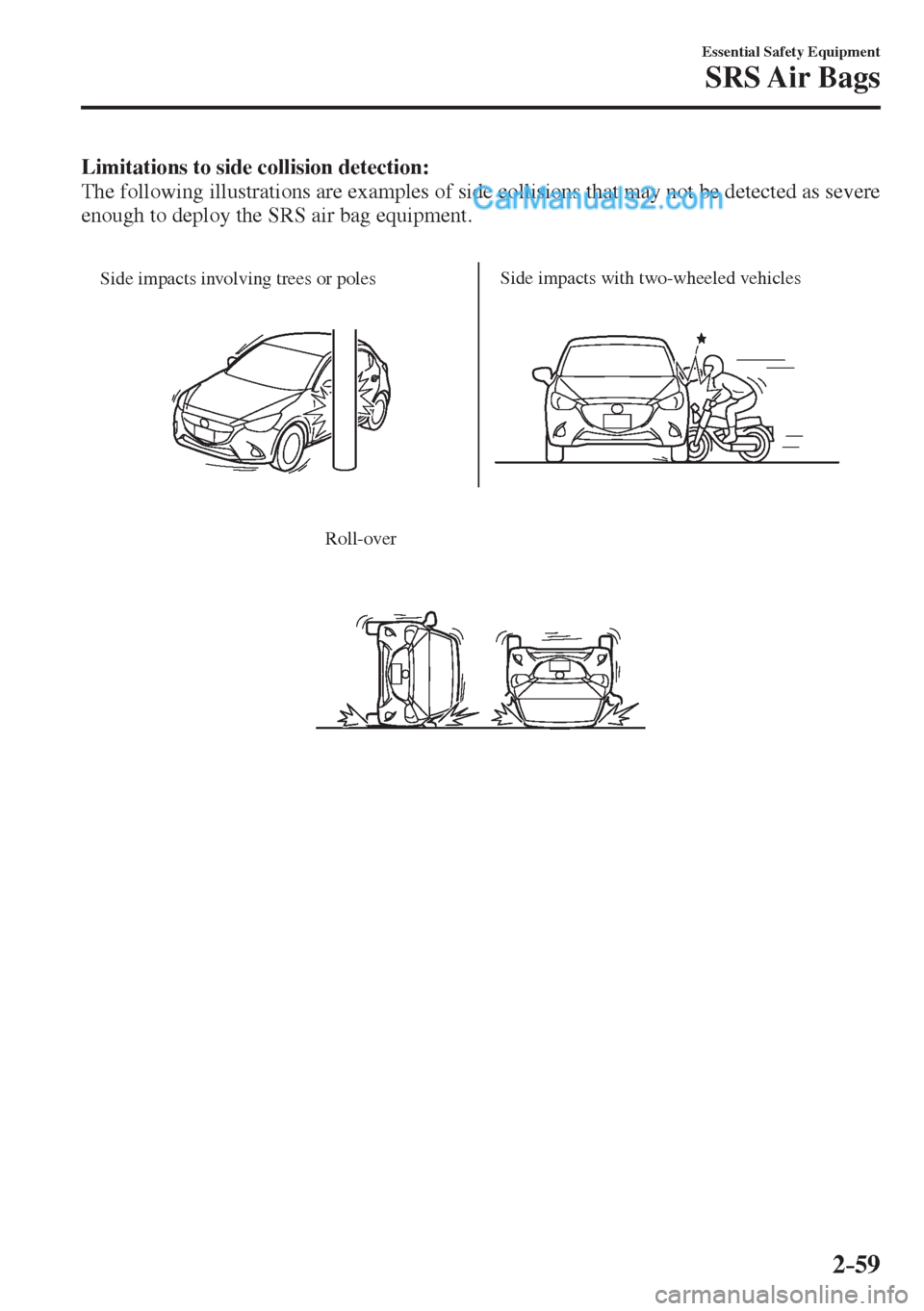

Limitations to side collision detection:
The following illustrations are examples of side collisions that may not be detected as severe
enough to deploy the SRS air bag equipment.


Side impacts involving trees or polesSide impacts with two-wheeled vehicles



Roll-over

MEMO
2–60

3–1*Some models.3–1
3Before Driving
Use of various features, including keys, doors, mirrors and windows.

Keys ...................................................... 3-2
Keys ............................................... 3-2
Keyless Entry System .................... 3-3

Advanced Keyless Entry System ....... 3-9
Advanced Keyless Entry
System
* ........................................... 3-9
Operational Range ....................... 3-10

Doors and Locks ................................ 3-11
Door Locks ................................... 3-11
Liftgate/Boot Lid ......................... 3-21

Fuel and Emission ............................. 3-26
Fuel and Engine Exhaust
Precautions ................................... 3-26
Fuel-Filler Flap and Cap .............. 3-31

Steering Wheel................................... 3-33
Steering Wheel ............................. 3-33

Mirrors ............................................... 3-34
Mirrors ......................................... 3-34

Windows ............................................. 3-38
Power Windows ........................... 3-38
Manual Windows
* ........................ 3-41
Security System ................................. 3-42
Modi¿ cation and Add-On
Equipment .................................... 3-42
Immobilizer System ..................... 3-42
Theft-Deterrent System
* ............... 3-44

Driving Tips ....................................... 3-48
Running-In ................................... 3-48
Saving Fuel and Protection of the
Environment ................................. 3-48
Hazardous Driving ....................... 3-49
Floor Mat ..................................... 3-50
Rocking the Vehicle ..................... 3-51
Winter Driving ............................. 3-51
Driving In Flooded Area .............. 3-54
Turbocharger Information
(SKYACTIV-D 1.5) ..................... 3-55

Towing ................................................ 3-56
Towing Caravans and Trailers
(Europe/Turkey/South Africa) ..... 3-56

3–2
Before Driving
Keys
K e y s
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not ¿ nd or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may ¿ nd these keys
to be an interesting toy to play with
and could cause the power windows or
other controls to operate, or even make
the vehicle move.
CAUTION
  Because the key (transmitter) uses
low-intensity radio waves, it may
not function correctly under the
following conditions:



 The key is carried with
communication devices such as
cellular phones.



 The key contacts or is covered by a
metal object.



 The key is near electronic devices
such as personal computers.



 Non-Mazda genuine electronic
equipment is installed in the
vehicle.



 There is equipment which
discharges radio waves near the
vehicle.

 The key (transmitter) may consume
battery power excessively if it
receives high-intensity radio waves.
Do not place the key near electronic
devices such as televisions or
personal computers.
  To avoid damage to the key
(transmitter), DO NOT:



 Drop the key.



 Get the key wet.



 Disassemble the key.



 Expose the key to high
temperatures on places such as the
instrument panel or bonnet, under
direct sunlight.



 Expose the key to any kind of
magnetic ¿ eld.




 Place heavy objects on the key.



 Put the key in an ultrasonic
cleaner.



 Put any magnetized objects close
to the key.
