Audio Set [Type A (non-touchscreen)]
2. Turn the audio control dial and select a
desired mode.



Display Mode Function
PAIR
DEVICE Pairing mode Bluetooth ® audio
device pairing
LINK
CHANGE Link change
mode Changing link to
Bluetooth
® audio
device
PAIR
DELETE Pairing
deletion
mode Deleting link to
Bluetooth
® audio
device
DEVICE
INFO Device
information
display mode Displaying vehicle's
Bluetooth
® unit
information

3. Press the audio control dial to
determine the mode.

Bluetooth ® audio device pairing
(Bluetooth ® Audio)
Any Bluetooth ® audio device must be
paired to the vehicle's Bluetooth ® unit
before it can be listened to over the
vehicle's speakers.
A maximum of seven devices including
Bluetooth
® audio devices and hands-
free mobile phones can be paired to one
vehicle.
NOTE
  If a Bluetooth ® device has already
been paired to the vehicle as a hands-
free mobile phone, it does not need
to be paired again when using the
device as a Bluetooth
® audio device.
Conversely, it does not need to be
paired again as a hands-free mobile
phone if it has already been paired as
a Bluetooth
® audio device.   Device registration can also be done
using voice recognition.
Concerning the operation of a Bluetooth
®
audio device itself, refer to its instruction
manual.
Some Bluetooth
® audio devices have PIN
codes (four digits). Refer to the audio
device's instruction manual because the
pairing procedure differs depending on
whether it has a PIN code or not.

5–56
Interior Features
Audio Set [Type A (non-touchscreen)]
Pairing a Bluetooth ® audio device which
has a four-digit PIN code
1. Using the audio control dial, select
the pairing mode “ PAIR DEVICE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to
determine the mode.
After “ ENTER PIN ” is displayed on
the audio display for three seconds,
“ PIN 0000 ” is displayed and the PIN
code can be input.
3. Input the PIN code of your Bluetooth
®
audio device by pressing channel preset
buttons 1 to 4 while “ PIN 0000 ” is
displayed.
Press channel preset button 1 to input
the ¿ rst digit, 2 for the second, 3 for the
third, and 4 for the forth. For example,
if the PIN code were “4213”, press
channel preset button 1 four times
(1, 2, 3, 4), button 2 twice (1, 2), button
3 once (1), and button 4 three times
(1, 2, 3). If the “ PIN 0000 ” display
disappears before ¿ nishing the PIN
code input, repeat the procedure from
Step 1.
NOTE
Some devices accept only a particular
pairing code (Usually, “0000” or
“1234”).
If pairing cannot be completed, refer
to the owner's manual of your mobile
device, and try those numbers if
necessary.
4. Press the audio control dial while the
input PIN code is displayed.
“ PAIRING ” À ashes on the display. 5. Operate the Bluetooth
® audio device
and set it to the pairing mode while
“ PAIRING ” is À ashing.
6. When the pairing is completed, “
” and
“ PAIR SUCCESS ” are displayed after
about 10-30 seconds, after which
“ PAIR SUCCESS ” continues to be
displayed for three seconds, and then
the unit returns to the normal display.
NOTE
  Some Bluetooth ® audio devices need
a certain amount of time before the
“
” symbol is displayed.   If the pairing failed, “ Err ” À ashes for
three seconds.
  Pairing cannot be performed while
the vehicle is moving. If you attempt
to perform pairing while the vehicle
is moving, “ PAIR DISABLE ” is
displayed.
  If seven Bluetooth ® audio devices
have already been paired to the
vehicle, pairing cannot be performed
and “ MEMORY FULL ” is displayed.
Delete one paired device to pair
another one.
Pairing a Bluetooth
® audio device which
does not have a four-digit PIN code
1. Using the audio control dial, select
the pairing mode “ PAIR DEVICE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio set up” for details.)
2. Press the audio control dial to
determine the mode. After “ ENTER
PIN ” is displayed on the audio display
for three seconds, “ PIN 0000 ” is
displayed and the PIN code can be
input.

5–57
Interior Features
Audio Set [Type A (non-touchscreen)]
3. Press the audio control dial while “ PIN
0000 ” is displayed.
“ PAIRING ” À ashes on the audio
display.
4. Operate the Bluetooth
® audio device
and set it to the pairing mode while
“ PAIRING ” is À ashing.
5. As the Bluetooth
® audio device
requires a PIN code, input “0000”.
6. When the pairing is completed, “
” and
“ PAIR SUCCESS ” are displayed after
about 10-30 seconds, after which
“ PAIR SUCCESS ” continues to be
displayed for three seconds, and then
the unit returns to the normal display.
NOTE
  If pairing cannot be completed, try
“1234” instead. Refer to the owner's
manual of your mobile device for the
right PIN code.
  Some Bluetooth ® audio devices need
a certain amount of time before the
“
” symbol is displayed.   If the pairing failed, “ Err ” À ashes for
three seconds.
  Pairing cannot be performed while
the vehicle is moving. If you attempt
to perform pairing while the vehicle
is moving, “ PAIR DISABLE ” is
displayed.
  If seven Bluetooth ® audio devices
have already been paired to the
vehicle, pairing cannot be performed
and “ MEMORY FULL ” is displayed.
Delete one paired device to pair
another one.
Device selection (Bluetooth ® Audio)
If several devices have been paired, the
Bluetooth ® unit links the device last
paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.

1. Using the audio control dial, select the
link change mode “ LINK CHANGE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to
determine the mode.
3. The name of the currently linked
Bluetooth
® audio device is displayed.
If no Bluetooth ® audio device is
currently linked, the name of the ¿ rst
device among the paired devices is
displayed.
4. Turn the audio control dial to select the
name of the device you would like to
link.


Device name 1
Device name 2
Device name 3
Device name 4
Device name 5
Device name 6
Device name 7

5–58
Interior Features
Audio Set [Type A (non-touchscreen)]
5. Press the audio control dial to select the
device you would like to link.
The “
” symbol disappears, and
“ PAIRING ” À ashes in the audio
display.
NOTE
When “ GO BACK ” is selected and the
audio control dial is pressed, the display
returns to “ LINK CHANGE ”.
6. If the link to the desired device is
successful, the “
” symbol is displayed
again, together with “ LINK
CHANGED ”. “ LINK CHANGED ” is
displayed for three seconds, then it
returns to the normal display.
NOTE
  Some Bluetooth ® audio devices need
a certain amount of time before the
“
” symbol is displayed.   If a hands-free type mobile phone has
been the most recently paired device,
the Bluetooth
® unit links this device.
If you would like to use a Bluetooth ®
audio type device which has been
previously paired to the Bluetooth
®
unit, the link must be changed to this
device.
  If an error occurs while trying to link
a device, “ Err ” À ashes in the display
for three seconds, and the display
returns to “ LINK CHANGE ”. If this
occurs, check the pairing status of
the Bluetooth
® audio device and the
location of the device in the vehicle
(not in the luggage compartment/
boot or a metal-type box), and then
try the link operation again.
  Device selection can also be done
using voice recognition.
H o w t o c o n¿ rm the device currently
linked
Switch to the link-change mode. (Refer to
“Changing the link to a Bluetooth
® audio
device”)
The device name displayed ¿ rst is the
device which is currently linked.
Deleting a device (Bluetooth ®
Audio)
1. Using the audio control dial, select the
pairing delete mode “ PAIR DELETE ”
in the “ BT SETUP ” mode. (Refer to
“Bluetooth
® audio device set-up” for
details.)
2. Press the audio control dial to
determine the mode.
3. The name of the ¿ rst device among the
paired devices is displayed.
4. Rotate the audio control dial and select
the name of the paired device you
would like to delete.


Device name 1
Device name 2
Device name 3
Device name 4
Device name 5
Device name 6
Device name 7

5–59
Interior Features
Audio Set [Type A (non-touchscreen)]
NOTE
Only the names of paired devices can
be displayed. If only one device is
paired, only the name for this device is
displayed.
5. If a selection other than “ GO BACK ”
is made and the audio control dial is
pressed, “ SURE ? NO ” is displayed.
6. Rotate the audio control dial clockwise
and switch the display to “ SURE ?
YES ”.
NOTE
The display changes as follows
depending on whether the audio
control dial is rotated clockwise or
anticlockwise.
-Clockwise: “ SURE ? YES ” displayed
-Anticlockwise: “ SURE ? NO ”
displayed
7. Press the audio control dial to delete
the selected device.
NOTE
Select “ GO BACK ” and press the audio
control dial to return to the “ PAIR
DELETE ” display.
8. “ PAIR DELETED ” is displayed for
three seconds after the deletion is
completed, and then it returns to the
normal display.
NOTE
If an error occurs while trying to delete
the paired device, “ Err ” À ashes in the
display for three seconds and the display
returns to “ LINK DELETE ”.

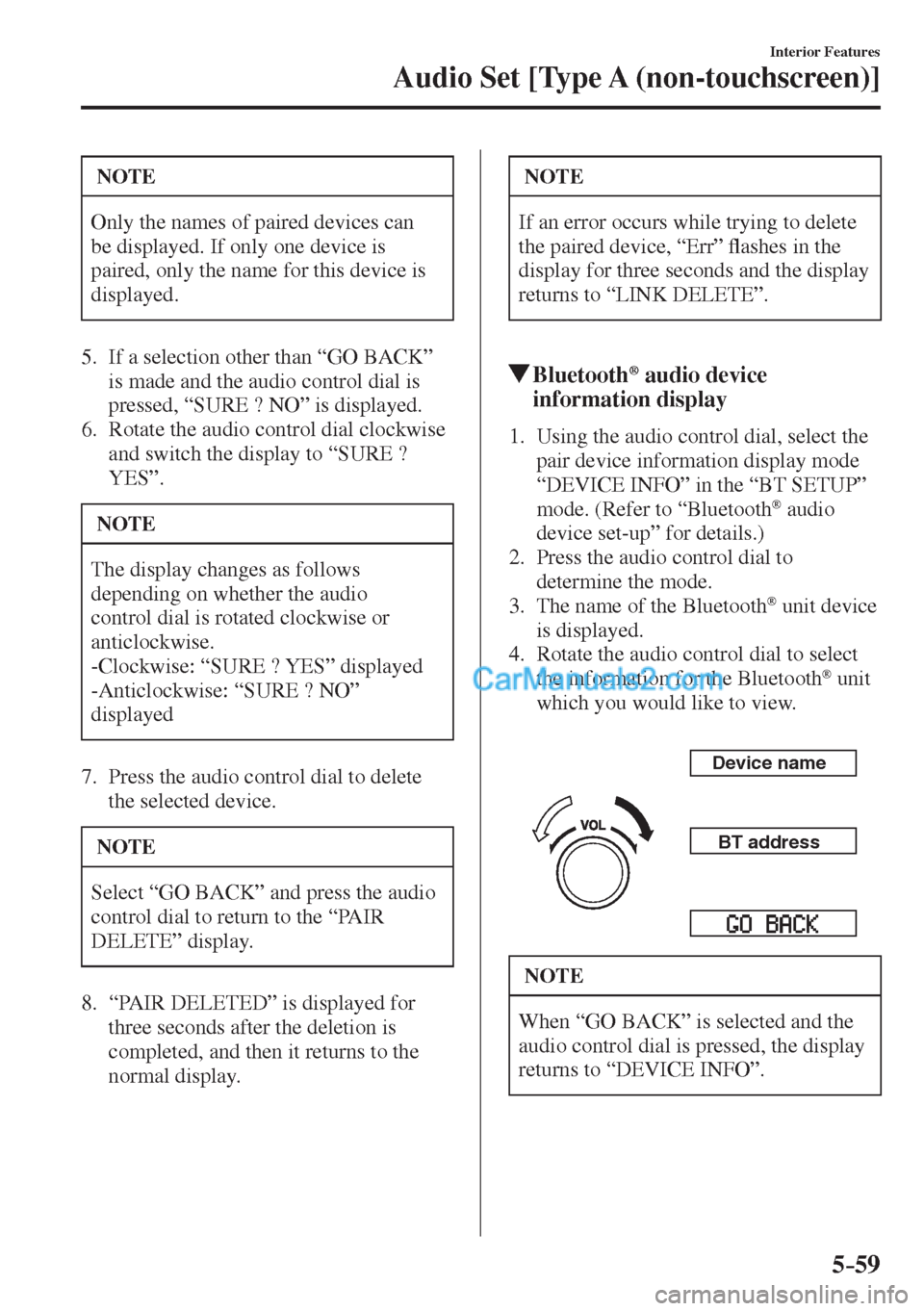

Bluetooth ® audio device
information display
1. Using the audio control dial, select the
pair device information display mode
“ DEVICE INFO ” in the “ BT SETUP ”
mode. (Refer to “Bluetooth
® audio
device set-up” for details.)
2. Press the audio control dial to
determine the mode.
3. The name of the Bluetooth
® unit device
is displayed.
4. Rotate the audio control dial to select
the information for the Bluetooth
® unit
which you would like to view.


Device name
BT address

NOTE
When “ GO BACK ” is selected and the
audio control dial is pressed, the display
returns to “ DEVICE INFO ”.

5–60
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Available Language *
The available languages are English,
French, Spanish, Italian, German, Dutch,
and Portuguese. If the language setting
is changed, all of the voice guidance and
voice input commands are done in the
selected language.
NOTE
  If the language setting is changed,
device registration is maintained.
  Phonebook records are not cleared,
but each language has a separate
phonebook. Therefore, entries
created in one language will need to
be re-entered in the phonebook of the
new language.
  Do these steps before you start
driving. These less used functions
are too distracting to undertake while
driving until you are fully familiar
with the system.
(Method 1)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Language”
5. Prompt: “Select a language: English,
French, Spanish, Italian, German,
Dutch, or Portuguese.”
6. Say: [Beep] “French” (Speak the
desired language: “English”, “French”,
“Spanish”, “Italian”, “German”,
“Dutch”, or “Portuguese”)
NOTE
Other language settings can also be
made while in the current setting by
saying the name of the language in the
native pronunciation.
7. Prompt: “French (Desired language)
selected. Is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “Please wait. Switching to
French phonebook. French selected.”
(Spoken in the newly selected
language).

(Method 2)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “French” (Say the desired
language: “English”, “French”,
“Spanish”, “Italian”, “German”,
“Dutch”, or “Portuguese”). (Change
the desired language by saying the
language name.)
NOTE
Other language settings can also be
made while in the current setting by
saying the name of the language in the
native pronunciation.
3. Prompt: “Would you like to change
the language to French (Desired
language)?”
4. Say: [Beep] “Yes”
5. Prompt: “Please wait. Switching to
French phonebook. French selected.”
(Spoken in the newly selected
language).

5–61
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Security Setting *
If a password is set, the system cannot be
activated unless the password is input.
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to
be effective.
Password setting
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Password”
5. Prompt: “Password is disabled. Would
you like to enable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Please say a 4-digit
password. Remember this password. It
will be required to use this system.”
8. Say: [Beep] “XXXX” (Say a desired
4-digit password, “PCode”.)
9. Prompt: “Password XXXX (Password,
PCode). Is this correct?”
10. Say: [Beep] “Yes”
11. Prompt: “Password is enabled.”

Using Bluetooth ® Hands-Free with a
password
1. Press the pick-up button or talk button
with a short press.
2. Prompt: “Hands-Free system
is locked. State the password to
continue.”
3. Say: [Beep] “XXXX” (Say the set
password “PCode”.)
4. If the correct password is input, voice
guidance “XXXXXX... (Ex. “Mary's
device”) (Device tag) is connected” is
announced.
If the password is incorrect, voice
guidance “XXXX (4-digit password,
Pcode) incorrect password, please try
again” is announced.

Cancelling the password
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to
be effective.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Password”
5. Prompt: “Password is enabled. Would
you like to disable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Password is disabled.”

5–62
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
C o n¿ rmation Prompts
The con¿ rmation prompt con¿ rms the
command content to the user before
advancing to the operation requested by
the user. When this function is turned
on, the system reads out the voice
input command previously received
and con¿ rms whether the command is
correct before advancing to the command
execution.
When the con¿ rmation prompt function is
turned on:
(Ex. “Calling John's device. Is this
correct?”)
When the con¿ rmation prompt function is
turned off:
(Ex. “Calling John's device.”)
NOTE
If the con¿ rmation prompt function is
turned off when making an emergency
call, the system reads out and con¿ rms
the command before executing it.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Con¿ rmation prompts”
5. Prompt: “Con¿ rmation prompts
are on/off. Would you like to turn
con¿ rmation prompts off/on?”
6. Say: [Beep] “Yes”
7. Prompt: “Con¿ rmation prompts are
off/on.”

Bluetooth ® Audio *
Applicable Bluetooth ® speci¿ cation
(Recommended)
Ver. 2.0

Response pro¿ le




 A2DP (Advanced Audio Distribution
Pro¿ le) Ver. 1.0/1.2




 AVRCP (Audio/Video Remote Control
Pro¿ le) Ver. 1.0/1.3


A2DP is a pro¿ le which transmits only
audio to the Bluetooth
® unit. If your
Bluetooth ® audio device corresponds
only to A2DP, but not AVRCP, you
cannot operate it using the control panel
of the vehicle's audio system. In this
case, only the operations on the mobile
device are available the same as when a
portable audio device for a non-compliant
Bluetooth
® device is connected to the
AUX terminal.

Function A2DP AVRCP
Ver. 1.0 Ver. 1.3
Playback — X X
Pause — X X
File (Track) up/down — X X
Reverse — — X
Fast-forward — — X
Text display — — X
X: Available
—: Not available
