2017 MAZDA MODEL 2 Owners Manual (in English)

4–211
When Driving
Parking Sensor System
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 50—37 cm (19.0—15.0 in)

Medium intermittent sound
Middle distance Approx. 37—25 cm (14.0—9.8 in)

Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)

Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.


NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.

4–212
When Driving
Parking Sensor System
When Warning Beep is Activated
The system noti¿ es the driver of an abnormality by activating the beep sound and the
indicator light.

Indicator/Beep How to check
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an expert
repairer, we recommend an Authorised Mazda Repairer as soon as possible.
The intermittent sound of the
buzzer is heard ¿ ve times. Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
A certain obstruction detection
indicator is continuously
displayed. Refer to Obstruction Detection Indication on page 4-208 .

5–1*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.

Air-Conditioning System .................... 5-4
Operating Tips ................................ 5-4
Vent Operation ............................... 5-5
Manual Type .................................. 5-7
Fully Automatic Type ................... 5-14

Before Using the Audio System ........ 5-18
Audio Control Switch
* ................. 5-18
AUX/USB mode .......................... 5-20
Aerial ............................................ 5-23

Audio Set
[Type A (non-touchscreen)] .............. 5-26
Power/Volume/Sound Controls .... 5-26
Clock ............................................ 5-28
Operating the Radio ..................... 5-30
Operating the Compact Disc (CD)
Player
* .......................................... 5-34
How to use AUX mode ................ 5-37
How to use USB mode ................. 5-38
How to use iPod mode ................. 5-42
Error Indications .......................... 5-45
Bluetooth
® * ................................... 5-46
Bluetooth® Preparation * ............... 5-49
Available Language * .................... 5-60
Security Setting * ........................... 5-61
Bluetooth® Audio * ........................ 5-62
Bluetooth® Hands-Free * ............... 5-65
Voice Recognition * ....................... 5-72
Voice Recognition Learning Function
(Speaker Enrolment)
* ................... 5-73
Troubleshooting * .......................... 5-76
Audio Set [Type B (touchscreen)] .... 5-80
Basic Operation Method .............. 5-80
Home screen ................................. 5-85
Volume/Display/Sound
Controls ........................................ 5-86
Operating the Radio ..................... 5-88
Operating the Digital Audio
Broadcasting (DAB) Radio
* ......... 5-91
Operating the Compact Disc
(CD) Player .................................. 5-94
Operating the Digital Versatile Disc
(DVD) Player
* .............................. 5-97
How to use AUX mode .............. 5-100
How to use USB mode ............... 5-101
Bluetooth
® .................................. 5-107
Bluetooth® Preparation ............... 5-111
Available Language * .................. 5-113
Bluetooth® Audio ....................... 5-114
How to Use Aha™ ....................... 5-118
How to Use Stitcher™ Radio ...... 5-122
Bluetooth® Hands-Free .............. 5-124
Voice Recognition ...................... 5-134
Settings ....................................... 5-137
Applications ............................... 5-139
Troubleshooting ......................... 5-140

Appendix .......................................... 5-144
Things You Need to Know ......... 5-144

5–2
Interior Equipment ......................... 5-156
Sunvisors .................................... 5-156
Interior Lights ............................ 5-156
Accessory Sockets ..................... 5-159
Cup Holder ................................. 5-160
Bottle Holder .............................. 5-160
Storage Compartments ............... 5-161

MEMO
5–3

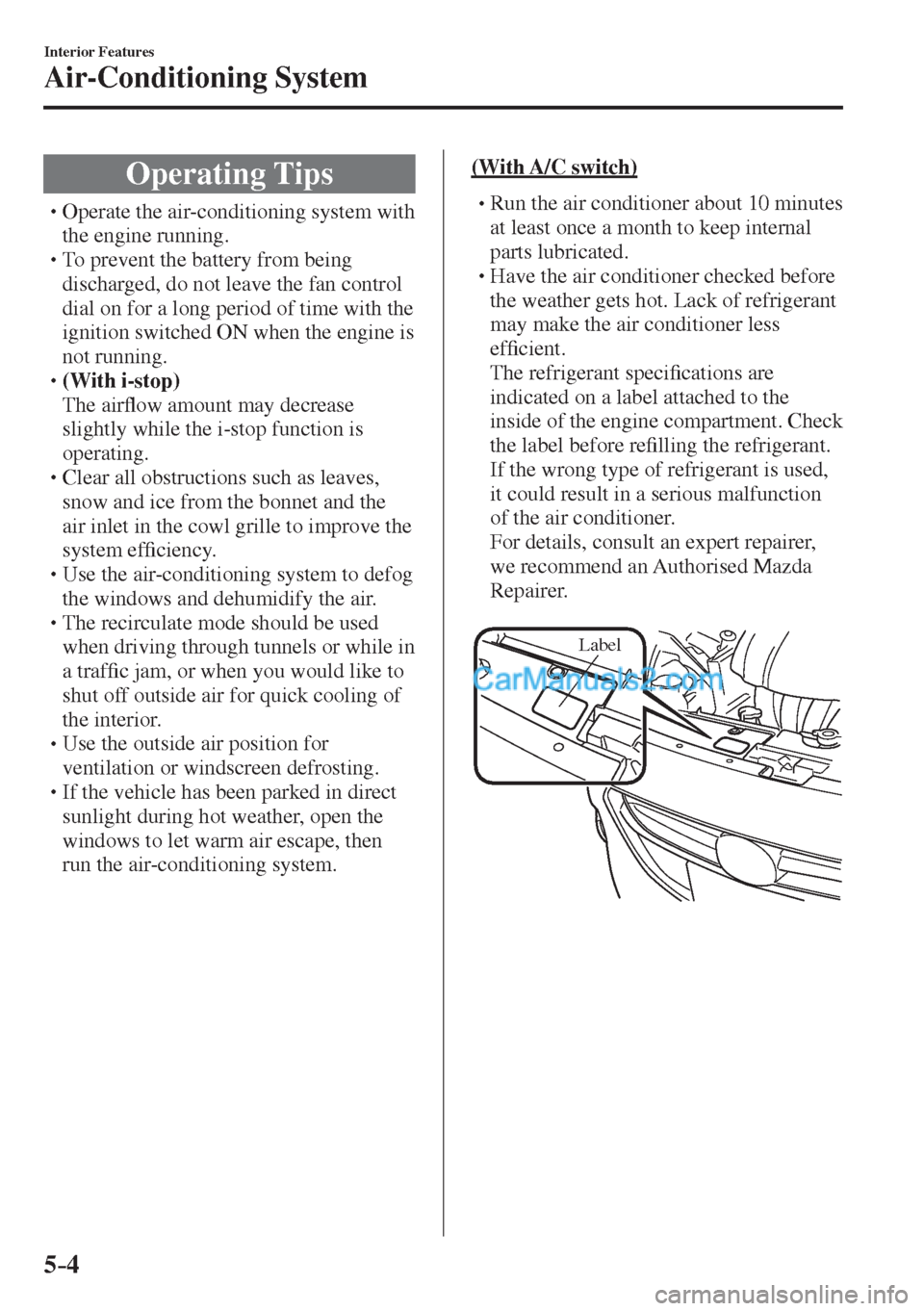

5–4
Interior Features
Air-Conditioning System
O p e r a t i n g T i p s













 Operate the air-conditioning system with
the engine running.



 To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



 (With i-stop)
 The airÀ ow amount may decrease
slightly while the i-stop function is
operating.



 Clear all obstructions such as leaves,
snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef¿ ciency.




 Use the air-conditioning system to defog
the windows and dehumidify the air.



 The recirculate mode should be used
when driving through tunnels or while in
a traf¿ c jam, or when you would like to
shut off outside air for quick cooling of
the interior.



 Use the outside air position for
ventilation or windscreen defrosting.



 If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.

(With A/C switch)





 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.



 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef¿ cient.

 The refrigerant speci¿ cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before re¿ lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
  For details, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.


Label

5–5
Interior Features
Air-Conditioning System
Vent Operation
Adjusting the Vents
Directing airÀ ow
To adjust the direction of airÀ ow, move the
adjustment knob.
NOTE
When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.
Centre vents (driver) and Side vents
Air vent open/close
NOTE
The air vents can be fully opened and
closed by operating the knob.

Open
Close
Knob
AirÀ ow direction adjustment

Knob
Centre vents (front passenger)
Air vent open/close

OpenClose
Knob
AirÀ ow direction adjustment

Knob

5–6
Interior Features
Air-Conditioning System
Selecting the AirÀ ow Mode

Instrument panel Vents
Instrument panel and Floor Vents
Floor VentsDefroster and Floor Vents
Defroster Vents
* With rear vents
