2017 MAZDA MODEL 2 change language

5–49
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Bluetooth ® Preparation *
Bluetooth ® Hands-Free
Preparation
Pairing code setting
The 4-digit pairing code setting for
registration of your cell phone (pairing)
can be set beforehand.
NOTE
The initial setting value is “0000”.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:
Pair, Edit, Delete, List, or Set pin
Code.”
6. Say: [Beep] “Set pin code”
7. Prompt: “Your current pin code is
XXXX. Do you want to change it to a
different pairing pin code?”
8. Say: [Beep] “Yes”
9. Prompt: “Please say a 4-digit pairing
code.”
10. Say: [Beep] “YYYY”
11. Prompt: “YYYY is this correct?”
12. Say: [Beep] “Yes” or “No”
13. If “Yes”, go to Step 14. If “No”, the
procedure returns to Step 9.
14. Prompt: “Your new pairing pin code is
YYYY. Use this pin code when pairing
devices to the Hands free system. Do
you want to pair a device now?” 15. Say: [Beep] “Yes” or “No”
16. If “Yes”, the system switches to the
device registration mode. If “No”, the
system returns to standby status.

Device pairing (Bluetooth ® Hands-
Free)
To use Bluetooth ® Hands-Free, the device
equipped with Bluetooth ® has to be paired
to the Bluetooth ® unit using the following
procedure.
A maximum of seven devices including
hands-free mobile phones and Bluetooth
®
audio devices can be paired to one vehicle.
NOTE
  A device can be paired only when
the vehicle is parked. If the vehicle
starts to move, the pairing procedure
will end. Pairing is dangerous while
driving - pair up your device before
you start driving. Park the car in a
safe place before paired.
  If a Bluetooth ® device has already
been paired to the vehicle as a
Bluetooth
® audio device, it does not
need to be paired again when using
the device as a hands-free mobile
phone. Conversely, it does not need
to be paired again as a Bluetooth
®
audio device if it has already been
paired as a hands-free mobile phone.
  Since the communication range of
a Bluetooth ® equipped device is
about 10 meters (32 ft), if a device is
placed within a 10-meter
(32 ft) radius of the vehicle, it may
be detected/paired unintentionally
while another device is being paired.

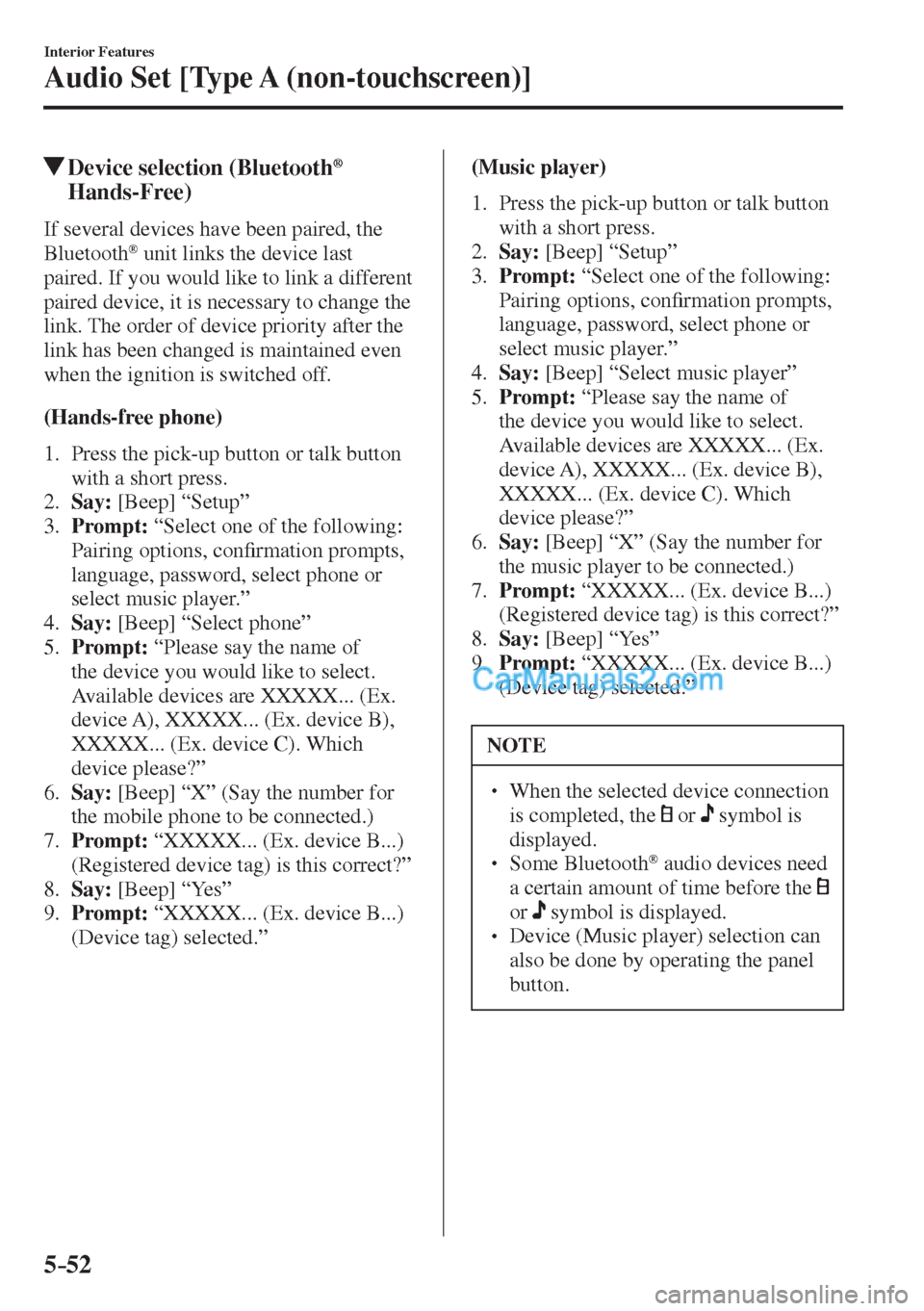

5–52
Interior Features
Audio Set [Type A (non-touchscreen)]
Device selection (Bluetooth ®
Hands-Free)
If several devices have been paired, the
Bluetooth ® unit links the device last
paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.
(Hands-free phone)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Select phone”
5. Prompt: “Please say the name of
the device you would like to select.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device B),
XXXXX... (Ex. device C). Which
device please?”
6. Say: [Beep] “X” (Say the number for
the mobile phone to be connected.)
7. Prompt: “XXXXX... (Ex. device B...)
(Registered device tag) is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “XXXXX... (Ex. device B...)
(Device tag) selected.”

(Music player)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Select music player”
5. Prompt: “Please say the name of
the device you would like to select.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device B),
XXXXX... (Ex. device C). Which
device please?”
6. Say: [Beep] “X” (Say the number for
the music player to be connected.)
7. Prompt: “XXXXX... (Ex. device B...)
(Registered device tag) is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “XXXXX... (Ex. device B...)
(Device tag) selected.”

NOTE
  When the selected device connection
is completed, the
or symbol is
displayed.
  Some Bluetooth ® audio devices need
a certain amount of time before the

or
symbol is displayed.   Device (Music player) selection can
also be done by operating the panel
button.

5–60
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Available Language *
The available languages are English,
French, Spanish, Italian, German, Dutch,
and Portuguese. If the language setting
is changed, all of the voice guidance and
voice input commands are done in the
selected language.
NOTE
  If the language setting is changed,
device registration is maintained.
  Phonebook records are not cleared,
but each language has a separate
phonebook. Therefore, entries
created in one language will need to
be re-entered in the phonebook of the
new language.
  Do these steps before you start
driving. These less used functions
are too distracting to undertake while
driving until you are fully familiar
with the system.
(Method 1)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, con¿ rmation prompts,
language, password, select phone or
select music player.”
4. Say: [Beep] “Language”
5. Prompt: “Select a language: English,
French, Spanish, Italian, German,
Dutch, or Portuguese.”
6. Say: [Beep] “French” (Speak the
desired language: “English”, “French”,
“Spanish”, “Italian”, “German”,
“Dutch”, or “Portuguese”)
NOTE
Other language settings can also be
made while in the current setting by
saying the name of the language in the
native pronunciation.
7. Prompt: “French (Desired language)
selected. Is this correct?”
8. Say: [Beep] “Yes”
9. Prompt: “Please wait. Switching to
French phonebook. French selected.”
(Spoken in the newly selected
language).

(Method 2)
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “French” (Say the desired
language: “English”, “French”,
“Spanish”, “Italian”, “German”,
“Dutch”, or “Portuguese”). (Change
the desired language by saying the
language name.)
NOTE
Other language settings can also be
made while in the current setting by
saying the name of the language in the
native pronunciation.
3. Prompt: “Would you like to change
the language to French (Desired
language)?”
4. Say: [Beep] “Yes”
5. Prompt: “Please wait. Switching to
French phonebook. French selected.”
(Spoken in the newly selected
language).

5–85
Interior Features
Audio Set [Type B (touchscreen)]
Home screen

Icon Function

Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.

Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the icon displayed at the bottom of the screen.

Communication
Bluetooth ® related functions are available.

Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or travelling
at a slow speed.

Settings
Overall setting menu (Such as display, sound, Bluetooth ® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.

5–113
Interior Features
Audio Set [Type B (touchscreen)]
*Some models.
Deleting a device
Selecting and deleting devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the device name which you
would like to delete.
6. Select
.
7. Select
.
Deleting all devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Select
.
Changing PIN code
PIN code (4 digits) can be changed.
1. Select the icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.
Available Language *
The language can be changed.
Refer to Settings on page 5-137 .
NOTE
Depending on the language, it may only
be available for the screen display, but
not for the voice recognition.

5–132
Interior Features
Audio Set [Type B (touchscreen)]
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.



3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.

Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.

Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.

NOTE
  Select the icon to change the
language.
  Select the icon to switch between
capitalized and lower-case
characters.
  Select the icon to return to the
previous screen without storing the
edit.

5–138
Interior Features
Audio Set [Type B (touchscreen)]
Tab Item Function
System Tool Tips Turns button explanations ON/OFF.
Language Changes the language.
Temperature Changes the setting between Fahrenheit and
Celsius.
Distance Changes the setting between miles and
kilometres.
Music Database Update Used to update Gracenote
® . Gracenote is used
with USB Audio, and provides:
1. Supplementary music information (Such as
song name, artist name)
2. Voice recognition assistance for Play Artist
and Play Album
Gracenote can be downloaded from the Mazda
Handsfree Website.
Refer to Gracenote Database on page 5-104 .
Factory Reset Memory and settings are initialized to the
factory settings.
The initialization launches by selecting the

button.
About Agreements and
Disclaimers Verify the disclaimer and agree.
Version Information Can verify the current audio unit OS version
and Gracenote Database version.

5–154
Interior Features
Appendix
Glossary
DVD-Video
DVD-Video is a video image storing
standard determined by the DVD forum.
“MPEG2”, a global standard in digital
compression technologies, has been
adopted which compresses on average
about 1/40th of the image data and stores
it. In addition, a variable-rate coding
technology, which changes the assigned
information amount according to the shape
of the screen image, has been adopted.
Audio information can be stored using
Dolby digital instead of PCM (Pulse Code
Modulation) and more realistic sounding
audio can be enjoyed.
In addition, various, supplementary
functions such as multi-language
availability are provided for enhanced
enjoyment.
DVD-VR
DVD-VR is short for DVD Video
Recording Format; video image storing
standard determined by the DVD forum.
Multi-angle
One of the DVD player's functions.
Because scenes can be recorded in
multiple angles (camera position), users
can choose a desired angle.
Multi-language
As a function of the DVD player, audio
or subtitles for the same video images can
be stored in multiple languages and the
language can be selected freely. Region code
DVD players and discs are assigned codes
for each market region and only discs
manufactured for that speci¿ c region can
be played.
A disc cannot be played if the region code
assigned to the player is not indicated on
the disc.
In addition, even if a region code is not
indicated on the disc, disc playback may
be prohibited depending on the region. In
this case, a disc may not be playable in
this DVD player.
Operating Tips for USB device
This unit plays audio ¿ l e s a s f o l l o w s :

Extension Playback with this unit
.mp3 MP3
.wma WMA
.aac
*1
AAC
.m4a
.wav
*1 W A V
.ogg *1 OGG

CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the ¿ le correctly resulting in noise or a
malfunction.
