Page 129 of 640
129
CT200h_OM_OM76215U_(U)3-3. Adjusting the seats
3
Operation of each component
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
To fold
Pull up the head restraint while pressing
the lock release button.
To u s e
Lift up and push down the head restraint
to the lowest lock position.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
Center rear seat
Lock release button
1
2
Outboard rear seats
Lock release button
1
2
Page 130 of 640
130
CT200h_OM_OM76215U_(U)3-3. Adjusting the seats
■Removing the head restraints
Front and center rear seats
Outboard rear seats
■Installing the head restraints
Front and center rear seats
Outboard rear seats
Pull the head restraint up
while pressing the lock
release button.
Pull the head restraint up while pressing the lock
release buttons.
Align the head restrain t with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Align the head restrain t with the installation
holes and push it down to the lowest lock posi-
tion.
Lock release button
Lock release buttons
Lock release button
Page 131 of 640
CT200h_OM_OM76215U_(U)
1313-3. Adjusting the seats
3
Operation of each component
■Adjusting the height of the head restraints (front seats)
■Adjusting the center rear seat head restraint
Always raise the head restraint one level from the stowed position when using. Make sure that the head restraints are adjusted
so that the center of the head restraint is closest
to the top of your ears.
WA R N I N G
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may
result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.
Page 132 of 640
1323-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76215U_(U)
Steering wheel
Hold the steering wheel and push
the lever down.
Adjust to the ideal position by mov-
ing the steering wheel horizontally
and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
To sound the horn, press on or close to
the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn
Page 133 of 640
1333-4. Adjusting the steering wheel and mirrors
3
Operation of each component
CT200h_OM_OM76215U_(U)
WA R N I N G
■While driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident, and
resulting in death or serious injury.

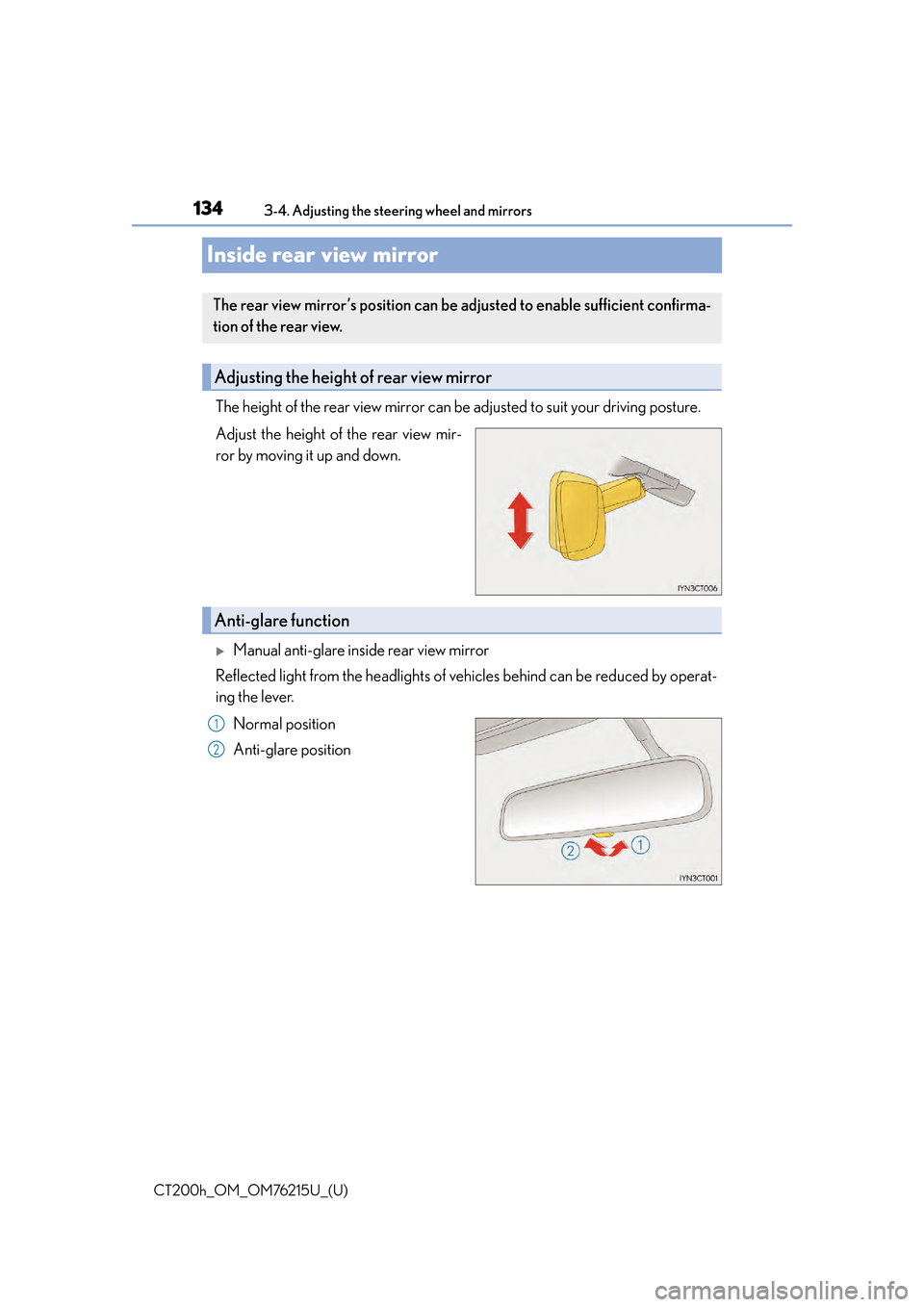

Page 134 of 640
1343-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76215U_(U)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced by operat-
ing the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
Page 135 of 640

1353-4. Adjusting the steering wheel and mirrors
3
Operation of each component
CT200h_OM_OM76215U_(U)
Auto anti-glare inside rear view mirror (type A)
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the power switch is turned to ON
mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
Auto anti-glare inside rear view mirror (type B)
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the power switch is turned to ON
mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
Indicator
Indicator
Page 136 of 640
1363-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76215U_(U)
■To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
To ensure that the sens ors operate properly, do
not touch or cover them.
Ty p e A
Ty p e B
WA R N I N G
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
