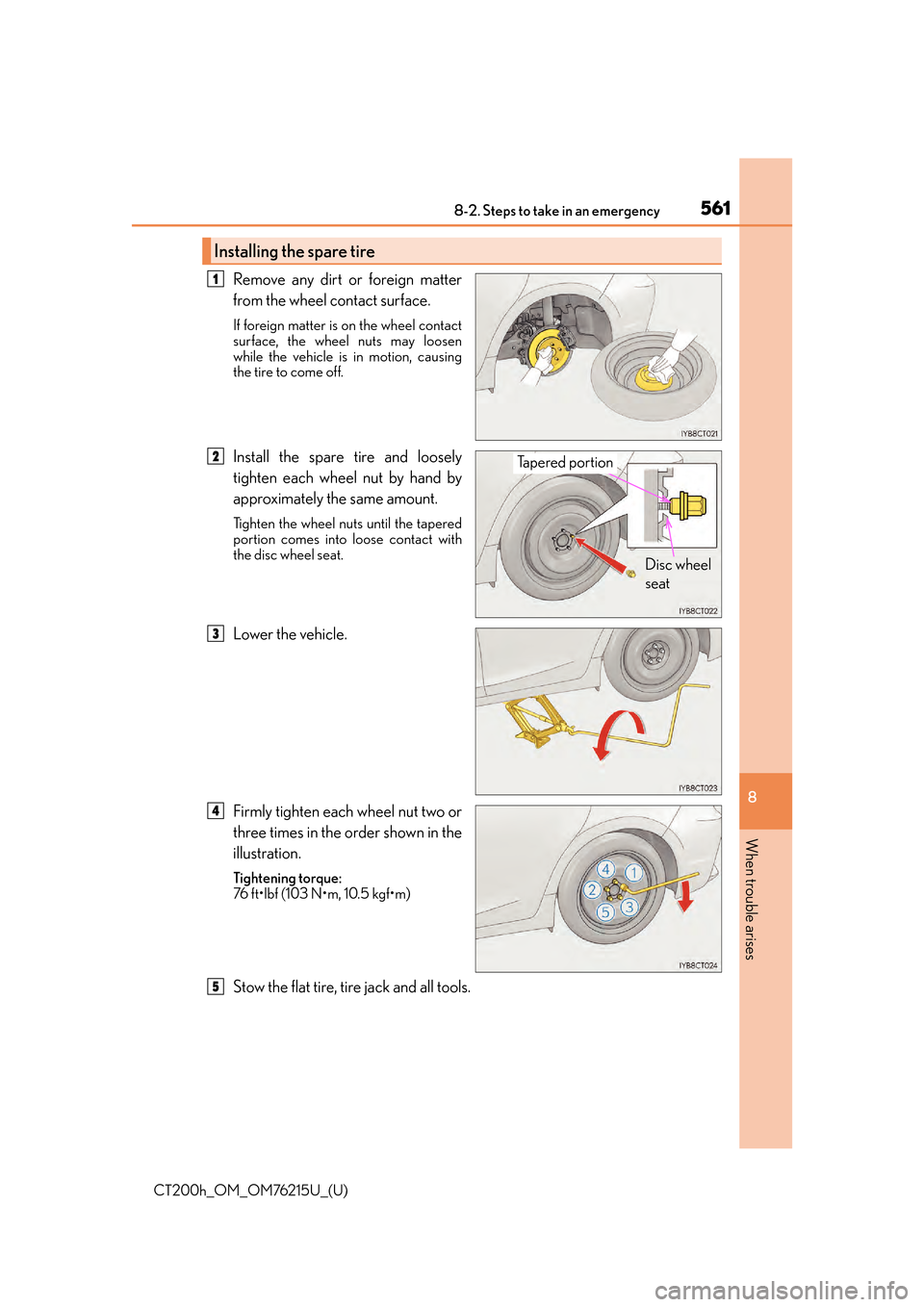

5618-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the tapered
portion comes into loose contact with
the disc wheel seat.
Lower the vehicle.
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
Installing the spare tire
1
Disc wheel
seat
Tapered portion2
3
4
5

5628-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire. ( P. 5 8 3 )
■After completing the tire change
The tire pressure warning system must be reset. (P. 4 9 6 )
■When using the compact spare tire
As the compact spare tire is not equipped wi th a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare ti re will not be indicated by the tire pressure
warning system. Also, if you replace the compact spare tire after the tire pressure warn-
ing light comes on, th e light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to when
driving with standard tires.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the follow-
ing steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
WA R N I N G
■When using the compact spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a stan dard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
1
2
3
• ABS & Brake assist
•VSC
•TRAC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped) • Pre-collision system (if equipped)
•EPS
• Rear view monitor system
(if equipped)
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)

5638-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
WA R N I N G
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
NOTICE
■Be careful when driving over bumps with the compact spare tire installed on the vehi-
cle.
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard ti res. Be careful when driving over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.

564
CT200h_OM_OM76215U_(U)8-2. Steps to take in an emergency
If the hybrid system will not start
One of the following may be the cause of the problem:
●The electronic key may not be functioning properly.* (
 P. 5 6 6 )
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 7 3 )
●There may be a malfunction in the immobilizer system.* ( P. 76 )
●There may be a malfunction in the shift control system.* ( P. 161, 545)
●The hybrid system may be malfunctioni ng due to an electrical problem such
as electronic key battery depletion or a blown fuse. However, depending on
the type of malfunction, an interim meas ure is available to start the hybrid sys-
tem. ( P. 5 6 5 )
*: It may not be possible to shift the shift position other than P.
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 5 6 8 )
●The 12-volt battery terminal connections may be loose or corroded.
(P. 4 9 1 )
Reasons for the hybrid system not starting vary depending on the situation.
Check the following and perform the appropriate procedure:
The hybrid system will not start ev en though the correct starting proce-
dure is being followed. ( P. 159)
The interior lights and headlights are dim, or the horn does not sound or
sounds at a low volume.

5658-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 5 6 8 )
●One or both of the 12-volt battery terminals may be disconnected. ( P. 4 9 1 )
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the hybrid system does not start, the following steps can be used as an
interim measure to start the hybrid system if the power switch is functioning nor-
mally. Do not use this starting procedure except in cases of emergency.
Set the parking brake.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for ab out 15 seconds while depressing the
brake pedal firmly.
Even if the hybrid system can be starte d using the above steps, the system may
be malfunctioning. Have the vehicle inspected by your Lexus dealer.
The interior lights and headlights do not turn on, or the horn does not
sound.
Emergency start function
1
2
3

566
CT200h_OM_OM76215U_(U)8-2. Steps to take in an emergency
If the electronic key do
es not operate properly
Use the mechanical key ( P. 1 0 3 ) i n
order to perform the following opera-
tions:
Locks all the doors
Closes the windows
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once again
within 3 seconds unlocks the other
doors.
Opens the windows* (turn and hold)
*: These settings must be cust omized at your Lexus dealer.
If communication between the electron ic key and vehicle is interrupted
(  P. 117) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened and
the hybrid system can be started by following the procedure below.
Locking and unlocking the doors and key linked functions
1
2
3
4

5678-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
Depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
If any of the doors is opened or closed
while the key is being touched to the
switch, an alarm will sound to indicate
that the start function cannot detect the
electronic key.
Press the power switch within 10 second s of the buzzer sounding, keeping the
brake pedal depressed.
In the event that the hybrid system st ill cannot be operated, contact your Lexus
dealer.
■Stopping the hybrid system
Set the parking brake, shift the shift position to P and press the power switch as you nor-
mally do when stopping the hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( P. 5 0 9 )
■Changing power switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the power
switch.
The hybrid system does not start and mode s will be changed each time the switch is
pressed. ( P. 1 6 0 )
Starting the hybrid system
1
2
WA R N I N G
■When using the mechanical key and operating the power windows
Operate the power window after checking to make sure that there is no possibility of
any passenger having any of their body parts caught in the window.
Also, do not allow children to operate the mech anical key. It is possible for children and
other passengers to get caught in the power window.
3

568
CT200h_OM_OM76215U_(U)8-2. Steps to take in an emergency
If the 12-volt battery is discharged
If you have a set of jumper (or booster)
cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below.
Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the situa-
tion, the alarm may activate and doors
locked. ( P. 7 9 )
Open the hood ( P. 4 8 0 ) a n d f u s e
box cover.
Open the exclusive jump starting
terminal cover.
The following procedures may be used to start the hybrid system if the vehi-
cle’s 12-volt battery is discharged.
You can also call your Lexus dealer or a qualified repair shop.
