2017 Lexus CT200h Owner's Manual (in English)

CT200h_OM_OM76215U_(U)
1213-2. Opening, closing and locking the doors
3
Operation of each component
WA R N I N G
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter de fibrillators should keep away from the
smart access system antennas. ( P. 116)
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency of
radio waves and timing of the emitted radio waves. Then, consult your doctor to see if
you should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemakers or implantable cardioverter defibril-
lators should consult the ma nufacturer of the device for information about its opera-
tion under the influence of radio waves.
Radio waves could have unexpected effe cts on the operation of such medical
devices.
Ask your Lexus dealer for details on disabling the entry function.

122

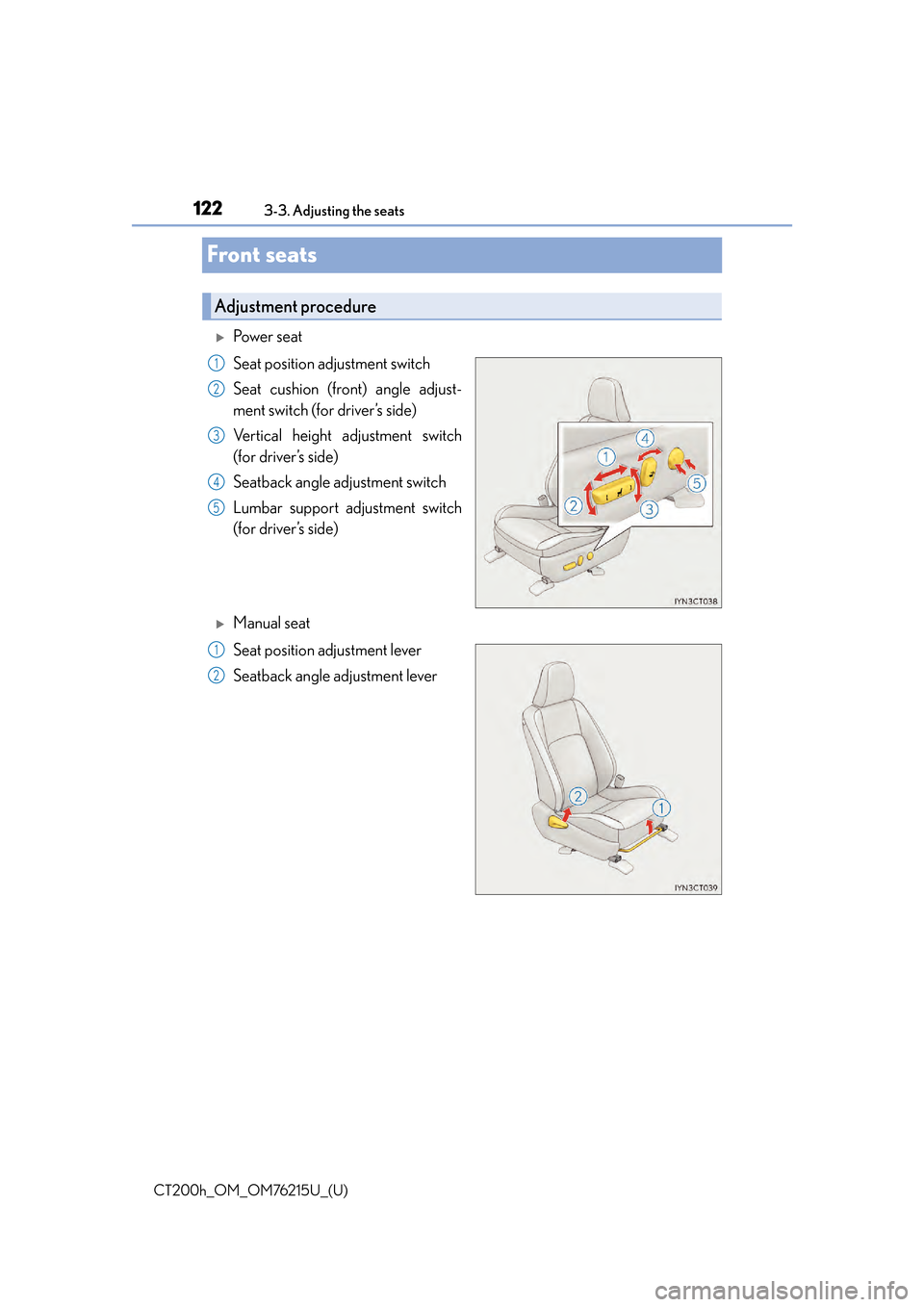

CT200h_OM_OM76215U_(U)3-3. Adjusting the seats
Front seats
Po w e r s e a t
Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch (for driver’s side)
Vertical height adjustment switch
(for driver’s side)
Seatback angle adjustment switch
Lumbar support adjustment switch
(for driver’s side)
Manual seat
Seat position adjustment lever
Seatback angle adjustment lever
Adjustment procedure
1
2
3
4
5
1
2

CT200h_OM_OM76215U_(U)
1233-3. Adjusting the seats
3
Operation of each component
WA R N I N G
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not
injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shoulder belt, increasing the
risk of death or serious injury in the event of an accident.
Adjustments should not be made while dr iving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
●After adjusting the seat, make sure that the seat is locked in position. (manual seat)

124
CT200h_OM_OM76215U_(U)3-3. Adjusting the seats
Rear seats
Pull up the seatback lock release lever
until the lock is released, and fold the
seatback down.
To avoid trapping the seat belt between
the seat and the inside of the vehicle,
pass the seat belt inside the seat belt
guide and then return the seatback
securely to the locked position.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
Returning the rear seatbacks
Seat belt guide

CT200h_OM_OM76215U_(U)
1253-3. Adjusting the seats
3
Operation of each component
WA R N I N G
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift position to P.
●Do not allow anyone to sit on a folded seatback or in the luggage compartment while
driving.
●Do not allow children to enter the luggage compartment.
■When returning the rear seatback to the upright position
Do not put your hand on the seat belt guide.
Doing so may cause you to trap your hand between the guide and the pillar, causing an
injury.
■After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
●Check that the seat belts are not twisted or caught in the seatback.
●Make sure that the seatback is securely
locked in position by lightly pushing it back
and forth.
If the seatback is not securely locked, the red
marking will be visible behind the seatback
lock release lever. Make sure that the red
marking is not visible.

126
CT200h_OM_OM76215U_(U)3-3. Adjusting the seats
Driving position memory
Your preferred driving position (the positi
on of the driver’s seat and outside rear
view mirrors) can be recorded and recalled by pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Turn the power switch to ON mode.
Check that the shift position is in P.
Adjust the driver’s seat and outside rear view mirrors to the desired posi-
tions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the
buzzer sounds.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
■Recall procedureTurn the power switch to ON mode.
Check that the shift position is in P.
Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
: If equipped
This feature automatically adjusts the dr iver’s seat and outside rear view mir-
rors to suit your preferences.
Driving position memory
1
2
3
4
1
2
3

CT200h_OM_OM76215U_(U)
1273-3. Adjusting the seats
3
Operation of each component
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
■Seat positions that can be memorized (P. 122)
The adjusted positions other than the position adjusted by lumbar support switch can be
recorded.
■Operating the driving position memory after turning the power switch off
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
■In order to correctly use the dr iving position memory function
If a seat position is already in the furthest po ssible position and the seat is operated in the
same direction, the recorded position may be slightly different when it is recalled.
Each electronic key (including a card key) can be registered to recall your pre-
ferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to regist er, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Turn the power switch to ON mode.
Check that the shift position is in P.
Recall the driving position that you want to record.
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function
1
2
3
4

128
CT200h_OM_OM76215U_(U)3-3. Adjusting the seats
■Recall procedure
Carry the electronic key that has been
registered to the driving position, and
then unlock and open the driver’s door using the smart access system with
push-button start or wireless remote control.
The driving position will move to the recorded position.
If the driving position is in a position that has already been recorded, the seat and out-
side rear view mirrors will not move.
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the power switch to ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) unt il the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
WA R N I N G
■Seat adjustment caution
Take care during seat adjustment so that th e seat does not strike the rear passenger or
squeeze your body against the steering wheel.
1
2
