892. Instrument cluster
2
Instrument cluster
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve fuel
efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehicle
operation and driving conditions are the same.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of agarage, tunnel, etc.)
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Customization
Settings (e.g. on/off operation of the ECO lamp) can be changed.
(Customizable features: P. 5 9 8 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the high coolant temperature warning light comes
on or flashes. In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. ( P. 5 7 2 )

90
CT200h_OM_OM76215U_(U)2. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of vehicle data.
●Energy monitor
Displays the status of
the hybrid system.
( P. 9 3 )
●Drive information
Displays driving range, fuel consump-
tion and other cruising related informa-
tion. ( P. 9 0 )
●Setting
Changes instrument cluster display set-
tings ( P. 5 9 8 )
●Intuitive parking assist display (if equipped)
Automatically displayed when the system is used (P. 2 0 5 )
●Dynamic radar cruise control display (if equipped)
Automatically displayed when the system is used (P. 1 9 2 )
●Wa r n i n g m e s s a g e s
Automatically displayed when a malfunction occurs in one of the vehicle’s systems ( P. 5 4 2 )
Items displayed can be switched by
pressing the “DISP” switch.
■Energy monitor
P. 9 3
■Current fuel consumption/Average fuel consumption after refueling
Displays the instant fuel consumptio n and average fuel consumption after
refueling.
Use the displayed average fuel consumption as a reference.
Display contents
Drive information

CT200h_OM_OM76215U_(U)
912. Instrument cluster
2
Instrument cluster
■Average fuel consumption
Displays the average fuel consumption since the function was reset.
• The function can be reset by pressing the “DISP” switch for longer than 1 secondwhen the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining.
• This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.
■Elapsed time
Displays the elapsed time since the hybrid system was started or the function
was reset.
The function can be reset by pressing th e “DISP” switch for longer than 1 second
when the elapsed time is displayed.
■Average vehicle speed
Displays the average vehicle speed since the function was reset
The function can be reset by pushing the “DISP” switch for longer than 1 second
when the average vehicle speed is displayed.
■Setting
 P. 5 9 8
■Display off
A blank screen is displayed
■System check display
After turning the power switch to ON mode, opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■When disconnecting and reconnec ting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.

92
CT200h_OM_OM76215U_(U)2. Instrument cluster
NOTICE
■The multi-information disp
lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.

93
CT200h_OM_OM76215U_(U)2. Instrument cluster
2
Instrument cluster
Energy monitor/consumption screen
Multi-information display
“DISP” switch
Navigation system screen/Lexus Display Audio screen (if equipped)
Vehicles with a navigation system
“MENU” button
Remote Touch knob
*
Vehicles with a Lexus Display Audio system
“MENU” button
Lexus Display Audio controller (
P. 326)
*: For use of the Remote Touch, refer to “NAVIGATION SYSTEM OWNER’S
MANUAL”.
You can view the status of your hybrid system on the multi-information display
and the navigation system (if equippe d)/Lexus Display Audio system (if
equipped).
1
2
3
4
5
6
7

94
CT200h_OM_OM76215U_(U)2. Instrument cluster
Navigation system screen
Press the “MENU” button on the
Remote Touch, then select “Info” on the
“Menu” screen, and then select “Fuel
Consumption”.
If the “Trip Information” or “Past Record”
screen is displayed, select “Energy”.
Lexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, then select
“Info” on the “Menu” screen, and then
select “Fuel Consumption”.
If the “Energy Monitor” screen does not
appear, move the controller to the right
and select “Energy”.
Multi-information display
Press the “DISP” switch on the steering wheel several times to select the energy
monitor display.
Energy monitor

CT200h_OM_OM76215U_(U)
952. Instrument cluster
2
Instrument cluster

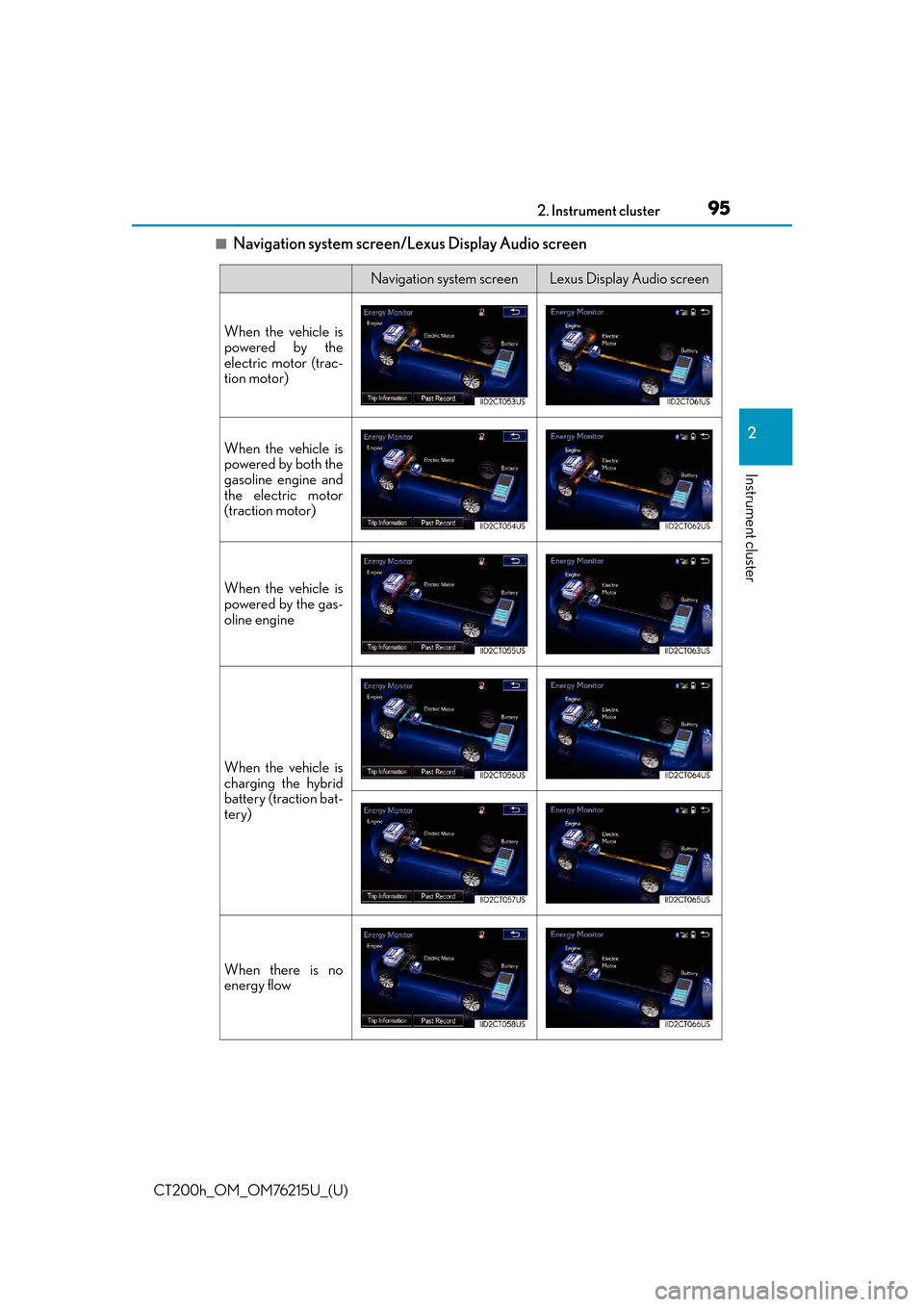

■Navigation system screen/Lexus Display Audio screen
Navigation system screenLexus Display Audio screen
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
When the vehicle is
powered by the gas-
oline engine
When the vehicle is
charging the hybrid
battery (traction bat-
tery)
When there is no
energy flow

96
CT200h_OM_OM76215U_(U)2. Instrument cluster
These images are examples only, and may vary slightly from actual conditions.
■Multi-information display screen
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Navigation system screenLexus Display Audio screen
Multi-information display
When the vehicle is powered by the elec-
tric motor (traction motor)
When the vehicle is powered by both the
gasoline engine and the electric motor
(traction motor)
When the vehicle is powered by the gaso-
line engine
When the vehicle is charging the hybrid
battery (traction battery)
When there is no energy flow
