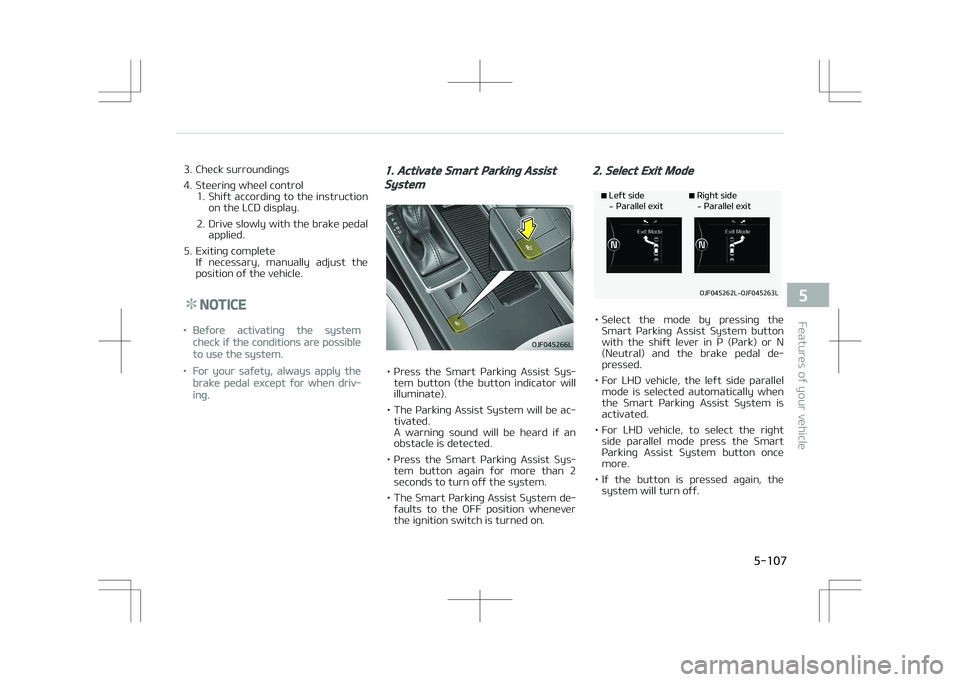

2017 KIA OPTIMA PLUG-IN HYBRID ECO mode

3. Check surroundings
4. Steering wheel control1. Shift according to the instructionon the LCD display.
2. Drive slowly with the brake pedal applied.
5. Exiting complete If necessary, manually adjust the
position of the vehicle.
NOTICE
•Before activating the system
check if the conditions are possible
to use the system.
•For your safety, always apply the
brake pedal except for when driv‐
ing.
1. Activate Smart Parking Assist
System
0+'-
• Press the Smart Parking Assist Sys‐ tem button (the button indicator will
illuminate).
• The Parking Assist System will be ac‐ tivated.
A warning sound will be heard if an
obstacle is detected.
• Press the Smart Parking Assist Sys‐ tem button again for more than 2
seconds to turn off the system.
• The Smart Parking Assist System de‐ faults to the OFF position wheneverthe ignition switch is turned on.
2. Select Exit Mode
-FGU
TJEF
1BSBMMFM
FYJU3JHIU
TJEF
1BSBMMFM
FYJU
0+'-0+'-
• Select the mode by pressing the Smart Parking Assist System button
with the shift lever in P (Park) or N (Neutral) and the brake pedal de‐
pressed.
• For LHD vehicle, the left side parallel mode is selected automatically when
the Smart Parking Assist System is
activated.
• For LHD vehicle, to select the right side parallel mode press the Smart
Parking Assist System button once
more.
• If the button is pressed again, the system will turn off.

5-107
5
Features of your vehicle

LIGHTING
Battery saver function
• The purpose of this feature is to pre‐vent the battery from being dis‐
charged. The system automatically
turns off the parking lights when the driver removes the ignition key and
opens the driver-side door.
• With this feature, the parking lights will turn off automatically if the driv‐
er parks on the side of the road at
night.
If necessary, to keep the lights on when the ignition key is removed,
perform the following: 1. Open the driver-side door.
2. Turn the parking lights OFF and ON again using the light switch on the
steering column.
CAUTION
If the driver gets out of the vehiclethrough other doors (except driver'sdoor), the battery saver functiondoes not operate. Therefore, It cau‐ses the battery to be discharged. Inthis case, make sure to turn off thelamp before getting out of the vehi‐cle.
Headlight escort function (if
equipped)
If you turn the ignition switch to the
ACC or OFF position with the headlights ON, the headlights remain on for about
5 minutes. However, if the driver's door
is opened and closed, the headlights are turned off after 15 seconds.
The headlights can be turned off by
pressing the lock button on the trans‐
mitter (or smart key) twice or turning the light switch to the OFF position.
Daytime running light (if
equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especially helpful after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when: 1. The headlight or fog lamp switch is ON.
2. The engine is OFF.
❈
Traffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direc‐ tion, this asymmetric part will daz‐
zle oncoming car driver. To prevent
dazzle, ECE regulation demand sev‐
eral technical solutions (ex. auto‐ matic change system, adhesive
sheet, down aiming). This head‐
lamps are designed to adjust in
user setting mode in cluster.
Lighting control
The light switch has a Headlight and a
Parking light position.
To operate the lights, turn the knob at the end of the control lever to one of
the following positions: 1. OFF position
2. Auto light / AFLS position
Features of your vehicle
5-114

INTERIOR LIGHT
CAUTION
Do not use the interior lights for ex‐tended periods when the engine isnot running.It may cause battery discharge.
WARNING
Do not use the interior lights whendriving in the dark. Accidents couldhappen because the view may beobscured by interior lights.
Automatic turn off function (if
equipped)
The interior lights automatically turn
off approximately 20 minutes after the ignition switch is turned off.
If your vehicle is equipped with the
theft alarm system, the interior lights
automatically turns off approximately 3 seconds after the system is armed
stage.
Map lamp
5ZQF
"
0+')-
5ZQF
#
0+'
• (2): - The map lamp and room lamp
comes on when a door is opened.
The lamps go out after approxi‐
mately 30 seconds.
- The map lamp and room lamp comes on for approximately 30
seconds when doors are unlocked
with a transmitter or smart key as
long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 mi‐
nutes if a door is opened with the
ignition switch in the ACC or
LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is
opened with the ignition switch inthe ON position.
- The map lamp and room lamp will go out immediately if the ignition
switch is changed to the ON posi‐
tion or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again
(not pressed).
Features of your vehicle
5-126

Automatic climate control system (if equipped)
5ZQF
"
5ZQF
#
System overview
1. Driver's temperature control knob
2. AUTO (automatic control) button
3. Front windshield defroster button
4. Rear window defroster button
5. Air conditioning button
6. Air intake control button
7. OFF button
8. Fan speed control button
9. Mode selection button
10. Passenger's temperature control knob
11. Dual temperature control selection button
12. Climate information screen selec‐ tion button
13. DRIVER ONLY button
14. ECON (Economy air conditioning) button

5-137
5
Features of your vehicle

(Continued)
Do not use the or positionduring cooling operation in extreme‐ly humid weather. The difference be‐tween the temperature of the out‐side air and the windshield couldcause the outer surface of the wind‐shield to fog up, causing loss of visi‐bility. In this case, set the mode se‐lection to the position and fanspeed control to the lower speed.
Defogging logic (if equipped)
To reduce the possibility of fogging up
the inside of the windshield, the air in‐ take or air conditioning are controlled
automatically according to certain con‐
ditions such as the
or position.
To cancel or return to the defogging
logic, do the following.
Automatic climate control system
1. Turn the ignition switch to the ON position.
2. Press the defrost button (
).
3. While pressing the air conditioning button (A/C), press the air intake
control button at least 5 times
within 3 seconds.
The indicator on the air intake button will blink 3 times. It indicates that the
defogging logic is canceled or returned
to the programmed status.
If the battery has been discharged or disconnected, it resets to the defog
logic status.
Auto defogging system (Only
for automatic climate control
system, if equipped)
0+'-
Auto defogging reduces the possibility
of fogging up the inside of the wind‐ shield by automatically sensing the
moisture of inside the windshield.
This indicator illuminates when the auto defogging
system senses the moistureof inside the windshield andoperates.
If more moisture is in the vehicle, high‐
er steps operate as follow.

5-147
5
Features of your vehicle

Audio system............................................................................. 6-02Antenna.................................................................................. 6-02
êteering wheel audio controls ........................................... 6-03
Aux, UêB port.........................................................................6-04
How vehicle radio works...................................................... 6-04
Audio (Without Touch êcreen)................................................ 6-07 Feature of your audio...........................................................6-07
Audio (Without Touch êcreen)............................................ 6-10
Feature of your audio...........................................................6-11
Before using the audio system.......................................... 6-12
éadio mode (Type A-1, Type A-2 with éDê)....................6-22
éadio mode (Type A-3, Type A-4)..................................... 6-23
Media mode............................................................................6-24
çhone mode .......................................................................... 6-29
Voice éecognition Mode ...................................................... 6-31
êetup mode (Type A-1, Type A-2).................................... 6-37
êetup Mode (Type A-3, Type A-4)..................................... 6-43
êetup Mode (Type A-3, Type A-4, For Colombia
Model)..................................................................................... 6-48
Audio (With Touch êcreen) (Only for hybrid vehicle)...........6-54 Feature of your audio...........................................................6-54
éadio Mode (Type B-1)........................................................ 6-66
éadio Mode (Type B-2)........................................................ 6-68
Media mode............................................................................6-69
çhone Mode........................................................................... 6-79 Bluetooth ®
Wireless Technology (Type B-1)................... 6-80
Bluetooth ®
Wireless Technology (Type B-2)................... 6-86
Bluetooth ®
Wireless Technology (Type B-2, For
Colombia model).................................................................... 6-91 Voice éecognition Mode ...................................................... 6-97
êetup Mode Type B-1........................................................ 6-104
êetup Mode Type B-2........................................................ 6-110
êetup Mode (Type B-2, For Colombia model)................ 6-115
éear View Camera ............................................................. 6-119
Declaration of Conformity..................................................... 6-121 FCC.........................................................................................6-121
CE for EU.............................................................................. 6-122
NCC for Taiwan....................................................................6-124
MOC for Israel...................................................................... 6-124
ANATEL for Brazil............................................................... 6-125
Audio system

6

Steering wheel audio controls (if
equipped)
5ZQF
"5ZQF
#
5ZQF
%5ZQF
$
5ZQF
&0+'-5ZQF
'
The steering wheel may incorporate
audio control buttons.
CAUTION
Do not operate audio remote controlbuttons simultaneously.
VOLUME (+/-) (1)
• çress the lever upward (+) to increase
the volume.
• çress the lever downward (-) to de‐ crease the volume.
SEEK/PRESET (/) (2)
The êEEK/çéEêET lever has differentfunctions based on the system mode.
For the following functions the lever
should be pressed for 0.8 seconds or more.
éADIO mode
It will function as the AUTO êEEK select
button.
CD/UêB/içod® mode
It will function as the FF/éEW button.
If the êEEK/çéEêET button is pressed
for less than 0.8 seconds, it will work as follows in each mode.
éADIO mode
It will function as the çéEêET êTATION
buttons.
CD/UêB/içod® mode
It will function as TéACK Uç/DOWN
button.
MODE () (3)
çress the button to change audio
source. FM
AM CD UêB/içod ®
AUX
MY MUêIC Bluetooth ®
Wireless Tech‐
nology audio
MUTE () (4)
• çress the button to mute the sound.
• çress the button to turn off the mi‐ crophone during a telephone call.
Detailed information for audio control
buttons are described in L

- çress the button: çreviewseach broadcast for 5 secondseach.
• CD, UêB, My Music *
mode
- çress the button: çreviews each song (file) for 10 secondseach.
- çress the button again to con‐ tinue listening to the currentsong (file).
10.
• êhortly press the button: Moves to the Display, êound, Clock, çhone, êystem setting modes.
• çress and hold the button: Move to the Time setting screen.
11.
MENU
• Displays menus for the current mode.
• içod ®
List: Move to parent cate‐
gory.
12.
FOLDER
• Mç3 CD / UêB mode: Folder êearch.
13.
TUNE knob
• éadio mode: Changes frequency by turning the knob left/right.
* if equipped •
CD, UêB, içod ®
, My Music *
mode:
êearches songs (files) by turning the knob left/right.
When the desired song is dis‐
played, press the knob to playthe song.
• Moves focus in all selection me‐ nus and selects menus.
14.FM (Type A-4)
• Changes to FM mode.
• Each time the button is pressed, the mode changed in order of FM1
FM2.
15.
AM (Type A-4)
• Changes to AM mode.
* if equipped
Before using the audio system
NOTICE
nUsing the Discs
•If the temperature inside the car is
too high, open the car windows to
ventilate before using the system.
•It is illegal to copy and use
Mç3/WMA files without permis‐
sion. Use CDs that are created only
by lawful means.
•Do not apply volatile agents, such
as benzene and thinner, normal
cleaners and magnetic sprays
made for analogue disc onto CDs.
•To prevent the disc surface from
getting damaged, hold CDs by the
edges or the center hole only.
•Clean the disc surface with a piece
of soft cloth before playback (wipe
it from the center to the outside
edge).
(Continued)
Audio system
6-12
