2017 KIA OPTIMA PLUG-IN HYBRID ECO mode

11.List
Moves to the list screen.
Turn the
TUNE knob left/right to
search for files. Once the desired
file is displayed, press the
knob
to select and play.
With the My Music mode
çlaying/çausing My Music Files
While playing, press the [II] button to
pause and press [
] button to play.
If there are no files saved within My
Music, the [My Music] button will be disabled.
Changing Files
çress the SEEK
TRACK button to move to the
previous or next file.
çressing the
SEEK
TRACK button after the file
has been playing for 2 seconds will
start the current file from the begin‐
ning.
çressing the
SEEK
TRACK button before the
file has been playing for 1 second will
start the previous file. • Type B-1
• Type B-2
êelecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press the
TUNE knob to start playing.
From the List screen, it is possible to
delete files you previously saved into My Music.
List Menu
1. Moves to the previous screen.
2. êelects all files.
3. Deselects all selected files.
4. Deletes selected files.
After selecting the files you want to
delete, press the [Delete] button to de‐
lete the selected files.
If there is memory available, up to 6,000 files can be saved. Identical files
cannot be copied more than 1,000
times.
To check memory information, go to [êETUç]
[êystem] [Memory Infor‐
mation]
éewinding/Fast-forwarding Files
While playing, press and hold the SEEK
TRACK
button to rewind or fast-forward the
current file.
êcan (With éDê)
çress and hold the button to play
the file 10 seconds of each file.
çress and hold the
button again
to turn off.
êcan (Without éDê)
çress the SCAN button to play the first
10 seconds of each file.
çress the
SCAN button again to turn
off.
Audio system
6-78

- When pressed in the phonescreen, displays call history
screen
- When pressed in the dial screen, makes a call
- When pressed in the incoming call screen, answers the call
- When pressed during call wait‐ ing, switches to waiting call (Call
Waiting)
When pressed and held - When pressed in the Bluetooth ®
Wireless Technology Handsfree
wait mode, redials the last call
- When pressed during a Blue‐ tooth ®
Wireless Technology
Handsfree call, switches call backto mobile phone (çrivate)
- When pressed while calling on the mobile phone, switches call back
to Bluetooth ®
Wireless Technolo‐
gy Handsfree (Operates only
when Bluetooth ®
Wireless Tech‐
nology Handsfree is connected)
5. Ends phone call
6. (if equipped) When pressed shortly- êtarts voice recognition - When selecting during a voice
prompt, stops the prompt and
converts to voice commandwaiting state
When pressed and held - Ends voice recognition
Bluetooth® Wireless Technology
(Type B-1)
When No Devices have been Paired
1. çress the /PHONE button or
the button on the steering
wheel controls. The following
screen is displayed.
2. çress the [OK] button to enter the çair çhone screen.
• Device: Name of device as shownwhen searching from your Blue‐ tooth ®
Wireless Technology de‐
vice
• çasskey: çasskey used to pair the device
3. From your Bluetooth ®
Wireless
Technology device (i.e. Mobile
çhone), search and select your car
audio system.
Audio system
6-80

Voice Recognition Mode (if
equipped)
Using Voice Recognition
êtarting Voice éecognition
êhortly press the
button on the
steering wheel controls. êay a com‐
mand.
If voice recognition is in [Normal Mode], then the system will say L

❈May differ depending on the selec‐
ted audio.

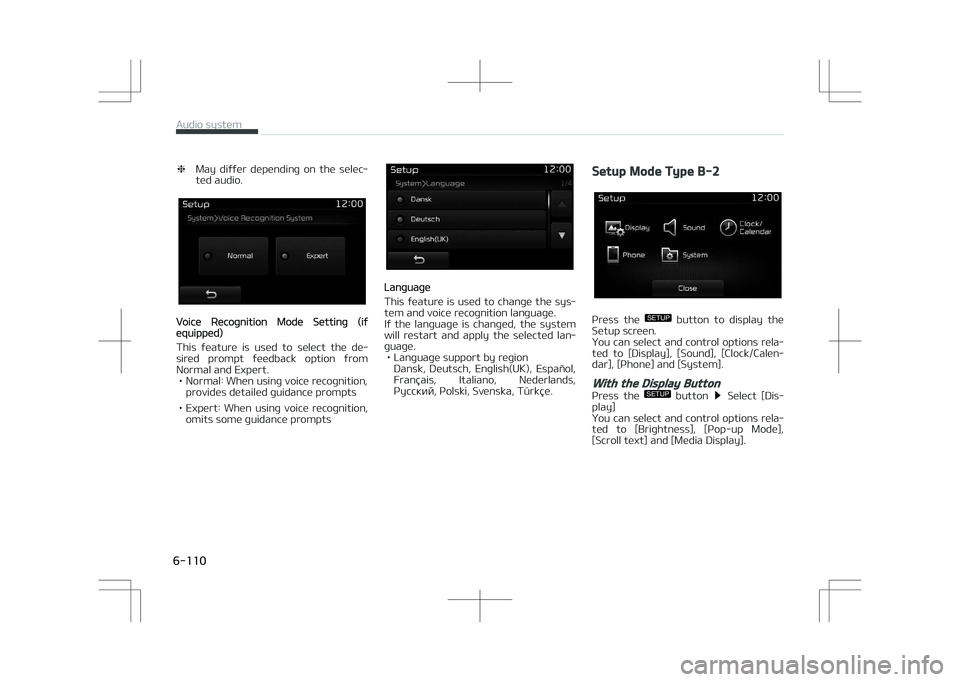

Voice éecognition Mode êetting (ifequipped)
This feature is used to select the de‐ sired prompt feedback option from
Normal and Expert. • Normal: When using voice recognition, provides detailed guidance prompts
• Expert: When using voice recognition, omits some guidance prompts
Language
This feature is used to change the sys‐
tem and voice recognition language.
If the language is changed, the system will restart and apply the selected lan‐
guage. • Language support by region Dansk, Deutsch, English(UK), Español,
FranG1ais, Italiano, Nederlands,
çyccĸI

Before driving............................................................................ 7-04Before entering vehicle........................................................ 7-04
Necessary inspections..........................................................7-04
Before starting...................................................................... 7-04
Engine start/stop button......................................................... 7-06 Illuminated engine start/stop button................................ 7-06
Engine start/stop button position..................................... 7-06
Starting the hybrid system................................................. 7-08
Automatic transaxle................................................................. 7-11 Automatic transaxle operation...........................................7-11
Good driving practices.......................................................... 7-15
Brake system.............................................................................7-17 Power brakes ........................................................................ 7-17
Foot parking brake................................................................ 7-18
Electronic parking brake (EPB) .......................................... 7-19
AUTO HOLD ........................................................................... 7-24
Warning messages................................................................7-26
Anti-lock brake system (ABS).............................................7-28
Electronic stability control (ESC) ....................................... 7-30
Vehicle stability management (VSM) ............................... 7-33
Hill-start assist control (HAC) ............................................ 7-34
Emergency Stop Signal (ESS) ............................................. 7-35
Good braking practices.........................................................7-35
Autonomous emergency braking (AEB) ............................... 7-37 System setting and activation............................................7-37
AEB warning message and system control......................7-39
Brake operation..................................................................... 7-40
Sensor to detect the distance from the vehicle
in front (front radar)............................................................ 7-41
System malfunction............................................................. 7-42 Limitation of the system..................................................... 7-43
Recognizing pedestrians...................................................... 7-45
Cruise control system ............................................................. 7-47 Cruise control switch............................................................ 7-48
To set cruise control speed................................................. 7-48
To increase cruise control set speed................................. 7-49
To decrease the cruising speed.......................................... 7-50
To temporarily accelerate with the cruise control on.... 7-50
To cancel cruise control........................................................7-50
To resume cruising speed at more than approxi‐
mately 30 km/h..................................................................... 7-51
To turn cruise control off.................................................... 7-51
Speed Limit Control System ................................................... 7-52 To set speed limit.................................................................. 7-52
To turn off the speed limit control.................................... 7-53
Speed Limit Information Function (SLIF) ............................. 7-55 SLIF activation/deactivation................................................ 7-55
Operation................................................................................ 7-56
Display.....................................................................................7-56
Driver's attention.................................................................. 7-58
Advanced Smart Cruise Control system .............................. 7-59 Speed setting......................................................................... 7-60
Vehicle to vehicle distance setting..................................... 7-64
To adjust the sensitivity of advanced smart
cruise control......................................................................... 7-69
To convert to cruise control mode..................................... 7-69
Limitations of the system................................................... 7-70
Drive mode integrated control system ................................ 7-75 Hybrid vehicle.........................................................................7-75
Drive mode integrated control system ................................ 7-77
Driving your vehicle

7

NOTICE
•Do not wait for the engine to
warm up while the vehicle remains
stationary.
Start driving at moderate engine
speeds. (Steep accelerating and
decelerating should be avoided.)
•Always start the vehicle with your
foot on the brake pedal. Do not
depress the accelerator while
starting the vehicle. Do not race
the engine while warming it up.
•If ambient temperature is low, the
"" indicator may remain illumi‐
nated longer than the normal
amount of time.
NOTICE
To prevent damage to the vehicle:
(Continued)
(Continued)
•If the "" indicator turns off
while you are in motion, do not at‐
tempt to move the shift lever to
the P (Park) position.
If traffic and road conditions per‐
mit, you may put the shift lever in
the N (Neutral) position while the
vehicle is still moving and press
the Engine Start/Stop button in an
attempt to restart the hybrid sys‐
tem.
•Do not push or tow your vehicle to
start the hybrid system.
NOTICE
•If the battery is weak or the smart
key does not work correctly, you
can start the hybrid system by
pressing the engine start/stop
button with the smart key.
The side with the lock button
should be contacted directly.
When you press the engine start/
stop button directly with the
smart key, the smart key should
contact the button at a right an‐
gle.
•When the stop lamp fuse is blown,
you cannot start the hybrid sys‐
tem normally.
Replace the fuse with a new one.
If it is not possible, you can start
the hybrid system by pressing the
engine start/stop button for 10
seconds while it is in the ACC posi‐
tion. The engine can start without
depressing the brake pedal. But
for your safety always depress
the brake pedal before starting
the engine.

7-09
7
Driving your vehicle

Also, the EPB is applied automatically if
the Auto Hold button is on when the engine is turned off.
NOTICE
On a steep incline or when pulling a
trailer if the vehicle does not stand
still, do as follows:
1.Apply the EPB.
2.Pull up the EPB switch for more
than 3 seconds.
CAUTION
Do not operate the parking brakewhile the vehicle is moving except inan emergency situation. It coulddamage the vehicle system and en‐danger driving safety.
Releasing the parking brake
0+'
To release the EPB (Electronic ParkingBrake), press the EPB switch in the fol‐lowing condition:
• Have the engine start/stop button in the ON position.
• Depress the brake pedal.
Make sure the brake warning light goes
off.
To release EPB (Electronic ParkingBrake) automatically:
• Shift lever in P (Park) With the engine running depress thebrake pedal and shift out of P (Park)
to R (Reverse) or D (Drive).
• Shift lever in N (Neutral) With the engine running depress the
brake pedal and shift out of N (Neu‐
tral) to R (Reverse) or D (Drive). 1. Start the engine.
2. Fasten the driver's seat belt.
3. Close the driver's door, engine hood and trunk.
4. Depress the accelerator pedal while the shift lever is in R (Rear),
D (Drive) or manual mode.
Make sure the brake warning light goes
off.
NOTICE
•For your safety, you can engage
the EPB even though the engine
stop/start button is in the OFF po‐
sition, but you cannot release it.
(Continued)
Driving your vehicle
7-20

Advanced smart cruise control will
be temporarily canceled when:
0+'-
Cancelled manually
The advanced smart cruise control is
temporarily canceled when the brake pedal is depressed or the CANCEL but‐
ton is pressed. The speed and vehicle to
vehicle distance indicator on the cluster is disappeared and the CRUISE indicator
is illuminated continuously.
Cancelled automatically
• The driver's door is opened.
• The shift lever is shifted to N (Neu‐ tral), R (Reverse) or P (Parking). • The EPB (electronic parking brake) is
applied.
• The vehicle speed is over 190 km/h (120 mph).
• The ESC, ABS or TCS is operating.
• The ESC is turned off.
• The sensor or the cover is dirty or blocked with foreign matter.
• When the vehicle is stopped for over 5 minutes.
• The driver starts driving by pushing the lever up (RES +) or down (SET -)
or depressing the accelerator pedal approximately 3 seconds after the
vehicle is stopped by the advanced
smart cruise control system with no
other vehicle ahead or a vehicle stop‐
ped far away in front.
• The accelerator pedal is continuously depressed for a long time.
• The engine RPM is in dangerous range.
• The SCC system has malfunctioned.
Each of these actions will cancel the
advanced smart cruise control opera‐
tion. (the set speed and vehicle to vehi‐
cle distance on the LCD display will go
off.) In a condition the advanced smart
cruise control is cancelled automatical‐
ly, the advanced smart cruise control
will not resume even though the RES+ or SET- lever is moved. Also, the EPB
(electronic parking brake) will be ap‐
plied when the vehicle is stopped. • When activating the ISG mode.
• When activating the AEB (Autono‐ mous Emergency Braking).
CAUTION
If the advanced smart cruise controlis cancelled by other than the rea‐sons mentioned, we recommendhave the system checked by an au‐thorized Kia dealer.
Driving your vehicle
7-62
