•If there are occupants in the rearseats, be careful while adjustingthe front seat position.
•Use extreme caution when pickingsmall objects trapped under theseats or between the seat and thecenter console. Your hands mightbe cut or injured by the sharpedges of the seat mechanism.
Front seat adjustment - manual
Forward and backward
OJF035003R
To move the seat forward or backward:1. Pull the seat slide adjustment lever
up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make sure the seat is locked securely
by trying to move forward and back‐
ward without using the lever. If the seat moves, it is not locked properly.
Seatback angle
To recline the seatback: 1. Lean forward slightly and lift up the seatback recline lever. 2. Carefully lean back on the seat and
adjust the seatback of the seat to
the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The
lever MUST return to its original
position for the seatback to lock.)
Seat height
To change the height of the seat, push
the lever upwards or downwards. • To lower the seat cushion, push the lever down several times.
• To raise the seat cushion, pull the lev‐ er up several times.

4-05
4
Safety features of your vehicle

LCD display ................................................................................ 5-56LCD modes..............................................................................5-56
Service mode......................................................................... 5-57
User settings mode.............................................................. 5-58
Trip modes (Trip computer)................................................ 5-63
Turn by turn mode ...............................................................5-71
LDWS/LKAS ........................................................................... 5-71
A/V mode ...............................................................................5-71
Warning messages ...............................................................5-71
Warning and indicator lights................................................... 5-79 Warning lights........................................................................ 5-79
Indicator lights....................................................................... 5-84
Parking assist system ............................................................. 5-89 Operation of the parking assist system........................... 5-89
Non-operational conditions of parking assist system.... 5-92
Self-diagnosis........................................................................ 5-93
Smart Parking Assist System (SPAS) ................................... 5-95 Operating condition.............................................................. 5-96
Non-operating condition......................................................5-96
How the system works (Parking Mode)......................... 5-100
Additional instructions (messages) ................................ 5-105
System malfunction........................................................... 5-106
How the system works (Exit mode)................................ 5-106
Additional instructions (messages)................................. 5-110
System malfunction........................................................... 5-111
Rearview camera ................................................................... 5-112
Surround view monitoring system ..................................... 5-113
Lighting..................................................................................... 5-114 Battery saver function...................................................... 5-114
Headlight escort function ................................................. 5-114 Daytime running light ....................................................... 5-114
Lighting control................................................................... 5-114
High beam operation.......................................................... 5-116
High Beam Assist ............................................................... 5-117
Turn signals and lane change signals.............................. 5-119
Rear fog light ......................................................................5-119
Headlight leveling device .................................................. 5-120
AFLS (Adaptive Front Lighting System) ........................ 5-121
Wipers and washers............................................................... 5-122 Windshield wipers............................................................... 5-122
Windshield washers............................................................ 5-124
Interior light............................................................................. 5-126 Automatic turn off function ............................................ 5-126
Map lamp.............................................................................. 5-126
Room lamp........................................................................... 5-127
Trunk room lamp ............................................................... 5-127
Glove box lamp ................................................................... 5-128
Vanity mirror lamp ............................................................ 5-128
Door courtesy lamp ........................................................... 5-129
Welcome system ................................................................... 5-130 Welcome light ..................................................................... 5-130
Escort welcome ..................................................................5-130
Interior light......................................................................... 5-130
Defroster.................................................................................. 5-131 Rear window defroster......................................................5-131
Climate control system..........................................................5-132 System operation............................................................... 5-132
Air conditioning................................................................... 5-132
Climate control air filter.................................................... 5-134
Air conditioning refrigerant label..................................... 5-135


5

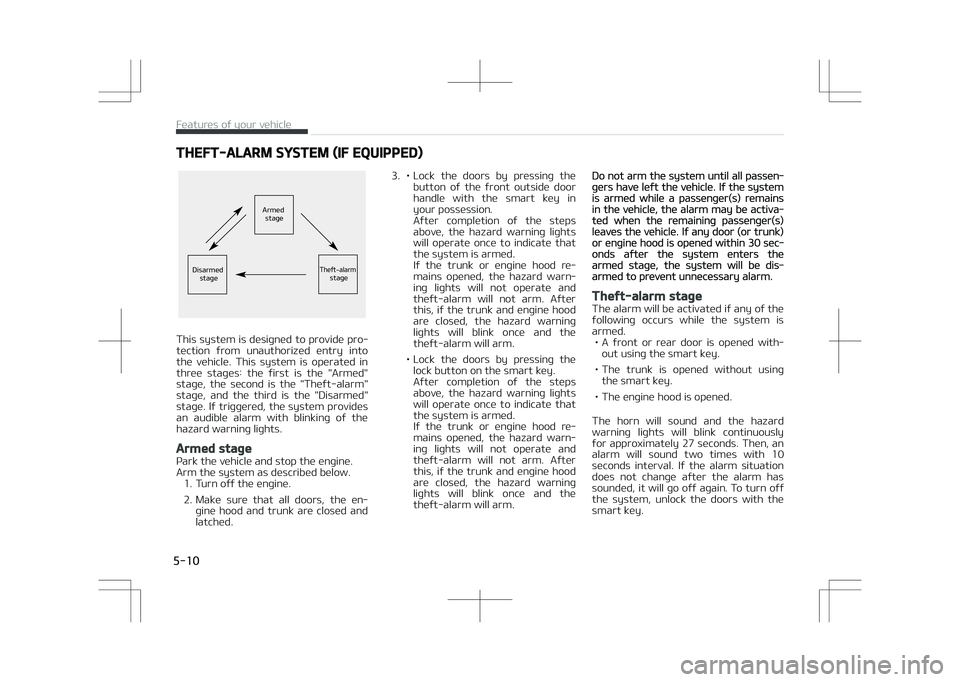

THEFT-ALARM SYSTEM (IF EQUIPPED)
"SNFE
TUBHF
%JTBSNFE

TUBHF5IFGUBMBSN

TUBHF
This system is designed to provide pro‐
tection from unauthorized entry into the vehicle. This system is operated in
three stages: the first is the "Armed"
stage, the second is the "Theft-alarm" stage, and the third is the "Disarmed"
stage. If triggered, the system provides
an audible alarm with blinking of the hazard warning lights.
Armed stage
Park the vehicle and stop the engine. Arm the system as described below. 1. Turn off the engine.
2. Make sure that all doors, the en‐ gine hood and trunk are closed and
latched. 3. • Lock the doors by pressing the
button of the front outside door
handle with the smart key in
your possession.
After completion of the steps
above, the hazard warning lights
will operate once to indicate thatthe system is armed.
If the trunk or engine hood re‐
mains opened, the hazard warn‐
ing lights will not operate and
theft-alarm will not arm. After
this, if the trunk and engine hood
are closed, the hazard warning
lights will blink once and thetheft-alarm will arm.
• Lock the doors by pressing the lock button on the smart key.
After completion of the steps
above, the hazard warning lights
will operate once to indicate thatthe system is armed.
If the trunk or engine hood re‐
mains opened, the hazard warn‐
ing lights will not operate and
theft-alarm will not arm. After
this, if the trunk and engine hood
are closed, the hazard warning
lights will blink once and thetheft-alarm will arm.
Do not arm the system until all passen‐gers have left the vehicle. If the systemis armed while a passenger(s) remainsin the vehicle, the alarm may be activa‐ted when the remaining passenger(s)leaves the vehicle. If any door (or trunk)or engine hood is opened within 30 sec‐onds after the system enters thearmed stage, the system will be dis‐armed to prevent unnecessary alarm.
Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is armed. • A front or rear door is opened with‐
out using the smart key.
• The trunk is opened without using the smart key.
• The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously for approximately 27 seconds. Then, an
alarm will sound two times with 10
seconds interval. If the alarm situation does not change after the alarm has
sounded, it will go off again. To turn off
the system, unlock the doors with the smart key.
Features of your vehicle
5-10

(Continued)
•When you operate the steering
wheel in a low temperature, ab‐
normal noise could occur. If the
temperature rises, the noise will
disappear. This is a normal condi‐
tion.
Tilt & telescopic steering
A tilt and telescopic steering wheel al‐
lows you to adjust the steering wheel before you drive. You can also raise it
to give your legs more room when you
exit and enter the vehicle.
The steering wheel should be posi‐ tioned so that it is comfortable for you
to drive, while permitting you to see
the instrument panel warning lights and gauges.
WARNING
•Never adjust the angle of thesteering wheel while driving. Youmay lose steering control andcause severe personal injury,death or accidents.
(Continued)
(Continued)
•After adjusting, push the steeringwheel both up and down to be cer‐tain it is locked in position.
0+'
To change the steering wheel angle,
pull down the lock release lever (1), ad‐ just the steering wheel to the desired
angle (2) and height (3), then pull up
the lock-release lever (4) to lock the steering wheel in place. Be sure to ad‐
just the steering wheel to the desired
position before driving.
NOTICE
After adjustment, sometimes the
lock-release lever may not lock the
steering wheel.
It is not a malfunction. This occurs
when two gears engage. In this case,
adjust the steering wheel again and
then lock the steering wheel.

5-41
5
Features of your vehicle

Service in OFF
0+'-
If the service interval is not set, "Serv‐
ice in OFF" message is displayed on the LCD display.
NOTICE
If any of the following conditions oc‐
curs, the mileage and days may be
incorrect.
(Continued)
(Continued)
-The battery cable is disconnected.
-The fuse switch is turned off.
-The battery is discharged.
Master warning mode (if
equipped)
• This warning light informs the driver of the followingsituations: - Blind Spot Detection (BSD) mal‐ function (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction (if equipped)
- High Beam Assist (HBA) malfunc‐ tion (if equipped)
- Lamp malfunction
- Service reminder and so on.
The Master Warning Light illuminates if one or more of the above warning sit‐
uations occur. At this time, the LCD
Modes Icon will change from (
) to
().
If the warning situation is solved, the
master warning light will be turned off and the LCD Modes Icon will be changed
back to its previous icon (
).
User settings mode
Description
0+'-
On this mode, you can change setting
of the doors, lamps, and so on.
Features of your vehicle
5-58

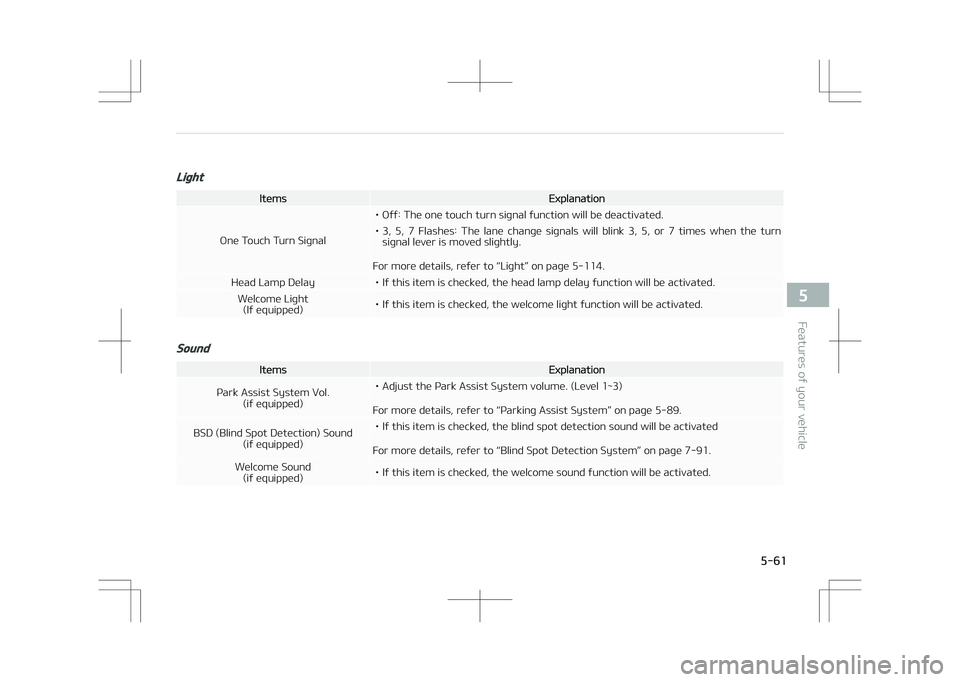

Light
ItemsExplanation
One Touch Turn Signal • Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes: The lane change signals will blink 3, 5, or 7 times when the turn
signal lever is moved slightly.
For more details, refer to L

• At this time, the Engine Start/StopButton turns to the ACC position (If
you press the Engine Start/Stop But‐ ton once more, it will turn to the ON
position).
Low key battery (for smart key
system)
• This warning message illuminates if the battery of the smart key is dis‐
charged when the Engine Start/Stop Button changes to the OFF position.
Press START button while turning
wheel (for smart key system)
• This warning message illuminates if the steering wheel does not unlock
normally when the Engine Start/Stop Button is pressed.
• It means that you should press the Engine Start/Stop Button while turn‐
ing the steering wheel right and left.
Steering wheel unlocked (for smart
key system)
• This warning message illuminates if the steering wheel does not lock
when the Engine Start/Stop Button changes to the OFF position.
Check steering wheel lock system
(for smart key system)
• This warning message illuminates if the steering wheel does not lock nor‐
mally when the Engine Start/Stop
Button changes to the OFF position.
Press brake pedal to start engine
(for smart key system)
• This warning message illuminates if the Engine Start/Stop Button
changes to the ACC position twice by pressing the button repeatedly with‐
out depressing the brake pedal.
• It means that you should depress the brake pedal to start the engine.
Key not in vehicle (for smart key
system)
• This warning message illuminates if the smart key is not in the vehicle
when you press the Engine Start/ Stop Button.
• It means that you should always have the smart key with you.
Key not detected (for smart key
system)
• This warning message illuminates if the smart key is not detected when
you press the Engine Start/Stop But‐
ton.
Press start button again (for smart
key system)
• This warning message illuminates if you cannot operate the Engine Start/
Stop Button when there is a problem with the Engine Start/Stop Button
system.
• It means that you could start the en‐ gine by pressing the Engine Start/
Stop Button once more.
• If the warning illuminates each time you press the Engine Start/Stop But‐ton, we recommend that you have
the vehicle inspected by an author‐
ized Kia dealer.
Press start button with key (for
smart key system)
• This warning message illuminates if you press the Engine Start/Stop But‐
ton while the warning message L
