2017 JEEP COMPASS Owners Manual

MULTIMEDIA
CONTENTS
RADIO 130 ............................345
▫ Operating Instructions — Radio Mode ........352
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ........................347
▫ Notes On Playing MP3 Files ...............349
▫ Operation Instructions — Auxiliary Mode .....351
 RADIO 130 WITH SATELLITE RADIO ........351
▫ Operating Instructions — Radio Mode ........352
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ........................356
▫ Notes On Playing MP3 Files ...............357
▫ LIST Button — CD Mode For MP3 Play .......359
▫ INFO Button — CD Mode For MP3 Play ......360
▫ Uconnect (Satellite Radio) — If Equipped .....360▫
Operating Instructions — Uconnect (Satellite)
Mode ...............................362
▫ Operating Instructions (Uconnect Phone) — If
Equipped ............................363
 RADIO 430/430N CD/DVD/HDD/NAV — IF
EQUIPPED ............................363
▫ Operating Instructions (Voice Command System) —
If Equipped .......................... .363
▫ Operating Instructions (Uconnect Phone) — If
Equipped ............................364
 CYBERSECURITY ........................364
 STEERING WHEEL AUDIO CONTROLS .......365
▫ Radio Operation ........................366
▫ CD Player ............................366
10

AUX/USB/MP3 CONTROL — IF EQUIPPED . . .366
▫ Connecting The iPod Or External USB Device . . .367
▫ Using This Feature ..................... .367
▫ Controlling The iPod Or External USB Device
Using Radio Buttons .....................368
▫ Play Mode ............................368
▫ List Or Browse Mode ....................369
▫ Bluetooth Streaming Audio (BTSA) ..........370
 UCONNECT PHONE — IF EQUIPPED ........371
▫ Operation ............................373
▫ Help Command ........................374
▫ Cancel Command .......................374
▫ Pair (Link) Uconnect Phone To A Mobile Phone .374
▫ Dial By Saying A Number .................375
▫ Call by Saying a Name ...................375
▫ Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone ...............376
▫ Add Names to Your Uconnect Phonebook .....376▫
Edit Uconnect Phonebook Entries ...........377
▫ Delete Uconnect Phonebook Entry ...........377
▫ List All Names In The Uconnect Phonebook . . . .378
▫ Phone Call Features .....................378
▫ Uconnect Phone Features .................381
▫ Advanced Phone Connectivity .............385
▫ Things You Should Know About Your Uconnect
Phone ...............................386
▫ General Information ....................396
 VOICE COMMAND — IF EQUIPPED .........396
▫ Voice Command System Operation ..........396
▫ Commands .......................... .397
▫ Voice T

raining ........................ .401
 RADIO OPERATION AND MOBILE PHONES . . .401
▫ Regulatory And Safety Information ..........401
 CD/DVD DISC MAINTENANCE ............402
344 MULTIMEDIA

RADIO 130
Operating Instructions — Radio Mode
NOTE:The ignition switch must be in the ON/RUN or
ACC position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOLUME control knob to turn on the radio.
Push the ON/VOLUME control knob a second time to turn
off the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume, and to the left decreases it.
When the audio system is turned on, the sound will be set
at the same volume level as last played.
SEEK Buttons
Push and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Push the right switch
to seek up and the left switch to seek down. The radio will
remain tuned to the new station until you make another
selection. Holding either button will bypass stations with-
out stopping, until you release it.
Clock Setting Procedure
1. Push and hold the TIME button until the hours blink.
2. Adjust the hours by turning the right side TUNE/ SCROLL control knob.
3. After adjusting the hours, push the right side TUNE/ SCROLL control knob to set the minutes. The minutes
will begin to blink.
Radio 130
10
MULTIMEDIA 345

4. Adjust the minutes using the right side TUNE/SCROLLcontrol knob. Push the TUNE/SCROLL control knob to
save time change.
5. To exit, push any button/knob, or wait five seconds.
RW/FF
Pushing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either AM
or FM frequencies.
TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise to
increase or counterclockwise to decrease the frequency.
Setting The Tone, Balance And Fade
Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to the
right or left to increase or decrease the bass tones.
Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones. Push the rotary TUNE/SCROLL control knob a third time
and TREBLE will display. Turn the TUNE/SCROLL control
knob to the right or left to increase or decrease the treble
tones.
Push the rotary TUNE/SCROLL control knob a fourth time
and BALANCE will display. Turn the TUNE/SCROLL
control knob to the right or left to adjust the sound level
from the right or left side speakers.
Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.
Push the rotary TUNE/SCROLL control knob again to exit
setting tone, balance, and fade.AM/FM Button
Push the buttons to select either AM or FM mode.
SET/RND Button — To Set The Pushbutton Memory
When you are receiving a station that you wish to commit
to pushbutton memory, push the SET/RND button. The
symbol SET 1 will now show in the display window. Select
the button (1 to 6) you wish to lock onto this station and
push and release that button. If a button is not selected
346 MULTIMEDIA

within five seconds after pushing the SET/RND button,
the station will continue to play but will not be stored into
pushbutton memory.
You may add a second station to each pushbutton by
repeating the above procedure with this exception: Push
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and SET
2 in both AM and FM. This allows a total of 12 AM and 12
FM stations to be stored into pushbutton memory. The
stations stored in SET 2 memory can be selected by
pushing the pushbutton twice.
Every time a preset button is used, a corresponding button
number will display.
Buttons1-6
These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM sta-
tions).
Operation Instructions — CD MODE For CD And
MP3 Audio Play
NOTE:
•The ignition switch must be in the ON/RUN or ACC
position to operate the radio.
• This radio is capable of playing compact discs (CD),
recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.
Inserting Compact Disc(s)
Gently insert one CD into the CD player with the CD label
facing up. The CD will automatically be pulled into the CD
player and the CD icon will illuminate on the radio display.
If a CD does not go into the slot more than 1.0 inch (2.5 cm),
a disc may already be loaded and must be ejected before a
new disc can be loaded.
If you insert a disc with the ignition ON/RUN and the
radio ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.
10
MULTIMEDIA 347

CAUTION!
•This CD player will accept 4–3/4 inch (12 cm) discs
only. The use of other sized discs may damage the
CD player mechanism.
• Do not use adhesive labels. These labels can peel
away and jam the player mechanism.
• The Radio 130 is a single CD player. Do not attempt
to insert a second CD if one is already loaded.
• Dual-media disc types (one side is a DVD, the other
side is a CD) should not be used, and they can cause
damage to the player.
EJECT Button — Ejecting A CD
Push the EJECT button to eject the CD.
If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.
A disc can be ejected with the radio and ignition OFF.
NOTE: Ejecting with the ignition OFF is not allowed on
convertible or soft-top models (if equipped.)
SEEK Button
Push the right SEEK button for the next selection on the
CD. Push the left SEEK button to return to the beginning of
the current selection, or return to the beginning of the
previous selection if the CD is within the first second of the
current selection. Pushing and holding the SEEK button
will allow faster scrolling through the tracks in CD and
MP3 modes.
TIME Button
Push this button to change the display from a large CD
playing time display to a small CD playing time display.
RW/FF
Push and hold the FF (Fast Forward) button and the CD
player will begin to fast forward until FF is released, or RW
or another CD button is pushed. The RW (Reverse) button
operates in a similar manner.
AM/FM Button
Push the button to select either AM or FM mode.
348 MULTIMEDIA

SET/RND Button (Random Play Button)
Push this button while the CD is playing to activate
Random Play. This feature plays the selections on the
compact disc in random order to provide an interesting
change of pace.
Push the right SEEK button to move to the next randomly
selected track.
Push the RND button a second time to stop Random Play.

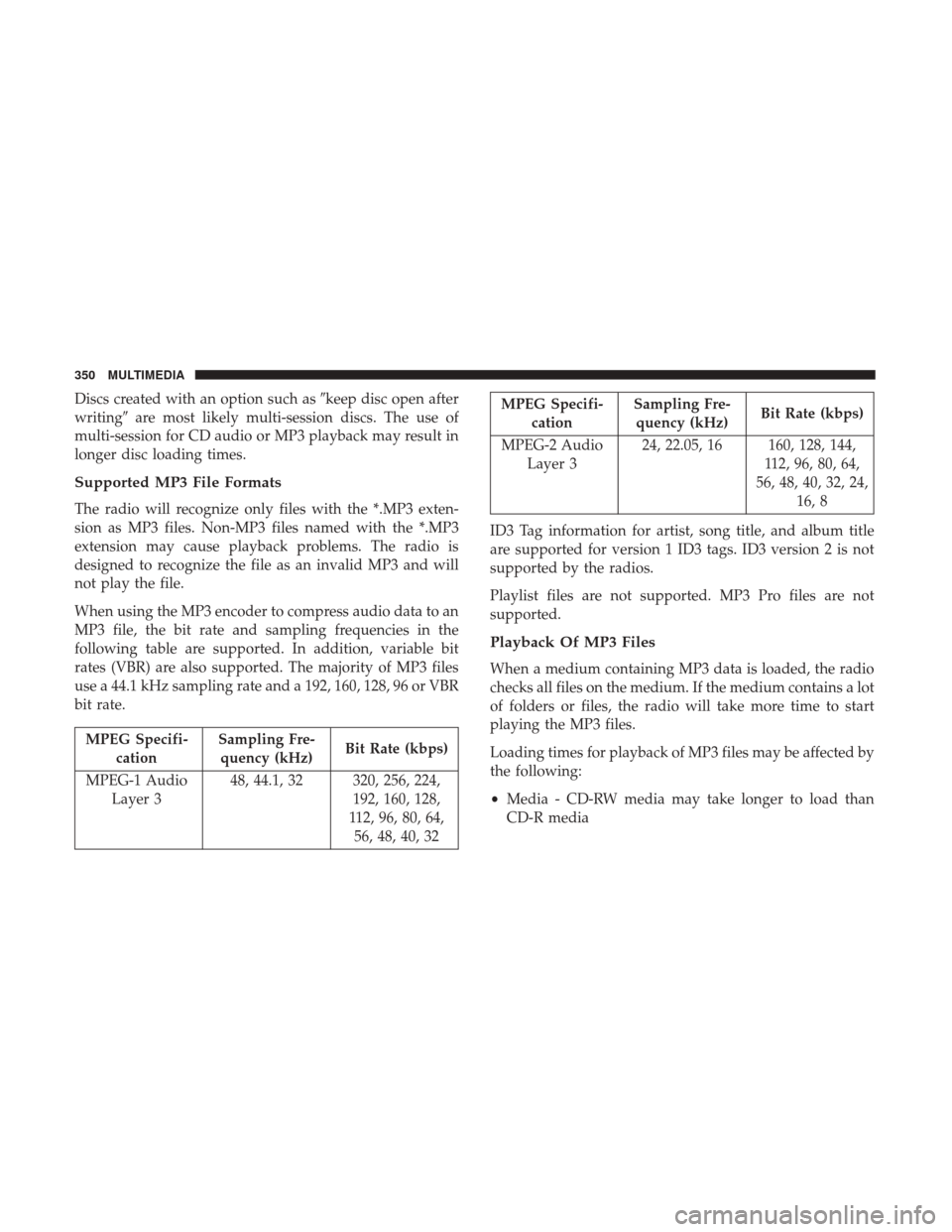

Notes On Playing MP3 Files
The radio can play MP3 files; however, acceptable MP3 file
recording media and formats are limited. When writing
MP3 files, pay attention to the following restrictions.
Supported Media (Disc Types)
The MP3 file recording media supported by the radio are
CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
Supported Medium Formats (File Systems)
The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension. When
reading discs recorded using formats other than ISO 9660Level 1 and Level 2, the radio may fail to read files properly
and may be unable to play the file normally. UDF and
Apple HFS formats are not supported.
The radio uses the following limits for file systems:
•
Maximum number of folder levels: 8
• Maximum number of files: 255
• Maximum number of folders. (The radio display of file
names and folder names is limited. For large numbers of
files and/or folders, the radio may be unable to display
the file name and folder name, and will assign a number
instead. With a maximum number of files, exceeding 20
folders will result in this display. With 200 files, exceed-
ing 50 folders will result in this display.)
Maximum number of characters in file/folder names:
• Level 1: 12 (including a separator .and a three-
character extension)
• Level 2: 31 (including a separator .and a three-
character extension)
Multi-session disc formats are supported by the radio.
Multi-session discs may contain combinations of normal
CD audio tracks and computer files (including MP3 files).
10
MULTIMEDIA 349

Discs created with an option such askeep disc open after
writing are most likely multi-session discs. The use of
multi-session for CD audio or MP3 playback may result in
longer disc loading times.
Supported MP3 File Formats
The radio will recognize only files with the *.MP3 exten-
sion as MP3 files. Non-MP3 files named with the *.MP3
extension may cause playback problems. The radio is
designed to recognize the file as an invalid MP3 and will
not play the file.
When using the MP3 encoder to compress audio data to an
MP3 file, the bit rate and sampling frequencies in the
following table are supported. In addition, variable bit
rates (VBR) are also supported. The majority of MP3 files
use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or VBR
bit rate.
MPEG Specifi- cation Sampling Fre-
quency (kHz) Bit Rate (kbps)
MPEG-1 Audio Layer 3 48, 44.1, 32 320, 256, 224,
192, 160, 128,
112, 96, 80, 64, 56, 48, 40, 32
MPEG Specifi- cation Sampling Fre-
quency (kHz) Bit Rate (kbps)
MPEG-2 Audio Layer 3 24, 22.05, 16 160, 128, 144,
112, 96, 80, 64,
56, 48, 40, 32, 24, 16, 8
ID3 Tag information for artist, song title, and album title
are supported for version 1 ID3 tags. ID3 version 2 is not
supported by the radios.
Playlist files are not supported. MP3 Pro files are not
supported.
Playback Of MP3 Files
When a medium containing MP3 data is loaded, the radio
checks all files on the medium. If the medium contains a lot
of folders or files, the radio will take more time to start
playing the MP3 files.
Loading times for playback of MP3 files may be affected by
the following:
• Media - CD-RW media may take longer to load than
CD-R media
350 MULTIMEDIA
