2017 FIAT PANDA Owners Manual

1.3 16V Multijet1.3 16V Multijet Cross
/ 4x4Prescribed fuels and original
lubricants
Fuel tank (litres): 37 35
Diesel for motor vehicles (EN590
Specification)
including a reserve of (litres): 5 - 7 5 - 7
Engine cooling system (litres): 6.3 6.3Mixture of distilled water and
PARAFLU
UPliquid at 50%(**)
Engine sump (litres): 3.7 3.7
SELENIA WR FORWARD
Engine sump and filter (litres): 3.9 3.9
Gearbox casing/front differential (kg): 1.8 1.70TUTELA TRANSMISSION
GEARFORCE
Drive transmission idler unit (PTU) (kg): - 0.39 TUTELA TRANSMISSION MULTIAXLE
Rear differential (kg): - 0.62 TUTELA TRANSMISSION CROSS
Hydraulic brake circuit (litres): 0.55 0.55 TUTELA TOP 4 or TUTELA TOP 4/S
Windscreen and rear window washer fluid
reservoir (litres):2.7 2.7Mixture of water and PETRONAS
DURANCE SC35
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40% demineralised water.
167

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
72)
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricants for petrol
engines and 1.2 8V
69HPSAE 5W-40 ACEA C3 /
API SN.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to Scheduled
Service Plan
Lubricants for petrol
engines 0.9 TwinAir
and 0.9 TwinAir
TurboSAE 0W-30 ACEA C2 /
API SN.9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference No. F020.B12According to Scheduled
Service Plan
Lubricant for petrol/
methane enginesSAE 0W-30 ACEA C2 /
API SN.9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference No. F020.B12According to Scheduled
Service Plan
If lubricants conforming to the required specifications are not available, products that meet the indicated specifications can be
used to top up; in this case optimal performance of the engine is not guaranteed.
168
TECHNICAL DATA

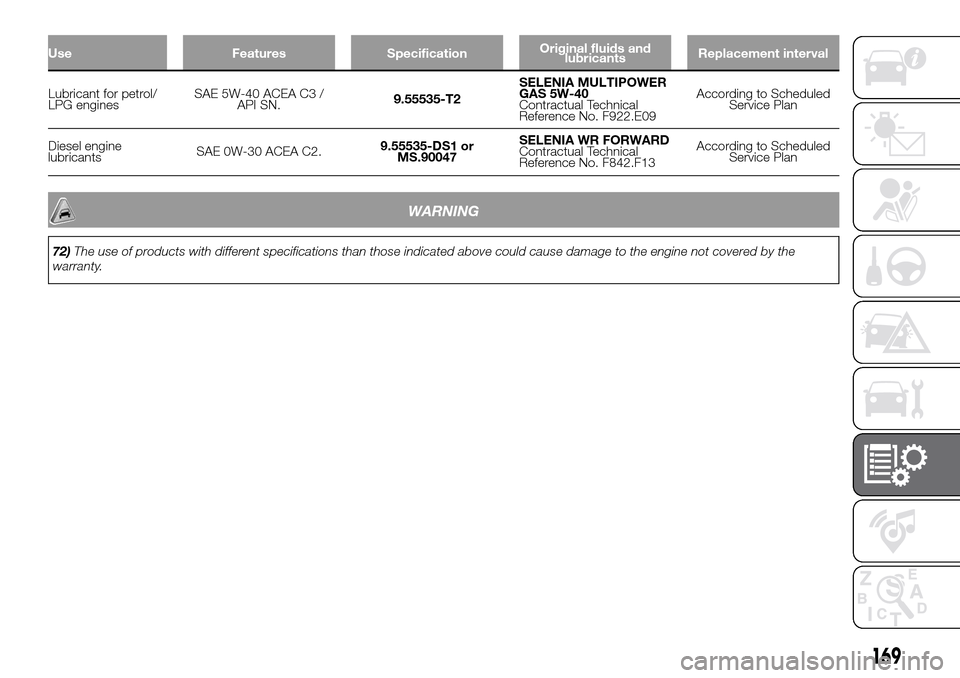

Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol/
LPG enginesSAE 5W-40 ACEA C3 /
API SN.9.55535-T2SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09According to Scheduled
Service Plan
Diesel engine
lubricantsSAE 0W-30 ACEA C2.9.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Service Plan
WARNING
72)The use of products with different specifications than those indicated above could cause damage to the engine not covered by the
warranty.
169

Use Features SpecificationOriginal fluids and
lubricantsApps
Lubricants and
greases for drive
transmissionSAE 75W- 85 grade
synthetic lubricant.
9.55550-MX39.55550-MX3TUTELA TRANSMISSION
TECHNYX
Contractual Technical
Reference No. F010.B05Manual gearbox and
differential (0.9 TwinAir and
0.9 TwinAir Turbo versions)
SAE 75W grade synthetic
lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Manual gearbox and
differential (1.3 16V Multijet,
LPG, and 1.2 8V 69HP and
Natural Power versions)
Fully synthetic oil with
dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98Dualogic gearbox hydraulic
activation system
SAE 75W-85 grade
synthetic lubricant.9.55550 - DA4TUTELA TRANSMISSION
CROSS
Contractual Technical
Reference No. F001.D12Rear differential(°)
SAE 75W-85 grade
synthetic lubricant, which
exceeds API GL5
specifications.9.55550 - DA3TUTELA TRANSMISSION
MULTIAXLE
Contractual Technical
Reference No. F426.E06Drive transmission idler unit
(PTU)
(°)
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580 - GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Low friction coefficient
grease for constant
velocity joints. N.L.G.I.
consistency 0-1.9.55580 - GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
(°) Panda Cross and Panda 4x4 versions.
170
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsApps
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference No. F001.A93
orTUTELA TOP 4/S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
antifreeze action with
organic formulation. CUNA
NC 956-16, ASTM D 3306
Specifications.9.55523 or MS.90032PARAFLU
UP(*)Contractual Technical
Reference No. F101.M01Cooling circuits proportions
of use: 50% water 50%
PARAFLUUP(**)
Diesel fuel additiveAdditive for Diesel with
antifreeze and protective
action for Diesel engines-TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel (25
cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043PETRONAS DURANCE
SC35
Contractual Technical
Reference No. F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
171

PERFORMANCE
Top speeds after the initial period of usage of the vehicle.
Versionskm/h
0.9 TwinAir 60 HP(*)158 in 4th gear
0.9 TwinAir 65 HP160
0.9 TwinAir Turbo 80 HP
(*)175
0.9 TwinAir Turbo 80 HP Dualogic
(*)175
0.9 TwinAir Turbo 85 HP177
0.9 TwinAir Turbo 85 HP Dualogic
(*)177
0.9 TwinAir Turbo 85 HP 4x4166
0.9 TwinAir Turbo 90 HP Cross167
0.9 TwinAir Turbo Natural Power
170
(°)/ 168(°°)
1.2 8V 69 HP164
1.2 8V 69 HP LPG164
1.3 16V MultiJet 80 HP170
1.3 16V Multijet 80 HP 4x4160
1.3 16V Multijet 95 HP182
1.3 16V Multijet 95 HP 4x4167
1.3 16V Multijet 95 HP Cross168
(*) For versions/markets, where provided
(°) Running on petrol
(°°) Running on methane
172
TECHNICAL DATA

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/
equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
NOTE Consumption of methane-fuelled Natural Power versions is intended in m
3/100 km.
Versions Urban Extra-urban Combined
0.9 TwinAir 60 HP(*)4.5 3.4 3.8
0.9 TwinAir 65 HP
5.0 / 4.8
(*)3.8 / 3.7(*)4.2 / 4.1(*)
0.9 TwinAir Turbo 80 HP(*)4.4 3.4 3.8
0.9 TwinAir Turbo 80 HP Dualogic
(*)4.4 3.4 3.8
0.9 TwinAir Turbo 85 HP
5.0 / 4.9
(*)3.8 4.2
0.9 TwinAir Turbo 85 HP Dualogic4.8 3.7 4.1
0.9 TwinAir Turbo 85 HP 4x45.9 4.3 4.9
0.9 TwinAir Turbo 90 HP5.9 4.3 4.9
0.9 TwinAir Turbo Natural Power
5.8
(°) / 6.0 (°°)3.8(°) / 4.0 (°°)4.5(°) / 4.7 (°°)
1.2 8V 69 HP
6.7 / 6.5(*) / 5.9 (*)4.3 / 4.2(*) / 4.0 (*)5.2 / 5.0(*) /4.7 (*)
1.2 8V 69 HP S&S5.9 4.0 4.7
(*) For versions/markets, where provided.
(°) Running on petrol
(°°) Running on methane
173

Versions Urban Extra-urban Combined
1.2 8V 69 HP LPG
6.6(°) / 6.9 (°°°)4.3(°) / 6.3 (°°°)5.1(°) / 6.5 (°°°)
1.3 16V MultiJet 80 HP4.3 3.2 3.6
1.3 16V Multijet 80HP 4x44.7 4.3 4.4
1.3 16V MultiJet 95 HP4.3 3.2 3.6
1.3 16V MultiJet 95 HP 4x44.7 4.3 4.4
1.3 16V MultiJet 95 HP Cross4.8 4.4 4.8
(°) Running on petrol
(°°°) Running on LPG
174
