2017 FIAT PANDA Owners Manual

WHEELS
172) 173) 174)Alloy or pressed steel rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Registration Document.
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
RIMS AND TYRES PROVIDED
Panda versions
Versions Wheels Tyres provided Snow tyresSpace saver spare
wheel(*)
0.9 TwinAir 60 HP(*)5,5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 82Q (M+S) 135/80 R14 84M
0.9 TwinAir 65 HP5,5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
5,5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with size 9 mm snow chains.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.
151

Versions Wheels Tyres provided Snow tyresSpace saver spare
wheel(*)
0.9 TwinAir 80 HP(*)5,5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 82Q (M+S) 135/80 R14 84M
0.9 TwinAir Turbo 85
HP5,5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
5,5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
0.9 TwinAir Turbo
Natural Power6Jx15H2-ET35
(****)175/65 R15 84T(°°°)175/65 R15 84Q (M+S) -
1.2 8V 69 HP5,5J x 14H2 - ET35
165/65 R14 79T
(*)175/65 R14 79Q (M+S) 135/80 R14 84M
5,5J x 14H2 - ET35
165/70 R14 81T
(*)175/65 R14 81Q (M+S) 135/80 R14 84M
5,5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
1.2 8V 69 HP S&S5,5J x 14H2 - ET35 175/65 R14 82T 175/65 R14 84Q (M+S)
135/80 R14 84P
135/80 R14 80P
reinforced
135/80 R14 84M 6J x 15H2 - ET35 185/55 R15 82T 185/55 R15 82Q (M+S)
6,5J x 16H2 - ET35 195/45 R16 84T 195/45 R16 84Q (M+S)
1.3 16V Multijet5,5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35 185/55 R15 82H 185/55 R15 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with size 9 mm snow chains.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.
(°°°) Tyre to which chains can be fitted, with reduced size chains: 7 mm.
152
TECHNICAL DATA

Panda 4x4 versions
Versions Wheels Tyres provided Snow tyresSpace saver spare
wheel(*)
0.9 TwinAir Turbo 85
HP5,5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5,5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
175/65 R15 84T (M+S)
(°)175/65 R15 84T (M+S) 125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(°) (°°)175/65 R15 84Q (M+S) 125/80 R15 95M
1.3 16V Multijet6J x 15H2 - ET35
175/65 R15 84T (M+S)
(°)175/65 R15 84T (M+S) 125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(°)175/65 R15 84Q (M+S) 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with size 9 mm snow chains.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(°) Tyres to which reduced size snow chains can be fitted: 7 mm.
(°°) Tyres available on request.
153

Panda Cross versions
Versions Wheels Tyres provided Snow tyresSpace saver spare
wheel(*)
0.9 TwinAir Turbo 90
HP6 J x 15H2 ET35175/65 R15 84T (M+S)
(**)175/65 R15 84T (M+S) 125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)175/65 R15 84Q (M+S) 125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H (M+S)
(***)185/65 R15 88Q (M+S) 125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)185/65 R15 88Q (M+S) 125/80 R15 95M
1.3 16V Multijet6 J x 15H2 ET35175/65 R15 84T (M+S)
(**)175/65 R15 84T (M+S) 125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)175/65 R15 84Q (M+S) 125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H (M+S)
(***)185/65 R15 88H (M+S) 125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)185/65 R15 88Q (M+S) 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with chains.
(***) Tyre not suitable for fitting snow chains.
NoteFor Panda Cross and Panda 4x4 versions if the space-saver wheel is used, the control unit for 4x4 drive detects its
presence (via the wheel speed signals) and reduces the intervention of the four-wheel drive to a minimum, while guaranteeing
the agility of the vehicle. No fault/alarm signal is displayed on the instrument panel or on the display.
COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
154
TECHNICAL DATA

Panda versions
TyresUnladen/medium load Full load
Space saver spare
wheel(*)Front Rear Front Rear
165/65 R14 79T 2.5 2.2 2.7 2.4 2.8
165/70 R14 81T
(*)2.3 2.0 2.5 2.2 2.8
175/65 R14 82T
2.2 / 2.5
(**)2.0 / 2.5(**)/ 2.1(***)2.5 2.5 2.8
185/55 R15 82T 2.2 2.0 2.5 2.5 2.8
185/55 R15 82H 2.2 2.0 2.5 2.5 2.8
(*) For versions/markets, where provided
(**) 0.9 TwinAir 60 HP/80 HP engines
(***)Natural Power versions
155

Panda Cross / Panda 4x4 versions
TyresUnladen/medium load Full load
Space saver spare
wheel(°)Front Rear Front Rear
175/65 R14 82T M+S(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(*)2.2 2.1 2.5 2.5 4.2
175/65 R15 84T
(**)2.4 2.2 2.7 2.7 4.2
185/65 R15 88H
(**)2.4 2.2 2.7 2.7 4.2
(°) For versions/markets, where provided.
(*) For Panda 4x4 versions
(**) For Panda Cross versions
NoteFor Cross and 4x4 versions, do not drive deliberately for long distances with the tyres flat (not at the prescribed pressure)
and/or with greatly varying pressures between front axle and rear axle, in order to avoid any malfunction of the 4x4 drive.
SNOW CHAINS
175) 176) 177)71)
Important notes
The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with
code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.
The snow chains may be applied only to the front wheel tyres.
Check the tension of the snow chains after the first few metres have been driven.
Using snow chains with tyres with non-original dimensions may damage the vehicle.
Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle driveability, with the
risk of losing control of the vehicle and resulting accidents.
Snow chains cannot be fitted to the space-saver wheel (for versions/markets, where provided). If a front tyre is punctured,
replace a rear wheel with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive
wheels at the front, snow chains can be fitted.
156
TECHNICAL DATA

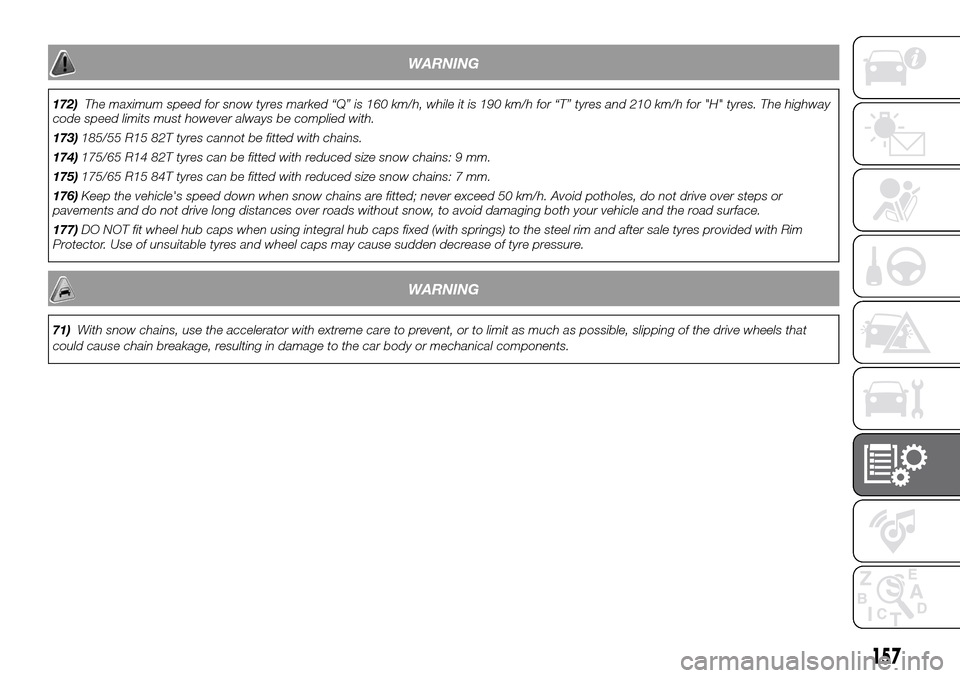

WARNING
172)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
173)185/55 R15 82T tyres cannot be fitted with chains.
174)175/65 R14 82T tyres can be fitted with reduced size snow chains: 9 mm.
175)175/65 R15 84T tyres can be fitted with reduced size snow chains: 7 mm.
176)Keep the vehicle's speed down when snow chains are fitted; never exceed 50 km/h. Avoid potholes, do not drive over steps or
pavements and do not drive long distances over roads without snow, to avoid damaging both your vehicle and the road surface.
177)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
WARNING
71)With snow chains, use the accelerator with extreme care to prevent, or to limit as much as possible, slipping of the drive wheels that
could cause chain breakage, resulting in damage to the car body or mechanical components.
157

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
LUGGAGE COMPARTMENT CAPACITYCapacity (VDA standards) =225 litres
Panda versions
ABCDE FGH I
3653 747 2300 606
1551/1605(*)1407/1408(*)1643
1409/1414(*)1882
(*) Natural Power versions.
131F1D0103
