2017 Citroen C5 Owner's Manual

87
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Boot fittings (Tourer)
1. Hook
F or shopping bags.
2.
T

o r c h
T

o recharge, return it to its housing.
3.
Sto

rage net 1. Lu
ggage
cover (
see details on following page)
2.
Lu

ggage securing rings
U

se the 4 securing rings provided on the
boot floor to secure your loads. 1. B
oot lamp
2. 1 2 V accessor y socket (100 W maximum)
C

igarette lighter type 12 volt socket. It is
located on the rear right-hand trim.
3.
L

oading height control
Y

ou can change the height of the vehicle to
make loading or unloading the boot easier.
4.
Hoo

k
F

or shopping bags.
5.
Sto

rage net or Closed storage well
F

or vehicles so equipped, this is the
location for the Hi-Fi amplifier.
As a safety measure in the event of
sharp braking, you are advised to
place heavy objects as far for wards as
possible.
3.
Hoo

ks
T

hese allow a high load net to be fitted
(see details on following page).
3
Ease of use and comfort

88
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Luggage cover (Tourer)
To reel in
F Press the handle (PRESS) gently. The luggage cover reels in automatically.
The moving part A
can be folded along the rear
bench seat backrest.
To remove
F Compress the control 1 and lift the luggage cover on the right then on the left to
remove it.
To install
F Position the left-hand end of the luggage cover roller in its location B behind the rear
bench seat.
F

C
ompress the roller control 1 and put the
roller in place in its location C on the right.
F

R
elease the control to secure the luggage
c ove r.
F

U
nreel it to its fastening on the rear pillar.
Ease of use and comfort

89
C5_en_Chap03_ergonomie-et-confort_ed01-2016

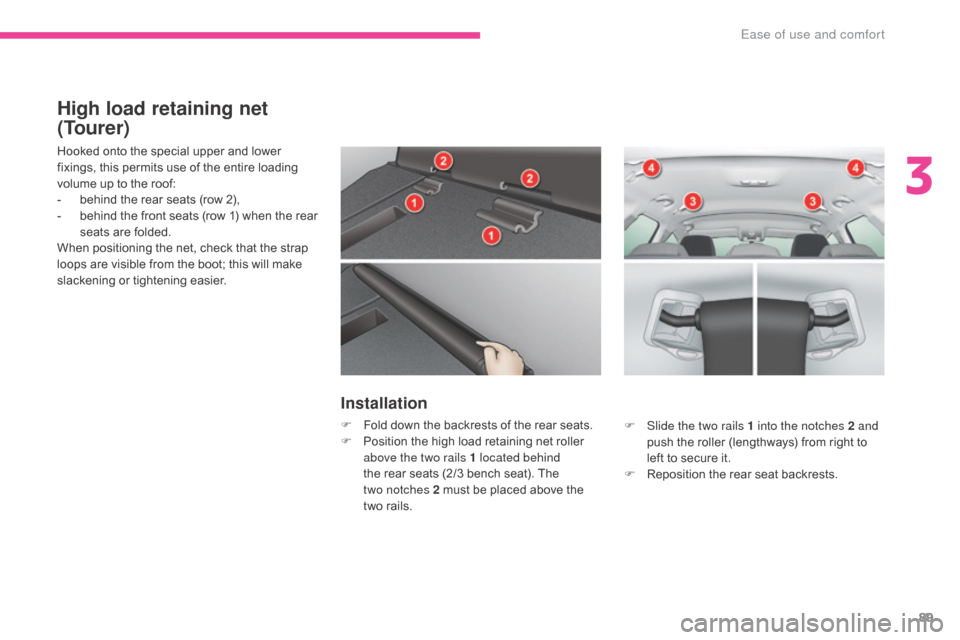

High load retaining net
(Tourer)
Hooked onto the special upper and lower
fixings, this permits use of the entire loading
volume up to the roof:
-
b
ehind the rear seats (row 2),
-

b
ehind the front seats (row 1) when the rear
seats are folded.
When positioning the net, check that the strap
loops are visible from the boot; this will make
slackening or tightening easier.
Installation
F Fold down the backrests of the rear seats.
F P osition the high load retaining net roller
above the two rails 1 located behind
the rear seats (2/3 bench seat). The
two
notches 2 must be placed above the
two
rails. F
S lide the two rails 1 into the notches 2 and
push the roller (lengthways) from right to
left to secure it.
F

R
eposition the rear seat backrests.
3
Ease of use and comfort

90
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Row 1
To use it in row 1:
F f old down the backrests of the rear seats,
F

o
pen the covers 3 of the corresponding
upper fixings,
F

u
nroll the high load retaining net and
position one of the ends of the net's metal
bar in the corresponding fixing cover.
Check that the hook is secured in the rail
located inside the cover 3 ,
F

p
ull the high load retaining net's metal bar
to position the other hook in the second
fixing cover.
Row 2
To use it in row 2:
F o pen the covers 4 of the corresponding
upper fixings,
F

f
rom the rear bench seat, unroll the high
load retaining net, pushing it to detach it
from the retaining hooks,
F

p
osition one of the ends of the net's metal
bar in the corresponding fixing cover.
Check that the hook is secured in the rail,
located inside the cover 4 ,
F

p
osition the other hook in the second fixing
cover and pull the metal bar towards you.
Ease of use and comfort

91
C5_en_Chap04_conduite_ed01-2016
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Driving on flooded
roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Driving recommendations
Important!
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Risk of fire!
As the exhaust system of your vehicle
is very hot, even several minutes after
switching off the engine, do not park
or run the engine over areas where
inflammable substances and materials
are present: grass, leaves, etc.
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position

N or P, depending on the type
of gearbox.
If you are obliged to drive through water:
-

c

heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d

eactivate the Stop & Start system,
-

d

rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10

km/h),
-

d

o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
4
Driving

92
C5_en_Chap04_conduite_ed01-2016
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Starting-switching off the engine
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
Ignition switch
It has 3 positions:
- position 1 (Stop): insert and removing the
key, steering column locked,
-
position 2 (Ignition on) : steering column
unlocked, ignition on, Diesel preheating,
engine running,
-
position 3 (Starting) .
Ignition on position
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Do not attach heavy objects to the key
or remote control: by weighing down on
the key when in the ignition switch, this
could cause a fault.
In addition, a heavy or sharp object
could inter fere with the deployment of
the knee airbag or be thrown about and
cause serious injuries in the event of
deployment of the knee airbag.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Driving

93
C5_en_Chap04_conduite_ed01-2016
Starting the engine
Wait until this warning lamp goes off in the
instrument panel then operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key.
With the parking brake applied and the gearbox
in neutral or position N or P:
F

d
epress the clutch pedal fully (manual
gearbox),


or
F

p
ress the brake pedal firmly (automatic
gearbox),
F

i
nsert the key into the ignition switch; the
system recognises the code,
F

u
nlock the steering column by simultaneously
turning the steering and the key.
F

W
ith a petrol engine, operate the starter
motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key. Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death!
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off.
In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on.
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example). F
W ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine pre-heating system.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a CITROËN dealer or a qualified
workshop. In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
4
Driving

94
C5_en_Chap04_conduite_ed01-2016
Do not flick the accelerator at the
moment of switching off the ignition.
This could cause serious damage to the
turbocharger(s).
Vehicles equipped with a
turbocharger
Never stop the engine without having allowed it
to run for a few seconds at idle, this being the
time required for the turbocharger to return to a
normal speed.Energy economy mode
After switching off the engine (position 1- Stop),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
Switching off the engine
F Stop the vehicle.
F W ith the engine running at idle, turn the key
to position 1 .
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering until it locks.
When you leave the vehicle, keep the
key with you and lock the vehicle. To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle. For more information on Energy
economy mode
, refer to the
corresponding section.
F

C
heck that the parking brake is correctly
applied, particularly on sloping ground.
Key left in the "Ignition on"
position
If the key has been left in the ignition switch
at position 2 (Ignition on) , the ignition will be
switched off automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
Driving
