2017 Citroen C5 Owner's Manual

79
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Panoramic sunroof (Tourer)
This comprises a tinted glass panoramic
area 1 to improve brightness and vision in the
passenger compartment.
It is fitted with an electric blind 2 to help
maintain a comfortable temperature and
reduce noise.Opening
F Press control A.
Pressing to the 1st notch allows you to open
the blind step by step.
Pressing to the 2nd notch allows you to fully
open the blind.
The blind stops in the closest pre-defined
position (11 positions) as soon as you release
the control.
Closing
F Press control B .
Press to the first notch to close the blind step
by step.
Press to the second notch to close the blind
completely.
The blind stops at the nearest pre-set position
(11 positions) as soon as you release the
control.
Sequential electric blind
3
Ease of use and comfort

80
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Anti-pinch
If the blind meets an obstacle whilst closing, it
stops and opens partially again.
You must re-initialise the anti-pinch function
within 5 seconds of the blind stopping:
F
p
ress control B until the blind is fully closed
(closing in steps of a few centimetres).
After a battery disconnection, or if there has
been a malfunction, you have to re-initialise the
anti-pinch function:
F

p
ress control B to the 2nd notch (fully
closed),
F

w
ait until the blind is fully closed,
F

p
ress control B for at least 3 seconds.
If the blind opens randomly during a closing
operation, and straight after the blind stops:
F

P
ress control B until the blind closes fully.
During these operations, the anti-pinch
function does not operate. In the event of anything being caught
when the blind is moving, you must
reverse the movement of the blind.
To do so, reverse the position of the
control.
When the driver is operating the blind,
he or she must always make sure that
the passengers are not preventing it
from closing properly.
The driver must ensure that passengers
use the blind correctly.
Pay particular attention to children
when operating the blind.
Ease of use and comfort

81
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Sun visor
F With the ignition on, lift the flap; the mirror is illuminated automatically.
To prevent dazzle from ahead, fold the visor
downwards.
It can be disengaged from its central fixing and
pivoted over to the side windows if required.
Cooled glove box
F To open the glove box, pull the handle and lower the lid.
It has automatic illumination.
The glove box has an air vent A that can be
closed manually.
It provides access to the passenger's front
airbag deactivation switch B .
The glove box should be kept closed
when driving.
Front fittings
F Pull the grip towards you to open it.
Driver's storage compartment
3
Ease of use and comfort

82
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Mats
Removing
F Slide the front seat back as far as possible.
F U nclip the fixings.
F

R
emove the fixings, then the mat.
Refitting
F Position the mat correctly.
F C lip the fixings.
F

C
heck that the mat is held is place
c o r r e c t l y.
F

R
eturn the front seat to its original position.
Mats are provided for the driver and front
passenger.
To avoid any inter ference with the
pedals:
-
o
nly use mats which are suitable
for the fixings already present in the
vehicle; the use of these fixings is
essential,
-
n
ever fit more than 1 mat.
The use of a mat not approved by
CITROËN may obstruct access to the
pedals and hinder the cruise control/
speed limiter function.
Floor mats approved by CITROËN
are fitted with a third fixing located
in the pedal area to avoid any risk of
interference with the pedals .
Ease of use and comfort

83
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Front armrest
Comfort and storage system for the driver and front passenger.
Adjustment
To optimise your driving position:
F l ift the control A ,
F

p
ush the armrest for wards.
The armrest returns to its initial position when
you push it rear wards.
USB port
The USB port allows the connection of a
portable device, such as a digital player of the
iPod
® type or a USB memory stick.
The USB player reads your audio files, which
are sent to the audio system so that they can
be heard via the vehicle's speakers.
Compartment
The front armrest includes a cup holder and a
USB port and/or auxiliary JACK socket*.
F

L
ift the armrest for access to the cup
holder, USB port and/or auxiliary JACK
socket.
* Depending on equipment. When connected to the USB port,
the portable device is recharged
automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the rating of
the vehicle's port.
Auxiliary Jack socket
The auxiliary Jack socket allows the connection
of a portable device, such as a digital player,
so that your audio files can be heard via the
vehicle's speakers.
The management of these files is from your
portable device.
For more information on " Audio and
telematics ", refer to the corresponding
section.
The USB also allows a telephone to be
connected by a MirrorLink™ connection, so
that use can be made in the touch screen tablet
of certain applications on the telephone. The management of these files is with the
steering mounted controls or from the audio
system.
3
Ease of use and comfort

84
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Rear armrest
Comfort and storage system for the rear passengers.
Cup-holder
The rear cup-holder A is located in the rear
central armrest.
F
L
ower the rear armrest.
F

P
ull for wards to extract the cup-holder.
Storage
F Lift up the upper part of the rear central armrest to access storage space B .
12 V accessory socket
This is located in the rear ashtray.
Max power: 100 W.
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Rear fittings
Ease of use and comfort

85
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Side blinds
F Pull the tab A to unreel the blind.
F P osition the blind on the hook B .
Rear blind (Saloon)
F Pull the tab C to unreel the blind.
F
P osition the blind on the hooks D .
Ski flap
A flap in the backrest, located to the rear of the
armrest, facilitates the carrying of long objects.
To o p e n
F Lower the rear armrest.
F
P ull the flap handle down.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
Ensure that the objects are well secured
and that they do not impede the
operation of the gear lever.
3
Ease of use and comfort

86
C5_en_Chap03_ergonomie-et-confort_ed01-2016

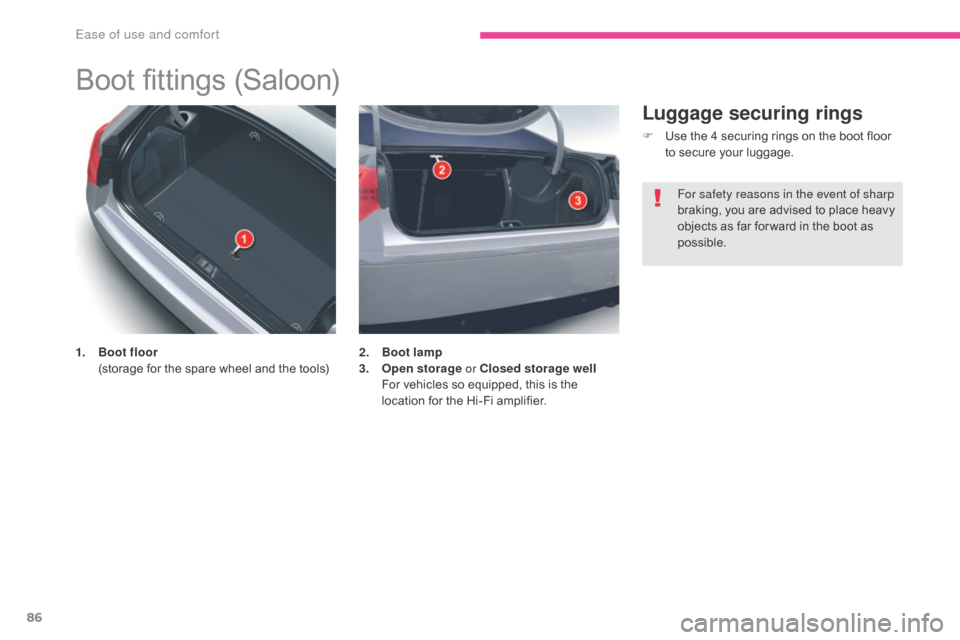

Boot fittings (Saloon)
1. Boot floor (
storage for the spare wheel and the tools) 2. B
oot lamp
3. O pen storage or Closed storage well
F

or vehicles so equipped, this is the
location for the Hi-Fi amplifier.
Luggage securing rings
F Use the 4 securing rings on the boot floor to secure your luggage.
For safety reasons in the event of sharp
braking, you are advised to place heavy
objects as far for ward in the boot as
possible.
Ease of use and comfort
