2017 CHEVROLET COLORADO Owners Manual

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
40 Keys, Doors, and Windows
1. When the approaching vehicleis a long distance away, theimage in the main mirror issmall and near the inboardedge of the mirror.
2. As the vehicle gets closer, theimage in the main mirror getslarger and moves outboard.
3. As the vehicle enters the blindzone, the image transitionsfrom the main mirror to theblind spot mirror.
4. When the vehicle is in the blindzone, the image only appearsin the blind spot mirror.
Using the Outside Mirror with
the Blind Spot Mirror
1. Set the main mirror so that theside of the vehicle can just beseen and the blind spot mirrorhas an unobstructed view.
2. When checking for traffic orbefore changing a lane, look atthe main driver/passenger sidemirror to observe traffic in theadjacent lane, behind yourvehicle. Check the blind spotmirror for a vehicle in the blindzone. Then, glance over yourshoulder to double checkbefore moving slowly into theadjacent lane.
Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clearview of the area behind yourvehicle.
If equipped with OnStar, the vehiclemay have three control buttons atthe bottom of the mirror. See yourdealer for more information aboutOnStar and how to subscribe to it.SeeOnStar Overview0397.
Do not spray glass cleaner directlyon the mirror. Use a soft toweldampened with water.
Manual Rearview Mirror
If equipped, push the tab forward fordaytime use and pull it rearward fornighttime use to avoid glare fromthe headlamps from behind.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Keys, Doors, and Windows 41
Automatic Dimming
Rearview Mirror
If equipped, the mirror willautomatically reduce the glare of theheadlamps from behind. Thedimming feature comes on eachtime the vehicle is started.
Windows
{Warning
Never leave a child, a helpless
adult, or a pet alone in a vehicle,
especially with the windows
closed in warm or hot weather.
They can be overcome by the
extreme heat and suffer
permanent injuries or even death
from heat stroke.
The vehicle aerodynamics aredesigned to improve fuel economyperformance. This may result in a
pulsing sound when either rearwindow is down and the frontwindows are up. To reduce thesound, open either a front windowor the sunroof, if equipped.
Power Windows
{Warning
Children could be seriously
injured or killed if caught in the
path of a closing window. Never
leave keys in a vehicle with
children. When there are children
in the rear seat, use the window
lockout button to prevent
operation of the windows. See
Keys027.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16

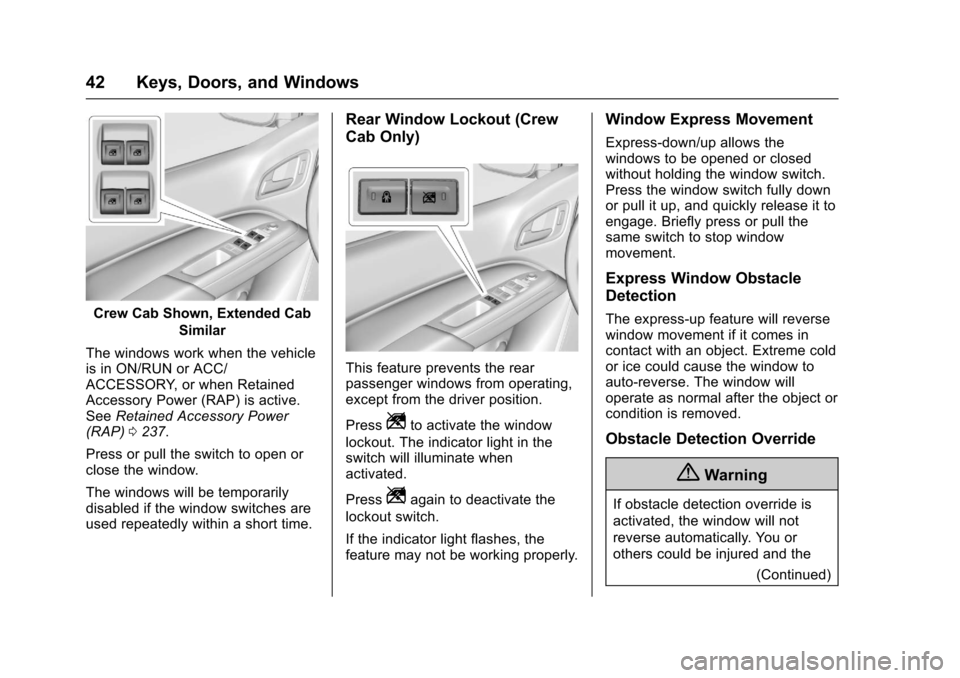

42 Keys, Doors, and Windows
Crew Cab Shown, Extended Cab
Similar
The windows work when the vehicleis in ON/RUN or ACC/ACCESSORY, or when RetainedAccessory Power (RAP) is active.SeeRetained Accessory Power(RAP)0237.
Press or pull the switch to open orclose the window.
The windows will be temporarilydisabled if the window switches areused repeatedly within a short time.
Rear Window Lockout (Crew
Cab Only)
This feature prevents the rearpassenger windows from operating,except from the driver position.
PressZto activate the window
lockout. The indicator light in theswitch will illuminate whenactivated.
PressZagain to deactivate the
lockout switch.
If the indicator light flashes, thefeature may not be working properly.
Window Express Movement
Express-down/up allows thewindows to be opened or closedwithout holding the window switch.Press the window switch fully downor pull it up, and quickly release it toengage. Briefly press or pull thesame switch to stop windowmovement.
Express Window Obstacle
Detection
The express-up feature will reversewindow movement if it comes incontact with an object. Extreme coldor ice could cause the window toauto-reverse. The window willoperate as normal after the object orcondition is removed.
Obstacle Detection Override
{Warning
If obstacle detection override is
activated, the window will not
reverse automatically. You or
others could be injured and the
(Continued)

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Keys, Doors, and Windows 43
Warning (Continued)
window could be damaged.
Before you use obstacle detection
override, make sure that all
people and obstructions are clear
of the window path.
The window can be closed byholding the window switch in the upposition if conditions prevent it fromexpress closing.
Programming the Power
Windows
Programming may be necessary ifthe vehicle's battery has beendisconnected or discharged. If thewindow is unable to express-up,program the window:
1. Close all doors.
2. Place the ignition in ACC/ACCESSORY or ON/RUN.
3. Partially open the window to beprogrammed, then close it andcontinue to pull the switchbriefly after the window hasfully closed.
4. Press the power window switchuntil the window is fully openand briefly hold.
Rear Windows
Sliding Rear Window
If the vehicle has this feature,squeeze the latch in the center ofthe window and slide the glass toopen it.
Be sure the latch is engaged whenthe window is closed.
Sun Visors
Pull the sun visor down to blockglare. Detach the sun visor from thecenter mount to pivot to the sidewindow or, if equipped, extendalong the rod.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
44 Seats and Restraints
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 45
Front Seats
Seat Adjustment . . . . . . . . . . . . . . . 46Power Seat Adjustment . . . . . . . . 46Lumbar Adjustment . . . . . . . . . . . . 47Reclining Seatbacks . . . . . . . . . . . 47Heated Front Seats . . . . . . . . . . . . 48
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . . . 49
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . . 51How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . . . 53Lap-Shoulder Belt . . . . . . . . . . . . . 53Safety Belt Use DuringPregnancy . . . . . . . . . . . . . . . . . . . . 56Safety Belt Extender . . . . . . . . . . . 56Safety System Check . . . . . . . . . . 57Safety Belt Care . . . . . . . . . . . . . . . 57Replacing Safety Belt SystemParts after a Crash . . . . . . . . . . . 57
Airbag System
Airbag System . . . . . . . . . . . . . . . . . 58Where Are the Airbags? . . . . . . . 60When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . 61What Makes an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . . . 62How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 62What Will You See after anAirbag Inflates? . . . . . . . . . . . . . . 62Passenger Sensing System . . . 64Servicing the Airbag-EquippedVehicle . . . . . . . . . . . . . . . . . . . . . . . 68Adding Equipment to theAirbag-Equipped Vehicle . . . . . 68Airbag System Check . . . . . . . . . . 69Replacing Airbag System Partsafter a Crash . . . . . . . . . . . . . . . . . 69
Child Restraints
Older Children . . . . . . . . . . . . . . . . . 70Infants and Young Children . . . . 71Child Restraint Systems . . . . . . . 74Where to Put the Restraint . . . . . 75Lower Anchors and Tethers forChildren (LATCH System) . . . . 77Replacing LATCH System PartsAfter a Crash . . . . . . . . . . . . . . . . . 90
Securing Child Restraints (Withthe Safety Belt in theRear Seat) . . . . . . . . . . . . . . . . . . . 91Securing Child Restraints (Withthe Safety Belt in theFront Seat) . . . . . . . . . . . . . . . . . . . 96

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 45
Head Restraints
The vehicle's front seats haveadjustable head restraints in theoutboard seating positions.
{Warning
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
Adjust the head restraint so that thetop of the restraint is at the sameheight as the top of the occupant'shead. This position reduces thechance of a neck injury in a crash.
Driver Seat, Inboard Button
The height of the head restraint canbe adjusted. Pull the head restraintup to raise it. Try to move the headrestraint to make sure that it islocked in place.
To l o w e r t h e h e a d r e s t r a i n t , p r e s sthe button, located on the top of theseatback, and push the restraintdown. Try to move the head
restraint after the button is releasedto make sure that it is locked inplace.
The front seat outboard headrestraints are not removable.
Rear Head Restraints
Crew Cab
The vehicle’srearseatshaveheadrestraints in the outboard seatingpositions that cannot be adjusted upor down.
The rear outboard head restraintsare designed to be folded. Whenfolding the seatback down, the head

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
46 Seats and Restraints
restraint must first be manuallyfolded forward out of the way to foldthe seatback down.
The head restraint can be foldedforward to allow for better visibilitywhen the rear seat is unoccupied.To f o l d t h e h e a d r e s t r a i n t , p r e s s t h ebutton on the side of the headrestraint.
When an occupant is in the seat,always return the head restraint tothe upright position until it locks intoplace. Push and pull on the headrestraint to make sure that it islocked.
If you are installing a child restraintin the rear seat, seeLower Anchorsand Tethers for Children (LATCHSystem)077.
Extended Cab
The vehicle’srearseatshaveheadrests in the outboard seatingpositions that cannot be adjusted.
If you are installing a child restraintin the rear seat, seeLower Anchorsand Tethers for Children (LATCHSystem)077.
Front Seats
Seat Adjustment
{Warning
Yo u c a n l o s e c o n t r o l o f t h e
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.
To a d j u s t t h e s e a t :
1. Pull the handle at the front ofthe seat.
2. Slide the seat to the desiredposition and release thehandle.
3. Try to move the seat back andforth to be sure the seat islocked in place.
Power Seat Adjustment
To a d j u s t t h e s e a t , i f e q u i p p e d :
.Move the seat forward orrearward by sliding the controlforward or rearward.
.Raise or lower the entire seat bymoving the entire control upor down.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 47
To a d j u s t t h e s e a t b a c k , s e eReclining Seatbacks047.
Lumbar Adjustment
Power Lumbar
If equipped, press and hold the topof the control to increase lumbarsupport. Press and hold the bottomof the control to decrease lumbarsupport. Release the control whenthe seatback reaches the desiredlevel of lumbar support.
Reclining Seatbacks
{Warning
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job.
The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
Do not have a seatback reclined ifthe vehicle is moving.
{Warning
Yo u c a n l o s e c o n t r o l o f t h e
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.
