2017 CHEVROLET COLORADO Owners Manual

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
88 Seats and Restraints
If you are using a singletether, raise the headrestor head restraint androute the tether under theheadrest or head restraintand in between theheadrest or head restraintposts.
If you are using a dualtether, route the tetheraround the headrest orhead restraint.
2.2. Attach the top tether hookto the metal wire on thelower inboard side of thecab wall directly behindthe front passenger seat.
2.3. Tighten the top tether.
3. Before placing a child in thechild restraint, make sure it issecurely held in place. Tocheck, grasp the child restraintat the LATCH path and attemptto move it side to side and
back and forth. There shouldbe no more than 2.5 cm (1 in) ofmovement for properinstallation.
Head Restraint/Headrest
Removal and Reinstallation
{Warning
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
Crew Cab
The rear outboard head restraintscan be removed if they interfere withthe proper installation of the childrestraint.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 89
To r e m o v e t h e h e a d r e s t r a i n t :
1. Partially fold the seat forward.
2. Press the button on the side ofthe head restraint post at thetop of the seatback and pull upon the head restraint.
3. Store the head restraint in asecure place.
4. Always reinstall the headrestraint before the seatingposition is used by anotheroccupant.
To r e i n s t a l l t h e h e a d r e s t r a i n t :
1. Insert the posts into the holesin the top of the seatback. Thenotch on the post should facethe driver side of the vehicle.
2. Push the head restraint down.Pull up on the head restraint tomake sure it is locked in place.
Extended Cab
To r e m o v e t h e h e a d r e s t :
1. Press the button on the side ofthe headrest post on the top ofthe seatback and pull up.
2. If removing the headrest toinstall a booster seat in the leftrear seating position, store theheadrest in a secure place.
Never install a forward-facingor rearward-facing childrestraint in the left rear seatingposition.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
90 Seats and Restraints
3. If removing the headrest toinstall as a seat cushionextension for a forward-facingor rearward-facing childrestraint in the right rearseating position, see theinstructions in“Securing aChild Restraint with the LATCHSystem”earlier in this section.
4. Always reinstall the headrestbefore the seating position isused by another occupant.
To r e i n s t a l l t h e h e a d r e s t :
1. If installed as a seat cushionextension, first press bothbuttons on the front of the seatcushion to remove theheadrest.
2. To reinstall the headrest, insertthe posts into the holes in thetop of the seatback. Thenotches on the posts shouldface the driver side of thevehicle.
3. Push the headrest down. Pullup on the headrest to makesure it is locked in place.
Replacing LATCH System
Parts After a Crash
{Warning
AcrashcandamagetheLATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint,
resulting in serious injury or even
death in a crash. To help make
sure the LATCH system is
working properly after a crash,
see your dealer to have the
system inspected and any
necessary replacements made as
soon as possible.
If the vehicle has the LATCH systemand it was being used during acrash, new LATCH system partsmay be needed.
New parts and repairs may benecessary even if the LATCHsystem was not being used at thetime of the crash.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 91

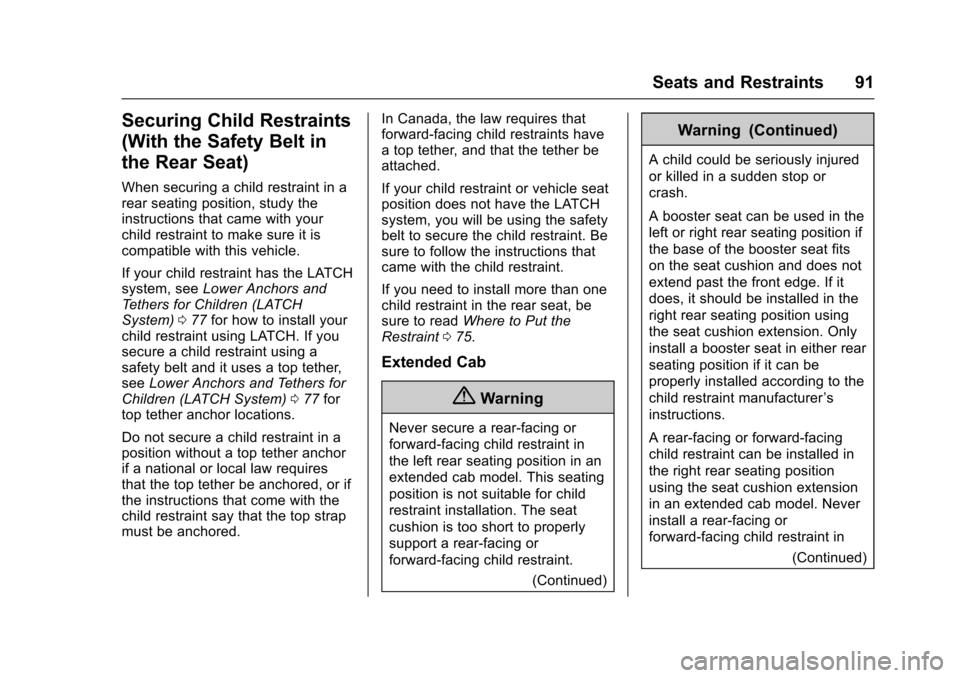

Securing Child Restraints
(With the Safety Belt in
the Rear Seat)
When securing a child restraint in arear seating position, study theinstructions that came with yourchild restraint to make sure it iscompatible with this vehicle.
If your child restraint has the LATCHsystem, seeLower Anchors andTe t h e r s f o r C h i l d r e n ( L AT C HSystem)077for how to install yourchild restraint using LATCH. If yousecure a child restraint using asafety belt and it uses a top tether,seeLower Anchors and Tethers forChildren (LATCH System)077fortop tether anchor locations.
Do not secure a child restraint in aposition without a top tether anchorif a national or local law requiresthat the top tether be anchored, or ifthe instructions that come with thechild restraint say that the top strapmust be anchored.
In Canada, the law requires thatforward-facing child restraints haveatoptether,andthatthetetherbeattached.
If your child restraint or vehicle seatposition does not have the LATCHsystem, you will be using the safetybelt to secure the child restraint. Besure to follow the instructions thatcame with the child restraint.
If you need to install more than onechild restraint in the rear seat, besure to readWhere to Put theRestraint075.
Extended Cab
{Warning
Never secure a rear-facing or
forward-facing child restraint in
the left rear seating position in an
extended cab model. This seating
position is not suitable for child
restraint installation. The seat
cushion is too short to properly
support a rear-facing or
forward-facing child restraint.
(Continued)
Warning (Continued)
Achildcouldbeseriouslyinjured
or killed in a sudden stop or
crash.
Aboosterseatcanbeusedinthe
left or right rear seating position if
the base of the booster seat fits
on the seat cushion and does not
extend past the front edge. If it
does, it should be installed in the
right rear seating position using
the seat cushion extension. Only
install a booster seat in either rear
seating position if it can be
properly installed according to the
child restraint manufacturer’s
instructions.
Arear-facingorforward-facing
child restraint can be installed in
the right rear seating position
using the seat cushion extension
in an extended cab model. Never
install a rear-facing or
forward-facing child restraint in
(Continued)

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
92 Seats and Restraints
Warning (Continued)
the right rear seating position
without the seat cushion
extension.
{Warning
Do not let anyone ride in the front
passenger seat when a
rear-facing child restraint is
installed in the right rear seating
position. To properly fit the
rear-facing child restraint, the
front seatback will need to be
tilted forward which will not allow
apassengertositproperlyinthe
front outboard passenger seat.
The passenger could be seriously
injured or killed in a sudden stop
or crash.
Aboosterseatmaybeusedintheleft rear seating position if the baseof the booster seat fits on the seatcushion and does not extend pastthe front edge of the seat cushion.
If the booster seat extends past thefront of the seat cushion, it shouldbe used in the right rear seatingposition with the seat cushionextension.
When using the lap-shoulder belt tosecure the child restraint in thisposition, follow the instructions thatcame with the child restraint and thefollowing instructions:
1. Always install the seat cushionextension in the right rear seatposition when installing aforward-facing or rear-facingchild restraint. Also use theseat cushion extension forbooster seats that extend pastthe front edge of the seatcushion.
2. Press the button on thepassenger side headrest andpull up.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 93
3. Insert the headrest posts intothe holes on the front of thepassenger side seat cushion toinstall the seat cushionextension. The notches on thepost should face the passengerside of the vehicle. Try to movethe headrest to make sure it islocked in place.
4. Put the child restraint onthe seat.
When installing a rear-facingchild restraint, move the frontseat all the way forward and tiltthe seatback forward toproperly install the childrestraint per the child restraintmanufacturer instructions. SeeSeat Adjustment046andReclining Seatbacks047.When a rear-facing childrestraint is installed properly,the front passenger seatcannot be used.
5. If the child restraintmanufacturer recommendsusing a top tether, adjust thetop tether to its full length andattach it to the top tether
anchor. Refer to theinstructions that came with thechild restraint and seeLowerAnchors and Tethers forChildren (LATCH System)077.
6. Pick up the latch plate, and runthe lap and shoulder portionsof the vehicle's safety beltthrough or around the restraint.The child restraint instructionswill show you how.
Tilt the latch plate to adjust thebelt if needed.
7. Push the latch plate into thebuckle until it clicks.
Position the release button onthe buckle, away from the childrestraint system, so that thesafety belt could be quicklyunbuckled if necessary.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
94 Seats and Restraints
8. Pull the shoulder belt all theway out of the retractor to setthe lock. When the retractorlock is set, the belt can betightened but not pulled out ofthe retractor.
9. To tighten the belt, push downon the child restraint, pull theshoulder portion of the belt totighten the lap portion of thebelt, and feed the shoulder beltback into the retractor. Wheninstalling a forward-facing childrestraint, it may be helpful touse your knee to push down onthe child restraint as youtighten the belt.
Try to pull the belt out of theretractor to make sure theretractor is locked. If theretractor is not locked, repeatSteps 6 and 7.
10. Tighten the top tether. SeeLower Anchors and Tethers forChildren (LATCH System)077.
11 . B e f o r e p l a c i n g a c h i l d i n t h echild restraint, make sure it issecurely held in place. Tocheck, grasp the child restraintat the safety belt path andattempt to move it side to sideand back and forth. When thechild restraint is properlyinstalled, there should be nomore than 2.5 cm (1 in) ofmovement.
To r e m o v e t h e c h i l d r e s t r a i n t ,unbuckle the vehicle’ssafetybeltand let it return to the stowedposition. If the top tether is attachedto a top tether anchor, disconnect it.Reinstall the headrest in theseatback before the seating positionis used. See“Head Restraint/Headrest Removal andReinstallation”underLower Anchorsand Tethers for Children (LATCHSystem)077for additionalinformation on installing theheadrest properly.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 95
Crew Cab
When using the lap-shoulder belt tosecure the child restraint in thisposition, follow the instructions thatcame with the child restraint and thefollowing instructions:
1. If the head restraint interfereswith the proper installation ofthe child restraint, the headrestraint may be removed. See“Head Restraint/HeadrestRemoval and Reinstallation”underLower Anchors andTe t h e r s f o r C h i l d r e n ( L AT C HSystem)077.
2. If the child restraintmanufacturer recommendsusing a top tether, adjust thetop tether to its full length andattach it to the top tetheranchor. Refer to theinstructions that came with thechild restraint and seeLowerAnchors and Tethers forChildren (LATCH System)077.
3. Put the child restraint onthe seat.
4. Pick up the latch plate, and runthe lap and shoulder portionsof the vehicle's safety beltthrough or around the restraint.The child restraint instructionswill show you how.
5. Push the latch plate into thebuckle until it clicks.
Position the release button onthe buckle, away from the childrestraint system, so that thesafety belt could be quicklyunbuckled if necessary.
6. Pull the shoulder belt all theway out of the retractor to setthe lock. When the retractorlock is set, the belt can betightened but not pulled out ofthe retractor.
