2017 CHEVROLET COLORADO Owners Manual

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
48 Seats and Restraints
{Warning
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
To r e c l i n e t h e s e a t b a c k :
1. Lift the lever.
2. Move the seatback to thedesired position, and thenrelease the lever to lock theseatback in place.
3. Push and pull on the seatbackto make sure it is locked.
To r e t u r n t h e s e a t b a c k t o t h e u p r i g h tposition:
1. Lift the lever fully withoutapplying pressure to theseatback.
2. Push and pull on the seatbackto make sure it is locked.
Heated Front Seats
{Warning
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns. To
reduce the risk of burns, people
with such a condition should use
care when using the seat heater,
especially for long periods of
time. Do not place anything on
(Continued)
Warning (Continued)
the seat that insulates against
heat, such as a blanket, cushion,
cover, or similar item. This may
cause the seat heater to
overheat. An overheated seat
heater may cause a burn or may
damage the seat.
If equipped, the buttons are on thecenter stack. To operate, the enginemust be running.
Press+to heat the driver or
passenger seatback only.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16

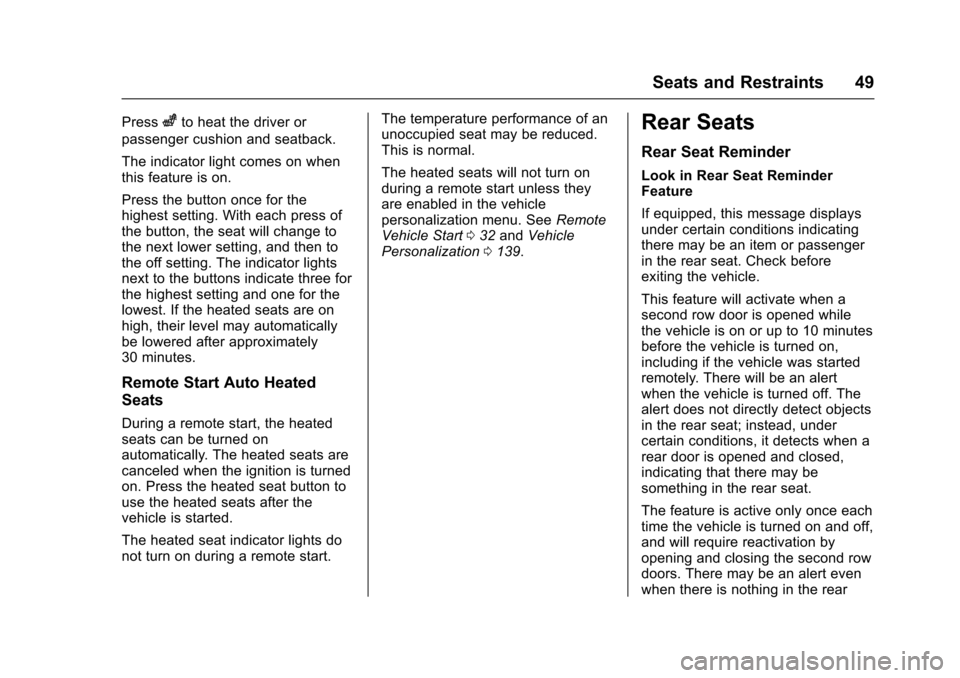

Seats and Restraints 49
Presszto heat the driver or
passenger cushion and seatback.
The indicator light comes on whenthis feature is on.
Press the button once for thehighest setting. With each press ofthe button, the seat will change tothe next lower setting, and then tothe off setting. The indicator lightsnext to the buttons indicate three forthe highest setting and one for thelowest. If the heated seats are onhigh, their level may automaticallybe lowered after approximately30 minutes.
Remote Start Auto Heated
Seats
During a remote start, the heatedseats can be turned onautomatically. The heated seats arecanceled when the ignition is turnedon. Press the heated seat button touse the heated seats after thevehicle is started.
The heated seat indicator lights donot turn on during a remote start.
The temperature performance of anunoccupied seat may be reduced.This is normal.
The heated seats will not turn onduring a remote start unless theyare enabled in the vehiclepersonalization menu. SeeRemoteVehicle Start032andVehiclePersonalization0139.
Rear Seats
Rear Seat Reminder
Look in Rear Seat ReminderFeature
If equipped, this message displaysunder certain conditions indicatingthere may be an item or passengerin the rear seat. Check beforeexiting the vehicle.
This feature will activate when asecond row door is opened whilethe vehicle is on or up to 10 minutesbefore the vehicle is turned on,including if the vehicle was startedremotely. There will be an alertwhen the vehicle is turned off. Thealert does not directly detect objectsin the rear seat; instead, undercertain conditions, it detects when arear door is opened and closed,indicating that there may besomething in the rear seat.
The feature is active only once eachtime the vehicle is turned on and off,and will require reactivation byopening and closing the second rowdoors. There may be an alert evenwhen there is nothing in the rear

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
50 Seats and Restraints
seat; for example, if a child enteredthe vehicle through the rear doorand left the vehicle without thevehicle being shut off.
The feature can be turned on or offthroughVehiclePersonalization0139.
Folding the Rear Seat
On crew cab models, the rearseatbacks can be folded forward.
Caution
Folding a rear seat with the safety
belts still fastened may cause
damage to the seat or the safety
belts. Always unbuckle the safety
belts and return them to their
normal stowed position before
folding a rear seat.
To f o l d a r e a r s e a t b a c k :
1. Fold the head restraint. SeeHead Restraints045.
2. Disconnect the rear centersafety belt latch from themini-buckle by inserting the tipof the safety belt tongue intothe slot on the buckle. Let thebelt retract.
3. Pull the release strap on theoutboard side of the seatback.
4. Fold the seatback forward.
To r e t u r n a s e a t b a c k t o t h e u p r i g h tposition:
1. Lift the seatback up and push itrearward.
2. Return the head restraint to theupright position. SeeHeadRestraints045.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 51
{Warning
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Push and pull on the seatbackto make sure it is locked inplace.
{Warning
Asafetybeltthatisimproperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
4. Reconnect the center safetybelt latch plate to themini-buckle. Make sure thesafety belt is not twisted.
5. Push and pull on the latchplate to be sure it is secure.
When the seatback is not in use, itshould be kept in the upright, lockedposition.
Safety Belts
This section describes how to usesafety belts properly, and somethings not to do.
{Warning
Do not let anyone ride where a
safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, injuries can be much
worse than if you are wearing
safety belts. You can be seriously
injured or killed by hitting things
inside the vehicle harder or by
being ejected from the vehicle. In
addition, anyone who is not
buckled up can strike other
passengers in the vehicle.
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision,
passengers riding in these areas
are more likely to be seriously
injured or killed. Do not allow
(Continued)

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
52 Seats and Restraints
Warning (Continued)
passengers to ride in any area of
the vehicle that is not equipped
with seats and safety belts.
Always wear a safety belt, and
check that all passenger(s) are
restrained properly too.
This vehicle has indicators as areminder to buckle the safety belts.SeeSafety Belt Reminders011 6.
This vehicle may have the SafetyBelt Assurance System, which mayprevent the vehicle from shifting outof P (Park). SeeSafety BeltMessages0136.
Why Safety Belts Work
When riding in a vehicle, you travelas fast as the vehicle does. If thevehicle stops suddenly, you keepgoing until something stops you.It could be the windshield, theinstrument panel, or the safety belts!
When you wear a safety belt, youand the vehicle slow down together.There is more time to stop becauseyou stop over a longer distance and,when worn properly, your strongestbones take the forces from thesafety belts. That is why wearingsafety belts makes such goodsense.
Questions and Answers About
Safety Belts
Q: Will I be trapped in the vehicleafter a crash if I am wearing asafety belt?
A:Yo ucouldbe—whether you arewearing a safety belt or not.Yo u r c h a n c e o f b e i n g c o n s c i o u sduring and after a crash, so youcanunbuckle and get out, ismuchgreater if you are belted.
Q: If my vehicle has airbags, whyshould I have to wear safetybelts?
A:Airbags are supplementalsystems only. They workwithsafety belts—not instead ofthem. Whether or not an airbagis provided, all occupants stillhave to buckle up to get themost protection.
Also, in nearly all states and inall Canadian provinces, the lawrequires wearing safety belts.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 53
How to Wear Safety Belts
Properly
This section is only for people ofadult size.
There are special things to knowabout safety belts and children, andthere are different rules for smallerchildren and infants. If a child will beriding in the vehicle, seeOlderChildren070orInfants and YoungChildren071.Followthoserulesforeveryone's protection.
It is very important for all occupantsto buckle up. Statistics show thatunbelted people are hurt more oftenin crashes than those who arewearing safety belts.
There are important things to knowabout wearing a safety belt properly.
.Sit up straight and always keepyour feet on the floor in frontof you.
.Always use the correct bucklefor your seating position.
.Wear the lap part of the belt lowand snug on the hips, justtouching the thighs. In a crash,this applies force to the strongpelvic bones and you would beless likely to slide under the lapbelt. If you slid under it, the beltwould apply force on yourabdomen. This could causeserious or even fatal injuries.
.Wear the shoulder belt over theshoulder and across the chest.These parts of the body are bestable to take belt restrainingforces. The shoulder belt locks ifthere is a sudden stop or crash.
{Warning
Yo u c a n b e s e r i o u s l y i n j u r e d ,
or even killed, by not wearing
your safety belt properly.
.Never allow the lap orshoulder belt to becomeloose or twisted.
.Never wear the shoulderbelt under both arms orbehind your back.
.Never route the lap orshoulder belt over anarmrest.
Lap-Shoulder Belt
All seating positions in the vehiclehave a lap-shoulder belt.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
54 Seats and Restraints
If you are using a rear seatingposition with a detachable safetybelt and the safety belt is notattached, seeRear Seats049forinstructions on reconnecting thesafety belt to the mini-buckle.
The following instructions explainhow to wear a lap-shoulder beltproperly.
1. Adjust the seat, if the seat isadjustable, so you can sit upstraight. To see how, see“Seats”in the Index.
2. Pick up the latch plate and pullthe belt across you. Do not letit get twisted.
The lap-shoulder belt may lockif you pull the belt across youvery quickly. If this happens, letthe belt go back slightly tounlock it. Then pull the beltacross you more slowly.
If the shoulder portion of apassenger belt is pulled out allthe way, the child restraintlocking feature may beengaged. If this happens, letthe belt go back all the wayand start again.
If the webbing locks in the latchplate before it reaches thebuckle, tilt the latch plate to flatto unlock.
3. Push the latch plate into thebuckle until it clicks.
Pull up on the latch plate tomake sure it is secure. If thebelt is not long enough, seeSafety Belt Extender056.
Position the release button onthe buckle so that the safetybelt could be quickly unbuckledif necessary.
4. If equipped with a shoulder beltheight adjuster, move it to theheight that is right for you. See“Shoulder Belt Height Adjuster”later in this section forinstructions on use andimportant safety information.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Seats and Restraints 55
5. To make the lap part tight, pullup on the shoulder belt.
To u n l a t c h t h e b e l t , p u s h t h e b u t t o non the buckle. The belt shouldreturn to its stowed position.
Always stow the safety belt slowly.If the safety belt webbing returnsquickly to the stowed position, theretractor may lock and cannot bepulled out. If this happens, pull thesafety belt straight out firmly tounlock the webbing, and thenrelease it. If the webbing is stilllocked in the retractor, see yourdealer.
Before a door is closed, be sure thesafety belt is out of the way. If adoor is slammed against a safetybelt, damage can occur to both thesafety belt and the vehicle.
Shoulder Belt Height Adjuster
The vehicle has a shoulder beltheight adjuster for the driver andfront outboard passenger.
Adjust the height so the shoulderportion of the belt is on the shoulderand not falling off of it. The beltshould be close to, but notcontacting, the neck. Impropershoulder belt height adjustment
could reduce the effectiveness ofthe safety belt in a crash. SeeHowto Wear Safety Belts Properly053.
Push up on the release button andmove the height adjuster to thedesired position.
After the adjuster is set to thedesired position, try to move it downwithout pushing the release buttonto make sure it has locked intoposition.
Safety Belt Pretensioners
This vehicle has safety beltpretensioners for front outboardoccupants. Although the safety belt
