2017 CHEVROLET COLORADO Owners Manual

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16

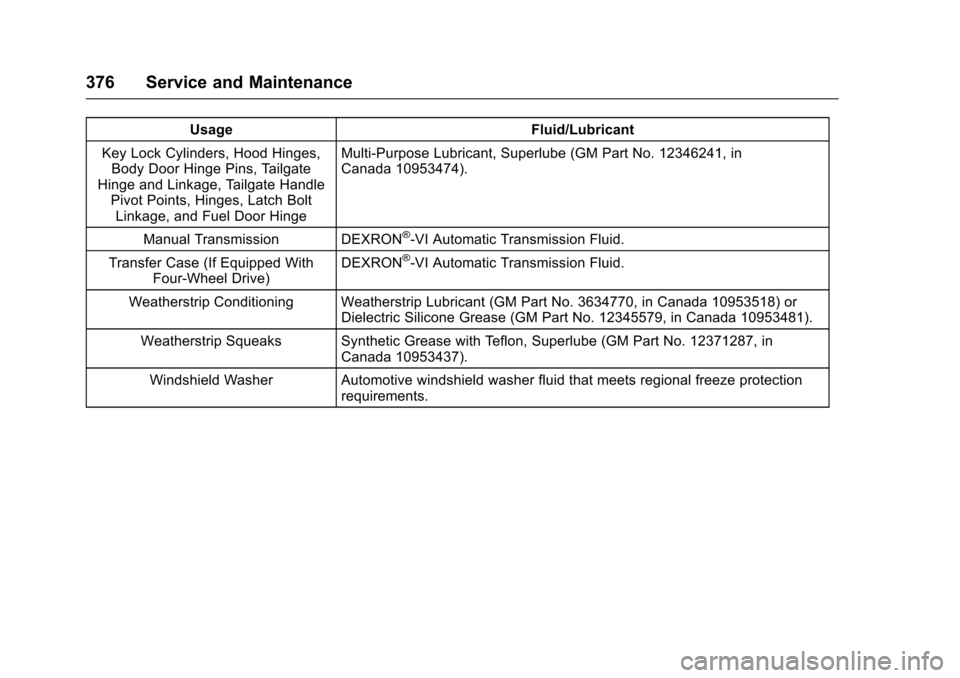

376 Service and Maintenance
UsageFluid/Lubricant
Key Lock Cylinders, Hood Hinges,Body Door Hinge Pins, TailgateHinge and Linkage, Tailgate HandlePivot Points, Hinges, Latch BoltLinkage, and Fuel Door Hinge
Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, inCanada 10953474).
Manual Transmission DEXRON®-VI Automatic Transmission Fluid.
Transfer Case (If Equipped WithFour-Wheel Drive)DEXRON®-VI Automatic Transmission Fluid.
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) orDielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481).
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, inCanada 10953437).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protectionrequirements.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Service and Maintenance 377
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 94775933 A3195C
Oil Filter
2.5L L4 12640445 PF64
3.6L V6 55594651 PF2257G
Passenger Compartment Air Filter 23135671 CF196
Spark Plugs
2.5L L4 12627160 41-115
3.6L V6 12646780 41-130
Wiper Blades
Driver Side–55 cm (21.7 in) 23117447—
Passenger Side–45 cm (17.7 in) 23117448—

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
378 Service and Maintenance

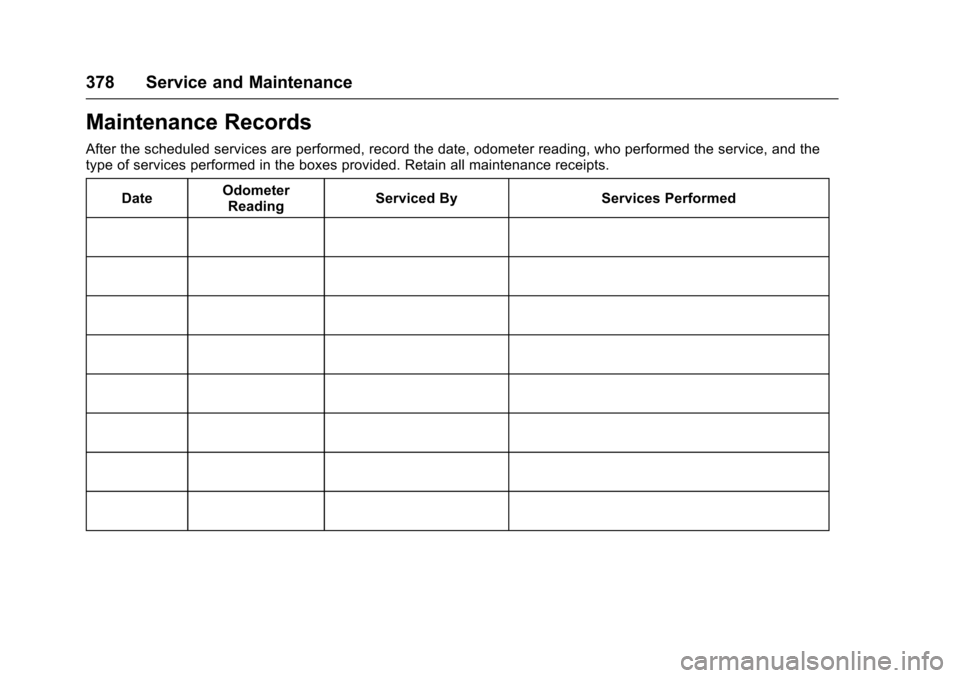

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and thetype of services performed in the boxes provided. Retain all maintenance receipts.
DateOdometerReadingServiced By Services Performed

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Technical Data 379
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 379Service Parts IdentificationLabel . . . . . . . . . . . . . . . . . . . . . . . . 379
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 380Engine Drive Belt Routing . . . . 382
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the frontcorner of the instrument panel, onthe driver side of the vehicle. It canbe seen through the windshield fromoutside. The Vehicle IdentificationNumber (VIN) also appears on theVehicle Certification and ServiceParts labels and certificates of titleand registration.
Engine Identification
The eighth character in the VIN isthe engine code. This codeidentifies the vehicle's engine,specifications, and replacementparts. See“Engine Specifications”underCapacities and Specifications0380for the vehicle's engine code.
Service Parts
Identification Label
This label, on the inside of the glovebox, has the following information:
.Vehicle IdentificationNumber (VIN).
.Model designation.
.Paint information.
.Production options and specialequipment.
Do not remove this label from thevehicle.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
380 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids andLubricants0375.
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type andcharge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System
2.5L L4 9.1 L 9.6 qt
3.6L V6 12.4 L 13.1 qt
Engine Oil with Filter
2.5L L4 4.7 L 5.0 qt
3.6L V6 5.7 L 6.0 qt
Fuel Tank 80 L 21 gal
Transfer Case Fluid 1.9 L 2.0 qt
Wheel Nut Torque 190Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in thismanual. Recheck fluid level after filling.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Technical Data 381
Engine Specifications
EngineVIN CodeSpark Plug Gap
2.5L L4A0.95–1.10mm (0.037–0.043 in)
3.6L V6N0.80–0.90mm (0.031–0.035 in)

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
382 Technical Data
Engine Drive Belt Routing
L4 Engines
V6 Engines
If the vehicle has a diesel engine,see the Duramax dieselsupplement.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122675) - 2017 - crc - 8/22/16
Customer Information 383
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . . 383Customer AssistanceOffices . . . . . . . . . . . . . . . . . . . . . . 385Customer Assistance for TextTe l e p h o n e ( T T Y ) U s e r s . . . . . 3 8 6Online Owner Center . . . . . . . . . 386GM Mobility ReimbursementProgram . . . . . . . . . . . . . . . . . . . . 387Roadside AssistanceProgram . . . . . . . . . . . . . . . . . . . . 387Scheduling ServiceAppointments . . . . . . . . . . . . . . . 389Courtesy TransportationProgram . . . . . . . . . . . . . . . . . . . . 389Collision Damage Repair . . . . . 390Service Publications OrderingInformation . . . . . . . . . . . . . . . . . . 392Radio FrequencyStatement . . . . . . . . . . . . . . . . . . . 393
Reporting Safety Defects
Reporting Safety Defects tothe United StatesGovernment . . . . . . . . . . . . . . . . . 393
Reporting Safety Defects tothe CanadianGovernment . . . . . . . . . . . . . . . . . 394Reporting Safety Defects toGeneral Motors . . . . . . . . . . . . . 394
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . 394Event Data Recorders . . . . . . . . 395OnStar®...................... 395Infotainment System . . . . . . . . . . 396
Customer Information
Customer Satisfaction
Procedure
Yo u r s a t i s f a c t i o n a n d g o o d w i l l a r eimportant to your dealer and toChevrolet. Normally, any concernswith the sales transaction or theoperation of the vehicle will beresolved by your dealer's sales orservice departments. Sometimes,however, despite the best intentionsof all concerned, misunderstandingscan occur. If your concern has notbeen resolved to your satisfaction,the following steps should be taken:
STEP ONE :Discuss your concernwith a member of dealershipmanagement. Normally, concernscan be quickly resolved at that level.If the matter has already beenreviewed with the sales, service,or parts manager, contact the ownerof your dealership or the generalmanager.
STEP TWO :If after contacting amember of dealership management,it appears your concern cannot be
