2016 NISSAN NV PASSENGER VAN Owners Manual

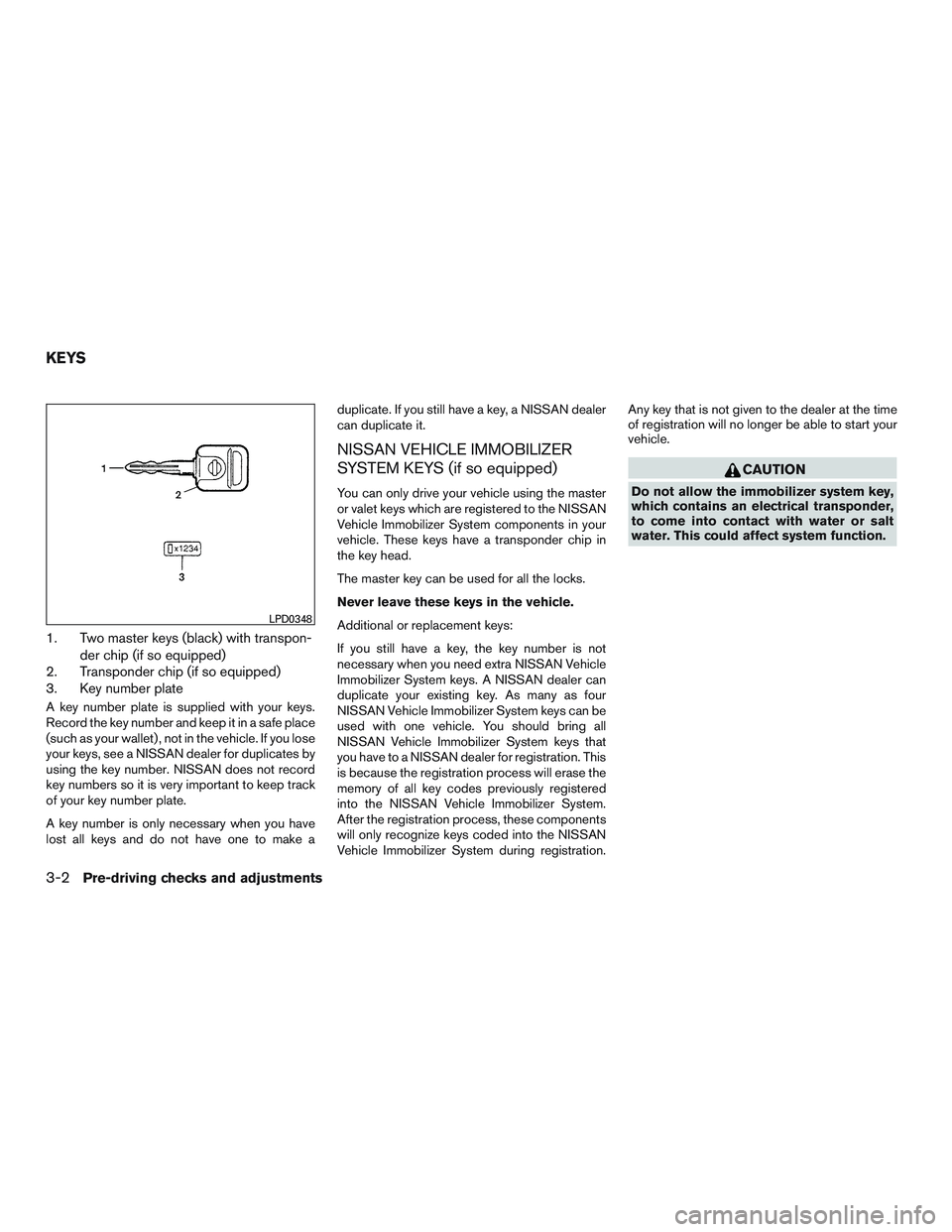

1. Two master keys (black) with transpon-der chip (if so equipped)
2. Transponder chip (if so equipped)
3. Key number plate
A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet) , not in the vehicle. If you lose
your keys, see a NISSAN dealer for duplicates by
using the key number. NISSAN does not record
key numbers so it is very important to keep track
of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to make a duplicate. If you still have a key, a NISSAN dealer
can duplicate it.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS (if so equipped)
You can only drive your vehicle using the master
or valet keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
The master key can be used for all the locks.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. A NISSAN dealer can
duplicate your existing key. As many as four
NISSAN Vehicle Immobilizer System keys can be
used with one vehicle. You should bring all
NISSAN Vehicle Immobilizer System keys that
you have to a NISSAN dealer for registration. This
is because the registration process will erase the
memory of all key codes previously registered
into the NISSAN Vehicle Immobilizer System.
After the registration process, these components
will only recognize keys coded into the NISSAN
Vehicle Immobilizer System during registration.Any key that is not given to the dealer at the time
of registration will no longer be able to start your
vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.
LPD0348
KEYS
3-2Pre-driving checks and adjustments

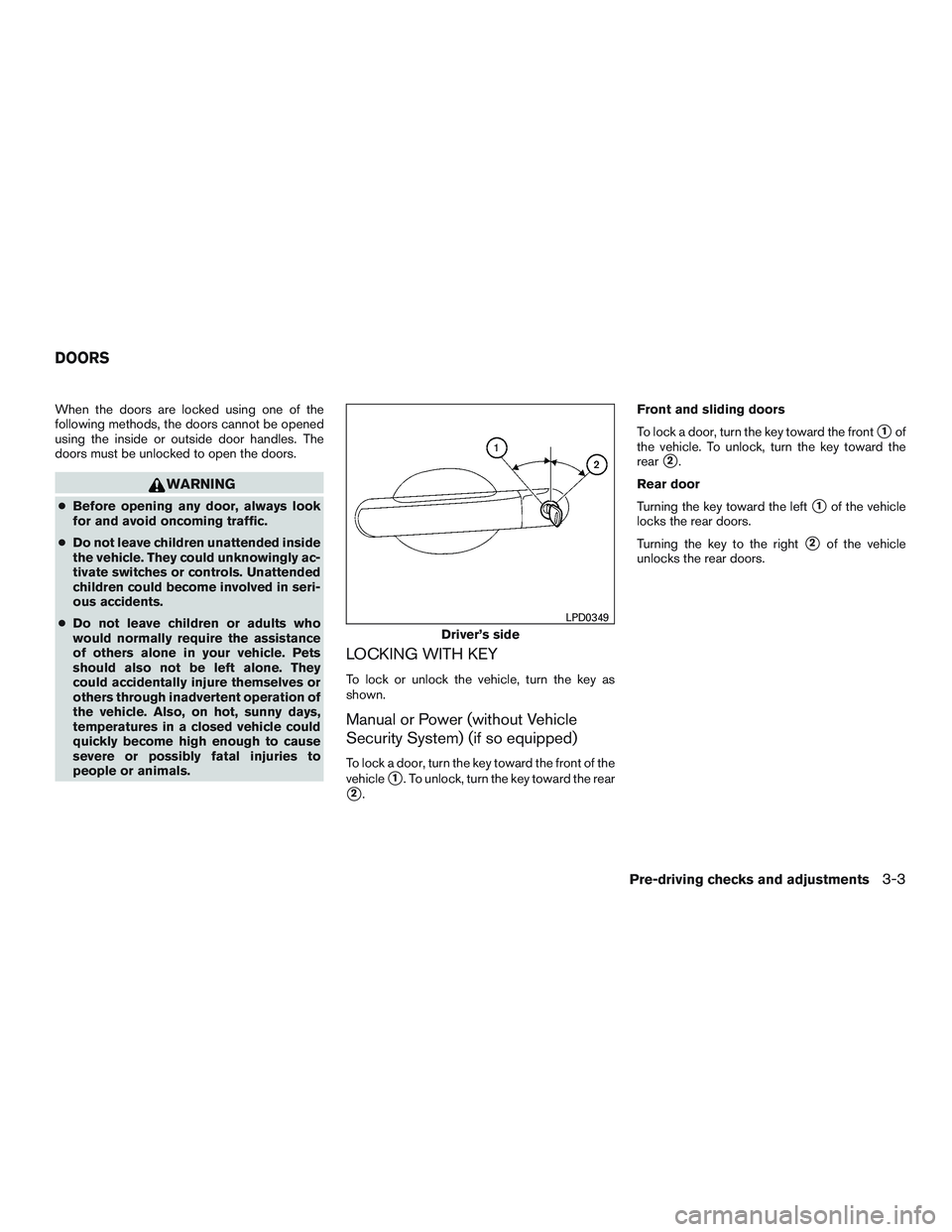

When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
WARNING
●Before opening any door, always look
for and avoid oncoming traffic.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
● Do not leave children or adults who
would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual or Power (without Vehicle
Security System) (if so equipped)
To lock a door, turn the key toward the front of the
vehicle
1. To unlock, turn the key toward the rear
2. Front and sliding doors
To lock a door, turn the key toward the front
1of
the vehicle. To unlock, turn the key toward the
rear
2.
Rear door
Turning the key toward the left
1of the vehicle
locks the rear doors.
Turning the key to the right
2of the vehicle
unlocks the rear doors.
Driver’s side
LPD0349
DOORS
Pre-driving checks and adjustments3-3

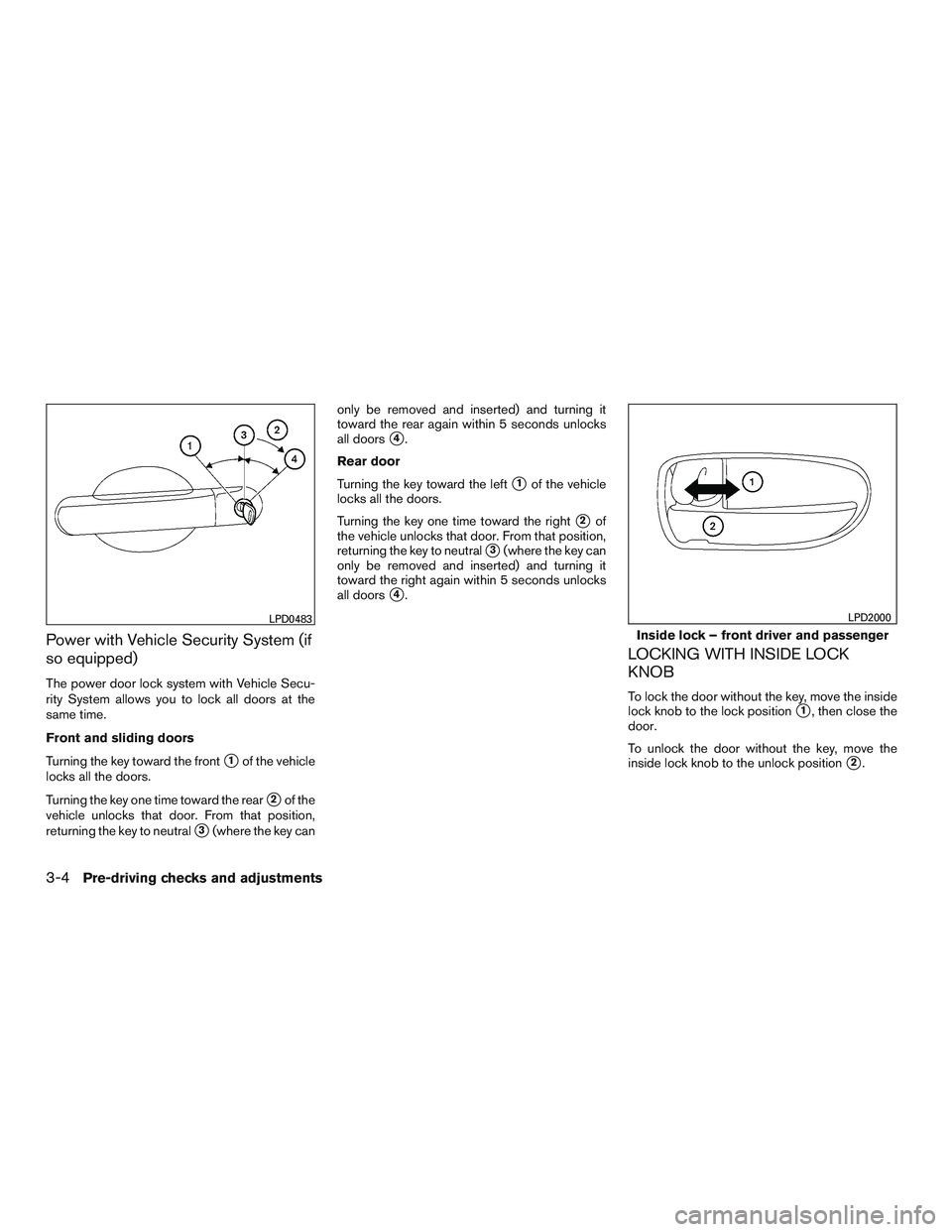

Power with Vehicle Security System (if
so equipped)
The power door lock system with Vehicle Secu-
rity System allows you to lock all doors at the
same time.
Front and sliding doors
Turning the key toward the front
1of the vehicle
locks all the doors.
Turning the key one time toward the rear
2of the
vehicle unlocks that door. From that position,
returning the key to neutral
3(where the key can only be removed and inserted) and turning it
toward the rear again within 5 seconds unlocks
all doors
4.
Rear door
Turning the key toward the left
1of the vehicle
locks all the doors.
Turning the key one time toward the right
2of
the vehicle unlocks that door. From that position,
returning the key to neutral
3(where the key can
only be removed and inserted) and turning it
toward the right again within 5 seconds unlocks
all doors
4.
LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the inside
lock knob to the lock position
1, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
LPD0483
Inside lock – front driver and passenger
LPD2000
3-4Pre-driving checks and adjustments

To lock the door without the key, move the inside
lock knob to the lock position
2, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
1. To lock the door without the key, move the inside
lock knob to the lock position
1, then close the
door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
To open the door from the inside, pull the inside
door handle toward you.
LOCKING WITH POWER DOOR
LOCK SWITCH (if so equipped)
To lock all the doors without a key, push the door
lock switch (driver’s or front passenger’s side) to
the lock position
1. When locking the door this
way, be certain not to leave the key inside the
vehicle.
To unlock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the unlock position
2.

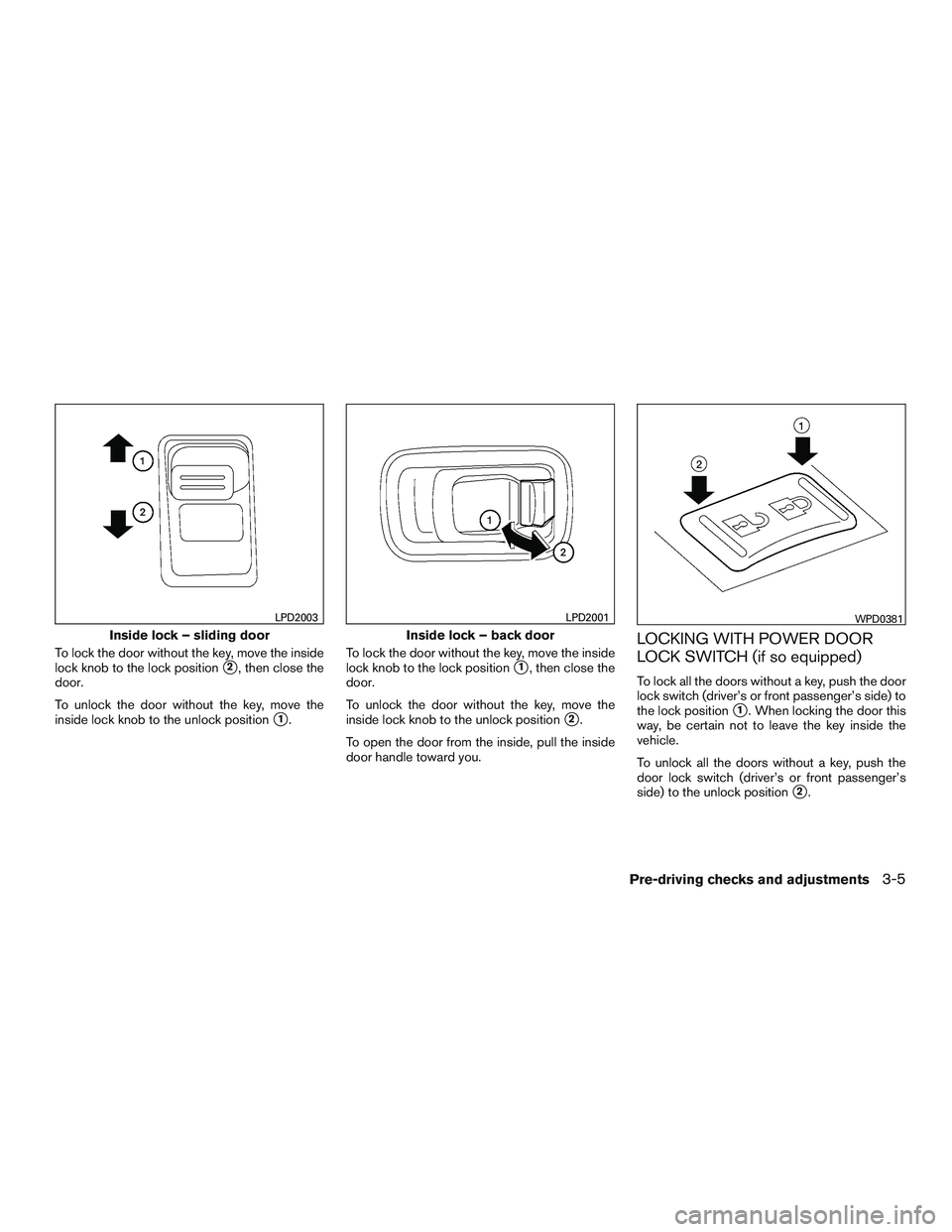

Inside lock – sliding door
LPD2003
Inside lock – back door
LPD2001WPD0381
Pre-driving checks and adjustments3-5

Lockout protection
When the power door lock switch (driver’s or
front passenger’s side) is moved to the lock
position with the key in the ignition switch and any
door opens, all doors will lock and then unlock
automatically. This helps to prevent the keys from
being accidently locked inside the vehicle.
OPERATING THE SLIDING DOOR
The sliding door can be opened from the inside or
the outside.
To open the sliding door from the inside, pull the
release lever
1down and pull the handle2
toward the rear of the vehicle until the door clicks.
This will lock the door into an open position.
To close the sliding door from the inside pull the
release lever
1down. The door will release from
the open position. Slide the door forward to
close. To open a sliding door from the outside, pull out
the outside handle and slide the door toward the
rear of the vehicle until the door clicks. The door
will lock into an open position.
To close the sliding door from the outside, pull the
outside handle again. The door will release from
the open position and slide closed.
LPD2002
3-6Pre-driving checks and adjustments

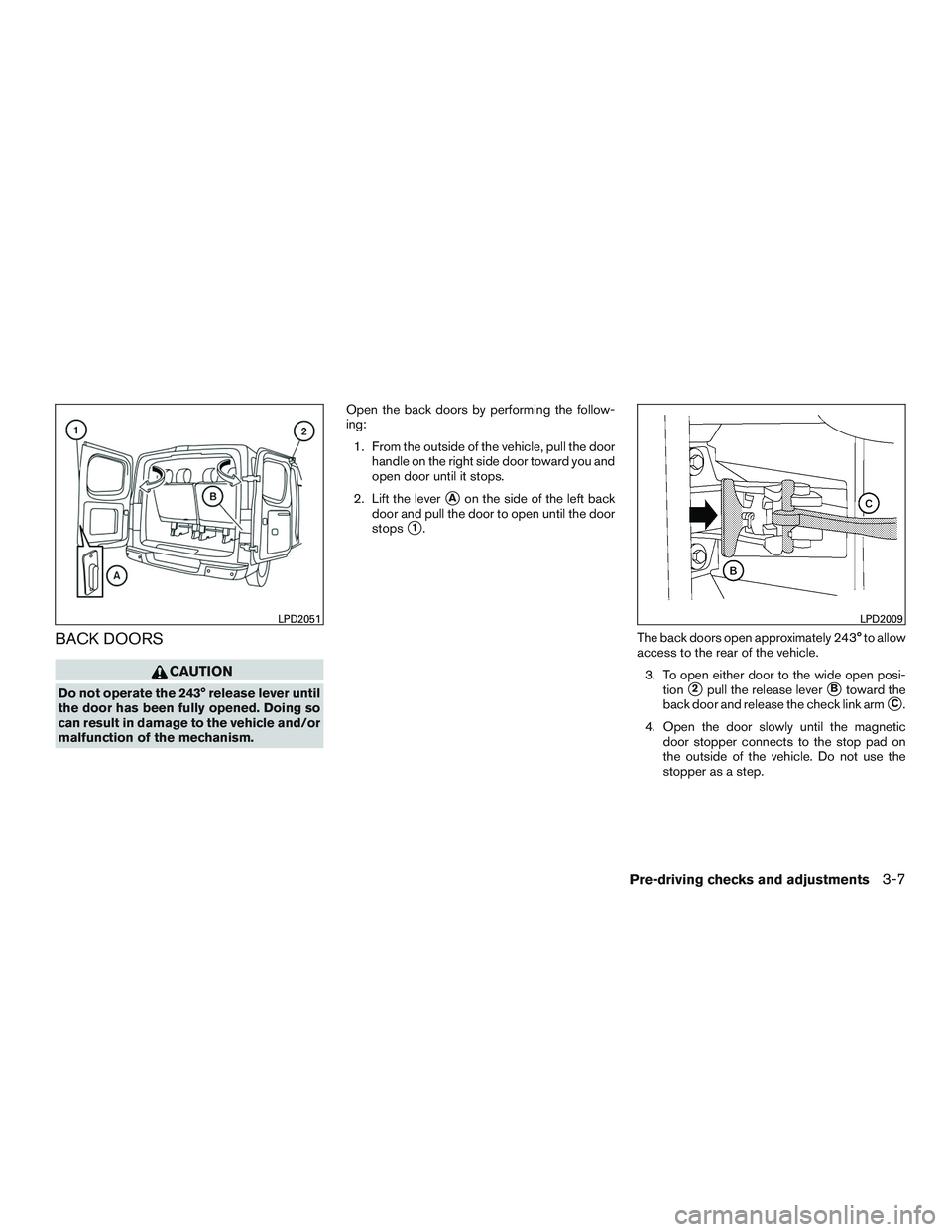

BACK DOORS
CAUTION
Do not operate the 243° release lever until
the door has been fully opened. Doing so
can result in damage to the vehicle and/or
malfunction of the mechanism.Open the back doors by performing the follow-
ing:
1. From the outside of the vehicle, pull the door handle on the right side door toward you and
open door until it stops.
2. Lift the lever
Aon the side of the left back
door and pull the door to open until the door
stops
1.
The back doors open approximately 243° to allow
access to the rear of the vehicle.3. To open either door to the wide open posi- tion
2pull the release leverBtoward the
back door and release the check link arm
C.
4. Open the door slowly until the magnetic door stopper connects to the stop pad on
the outside of the vehicle. Do not use the
stopper as a step.
LPD2051LPD2009
Pre-driving checks and adjustments3-7

AUTOMATIC DOOR LOCKS (if so
equipped)
●All doors lock automatically when the vehicle
speed reaches 15 mph (24 km/h).
● All doors unlock automatically when the ig-
nition is placed in the OFF position or when
the key is removed from the ignition switch.
CHILD SAFETY SLIDING DOOR
LOCK
The child safety lock helps prevent the sliding
door from being opened accidentally, especially
when small children are in the vehicle.
The child safety lock lever is located on the edge
of the sliding door.
When the lever is in the unlock position, the door
can be opened from the outside or the inside.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
● Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● The remote keyless entry key fob trans-
mits radio waves when the buttons are
pushed. The FAA advises radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
remote keyless entry key fob while on
an airplane. Make sure the buttons are
not operated unintentionally when the
unit is stored for a flight.
It is possible to lock/unlock all doors, turn on the
interior lights and activate the panic alarm by
using the key fob from outside the vehicle.
Some settings for the key fob, such as horn beep,
can be adjusted. For additional information, refer
to “Silencing the horn beep feature” in this sec-
tion.
LPD2050
REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)
3-8Pre-driving checks and adjustments

Be sure to remove the key from the vehicle
before locking the doors.
The key fob can operate at a maximum distance
of approximately 33 ft (10 m) from the vehicle.
The effective distance depends upon the condi-
tions around the vehicle.
As many as five key fobs can be used with one
vehicle. For information concerning the purchase
and use of additional key fobs, contact a NISSAN
dealer.
The key fob will not function when:● the battery is discharged.
● the distance between the vehicle and the
key fob is over 33 ft (10 m) .
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
Listed below are conditions or occur-
rences which will damage the key fob:
● Do not allow the key fob, which con-
tains electrical components, to come
into contact with water or salt water.
This could affect the system function.
● Do not drop the key fob. ●
Do not strike the key fob sharply
against another object.
● Do not change or modify the key fob.
● Wetting may damage the key fob. If the
key fob gets wet, immediately wipe until
it is completely dry.
● Do not place the key fob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C) .
● Do not attach the key fob with a key
holder that contains a magnet.
● Do not place the key fob near equip-
ment that produces a magnetic field,
such as a TV, audio equipment and per-
sonal computers.
If a key fob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that key
fob. This will prevent the key fob from
unauthorized use to unlock the vehicle.
For information regarding the erasing
procedure, please contact a NISSAN
dealer.
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors
1. Close all windows.
2. Remove the key from the ignition switch.
3. Close the hood and all doors.
4. Press the
button on the key fob. All
the doors lock. The hazard warning lights
flash twice and the horn beeps once to
indicate all doors are locked.
LPD0209
Pre-driving checks and adjustments3-9
