2016 NISSAN NV PASSENGER VAN Owners Manual

FRONT POWER SEAT ADJUSTMENT
(if so equipped for driver’s seat)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
LRS2029
1-4Safety—Seats, seat belts and supplemental restraint system

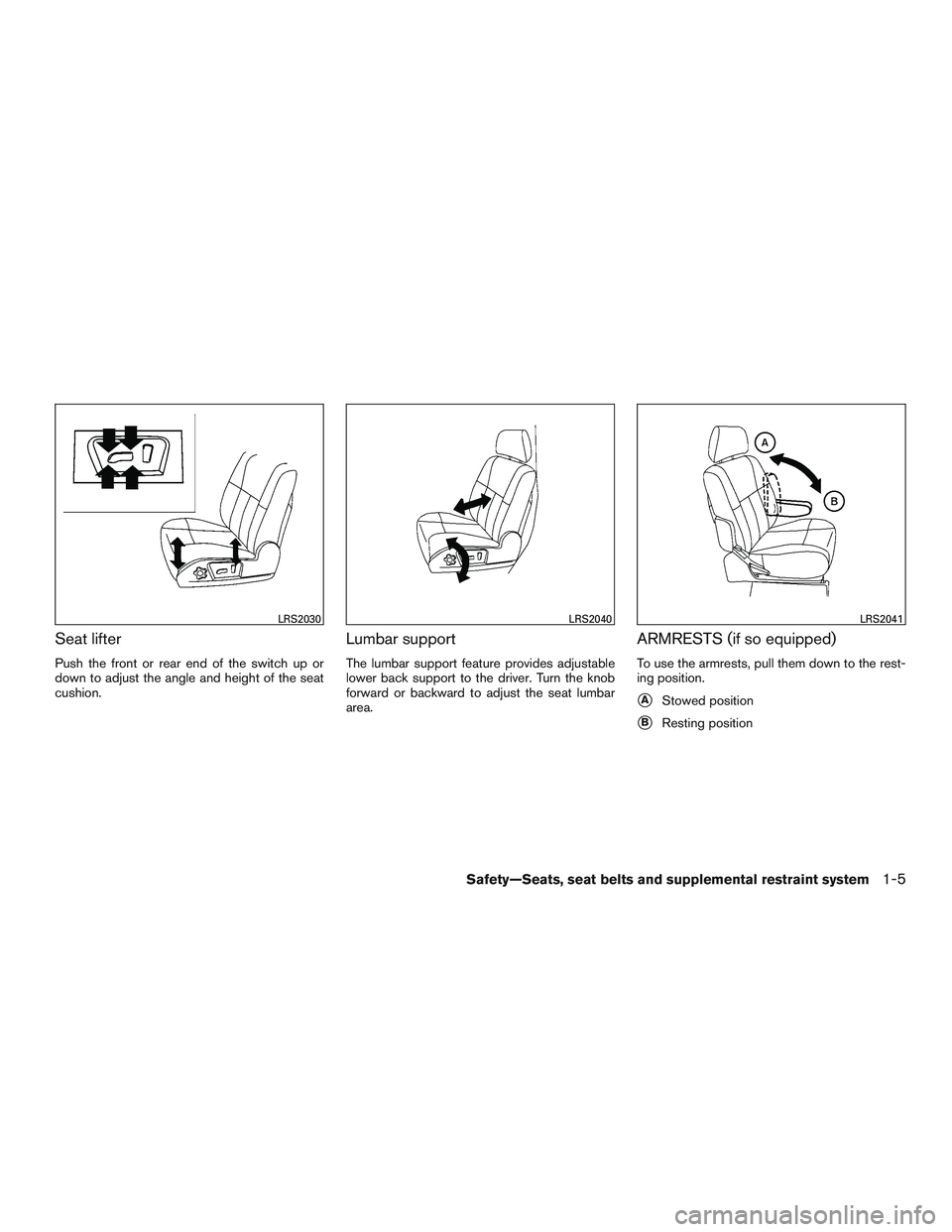

Seat lifter
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support
The lumbar support feature provides adjustable
lower back support to the driver. Turn the knob
forward or backward to adjust the seat lumbar
area.
ARMRESTS (if so equipped)
To use the armrests, pull them down to the rest-
ing position.
AStowed position
BResting position
LRS2030LRS2040LRS2041
Safety—Seats, seat belts and supplemental restraint system1-5

FLEXIBLE SEATING
WARNING
●Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace them prop-
erly if they have been removed for any
reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop. ●
Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
● Do not drive the vehicle unless all of the
seats are installed and locked in posi-
tion. Loose seats can become projec-
tiles in a sudden stop or collision and
cause serious personal injury or death.
Folding the front passenger’s seatback
To fold the front passenger’s seatback flat for
extra storage length when transporting long
items:
1. Slide the seat to the rearmost position. Lift up on the recline lever, located on the out-
side edge of the seat, and allow the seat-
back to fold forward as far as it will go.
LRS2042
1-6Safety—Seats, seat belts and supplemental restraint system

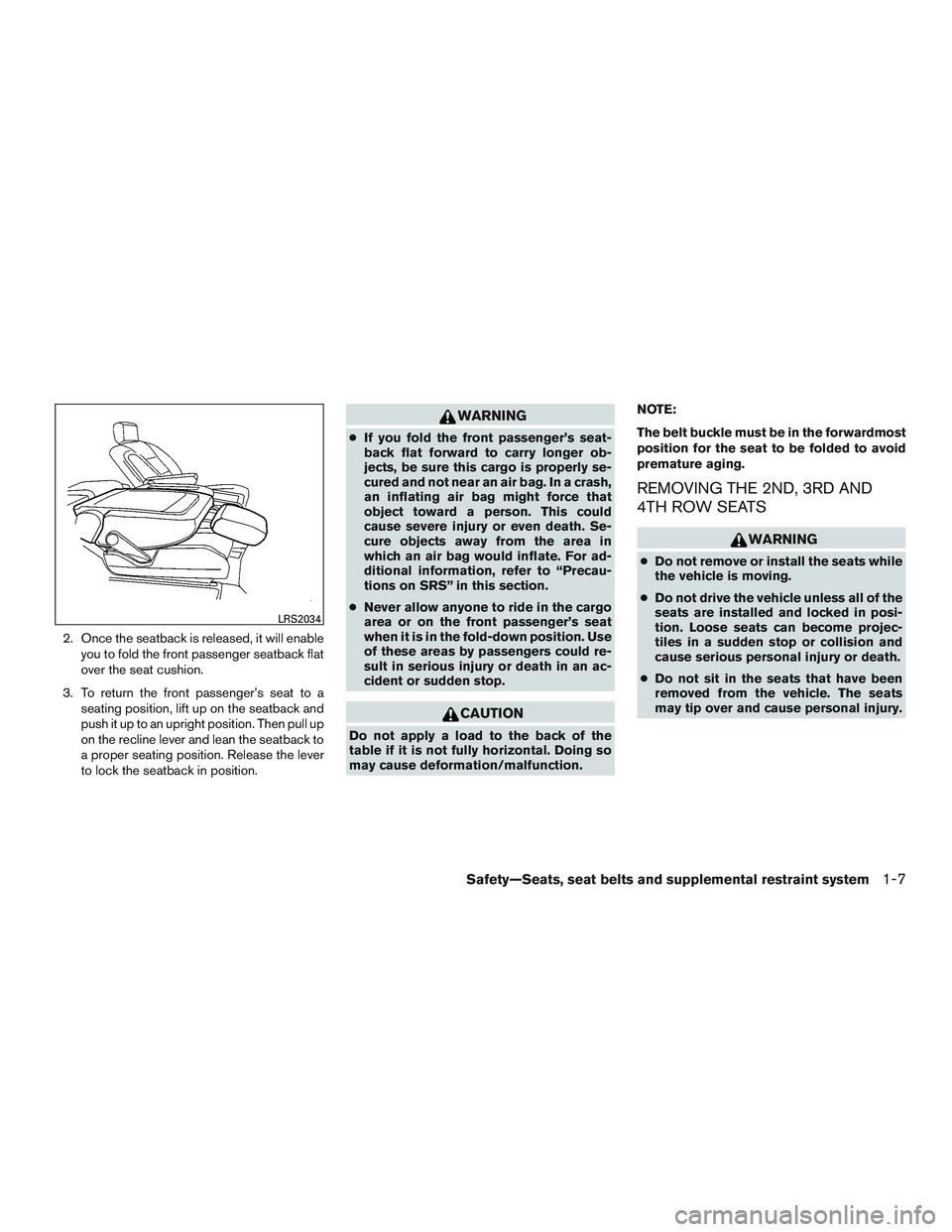

2. Once the seatback is released, it will enableyou to fold the front passenger seatback flat
over the seat cushion.
3. To return the front passenger’s seat to a seating position, lift up on the seatback and
push it up to an upright position. Then pull up
on the recline lever and lean the seatback to
a proper seating position. Release the lever
to lock the seatback in position.
WARNING
●If you fold the front passenger’s seat-
back flat forward to carry longer ob-
jects, be sure this cargo is properly se-
cured and not near an air bag. In a crash,
an inflating air bag might force that
object toward a person. This could
cause severe injury or even death. Se-
cure objects away from the area in
which an air bag would inflate. For ad-
ditional information, refer to “Precau-
tions on SRS” in this section.
● Never allow anyone to ride in the cargo
area or on the front passenger’s seat
when it is in the fold-down position. Use
of these areas by passengers could re-
sult in serious injury or death in an ac-
cident or sudden stop.
CAUTION
Do not apply a load to the back of the
table if it is not fully horizontal. Doing so
may cause deformation/malfunction. NOTE:
The belt buckle must be in the forwardmost
position for the seat to be folded to avoid
premature aging.
REMOVING THE 2ND, 3RD AND
4TH ROW SEATS
WARNING
●
Do not remove or install the seats while
the vehicle is moving.
● Do not drive the vehicle unless all of the
seats are installed and locked in posi-
tion. Loose seats can become projec-
tiles in a sudden stop or collision and
cause serious personal injury or death.
● Do not sit in the seats that have been
removed from the vehicle. The seats
may tip over and cause personal injury.
LRS2034
Safety—Seats, seat belts and supplemental restraint system1-7

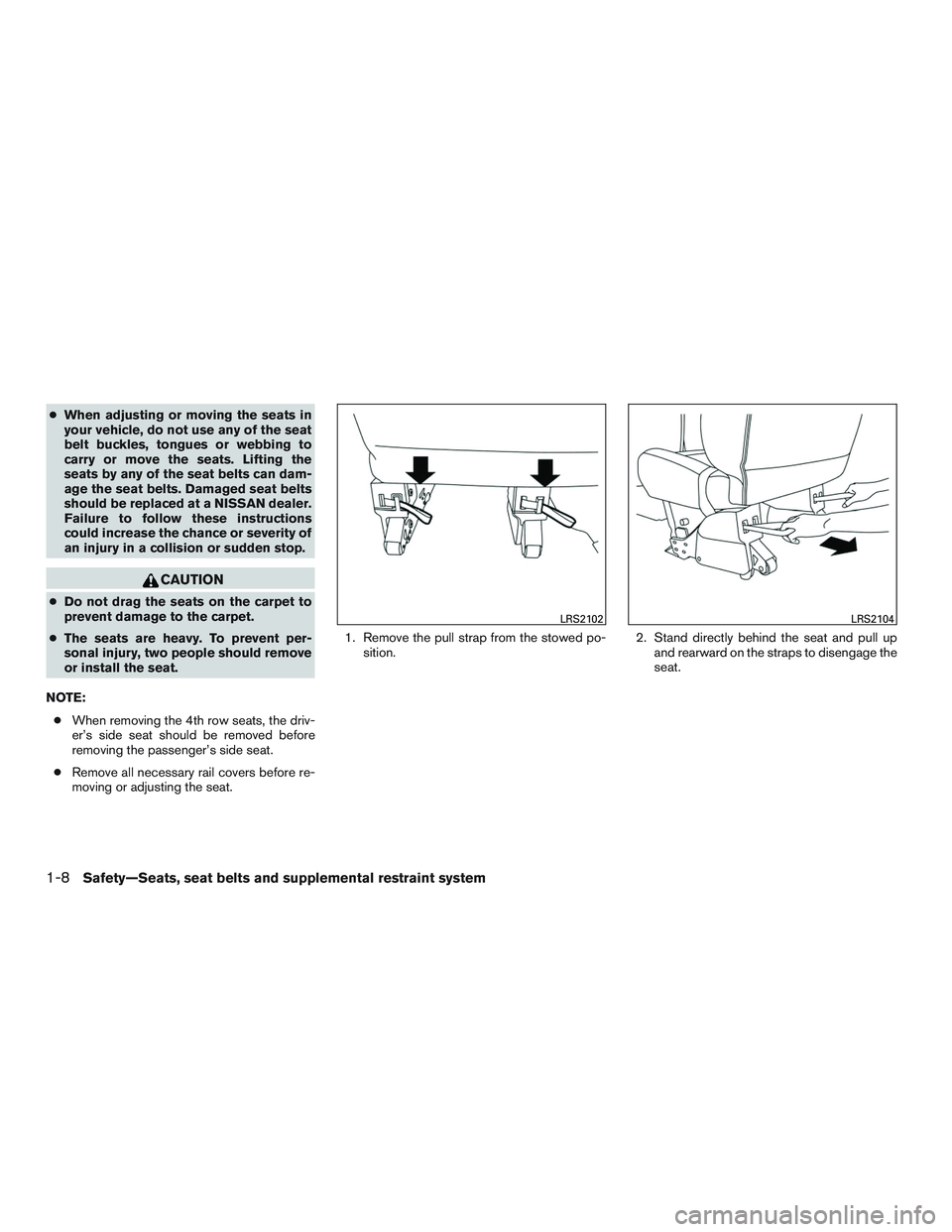

●When adjusting or moving the seats in
your vehicle, do not use any of the seat
belt buckles, tongues or webbing to
carry or move the seats. Lifting the
seats by any of the seat belts can dam-
age the seat belts. Damaged seat belts
should be replaced at a NISSAN dealer.
Failure to follow these instructions
could increase the chance or severity of
an injury in a collision or sudden stop.
CAUTION
● Do not drag the seats on the carpet to
prevent damage to the carpet.
● The seats are heavy. To prevent per-
sonal injury, two people should remove
or install the seat.
NOTE: ● When removing the 4th row seats, the driv-
er’s side seat should be removed before
removing the passenger’s side seat.
● Remove all necessary rail covers before re-
moving or adjusting the seat. 1. Remove the pull strap from the stowed po-
sition. 2. Stand directly behind the seat and pull up
and rearward on the straps to disengage the
seat.
LRS2102LRS2104
1-8Safety—Seats, seat belts and supplemental restraint system

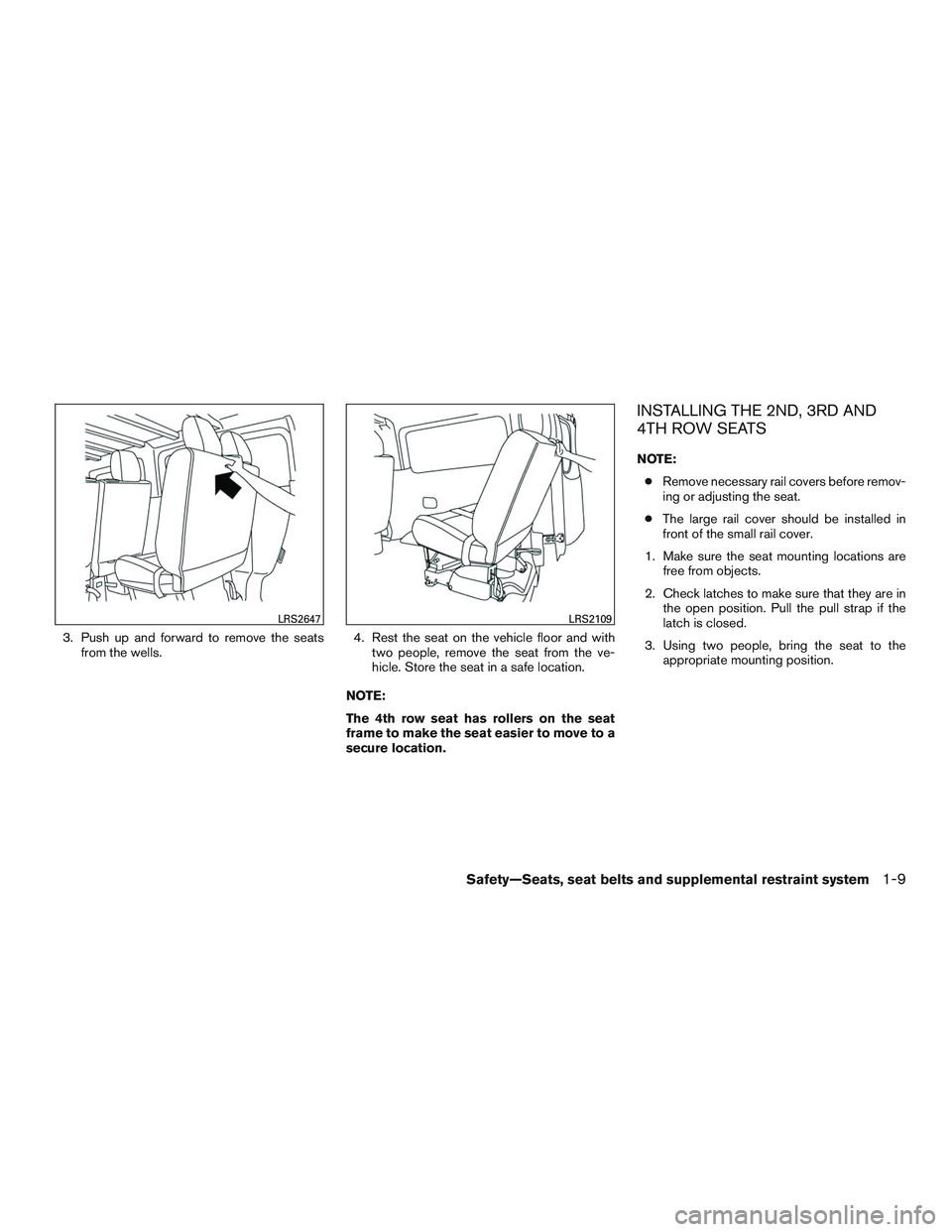

3. Push up and forward to remove the seatsfrom the wells. 4. Rest the seat on the vehicle floor and with
two people, remove the seat from the ve-
hicle. Store the seat in a safe location.
NOTE:
The 4th row seat has rollers on the seat
frame to make the seat easier to move to a
secure location.
INSTALLING THE 2ND, 3RD AND
4TH ROW SEATS
NOTE: ● Remove necessary rail covers before remov-
ing or adjusting the seat.
● The large rail cover should be installed in
front of the small rail cover.
1. Make sure the seat mounting locations are free from objects.
2. Check latches to make sure that they are in the open position. Pull the pull strap if the
latch is closed.
3. Using two people, bring the seat to the appropriate mounting position.
LRS2647LRS2109
Safety—Seats, seat belts and supplemental restraint system1-9

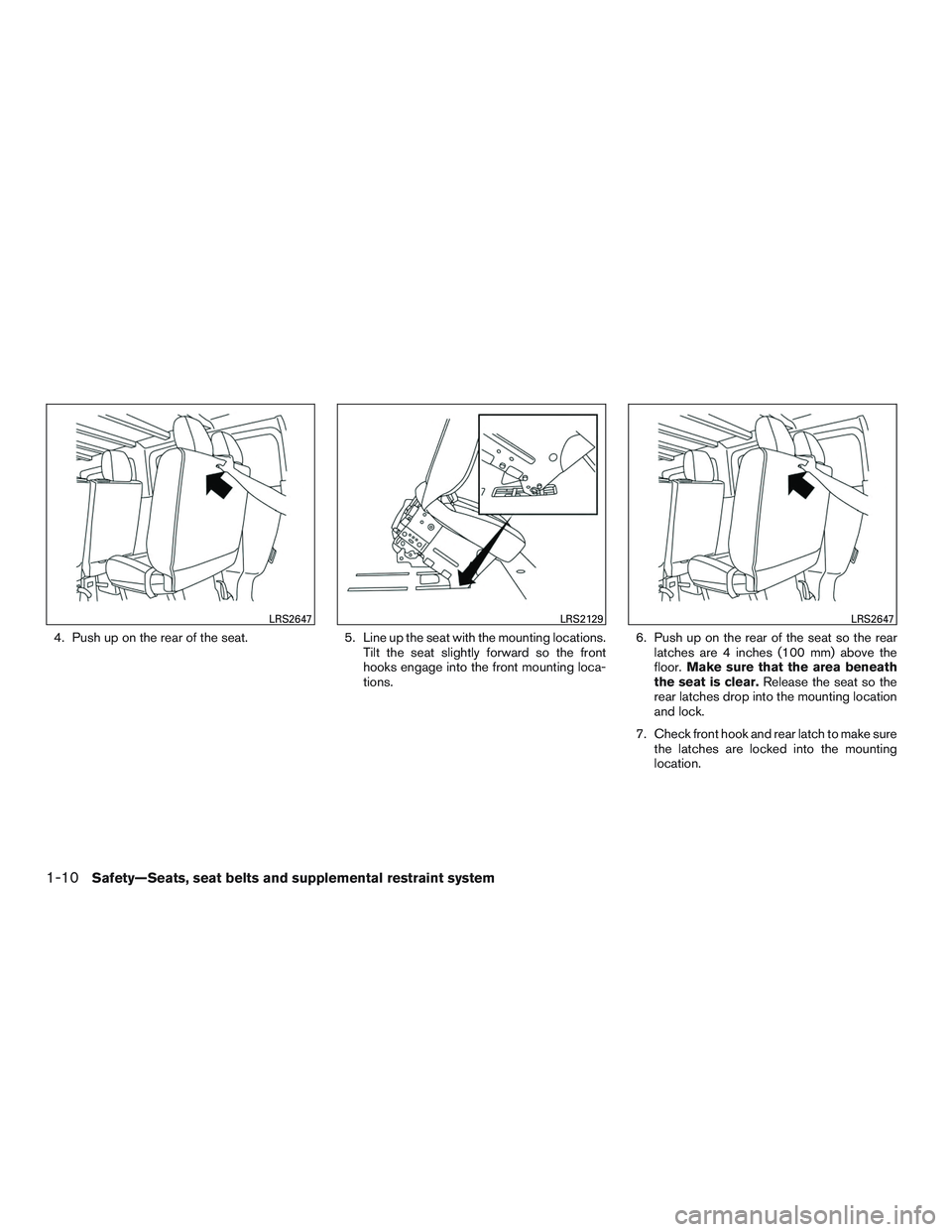

4. Push up on the rear of the seat.5. Line up the seat with the mounting locations.
Tilt the seat slightly forward so the front
hooks engage into the front mounting loca-
tions. 6. Push up on the rear of the seat so the rear
latches are 4 inches (100 mm) above the
floor. Make sure that the area beneath
the seat is clear. Release the seat so the
rear latches drop into the mounting location
and lock.
7. Check front hook and rear latch to make sure the latches are locked into the mounting
location.
LRS2647LRS2129LRS2647
1-10Safety—Seats, seat belts and supplemental restraint system

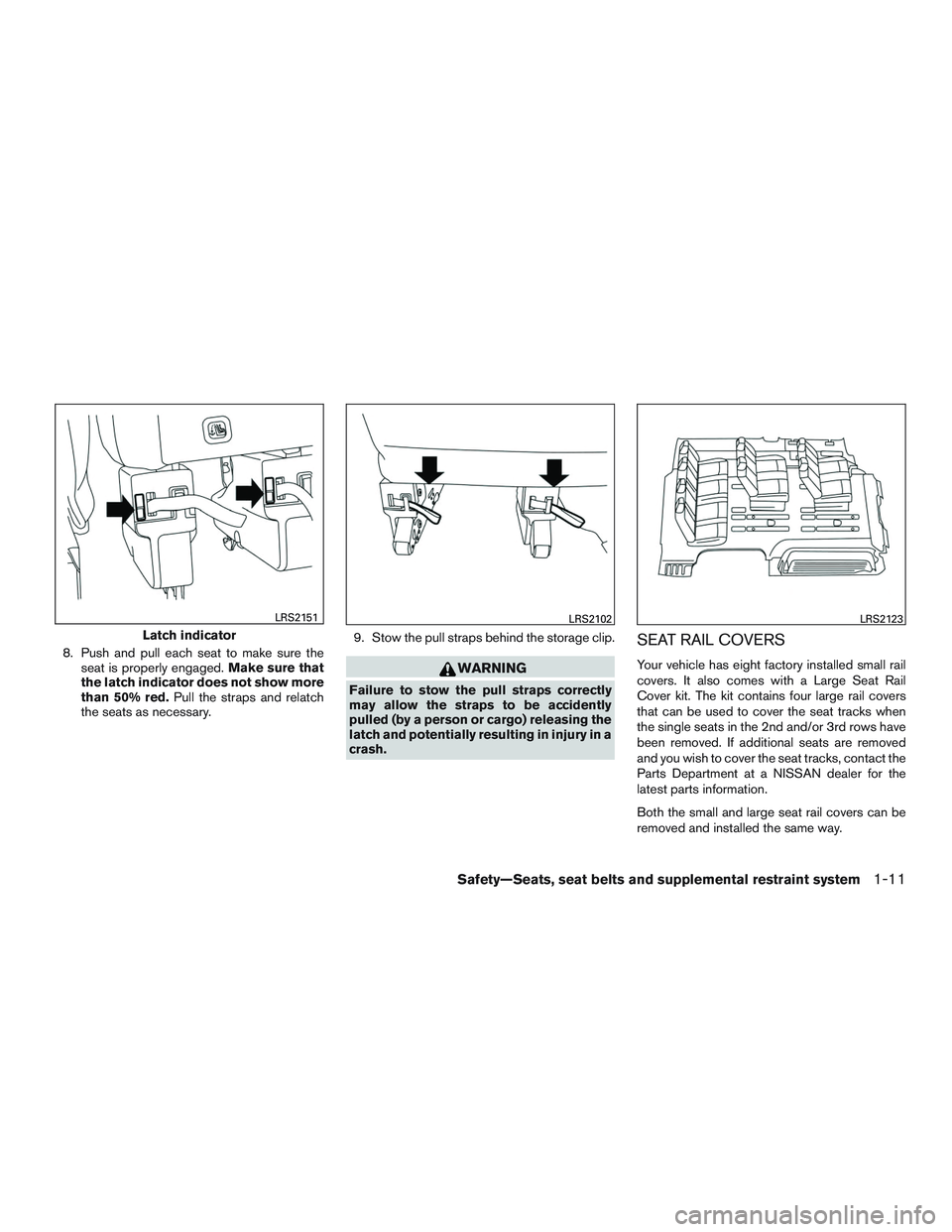

8. Push and pull each seat to make sure theseat is properly engaged. Make sure that
the latch indicator does not show more
than 50% red. Pull the straps and relatch
the seats as necessary. 9. Stow the pull straps behind the storage clip.
WARNING
Failure to stow the pull straps correctly
may allow the straps to be accidently
pulled (by a person or cargo) releasing the
latch and potentially resulting in injury in a
crash.
SEAT RAIL COVERS
Your vehicle has eight factory installed small rail
covers. It also comes with a Large Seat Rail
Cover kit. The kit contains four large rail covers
that can be used to cover the seat tracks when
the single seats in the 2nd and/or 3rd rows have
been removed. If additional seats are removed
and you wish to cover the seat tracks, contact the
Parts Department at a NISSAN dealer for the
latest parts information.
Both the small and large seat rail covers can be
removed and installed the same way.
Latch indicator
LRS2151LRS2102LRS2123
Safety—Seats, seat belts and supplemental restraint system1-11
