< SYSTEM DESCRIPTION >[HR16DE]
SYSTEM
EVAPORATIVE EMISSION SYSTEM
EVAPORATIVE EMISSION SYSTEM : System DiagramINFOID:0000000012431318
EVAPORATIVE EMISSION SYSTEM : System DescriptionINFOID:0000000012431319
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
JPBIA4896GB
Sensor Input signal to ECM ECM functionActuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Piston position
EVAP canister purge
flow controlEVAP canister purge volume
control solenoid valve
Mass air flow sensor
Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Air fuel ratio (A/F) sensor 1 Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
1
Fuel tank temperature sensor Fuel temperature in fuel tank
EVAP control system pressure sensor Pressure in purge line
Combination meter Vehicle speed*
2
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMEC-41
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydr
ocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accompli shed by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not oper ating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve al so shuts off the vapor purge line during decelerating.
INTAKE VALVE TIMING CONTROL
INTAKE VALVE TIMING CONTROL : System DiagramINFOID:0000000012431320
INTAKE VALVE TIMING CONT ROL : System DescriptionINFOID:0000000012431321
INPUT/OUTPUT SIGNAL CHART
PBIB3639E
JPBIA4760GB
Sensor Input signal to ECMECM functionActuator
Crankshaft position sensor (POS) Engine speed
*1
Piston position
Intake valve timing
controlIntake valve timing control
solenoid valve
Camshaft position sensor (PHASE)
Engine oil temperature sensor
Engine oil temperature
Engine coolant temperature sensor Engine coolant temperature
Combination meter Vehicle speed
*2
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-42
< SYSTEM DESCRIPTION >[HR16DE]
SYSTEM
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases c ontinuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, engine oil tempera-
ture and engine coolant temperature. Then, the ECM s ends ON/OFF pulse duty signals to the intake valve
timing (IVT) control solenoid valve depending on driving stat us. This makes it possible to control the shut/open
timing of the intake valve to increase engine torque in low/mid speed range and output in high-speed range.
EXHAUST VALVE TIMING CONTROL
EXHAUST VALVE TIMING CO NTROL : System DiagramINFOID:0000000012431322
EXHAUST VALVE TIMING CONT ROL : System DescriptionINFOID:0000000012431323
INPUT/OUTPUT SIGNAL CHART
JPBIA4884GB
JPBIA4885GB
SensorInput signal to ECM ECM functionActuator
Crankshaft position sensor (POS) Engine speed
*1
Piston position
Exhaust valve timing controlExhaust valve timing control
solenoid valve
Camshaft position sensor (PHASE)
Engine oil temperature sensor Engine oil temperature
Engine coolant temperature sensor Engine coolant temperature
Combination meter
Vehicle speed
*2
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMEC-43
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*1: ECM determines the start signal status
by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the exhaust
valve.
The ECM receives signals such as crankshaft positi on, camshaft position, engine speed, engine oil tempera-
ture and engine coolant temperature. Then, the ECM s ends ON/OFF pulse duty signals to the exhaust valve
timing (EVT) control solenoid valve depending on driving stat us. This makes it possible to control the shut/
open timing of the exhaust valve to increase engi ne torque and output in a range of high engine speed.
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System Dia-
gram
INFOID:0000000012431324
ENGINE PROTECTION CONTROL AT LOW ENGINE OIL PRESSURE : System De-
scription
INFOID:0000000012431325
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
• The engine protection control at low engine oil pressure warns the driver of a decrease in engine oil pres-
sure by the oil pressure warning lamp a before the engine becomes damaged.
• When detecting a decrease in engine oil pressure at an engine speed less than 1,000 rpm, ECM transmits an oil pressure warning lamp signal to the combination meter. The combination meter turns ON the oil pres-
sure warning lamp, according to the signal.
JPBIA4886GB
JSBIA0704GB
Sensor Input signal to ECM ECM function Actuator
Engine oil pressure sensor Engine pressure Engine protection control
• Oil pressure warning lamp signalCombination meter
• Oil pressure warning lamp
Crankshaft position sensor (POS) Engine speed
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-44
< SYSTEM DESCRIPTION >[HR16DE]
SYSTEM
*: When detecting a normal engine oil pressure, ECM turns OFF the oil pressure warning lamp.
FUEL FILLER CAP WARNING SYSTEM
FUEL FILLER CAP WARNING
SYSTEM : System DiagramINFOID:0000000012431326
FUEL FILLER CAP WARNING SYS TEM : System DescriptionINFOID:0000000012431327
INPUT/OUTPUT SIGNAL CHART
Input
*: This signal is sent to the ECM via the CAN communication line.
Output
*: This signal is sent to the combination meter via the CAN communication line.
SYSTEM DESCRIPTION
The fuel filler cap warning system alerts the driver to the prevention of the fuel filler being left uncapped and
malfunction occurrences after refueling, by turning ON the fuel filler cap warning display on the combination
meter.
ECM judges a refueled state, based on a fuel level signal transmitted from the combination meter.
When a very small leak is detected through the EVAP leak diagnosis performed after judging the refueled
state, ECM transmits a fuel filler cap warning display signal (request for display ON) to the combination meter
via CAN communication.
When receiving the signal, the combination meter turns ON the fuel filler cap warning display.
CAUTION:
Check fuel filler cap installation condition when the fuel filler cap warning display turns ON.
Reset Operation
Decrease in engine
oil pressure Engine speed Combination meter
Oil pressure warning lamp
Detection Less than 1,000 rpm
ON*
1,000 rpm or more ON
Unit/Sensor Input signal to ECM ECM function
EVAP control system pressure sensor Pressure in purge line
Fuel filler cap warning control
Combination meter Fuel level
Fuel filler cap warning reset signal
*
JSBIA0797GB
Unit
Output signal Actuator
ECM Fuel filler cap warning display signal
*Combination meter
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEMEC-45
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
The fuel filler cap warning lamp tunes OFF, according to any condition listed below:
• Reset operation is performed by operating the meter control switch on the combination meter. Refer to
MWI-
16, "Switch Name and Function".
- When the reset operation is performed, the combination meter transmits a fuel filler cap warning reset signal to ECM via CAN communication. ECM transmits a fuel filler cap warning display signal (request for display
OFF) to the combination meter via CAN communication. When receiving the signal, the combination meter
turns OFF the fuel filler cap warning display.
• EVAP leak diagnosis result is normal.
• Fuel refilled.
• DTC erased by using CONSULT.
NOTE:
MIL turns ON if a malfunction is detected in leak diagnosis results again at the trip after the fuel filler cap warn-
ing display turns ON/OFF.
AUTOMATIC SPEED CONTROL DEVICE (ASCD)

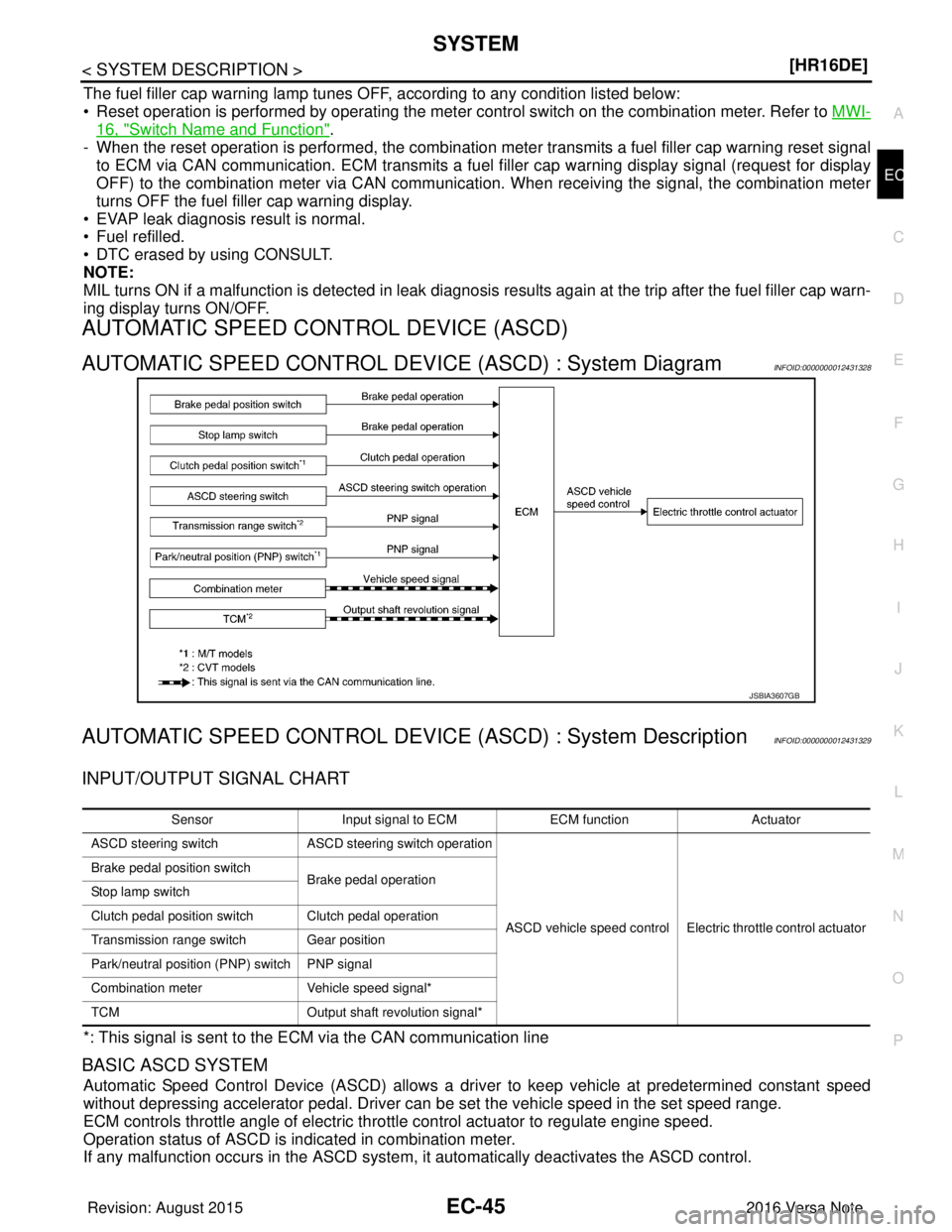

AUTOMATIC SPEED CONTROL DEVI CE (ASCD) : System DiagramINFOID:0000000012431328
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System DescriptionINFOID:0000000012431329
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line
BASIC ASCD SYSTEM
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can be set the vehicle speed in the set speed range.
ECM controls throttle angle of electric thro ttle control actuator to regulate engine speed.
Operation status of ASCD is indicated in combination meter.
If any malfunction occurs in the ASCD system, it automatically deactivates the ASCD control.
JSBIA3607GB
SensorInput signal to ECM ECM functionActuator
ASCD steering switch ASCD steering switch operation
ASCD vehicle speed control Electric throttle control actuator
Brake pedal position switch
Brake pedal operation
Stop lamp switch
Clutch pedal position switch Clutch pedal operation
Transmission range switch Gear position
Park/neutral position (PNP) switch PNP signal
Combination meter Vehicle speed signal*
TCM Output shaft revolution signal*
Revision: August 2015 2016 Versa Note

cardiagn.com

ON BOARD DIAGNOSTIC (OBD) SYSTEMEC-49
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Diagnosis DescriptionINFOID:0000000012431331
This system is an on board diagnostic system that re
cords exhaust emission-related diagnostic information
and detects a sensors/actuator-related malfunction. A ma lfunction is indicated by the malfunction indicator
lamp (MIL) and stored in ECU memory as a DTC. The diagnostic information can be obtained with the diag-
nostic tool (GST: Generic Scan Tool).
GST (Generic Scan Tool)INFOID:0000000012431332
When GST is connected with a data link connector equipped on the vehicle side, it will communicate with the
control unit equipped in the vehicle and then enable various kinds of diagnostic tests. Refer to EC-49, "
Diag-
nosis Description".
NOTE:
Service $0A is not applied for regions where it is not mandated.
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-58
< SYSTEM DESCRIPTION >[HR16DE]
DIAGNOSIS SYSTEM (ECM)

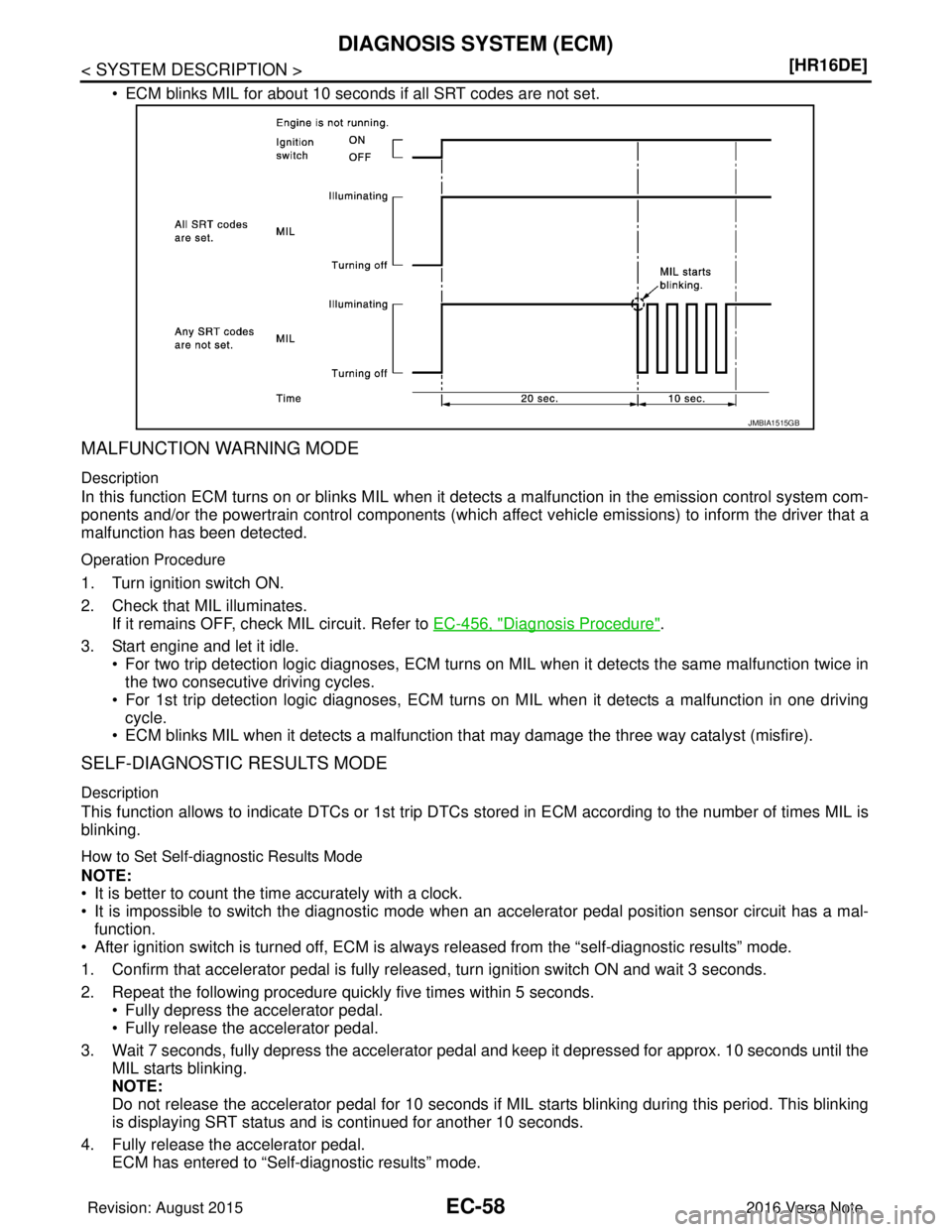

• ECM blinks MIL for about 10 seconds if all SRT codes are not set.
MALFUNCTION WARNING MODE
Description
In this function ECM turns on or blinks MIL when it detects a malfunction in the emission control system com-
ponents and/or the powertrain control components (which affe
ct vehicle emissions) to inform the driver that a
malfunction has been detected.
Operation Procedure
1. Turn ignition switch ON.
2. Check that MIL illuminates. If it remains OFF, check MIL circuit. Refer to EC-456, "
Diagnosis Procedure".
3. Start engine and let it idle. • For two trip detection logic diagnoses, ECM turns on MIL when it detects the same malfunction twice inthe two consecutive driving cycles.
• For 1st trip detection logic diagnoses, ECM turns on MIL when it detects a malfunction in one driving cycle.
• ECM blinks MIL when it detects a malfunction t hat may damage the three way catalyst (misfire).
SELF-DIAGNOSTIC RESULTS MODE
Description
This function allows to indicate DTCs or 1st trip DT Cs stored in ECM according to the number of times MIL is
blinking.
How to Set Self-diagnostic Results Mode
NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a mal-
function.
• After ignition switch is turned off, ECM is always released from the “self-diagnostic results” mode.
1. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds. • Fully depress the accelerator pedal.
• Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it depressed for approx. 10 seconds until the MIL starts blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MIL starts blinking during this period. This blinking
is displaying SRT status and is continued for another 10 seconds.
4. Fully release the accelerator pedal. ECM has entered to “Self-diagnostic results” mode.
JMBIA1515GB
Revision: August 2015 2016 Versa Note

cardiagn.com
