DETE/CANCL SW
When selector lever is in P position Off
When selector lever is in any position other than P
On
DOOR STAT-AS Passenger door LOCK status
LOCK
Passenger door UNLOCK status UNLK
Wait with selective UNLOCK operation (5 seconds) READY
DOOR STAT-DR Driver door LOCK status
LOCK
Driver door UNLOCK status UNLK
Wait with selective UNLOCK operation (5 seconds) READY
DOOR SW-AS Front door RH closed
Off
Front door RH opened On
DOOR SW-BK Back door closed
Off
Back door opened On
DOOR SW-DR Front door LH closed
Off
Front door LH opened On
DOOR SW-RL Rear door LH closed
Off
Rear door LH opened On
DOOR SW-RR Rear door RH closed
Off
Rear door RH opened On
ENGINE STATE Engine stopped
Stop
While the engine stalls Stall
At engine cranking Crank
Engine running Run
FAN O N SIG Blower motor fan switch OFF
Off
Blower motor fan switch ON On
FR FOG SW Front fog lamp switch OFF
Off
Front fog lamp switch ON On
FR WASHER SW Front washer switch OFF
Off
Front washer switch ON On
FR WIPER LOW Front wiper switch OFF
Off
Front wiper switch LO On
FR WIPER HI Front wiper switch OFF
Off
Front wiper switch HI On
FR WIPER INT Front wiper switch OFF
Off
Front wiper switch INT On
FR WIPER STOP Any position other than front wiper stop position
Off
Front wiper stop position On
HAZARD SW When hazard switch is not pressed
Off
When hazard switch is pressed On
HEAD LAMP SW 1 Headlamp switch OFF
Off
Headlamp switch 1st On
HEAD LAMP SW 2 Headlamp switch OFF
Off
Headlamp switch 1st On
HI BEAM SW High beam switch OFF
Off
High beam switch HI On
Monitor Item
Condition Value/Status
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-34
< ECU DIAGNOSIS INFORMATION >[WITH INTELLIGENT KEY SYSTEM]
BCM
TERMINAL LAYOUT
PHYSICAL VALUES
JMMIA1063ZZ
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
1
(GR) Ground Rear window
defogger relay
control Input
Rear window
defogger switch OFF
Battery voltage
ON 0 – 0.5 V
2
(BR) Ground INPUT 5 signal Input
Combination
switchOFF
0 V
TURN RH
1.0 V
HEADLAMP 1
HI BEAM
TAIL LAMP
PKIB4958J
Revision: August 2015
2016 Versa Note

cardiagn.com

BCS
BCM

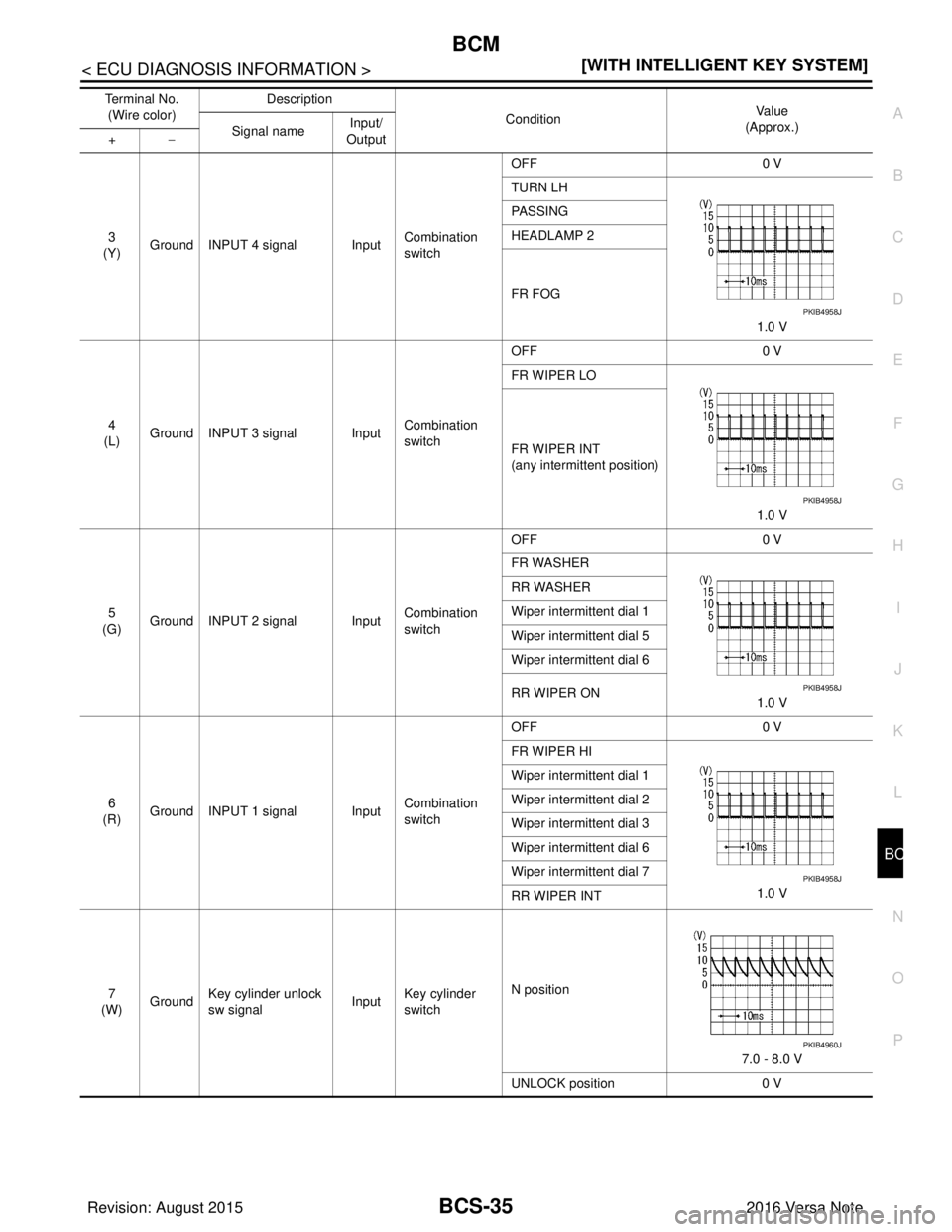

BCS-35
< ECU DIAGNOSIS INFORMATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N3
(Y) Ground INPUT 4 signal Input Combination
switchOFF
0 V
TURN LH
1.0 V
PASSING
HEADLAMP 2
FR FOG
4
(L) Ground INPUT 3 signal Input Combination
switchOFF
0 V
FR WIPER LO
1.0 V
FR WIPER INT
(any intermittent position)
5
(G) Ground INPUT 2 signal Input Combination
switchOFF
0 V
FR WASHER
1.0 V
RR WASHER
Wiper intermittent dial 1
Wiper intermittent dial 5
Wiper intermittent dial 6
RR WIPER ON
6
(R) Ground INPUT 1 signal Input Combination
switchOFF
0 V
FR WIPER HI
1.0 V
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 3
Wiper intermittent dial 6
Wiper intermittent dial 7
RR WIPER INT
7
(W) Ground
Key cylinder unlock
sw signal Input
Key cylinder
switch N position
7.0 - 8.0 V
UNLOCK position 0 V
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4958J
PKIB4958J
PKIB4958J
PKIB4958J
PKIB4960J
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCM

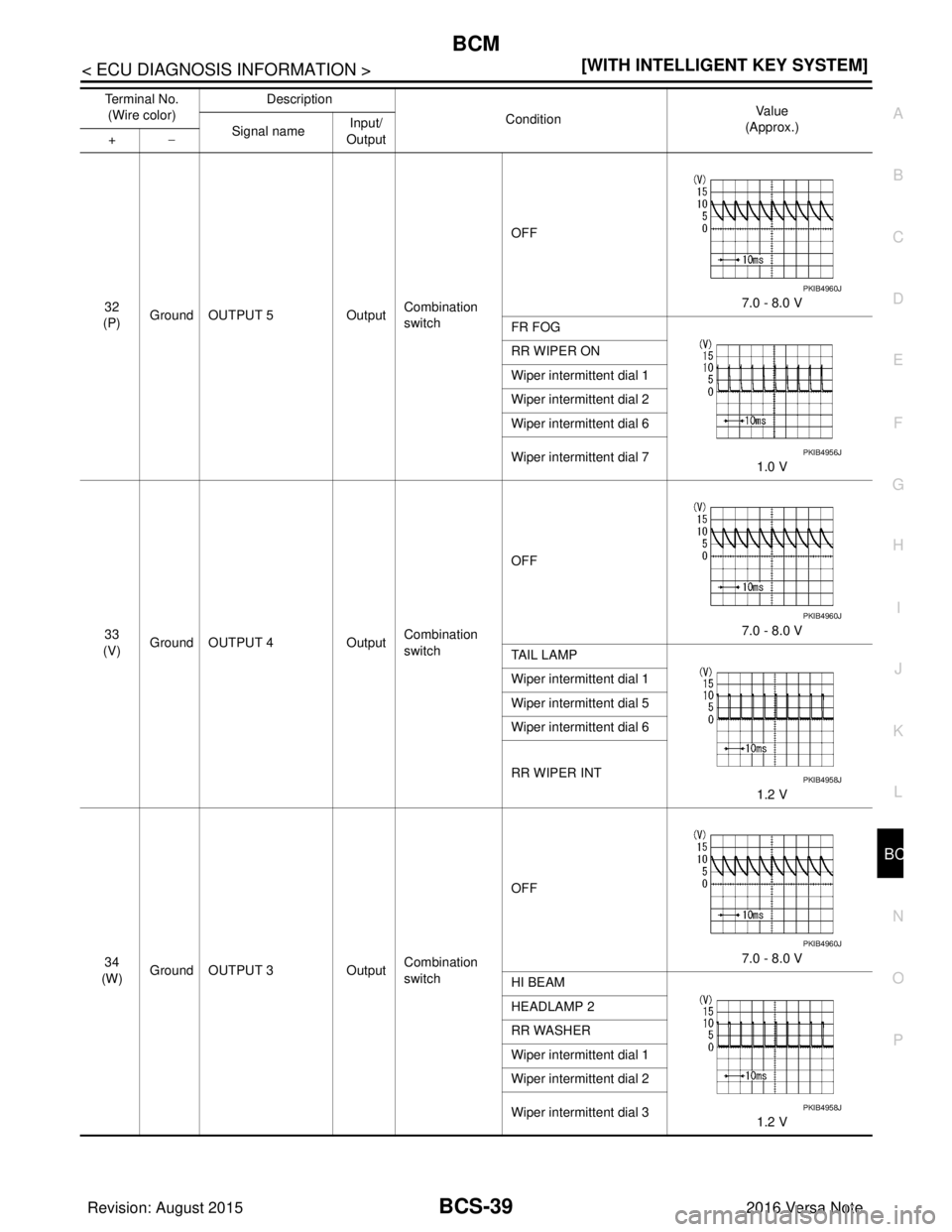

BCS-39
< ECU DIAGNOSIS INFORMATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
32
(P) Ground OUTPUT 5
OutputCombination
switch OFF
7.0 - 8.0 V
FR FOG
1.0 V
RR WIPER ON
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 6
Wiper intermittent dial 7
33
(V) Ground OUTPUT 4
OutputCombination
switch OFF
7.0 - 8.0 V
TAIL LAMP
1.2 V
Wiper intermittent dial 1
Wiper intermittent dial 5
Wiper intermittent dial 6
RR WIPER INT
34
(W) Ground OUTPUT 3
OutputCombination
switch OFF
7.0 - 8.0 V
HI BEAM
1.2 V
HEADLAMP 2
RR WASHER
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 3
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4960J
PKIB4956J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Revision: August 2015 2016 Versa Note

cardiagn.com

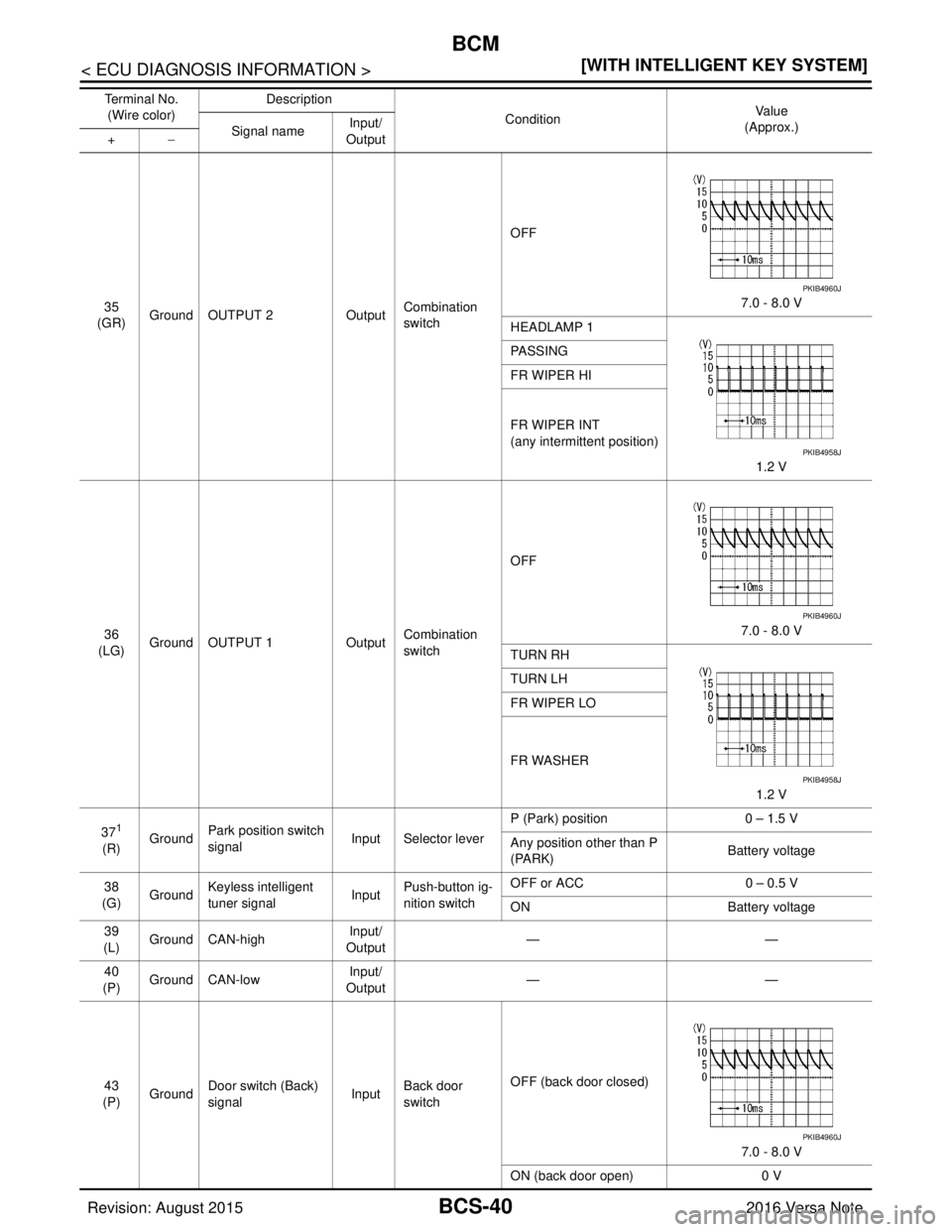

BCS-40
< ECU DIAGNOSIS INFORMATION >[WITH INTELLIGENT KEY SYSTEM]
BCM
35
(GR) Ground OUTPUT 2
OutputCombination
switch OFF
7.0 - 8.0 V
HEADLAMP 1
1.2 V
PASSING
FR WIPER HI
FR WIPER INT
(any intermittent position)
36
(LG) Ground OUTPUT 1
OutputCombination
switch OFF
7.0 - 8.0 V
TURN RH
1.2 V
TURN LH
FR WIPER LO
FR WASHER
37
1
(R) Ground
Park position switch
signal Input Selector lever P (Park) position
0 – 1.5 V
Any position other than P
(PARK) Battery voltage
38
(G) Ground
Keyless intelligent
tuner signal Input
Push-button ig-
nition switch OFF or ACC
0 – 0.5 V
ON Battery voltage
39
(L) Ground CAN-high Input/
Output ——
40
(P) Ground CAN-low
Input/
Output ——
43
(P) Ground
Door switch (Back)
signal Input
Back door
switch OFF (back door closed)
7.0 - 8.0 V
ON (back door open) 0 V
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-78
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
SYSTEM
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : System DescriptionINFOID:0000000012432363
OUTLINE
• BCM (Body Control Module) controls the various elec
trical components. It inputs the information required to
the control from CAN communication and the signal received from each switch and sensor.
• BCM has combination switch reading function for reading the operation status of combination switches (light,
turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-
ponents. It also has the signal transmission function as the passed point of signal and the power saving con-
trol function that reduces the power c onsumption with the ignition switch OFF.
• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various set- tings.
BCM CONTROL FUNCTION LIST
System Reference
Combination switch reading system BCS-79, "
COMBINATION SWITCH READING SYSTEM :
System Description"
Signal buffer system
BCS-85, "SIGNAL BUFFER : System Description"
Power consumption control systemBCS-85, "POWER CONSUMPTION CONTROL SYSTEM :
System Description"
Shipping mode control systemBCS-87, "SHIPPING MODE CONTROL SYSTEM : System
Description"
Transit mode control systemBCS-88, "TRANSIT MODE CONTROL SYSTEM : System
Description"
Headlamp system
EXL-8, "HEADLAMP SYSTEM : System Description"
Daytime running light system (if equipped)EXL-9, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"
Turn signal and hazard warning lamp systemEXL-10, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"
Parking, license plate and tail lamps systemEXL-11, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"
Front fog lamp system (if equipped)
EXL-10, "FRONT FOG LAMP SYSTEM : System Descrip-
tion"
Exterior lamp battery saver system
EXL-8, "HEADLAMP SYSTEM : System Description"
Interior room lamp control systemINL-7, "INTERIOR ROOM LAMP CONTROL SYSTEM : Sys-
tem Description"
Interior room lamp battery saver systemINL-7, "INTERIOR ROOM LAMP CONTROL SYSTEM : Sys-
tem Description"
Front wiper and washer system
WW-8, "FRONT WIPER AND WASHER SYSTEM : System
Description"
Rear wiper and washer systemWW-10, "REAR WIPER AND WASHER SYSTEM : System
Description"
Rear window defogger system
DEF-6, "System Description"
Manual air conditioning systemHAC-11, "System Description"
Warning chime systemWCS-7, "WARNING CHIME SYSTEM : System Description"
Power door lock systemDLK-198, "POWER DOOR LOCK SYSTEM : System De-
scription"
Nissan vehicle immobilizer system (NVIS)
SEC-123, "NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS : System Description"
Power window system
PWC-8, "System Description"
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-80
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Combination Switch Circuit (Without Variable Intermittent Wipers)
OUTLINE
• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the
status of each switch.
• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a
maximum of 20 switch states.
COMBINATION SWITCH MATRIX (WITH VARIABLE INTERMITTENT WIPERS)
Combination switch circuit (With Variable Intermittent Wipers)
Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH MATRIX (WITHOUT VARIABLE INTERMITTENT WIPERS)
AWMIA1441GB
SystemINPUT 1 INPUT 2INPUT 3INPUT 4 INPUT 5
OUTPUT 1 —FR WASHER FR WIPER LOW TURN LH TURN RH
OUTPUT 2 FR WIPER HI —FR WIPER INT PASSING HEADLAMP 1
OUTPUT 3 INT VOLUME 1 RR WASHER —HEADLAMP 2 HI BEAM
OUTPUT 4 RR WIPER INT INT VOLUME 3 ——TAIL LAMP
OUTPUT 5 INT VOLUME 2 RR WIPER ON —FR FOG —
AWMIA1429GB
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
SYSTEMBCS-81
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Combination Switch Circuit (Without Variable Intermittent Wipers)
Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH READING FUNCTION
Description
• BCM reads the status of the combinat
ion switch at 10 ms intervals normally.
NOTE:
BCM reads the status of the combination switch at 60 ms intervals when BCM is controlled at low power
consumption control mode.
• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT si de in the following order: OUTPUT 1 → 2 → 3 → 4 → 5, and outputs
voltage waveform.
- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT side if any (1 or more) switches are ON.
System INPUT 1 INPUT 2 INPUT 3INPUT 4INPUT 5
OUTPUT 1 —FR WASHER FR WIPER LOW TURN LH TURN RH
OUTPUT 2 FR WIPER HI —FR WIPER INT PASSING HEADLAMP 1
OUTPUT 3 —RR WASHER —HEADLAMP 2 HI BEAM
OUTPUT 4 RR WIPER INT ———TAIL LAMP
OUTPUT 5 —RR WIPER ON ———
AWMIA1442GB
JPMIA0609GB
Revision: August 2015 2016 Versa Note
