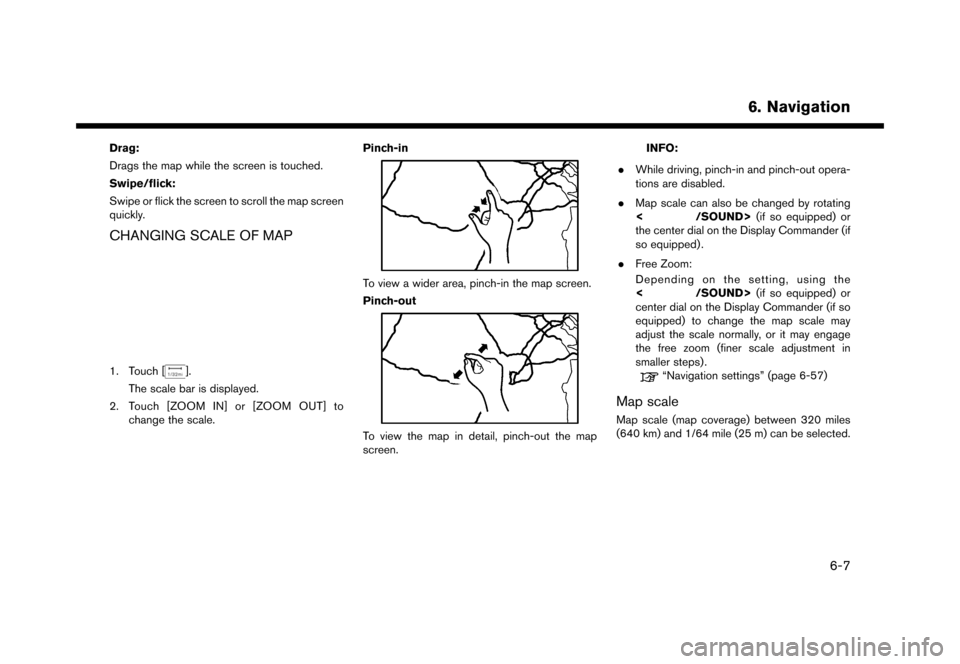

Drag:
Drags the map while the screen is touched.
Swipe/flick:
Swipe or flick the screen to scroll the map screen
quickly.
CHANGING SCALE OF MAPNCGNJN1402-120906-9DD1AE71-61BA-4F81-A0EB-6A8BF290FBF9
5GB0411X
1. Touch [].
The scale bar is displayed.
2. Touch [ZOOM IN] or [ZOOM OUT] to
change the scale. Pinch-in
5GB0246X
To view a wider area, pinch-in the map screen.
Pinch-out
5GB0243X
To view the map in detail, pinch-out the map
screen.
INFO:
. While driving, pinch-in and pinch-out opera-
tions are disabled.
. Map scale can also be changed by rotating
<
/SOUND> (if so equipped) or
the center dial on the Display Commander (if
so equipped) .
. Free Zoom:
Depending on the setting, using the
<
/SOUND> (if so equipped) or
center dial on the Display Commander (if so
equipped) to change the map scale may
adjust the scale normally, or it may engage
the free zoom (finer scale adjustment in
smaller steps) .
ªNavigation settingsº (page 6-57)
Map scaleNCGNJN1402-120906-254B822A-980F-405F-9359-0273C1E3FD89Map scale (map coverage) between 320 miles
(640 km) and 1/64 mile (25 m) can be selected.
6. Navigation
&RQGLWLRQ
6-7


> (GLW    0RGHO 1&*1-1 @

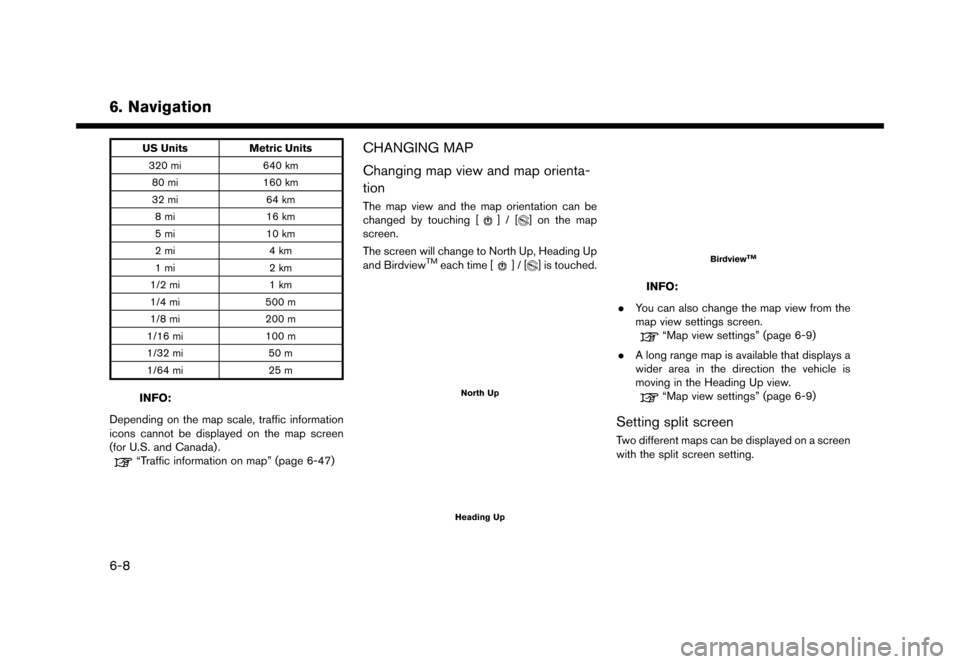

6. Navigation
US UnitsMetric Units
320 mi 640 km
80 mi 160 km
32 mi 64 km
8 mi 16 km
5 mi 10 km
2 mi 4 km
1 mi 2 km
1/2 mi 1 km
1/4 mi 500 m
1/8 mi 200 m
1/16 mi 100 m
1/32 mi 50 m
1/64 mi 25 m
INFO:
Depending on the map scale, traffic information
icons cannot be displayed on the map screen
(for U.S. and Canada) .
ªTraffic information on mapº (page 6-47)
CHANGING MAPNCGNJN1402-EE435B0C-944B-44A6-A02B-44DFEE72CD3F
Changing map view and map orienta-
tion
GUID-35401E88-4D28-4449-AE8A-C5939593E4EAThe map view and the map orientation can be
changed by touching [
] / [] on the map
screen.
The screen will change to North Up, Heading Up
and Birdview
TMeach time [] / [] is touched.
5GB0044X
North Up
5GB0413X
Heading Up
5GB0414X
BirdviewTM
INFO:
. You can also change the map view from the
map view settings screen.
ªMap view settingsº (page 6-9)
. A long range map is available that displays a
wider area in the direction the vehicle is
moving in the Heading Up view.
ªMap view settingsº (page 6-9)
Setting split screenNCGNJN1402-59764D97-54A7-4CDA-A1FE-D6101B420713Two different maps can be displayed on a screen
with the split screen setting.
&RQGLWLRQ
6-8


> (GLW    0RGHO 1&*1-1 @

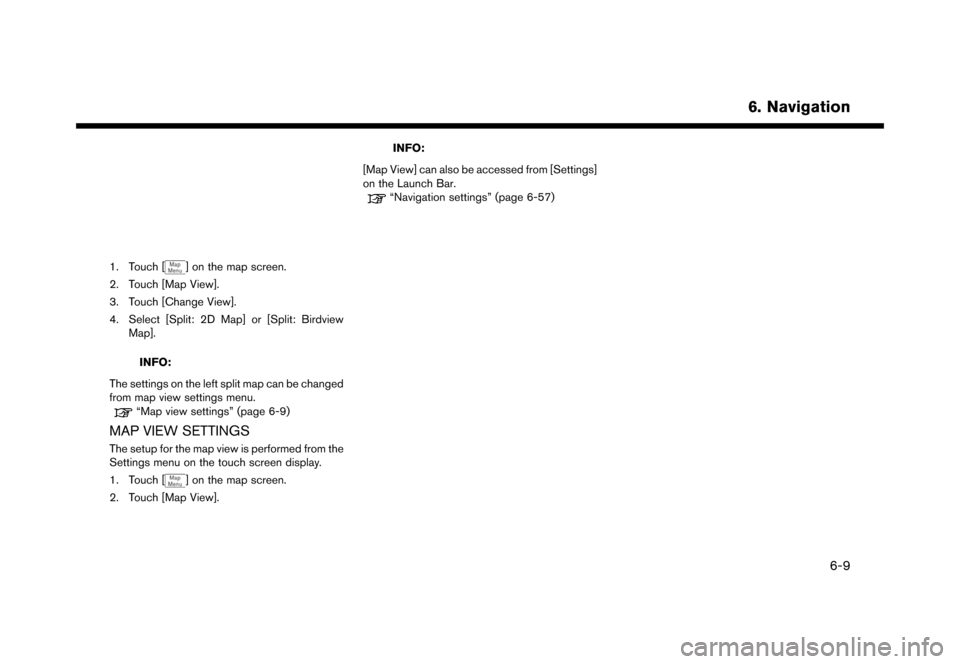

5GB0415X
1. Touch [] on the map screen.
2. Touch [Map View].
3. Touch [Change View].
4. Select [Split: 2D Map] or [Split: Birdview Map].
INFO:
The settings on the left split map can be changed
from map view settings menu.
ªMap view settingsº (page 6-9)
MAP VIEW SETTINGSNCGNJN1402-120906-1F6AA0DC-5FB8-4E2E-9C33-C843D820D840The setup for the map view is performed from the
Settings menu on the touch screen display.
1. Touch [
] on the map screen.
2. Touch [Map View].
INFO:
[Map View] can also be accessed from [Settings]
on the Launch Bar.
ªNavigation settingsº (page 6-57)
6. Navigation
&RQGLWLRQ
6-9


> (GLW    0RGHO 1&*1-1 @
6. Navigation

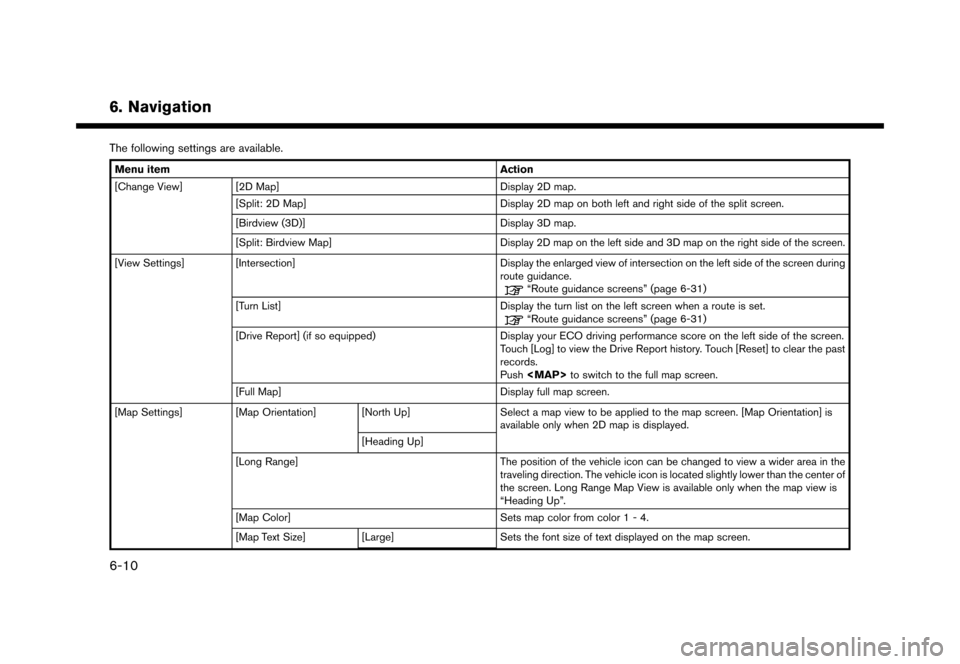

The following settings are available.
Menu itemAction
[Change View] [2D Map] Display 2D map.
[Split: 2D Map] Display 2D map on both left and right side of the split screen.
[Birdview (3D)] Display 3D map.
[Split: Birdview Map] Display 2D map on the left side and 3D map on the right side of the screen.
[View Settings] [Intersection] Display the enlarged view of intersection on the left side of the screen during
route guidance.
ªRoute guidance screensº (page 6-31)
[Turn List] Display the turn list on the left screen when a route is set.
ªRoute guidance screensº (page 6-31)
[Drive Report] (if so equipped) Display your ECO driving performance score on the left side of the screen.
Touch [Log] to view the Drive Report history. Touch [Reset] to clear the past
records.
Push


> (GLW    0RGHO 1&*1-1 @

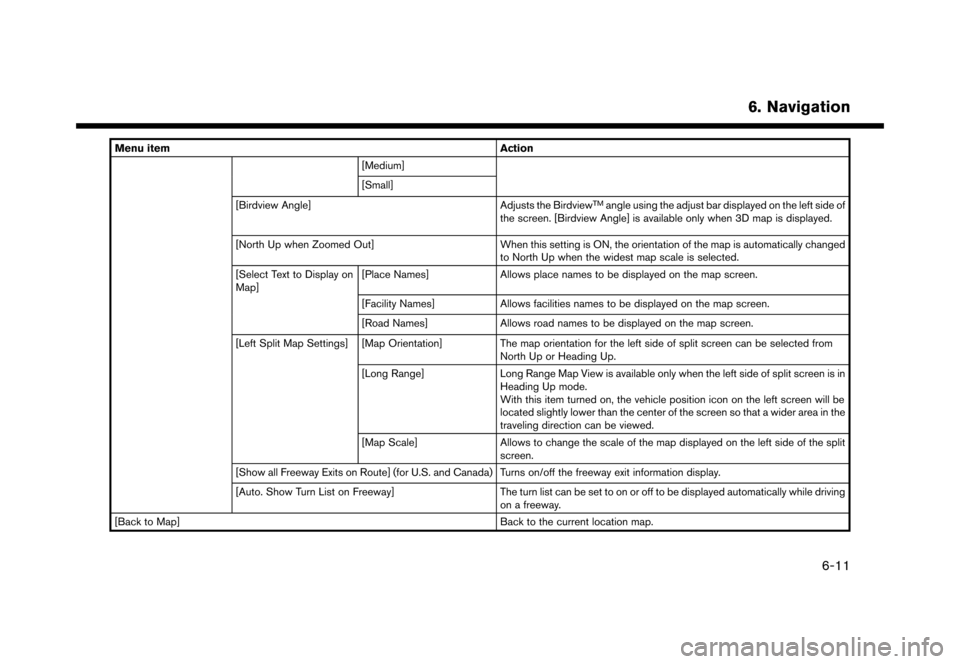

Menu itemAction
[Medium]
[Small]
[Birdview Angle] Adjusts the Birdview
TMangle using the adjust bar displayed on the left side of
the screen. [Birdview Angle] is available only when 3D map is displayed.
[North Up when Zoomed Out] When this setting is ON, the orientation of the map is automatically changed
to North Up when the widest map scale is selected.
[Select Text to Display on
Map] [Place Names]
Allows place names to be displayed on the map screen.
[Facility Names] Allows facilities names to be displayed on the map screen.
[Road Names] Allows road names to be displayed on the map screen.
[Left Split Map Settings] [Map Orientation] The map orientation for the left side of split screen can be selected from
North Up or Heading Up.
[Long Range] Long Range Map View is available only when the left side of split screen is in
Heading Up mode.
With this item turned on, the vehicle position icon on the left screen will be
located slightly lower than the center of the screen so that a wider area in the
traveling direction can be viewed.
[Map Scale] Allows to change the scale of the map displayed on the left side of the split
screen.
[Show all Freeway Exits on Route] (for U.S. and Canada) Turns on/off the freeway exit information display.
[Auto. Show Turn List on Freeway] The turn list can be set to on or off to be displayed automatically while driving
on a freeway.
[Back to Map] Back to the current location map.
6. Navigation
&RQGLWLRQ
6-11


> (GLW    0RGHO 1&*1-1 @
6. Navigation

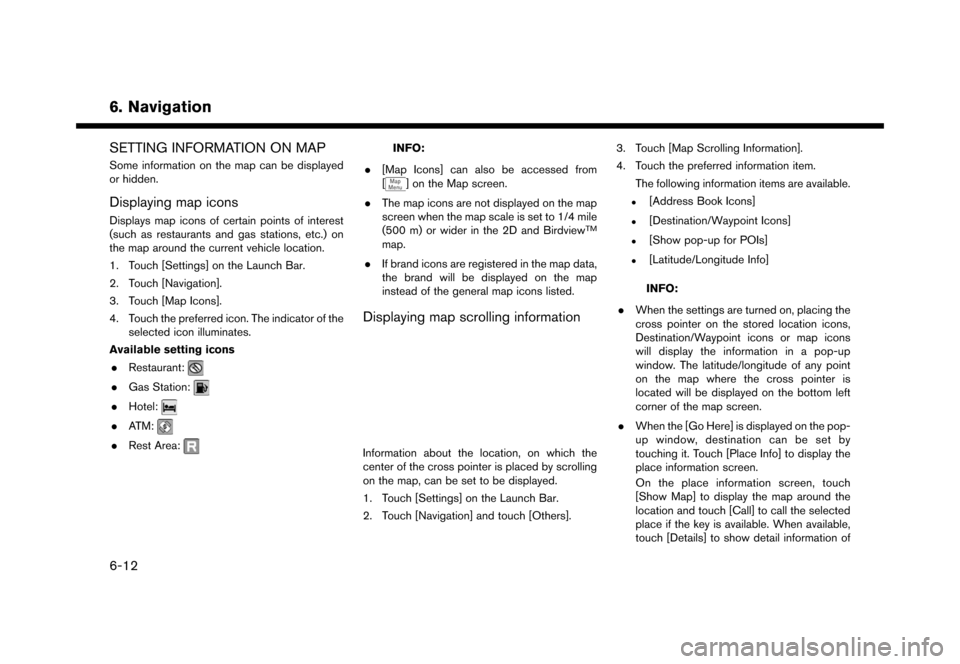

SETTING INFORMATION ON MAPNCGNJN1402-120906-571EE76C-6CCB-4E21-8682-A57D3A386B15Some information on the map can be displayed
or hidden.
Displaying map iconsNCGNJN1402-120906-AA72987D-2743-4761-9338-7DED04C38996Displays map icons of certain points of interest
(such as restaurants and gas stations, etc.) on
the map around the current vehicle location.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Map Icons].
4. Touch the preferred icon. The indicator of theselected icon illuminates.
Available setting icons . Restaurant:
.Gas Station:
.Hotel:
.ATM:
.Rest Area:
INFO:
. [Map Icons] can also be accessed from
[
] on the Map screen.
. The map icons are not displayed on the map
screen when the map scale is set to 1/4 mile
(500 m) or wider in the 2D and Birdview
TM
map.
. If brand icons are registered in the map data,
the brand will be displayed on the map
instead of the general map icons listed.
Displaying map scrolling informationNCGNJN1402-120906-7E953B13-E5EF-41C1-88FC-C5E9ABF8FE53
5GB0416X
Information about the location, on which the
center of the cross pointer is placed by scrolling
on the map, can be set to be displayed.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Others]. 3. Touch [Map Scrolling Information].
4. Touch the preferred information item.
The following information items are available.
.[Address Book Icons]
.[Destination/Waypoint Icons]
.[Show pop-up for POIs]
.[Latitude/Longitude Info]
INFO:
. When the settings are turned on, placing the
cross pointer on the stored location icons,
Destination/Waypoint icons or map icons
will display the information in a pop-up
window. The latitude/longitude of any point
on the map where the cross pointer is
located will be displayed on the bottom left
corner of the map screen.
. When the [Go Here] is displayed on the pop-
up window, destination can be set by
touching it. Touch [Place Info] to display the
place information screen.
On the place information screen, touch
[Show Map] to display the map around the
location and touch [Call] to call the selected
place if the key is available. When available,
touch [Details] to show detail information of
&RQGLWLRQ
6-12


> (GLW    0RGHO 1&*1-1 @
the place.
TRAFFIC INFORMATION ON MAP (for
U.S. and Canada)
NCGNJN1402-120906-76DF2039-9D48-4277-86E8-FF7C624B9B6DWith a subscription to SiriusXM Traffic, traffic
information is displayed.
ªTraffic information on mapº (page 6-47)
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red
Section affected by serious traffic event: Purple
The following traffic information icons may be
displayed.
: Accident
: Closed road
: Information
: Road work
: Slippery road
: Weather
: Incident
INFO:
Traffic icons are displayed in the scale level of
1/64 miles (25 m) - 5 miles (10 km) range. Some
traffic icons are displayed only on the map at
higher detail levels.
MAP MENU SCREENGUID-0929BEAC-F11F-4396-A760-B4D3410181E5Touch [] while the current location map
screen or a scrolled map screen is displayed to
display the menu corresponding to that screen.
This menu can be used to quickly access helpful
functions, such as setting a destination and
searching for points of interest nearby.
Current location map screenGUID-EA83CF78-70AB-4C26-AB1F-C95D1370CA59
5GB0481X
If [] is touched while the current location map
screen is displayed, the following options are
available.
. [Save Location]:
Stores the current vehicle location in the
Address Book.
ªStoring location by moving mapº
(page 6-50)
. [Nearby POIs]:
Searches for points of interest near the
current vehicle location.
ªFinding nearby placeº (page 6-18)
. [Map View]:
Map view settings can be changed.
ªMap view settingsº (page 6-9)
. [Map Icons]:
The map icons can be displayed or hidden by
6. Navigation
&RQGLWLRQ
6-13


> (GLW    0RGHO 1&*1-1 @
6. Navigation
type.
ªDisplaying map iconsº (page 6-12)
. [Traffic Info Setting] (for U.S.and Canada):
Set the various functions of the SiriusXM
Traffic information system.
ªTraffic information on mapº
(page 6-47)
. [Cancel Route]:
Delete destination and waypoints.
ªCanceling Routeº (page 6-36)
Scrolled location map screenGUID-A63AF447-9FDA-4980-AA8F-A277E7E58E1F
5GB0482X
If [] is touched while a scrolled map screen is
displayed, the following options are available.
. [New Destination]:
Sets the map location pointed at by the cross
pointer as a new destination.
ªSetting point on mapº (page 6-24) .
[Add to Route]:
Adds the map location pointed at by the
cross pointer as a destination or a waypoint
to the route already set.
ªSetting destination or waypointº
(page 6-37)
. [Nearby POIs]:
Searches for points of interest near the map
location.
ªFinding nearby placeº (page 6-18)
. [Save Location]:
Stores the map location pointed at by the
cross pointer in the Address Book.
ªStoring location by moving mapº
(page 6-50)
. [Delete]:
Deletes a stored location or destination
(waypoint) which the cross pointer is placed
over an icon.
ªDeleting individual item on mapº
(page 6-55)
SETTING DESTINATIONNCGNJN1402-120906-501A39C4-2FAD-451F-B110-26D6B2F785A4The destination you wish to drive to can be set
for route guidance.
BASIC OPERATIONSGUID-F50ACAED-A068-494D-AA64-CD603677AFC9
Displaying destination setting menuNCGNJN1402-120906-B2EBC8BC-3B61-48B8-A7CB-A84B9994A079There are several methods that can be used to
set a destination. Select a preferred method for
finding and setting a destination.
5GB0419X
Touch [Navi] on the Launch Bar.
The destination screen will be displayed when a
route is not set.
