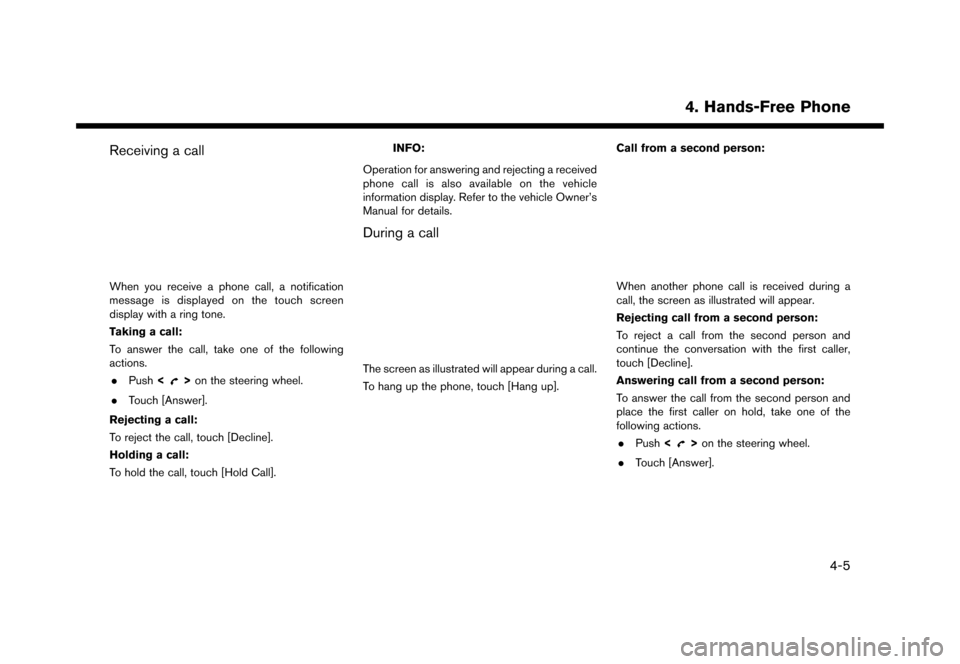

Receiving a callNCGNJN1402-120906-309AF505-32BC-4C5C-80D1-0E512251C11B
5GF0043X
When you receive a phone call, a notification
message is displayed on the touch screen
display with a ring tone.
Taking a call:
To answer the call, take one of the following
actions.. Push <
>on the steering wheel.
. Touch [Answer].
Rejecting a call:
To reject the call, touch [Decline].
Holding a call:
To hold the call, touch [Hold Call].
INFO:
Operation for answering and rejecting a received
phone call is also available on the vehicle
information display. Refer to the vehicle Owner's
Manual for details.
During a callNCGNJN1402-120906-C160F19D-493E-4687-BE13-1F6A2E523B4E
5GF0045X
The screen as illustrated will appear during a call.
To hang up the phone, touch [Hang up]. Call from a second person:
5GF0060X
When another phone call is received during a
call, the screen as illustrated will appear.
Rejecting call from a second person:
To reject a call from the second person and
continue the conversation with the first caller,
touch [Decline].
Answering call from a second person:
To answer the call from the second person and
place the first caller on hold, take one of the
following actions.
. Push <
>on the steering wheel.
. Touch [Answer].
4. Hands-Free Phone
&RQGLWLRQ
4-5


> (GLW    0RGHO 1&*1-1 @
4. Hands-Free Phone
5GF0061X

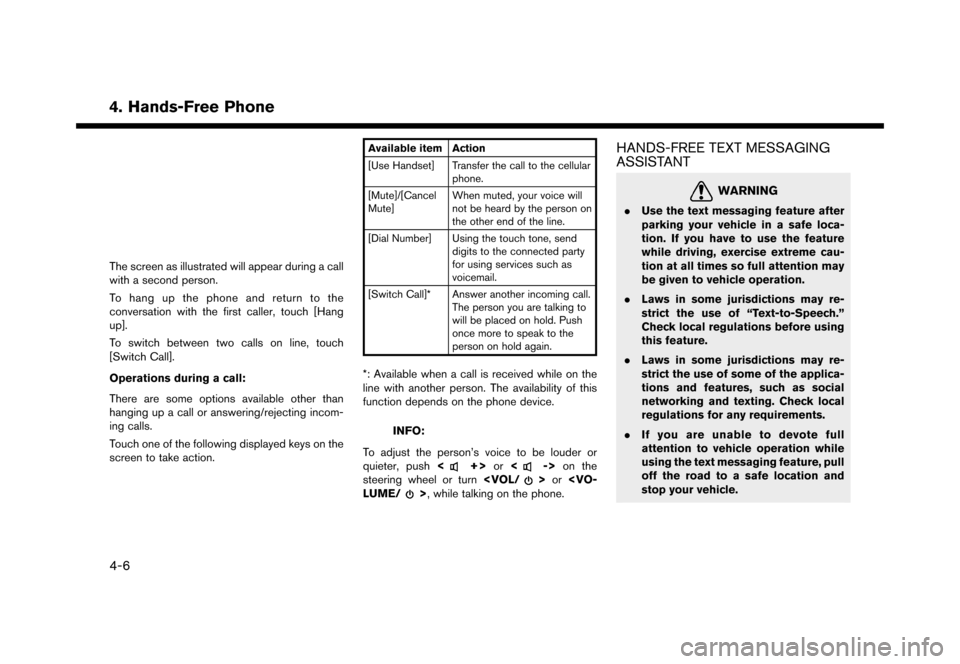

The screen as illustrated will appear during a call
with a second person.
To hang up the phone and return to the
conversation with the first caller, touch [Hang
up].
To switch between two calls on line, touch
[Switch Call].
Operations during a call:
There are some options available other than
hanging up a call or answering/rejecting incom-
ing calls.
Touch one of the following displayed keys on the
screen to take action.
Available item Action
[Use Handset] Transfer the call to the cellularphone.
[Mute]/[Cancel
Mute] When muted, your voice will
not be heard by the person on
the other end of the line.
[Dial Number] Using the touch tone, send digits to the connected party
for using services such as
voicemail.
[Switch Call]* Answer another incoming call. The person you are talking to
will be placed on hold. Push
once more to speak to the
person on hold again.
*: Available when a call is received while on the
line with another person. The availability of this
function depends on the phone device.
INFO:
To adjust the person's voice to be louder or
quieter, push <
+>or<-> on the
steering wheel or turn >or LUME/
>, while talking on the phone.
HANDS-FREE TEXT MESSAGING
ASSISTANT
NCGNJN1402-9092E6E3-0312-4427-83C9-7BCEA4744D55
WARNING1&*1-1)(%&(. Use the text messaging feature after
parking your vehicle in a safe loca-
tion. If you have to use the feature
while driving, exercise extreme cau-
tion at all times so full attention may
be given to vehicle operation.
. Laws in some jurisdictions may re-
strict the use of ªText-to-Speech.º
Check local regulations before using
this feature.
. Laws in some jurisdictions may re-
strict the use of some of the applica-
tions and features, such as social
networking and texting. Check local
regulations for any requirements.
. If you are unable to devote full
attention to vehicle operation while
using the text messaging feature, pull
off the road to a safe location and
stop your vehicle.
&RQGLWLRQ
4-6


> (GLW    0RGHO 1&*1-1 @

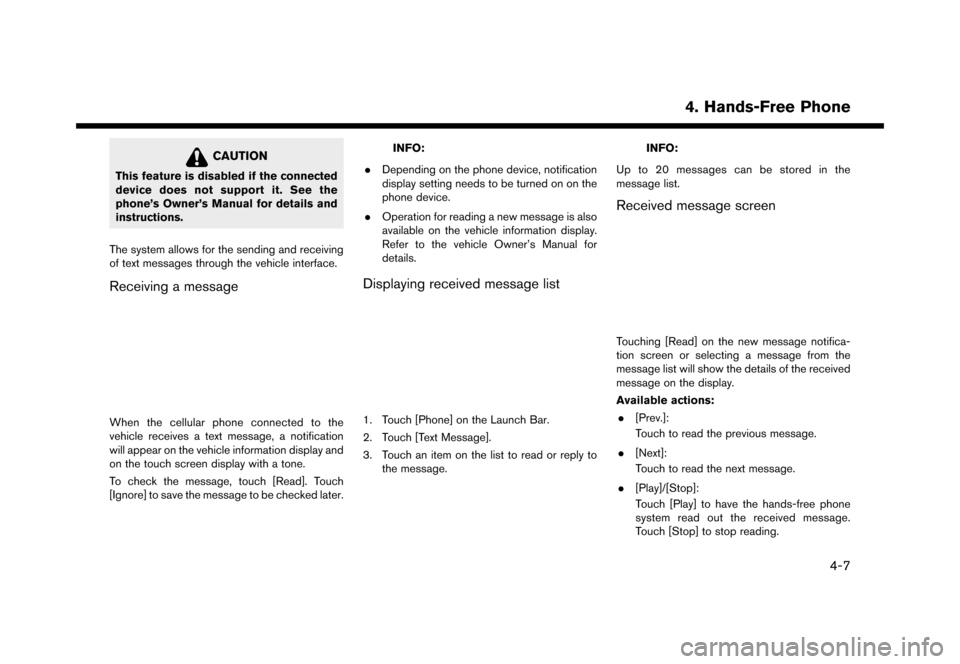

CAUTION1&*1-1'))%%'(&%')&This feature is disabled if the connected
device does not support it. See the
phone's Owner's Manual for details and
instructions.
The system allows for the sending and receiving
of text messages through the vehicle interface.
Receiving a messageNCGNJN1402-21DB93A3-3BB9-4A41-BD63-D9FB66E9ED45
5GF0046X
When the cellular phone connected to the
vehicle receives a text message, a notification
will appear on the vehicle information display and
on the touch screen display with a tone.
To check the message, touch [Read]. Touch
[Ignore] to save the message to be checked later.
INFO:
. Depending on the phone device, notification
display setting needs to be turned on on the
phone device.
. Operation for reading a new message is also
available on the vehicle information display.
Refer to the vehicle Owner's Manual for
details.
Displaying received message listNCGNJN1402-95452804-687D-42E4-A40B-91BFF2EC5D60
5GF0048X
1. Touch [Phone] on the Launch Bar.
2. Touch [Text Message].
3. Touch an item on the list to read or reply to
the message.
INFO:
Up to 20 messages can be stored in the
message list.
Received message screenNCGNJN1402-C9EDB768-A890-45FB-A50B-C65A60FEEDEE
5GF0047X
Touching [Read] on the new message notifica-
tion screen or selecting a message from the
message list will show the details of the received
message on the display.
Available actions: . [Prev.]:
Touch to read the previous message.
. [Next]:
Touch to read the next message.
. [Play]/[Stop]:
Touch [Play] to have the hands-free phone
system read out the received message.
Touch [Stop] to stop reading.
4. Hands-Free Phone
&RQGLWLRQ
4-7


> (GLW    0RGHO 1&*1-1 @
4. Hands-Free Phone

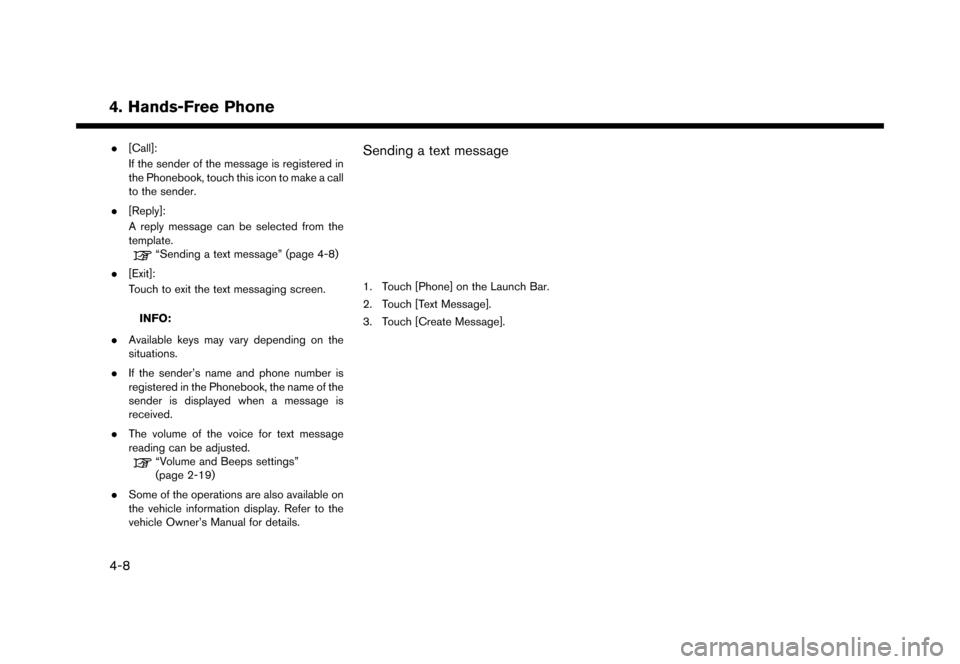

.[Call]:
If the sender of the message is registered in
the Phonebook, touch this icon to make a call
to the sender.
. [Reply]:
A reply message can be selected from the
template.
ªSending a text messageº (page 4-8)
. [Exit]:
Touch to exit the text messaging screen.
INFO:
. Available keys may vary depending on the
situations.
. If the sender's name and phone number is
registered in the Phonebook, the name of the
sender is displayed when a message is
received.
. The volume of the voice for text message
reading can be adjusted.
ªVolume and Beeps settingsº
(page 2-19)
. Some of the operations are also available on
the vehicle information display. Refer to the
vehicle Owner's Manual for details.
Sending a text messageNCGNJN1402-2F6880B3-BAEC-4B6F-91B4-5465323E6184
5GF0049X
1. Touch [Phone] on the Launch Bar.
2. Touch [Text Message].
3. Touch [Create Message].
&RQGLWLRQ
4-8


> (GLW    0RGHO 1&*1-1 @

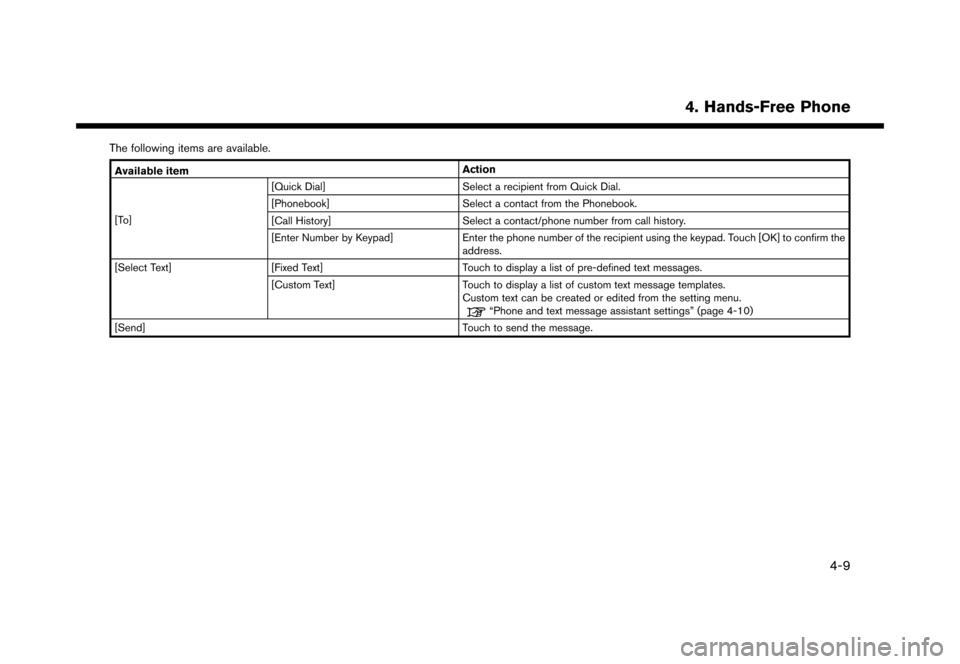

The following items are available.
Available itemAction
[To] [Quick Dial]
Select a recipient from Quick Dial.
[Phonebook] Select a contact from the Phonebook.
[Call History] Select a contact/phone number from call history.
[Enter Number by Keypad] Enter the phone number of the recipient using the keypad. Touch [OK] to confirm the
address.
[Select Text] [Fixed Text] Touch to display a list of pre-defined text messages.
[Custom Text] Touch to display a list of custom text message templates.
Custom text can be created or edited from the setting menu.
ªPhone and text message assistant settingsº (page 4-10)
[Send] Touch to send the message.
4. Hands-Free Phone
&RQGLWLRQ
4-9


> (GLW    0RGHO 1&*1-1 @
4. Hands-Free Phone

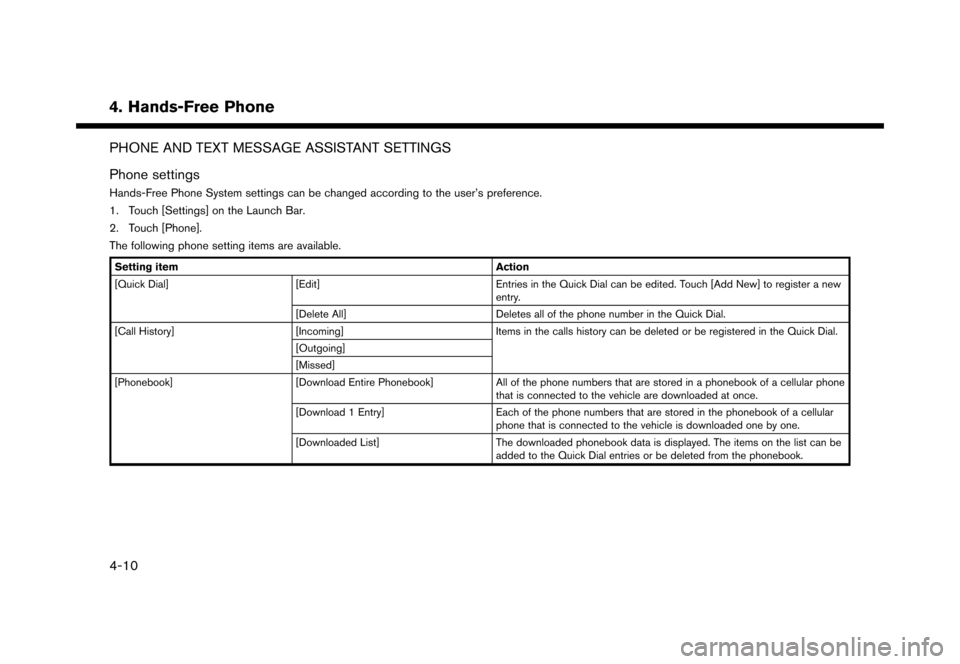

PHONE AND TEXT MESSAGE ASSISTANT SETTINGSNCGNJN1402-1513E8E2-AF29-4D62-968F-3689E6A05889
Phone settingsNCGNJN1402-120906-113ACEB2-74B1-46EA-92C5-7C0462E956E7Hands-Free Phone System settings can be changed according to the user's preference.
1. Touch [Settings] on the Launch Bar.
2. Touch [Phone].
The following phone setting items are available.
Setting itemAction
[Quick Dial] [Edit] Entries in the Quick Dial can be edited. Touch [Add New] to register a new
entry.
[Delete All] Deletes all of the phone number in the Quick Dial.
[Call History] [Incoming] Items in the calls history can be deleted or be registered in the Quick Dial.
[Outgoing]
[Missed]
[Phonebook] [Download Entire Phonebook] All of the phone numbers that are stored in a phonebook of a cellular phone
that is connected to the vehicle are downloaded at once.
[Download 1 Entry] Each of the phone numbers that are stored in the phonebook of a cellular
phone that is connected to the vehicle is downloaded one by one.
[Downloaded List] The downloaded phonebook data is displayed. The items on the list can be
added to the Quick Dial entries or be deleted from the phonebook.
&RQGLWLRQ
4-10


> (GLW    0RGHO 1&*1-1 @
4. Hands-Free Phone

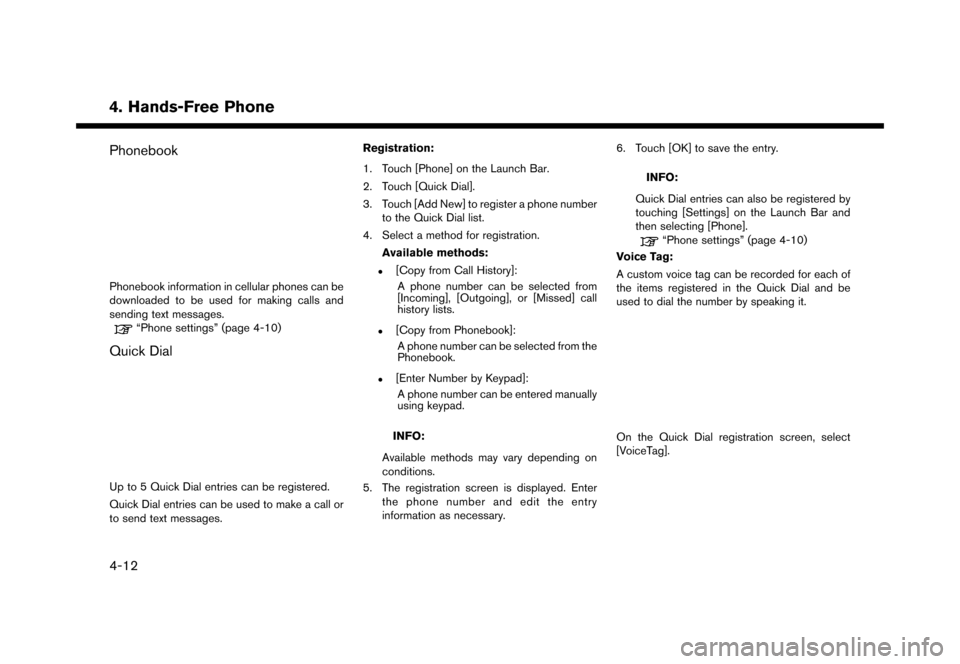

PhonebookNCGNJN1402-120906-03CA7EF1-BE5A-4519-9A4C-1E8BBB8D9AD5
5GF0050X
Phonebook information in cellular phones can be
downloaded to be used for making calls and
sending text messages.
ªPhone settingsº (page 4-10)
Quick DialNCGNJN1402-0FB27751-B822-433A-977A-435B2430D290
5GF0051X
Up to 5 Quick Dial entries can be registered.
Quick Dial entries can be used to make a call or
to send text messages.Registration:
1. Touch [Phone] on the Launch Bar.
2. Touch [Quick Dial].
3. Touch [Add New] to register a phone number
to the Quick Dial list.
4. Select a method for registration.
Available methods:
.[Copy from Call History]:A phone number can be selected from
[Incoming], [Outgoing], or [Missed] call
history lists.
.[Copy from Phonebook]:A phone number can be selected from the
Phonebook.
.[Enter Number by Keypad]:A phone number can be entered manually
using keypad.
INFO:
Available methods may vary depending on
conditions.
5. The registration screen is displayed. Enter the phone number and edit the entry
information as necessary. 6. Touch [OK] to save the entry.
INFO:
Quick Dial entries can also be registered by
touching [Settings] on the Launch Bar and
then selecting [Phone].
ªPhone settingsº (page 4-10)
Voice Tag:
A custom voice tag can be recorded for each of
the items registered in the Quick Dial and be
used to dial the number by speaking it.
5GF0052X
On the Quick Dial registration screen, select
[VoiceTag].
&RQGLWLRQ
4-12


> (GLW    0RGHO 1&*1-1 @

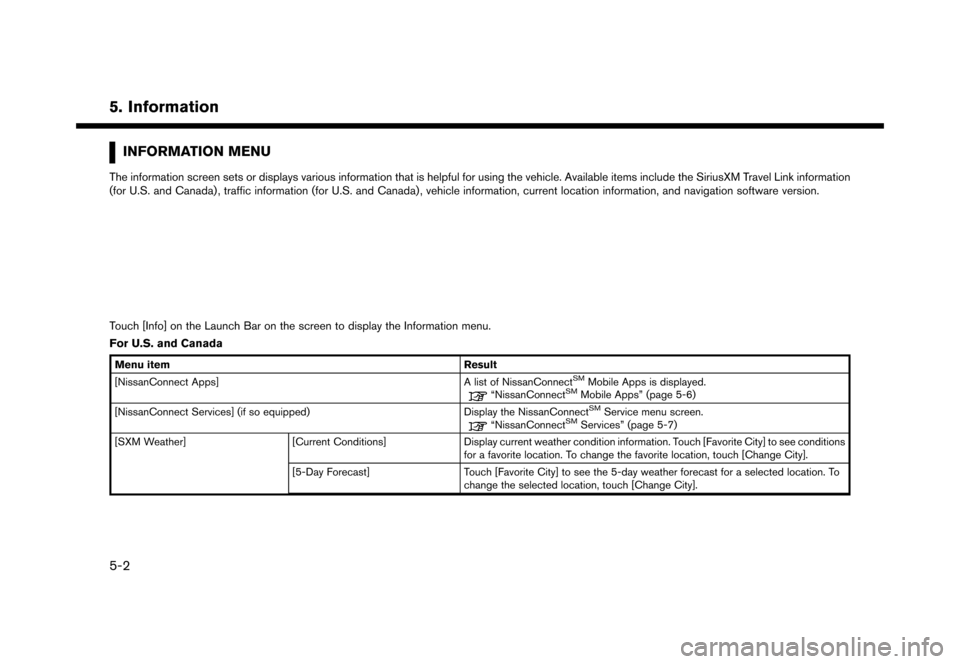

5. Information
INFORMATION MENUNCGNJN1402-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information
(for U.S. and Canada) , traffic information (for U.S. and Canada) , vehicle information, current location information, and navigation software version.
5GH0285X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
For U.S. and Canada
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 5-6)
[NissanConnect Services] (if so equipped) Display the NissanConnectSMService menu screen.ªNissanConnectSMServicesº (page 5-7)
[SXM Weather] [Current Conditions]Display current weather condition information. Touch [Favorite City] to see conditions
for a favorite location. To change the favorite location, touch [Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location. To
change the selected location, touch [Change City].
&RQGLWLRQ
