5. Information

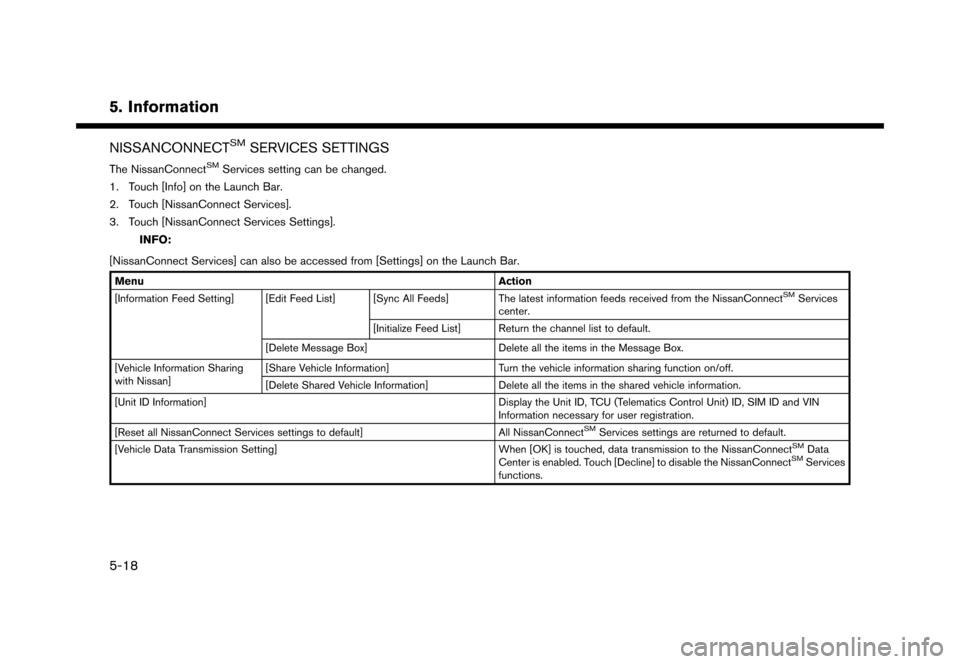

NISSANCONNECTSMSERVICES SETTINGSNCGNJN1402-BBEF517A-55F1-402B-8D8A-30E8BDC9B301The NissanConnectSMServices setting can be changed.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [NissanConnect Services Settings].
INFO:
[NissanConnect Services] can also be accessed from [Settings] on the Launch Bar.
Menu Action
[Information Feed Setting] [Edit Feed List] [Sync All Feeds] The latest information feeds received from the NissanConnectSMServices
center.
[Initialize Feed List] Return the channel list to default.
[Delete Message Box] Delete all the items in the Message Box.
[Vehicle Information Sharing
with Nissan] [Share Vehicle Information]
Turn the vehicle information sharing function on/off.
[Delete Shared Vehicle Information] Delete all the items in the shared vehicle information.
[Unit ID Information] Display the Unit ID, TCU (Telematics Control Unit) ID, SIM ID and VIN
Information necessary for user registration.
[Reset all NissanConnect Services settings to default] All NissanConnect
SMServices settings are returned to default.
[Vehicle Data Transmission Setting] When [OK] is touched, data transmission to the NissanConnectSMData
Center is enabled. Touch [Decline] to disable the NissanConnectSMServices
functions.
&RQGLWLRQ
5-18


> (GLW    0RGHO 1&*1-1 @
5. Information
SiriusXM Travel Link.
. Not all vehicles or devices are capable of
receiving all services offered by SiriusXM.
Data displays and individual product avail-
ability vary by vehicle hardware. Current
information and features may not be available
in all locations, or on all receivers. SiriusXM is
not responsible for any errors or inaccuracies
in the data services or their use in the vehicle.
Notes on SiriusXM Traffic informationNCGNJN1402-120906-3C768737-3150-4B3D-BA4F-F358165C07E4.The SiriusXM Traffic information service is
not provided for some cities. In addition, the
cities for which the traffic information service
is provided may be changed.
. In some cases, infrastructure problems may
prevent the complete display of the traffic
information. This is not a malfunction.
. Due to infrastructure problems, or due to the
time when the traffic information service
broadcast is received, the displayed informa-
tion may differ from the actual traffic condi-
tions.
. Depending on the traffic information, a
detour route may be slower than the original
route. .
SiriusXM Satellite Radio and SiriusXM Traffic
subscriptions are sold separately or as a
package, and are continuous until you call
SiriusXM to cancel. See SiriusXM Customer
Agreement for complete terms at the Sir-
iusXM website.
SiriusXM website:
For U.S.
www. siriusxm.com
For Canada
www.siriusxm.ca (English)
www.siriusxm.ca/fr (French)
SiriusXM Travel Link is available in select
markets. For more information, refer to the
SiriusXM website or call Listener Care.
SiriusXM website:
For U.S.
www.siriusxm.com/traffic
For Canada
www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-travel-link (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-travel-link (French)
Listener Care:
For U.S. 1-877-447-0011
For Canada
1-877-438-9677
. SiriusXM Traffic is available in over 130
metropolitan markets. For the most current
list of markets covered, please refer to the
SiriusXM website or call Listener Care.
SiriusXM website:
For U.S.
www.siriusxm.com/siriusxmtraffic
For Canada
www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-traffic (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-traffic (French)
Listener Care:
For U.S.
1-877-447-0011
For Canada
1-877-438-9677
. Due to road maintenance, infrastructure
problems (e.g. malfunction of road sensors,
outage of central computer of infrastructure)
or natural disasters, there are times when
some or all traffic information may not be
&RQGLWLRQ
5-20


> (GLW    0RGHO 1&*1-1 @

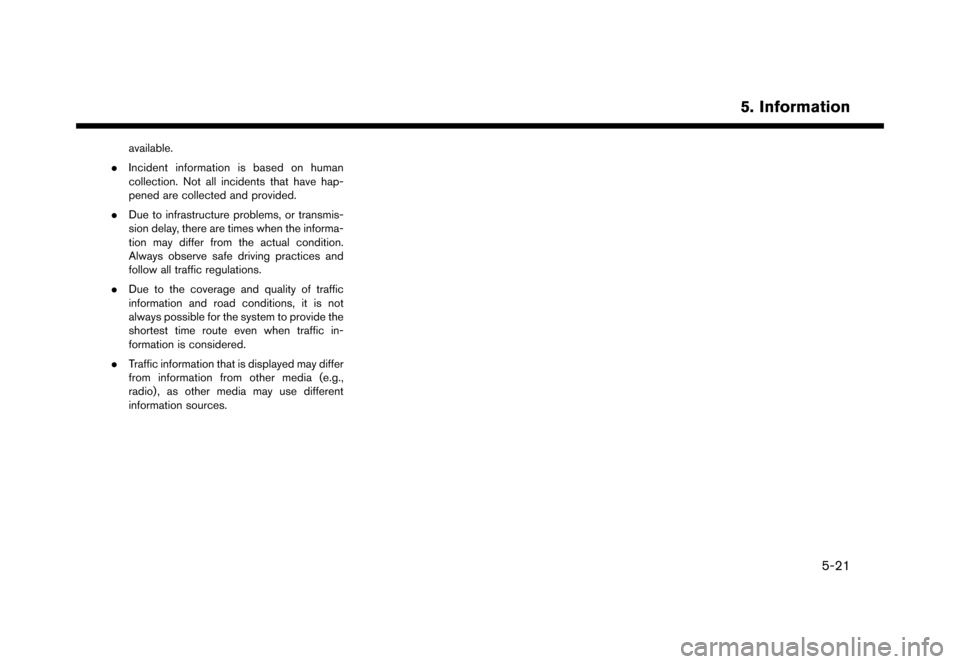

available.
. Incident information is based on human
collection. Not all incidents that have hap-
pened are collected and provided.
. Due to infrastructure problems, or transmis-
sion delay, there are times when the informa-
tion may differ from the actual condition.
Always observe safe driving practices and
follow all traffic regulations.
. Due to the coverage and quality of traffic
information and road conditions, it is not
always possible for the system to provide the
shortest time route even when traffic in-
formation is considered.
. Traffic information that is displayed may differ
from information from other media (e.g.,
radio) , as other media may use different
information sources.
5. Information
&RQGLWLRQ
5-21


> (GLW    0RGHO 1&*1-1 @

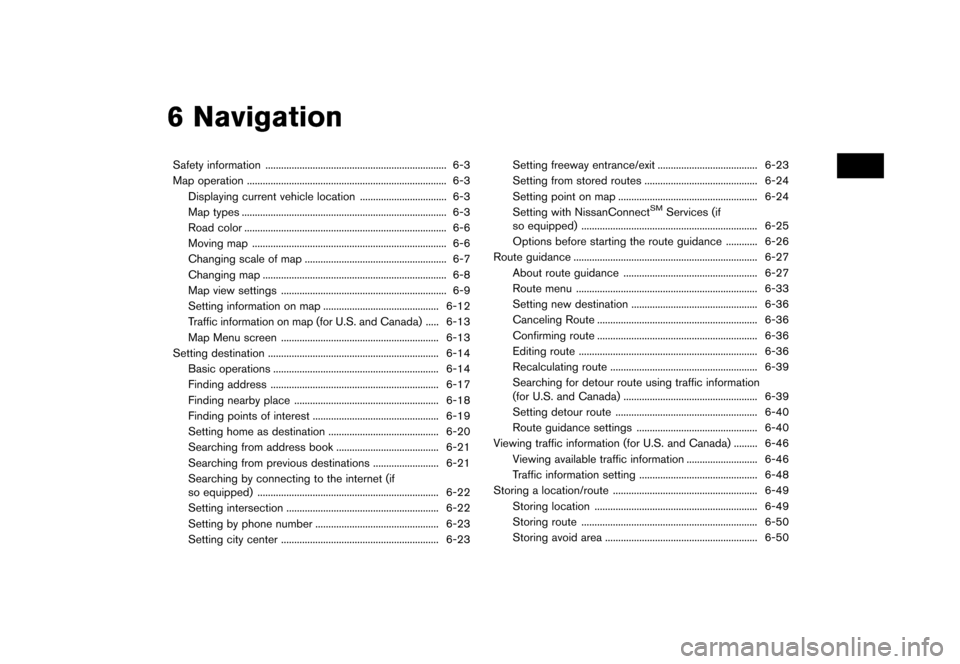

6 Navigation
Safety information...
..................................................................... 6-3
Map operation ...
........................................................................\
.... 6-3
Displaying current vehicle location ...
................................. 6-3
Map types ...
........................................................................\
...... 6-3
Road color ...
........................................................................\
..... 6-6
Moving map ...
........................................................................\
.. 6-6
Changing scale of map ...
...................................................... 6-7
Changing map ...
...................................................................... 6-8
Map view settings ...
............................................................... 6-9
Setting information on map ...
............................................ 6-12
Traffic information on map (for U.S. and Canada) ...
..... 6-13
Map Menu screen ...
............................................................ 6-13
Setting destination ...
................................................................. 6-14
Basic operations ...
............................................................... 6-14
Finding address ...
................................................................ 6-17
Finding nearby place ...
....................................................... 6-18
Finding points of interest ...
................................................ 6-19
Setting home as destination ...
.......................................... 6-20
Searching from address book ...
....................................... 6-21
Searching from previous destinations ...
......................... 6-21
Searching by connecting to the internet (if
so equipped) ...
..................................................................... 6-22
Setting intersection ...
.......................................................... 6-22
Setting by phone number ...
............................................... 6-23
Setting city center ...
............................................................ 6-23 Setting freeway entrance/exit
...
...................................... 6-23
Setting from stored routes ...
........................................... 6-24
Setting point on map ...
..................................................... 6-24
Setting with NissanConnect
SMServices (if
so equipped) ...
................................................................... 6-25
Options before starting the route guidance ...
............ 6-26
Route guidance ...
...................................................................... 6-27
About route guidance ...
................................................... 6-27
Route menu ...
..................................................................... 6-33
Setting new destination ...
................................................ 6-36
Canceling Route ...
............................................................. 6-36
Confirming route ...
............................................................. 6-36
Editing route ...
.................................................................... 6-36
Recalculating route ...
........................................................ 6-39
Searching for detour route using traffic information
(for U.S. and Canada) ...
................................................... 6-39
Setting detour route ...
...................................................... 6-40
Route guidance settings ...
.............................................. 6-40
Viewing traffic information (for U.S. and Canada) ...
......... 6-46
Viewing available traffic information ...
........................... 6-46
Traffic information setting ...
............................................. 6-48
Storing a location/route ...
....................................................... 6-49
Storing location ...
.............................................................. 6-49
Storing route ...
................................................................... 6-50
Storing avoid area ...
.......................................................... 6-50
&RQGLWLRQ


> (GLW    0RGHO 1&*1-1 @
SAFETY INFORMATIONNCGNJN1402-86E86BA3-BF7E-40C4-BA2C-BCE97C60A7D2The navigation system is primarily designed to
help you reach your destination. However, you,
the driver, must use the system safely and
properly. Information concerning road condi-
tions, traffic signs and the availability of services
may not always be up to date. The system is not a
substitute for safe, proper, and legal driving.
WARNING1&*1-1'%$&&$%$.Do not rely on route guidance alone.
Always be sure that all driving man-
euvers are legal and safe in order to
avoid accidents.
MAP OPERATIONNCGNJN1402-120906-C5FCA318-4BBA-4D15-A857-9B542ACCC9A3
DISPLAYING CURRENT VEHICLE
LOCATION
NCGNJN1402-120906-D8AC00A2-1C2D-4A70-9906-9AEEE4DB75F8
5GB0410X
Push


> (GLW    0RGHO 1&*1-1 @
6. Navigation
2D mapNCGNJN1402-120906-EE372FB2-4CFF-45FF-B632-64E8205D13D0The 2D map displays the map in a two-dimensional environment similar to a road map.
5GB0500XScreen information:
*1Destination:
Indicates the location of the final destina-
tion.
*2Waypoint:
Displays the location of the waypoint the
vehicle will stop by before heading to the
final destination. A maximum of 5 waypoints
can be set.
*3Guide point:
Indicates a guide point on the route.
*4Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
*5Avoid area:
Displays the areas to avoid that are stored in
the Address Book. Route guidance can be
set to avoid the registered avoid areas.
ªStoring avoid areaº (page 6-50)
Green: Freeways included
Blue: Freeways not included
*6Speed limit icon:
Displays the speed limit of the road the
vehicle is on.
*7Arrow and distance:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
*8icon:
Touch the icon to display the Map Menu.
ªMap Menu screenº (page 6-13)
*9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. The
map scale can be adjusted using the scale
bar.
ªChanging scale of mapº (page 6-7)
*10/Direction indicator:
Indicates the directional setting of the map.
: North always pointing up.
: Direction of the vehicle heading always
pointing up.
Touch the icon to change the map view and
&RQGLWLRQ
6-4


> (GLW    0RGHO 1&*1-1 @
the map orientation.
ªChanging map view and map orienta-
tionº (page 6-8)
*11Remaining distance to the destination:
Indicates the approximate remaining dis-
tance to the destination or waypoint. This
indicator will appear when a destination or
waypoint is set and route guidance is
started.
The arrow displayed here indicates the
direction of the destination. It can be
displayed only when the map scale is in
the range of 1/64 miles (25 m) - 1/8 miles
(200 m) .
*12Estimated time to the destination:
Indicates the estimated time to the destina-
tion or waypoint. This indicator will appear
when a destination or waypoint is set and
route guidance is started.
ªGuidance settingsº (page 6-41)
*13Traffic indicator (for U.S. and Canada):
Indicates the reception condition of the
traffic information transmitted from the
provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
The indicator does not appear without aSiriusXM Traffic subscription.
*14Vehicle icon:
Indicates the current vehicle location and
the direction the vehicle is heading.
*15Suggested route:
Appears in bold blue during route guidance.
*16Stored location (yellow):
Displays the locations that are stored in the
Address Book.
ªStoring locationº (page 6-49)
The icons can be changed according to
your preferences.
*17Street name:
Displays the name of the street that the
vehicle is currently driving on.
*18Voice Menu button (if so equipped):
Touch the icon to connect to the Nissan-
Connect
SMServices Voice Menu.
ªConnecting to Interactive Voice
Menuº (page 5-13)
BirdviewTM(3D) mapNCGNJN1402-120906-587FA18F-02CE-4C96-A6DD-1A627158824CBirdviewTMdisplays the map from an elevated
perspective. In BirdviewTM, it is easy to recognize
an image of the route because it provides a
panoramic view over a long distance.
5GB0598X
INFO:
Note the following items about the Birdview
TM
display. . ªBirdviewTMº is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TMalways appears with
the current forward direction facing up.
Building graphicsNCGNJN1402-D52D68EF-B8E2-45F4-A665-3D4F393E1605In an area where the building graphics are stored
in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called ªBuilding
footprint graphicsº, and on the Birdview
TMdis-
play, these are called ª3D building graphicsº.
6. Navigation
&RQGLWLRQ
6-5


> (GLW    0RGHO 1&*1-1 @
6. Navigation
5GB0408X
Building footprint graphics (2D map)
5GB0409X
3D building graphics (BirdviewTMmap)
INFO:
In an area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
ROAD COLORNCGNJN1402-120906-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by color.
Red Freeway
Brown
Dark Yellow Main road
Gray Narrow street
Dark green Road with incomplete map data
MOVING MAPNCGNJN1402-120906-7786F4B5-D56C-4754-9A7C-B9979A7906F1Map can be scrolled by touch screen operations.
Map scrolling operations are limited and not fully
available while driving.
Touch:
5GB0495X
2D map:
When the map on the screen is touched, the
cross pointer is displayed and the position
touched is set as the center of the screen. After moving the map, touch [
] on the map
screen to display the current location map
screen.
INFO:
. Touch [Slow] on the map screen to display
the 8-directional key for fine adjustments of
the location. Touch [Cancel] to cancel the
fine adjustment mode.
. Sliding the Display Commander (if so
equipped) can also operate the map.
Birdview
TM(3D) map:
Touch the screen. The cross pointer is displayed
at the center of the map. Touching the screen
again will scroll the map toward the touched
location.
Touch [
] or [] to change the direction of the
map.
INFO:
Sliding the Display Commander (if so equipped)
can also operate the map.
Long touch:
Touch the direction to move to. The map
continues to scroll while the screen is touched.
&RQGLWLRQ
6-6
