2016 NISSAN MAXIMA display


> (GLW    0RGHO 1&*1-1 @

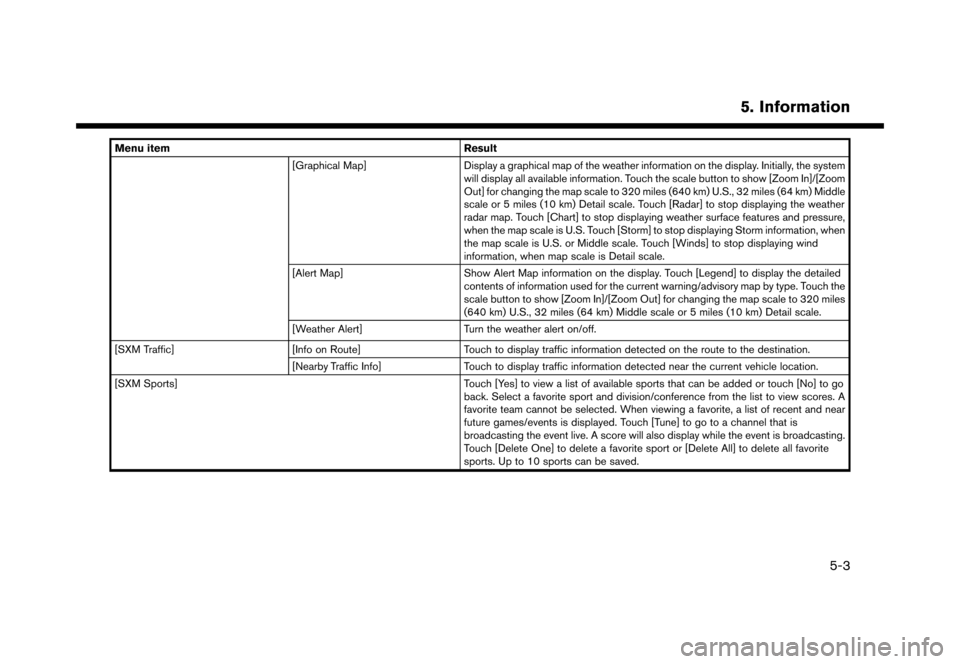

Menu itemResult
[Graphical Map] Display a graphical map of the weather information on the display. Initially, the system
will display all available information. Touch the scale button to show [Zoom In]/[Zoom
Out] for changing the map scale to 320 miles (640 km) U.S., 32 miles (64 km) Middle
scale or 5 miles (10 km) Detail scale. Touch [Radar] to stop displaying the weather
radar map. Touch [Chart] to stop displaying weather surface features and pressure,
when the map scale is U.S. Touch [Storm] to stop displaying Storm information, when
the map scale is U.S. or Middle scale. Touch [Winds] to stop displaying wind
information, when map scale is Detail scale.
[Alert Map] Show Alert Map information on the display. Touch [Legend] to display the detailed
contents of information used for the current warning/advisory map by type. Touch the
scale button to show [Zoom In]/[Zoom Out] for changing the map scale to 320 miles
(640 km) U.S., 32 miles (64 km) Middle scale or 5 miles (10 km) Detail scale.
[Weather Alert] Turn the weather alert on/off.
[SXM Traffic] [Info on Route]Touch to display traffic information detected on the route to the destination.
[Nearby Traffic Info] Touch to display traffic information detected near the current vehicle location.
[SXM Sports] Touch [Yes] to view a list of available sports that can be added or touch [No] to go
back. Select a favorite sport and division/conference from the list to view scores. A
favorite team cannot be selected. When viewing a favorite, a list of recent and near
future games/events is displayed. Touch [Tune] to go to a channel that is
broadcasting the event live. A score will also display while the event is broadcasting.
Touch [Delete One] to delete a favorite sport or [Delete All] to delete all favorite
sports. Up to 10 sports can be saved.
5. Information
&RQGLWLRQ
5-3


> (GLW    0RGHO 1&*1-1 @
5. Information
Menu itemResult
[SXM Stocks] To add a favorite stock, touch [Yes] to display a List of Matching Stocks. Select a
stock by performing a search or typing in the symbol. Touch [Yes] to add a stock to
the list or touch [No] to go back. Touching [Add Stock] will also allow adding a
favorite stock. Once a stock is added, it's price, trend, and date can be viewed. Red
indicates the stock is down and green indicates the stock is up. Touch [Delete Stock]
to [Delete All] or [Delete One]. Up to 20 stocks can be saved. Only supported stocks
can be added.
[SXM Fuel Prices] [Select Fuel]Select a gas station from the list to see all of the fuel prices or to set it as a destination.
Touch [Select Fuel] to display prices for a different fuel type.
Touch [By Distance]/[By Price] to sort the list by distance or by price.
Touch [Near Dest]/[Nearby] to show a list of gas stations near the destination or near
the current location.
[By Distance]/[By Price]
[Near Dest]/[Nearby]
[SXM Movie Listings] [Nearby Theaters]Displays a list of theaters by distance. Select the theater for Theater Details such as
its location and phone number. While viewing the Theater Details, touch [Go here] for
route guidance. While viewing the list of Nearby Theaters, touch [Movies] to display a
list of movies that are playing at that theater. Select the movie to display Movie Details
including the rating, running time, and show times.
[Current Movies] Displays a list of movies that are currently playing. Touch [Details] to display Movie
Details including the rating, running time, and show times. While viewing the list of
Current Movies, select the movie to display a list of Nearby Theaters. Select the
theater for Theater Details such as its location and phone number. Touch [Movies] for
a detailed description and show times of the selected movie. Touch [Go Here] for
route guidance to the selected theater.
[Vehicle] (if so equipped) [Energy Flow] (model with hybrid
system)Displays energy information. Touch [History] to display the Fuel Economy History
screen.
For details of the Energy Flow, refer to the vehicle Owner's Manual.
[Eco Drive Report] Displays the Eco Drive Report.
&RQGLWLRQ
5-4


> (GLW    0RGHO 1&*1-1 @

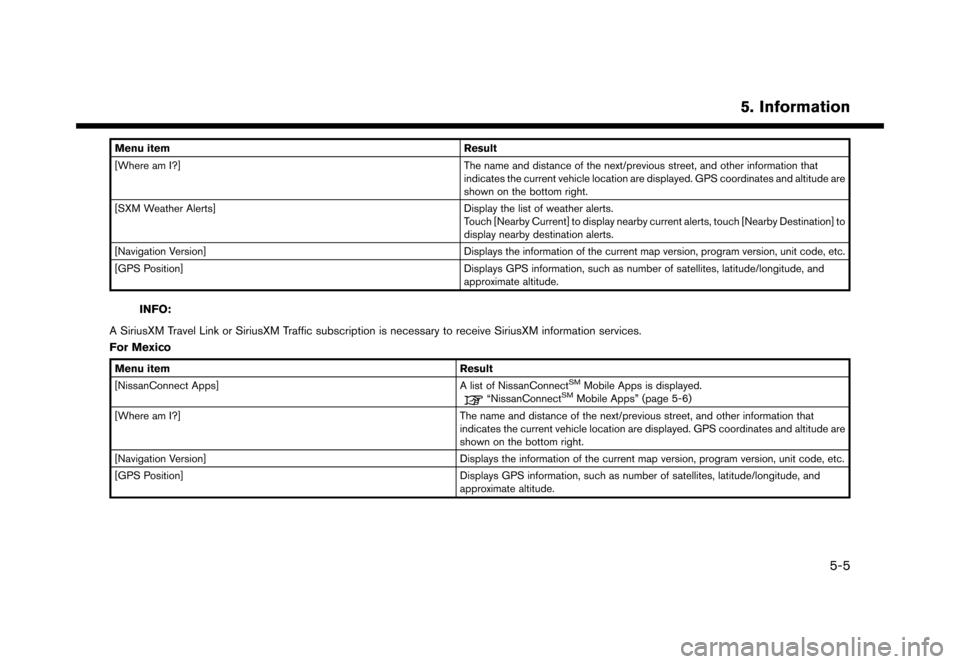

Menu itemResult
[Where am I?] The name and distance of the next/previous street, and other information that
indicates the current vehicle location are displayed. GPS coordinates and altitude are
shown on the bottom right.
[SXM Weather Alerts] Display the list of weather alerts.
Touch [Nearby Current] to display nearby current alerts, touch [Nearby Destination] to
display nearby destination alerts.
[Navigation Version] Displays the information of the current map version, program version, unit code, etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and
approximate altitude.
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
For Mexico
Menu item Result
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 5-6)
[Where am I?] The name and distance of the next/previous street, and other information that
indicates the current vehicle location are displayed. GPS coordinates and altitude are
shown on the bottom right.
[Navigation Version] Displays the information of the current map version, program version, unit code, etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and
approximate altitude.
5. Information
&RQGLWLRQ
5-5


> (GLW    0RGHO 1&*1-1 @
5. Information
NISSANCONNECTSMMOBILE
APPS
NCGNJN1402-9EE53D94-8959-46EC-8F9C-62F6145D53D6
NISSANCONNECTSMMOBILE APPS
SMARTPHONE INTEGRATION
NCGNJN1402-F3FB5C7B-9BEF-4D5C-B8B9-4FD75434EE73This vehicle is equipped with smartphone
integration technology. This allows many com-
patible smartphone applications to be displayed
and easily controlled through the vehicle's touch
screen display.
Laws in some jurisdictions may restrict the use of
some of the applications and features, such as
social networking and texting. Check local
regulations for any requirements.
INFO:
A compatible smartphone and registration is
required to use mobile applications or to access
connected features of certain vehicle applica-
tions.
REGISTERING WITH NISSANCON-
NECTSMMOBILE APPSGUID-1D9523C3-4B2E-46EB-B3C5-3BD2228F295CTo use the smartphone integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect
SMwebsite for
more information and to sign up. Once regis-
tered, download the NissanConnect
SMApp from your compatible phone's application download
source and then log into the application.
For more information about this technology, visit
the website or contact NissanConnect
SMMobile
Apps Customer Service.
For U.S. customers:
Website:
www.nissanusa.com/connect
For Canadian customers: Website:
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
For Mexican customers: Website:
www.nissanconnect.com.mx Phone:
01 800 9 64 77 26 (9 NISSAN)
CONNECTING PHONEGUID-895B9E8A-9FC4-4A3B-A26E-C0E1DA7804A6To use this feature, a compatible smartphone
must be connected via Bluetooth


> (GLW    0RGHO 1&*1-1 @
5. Information

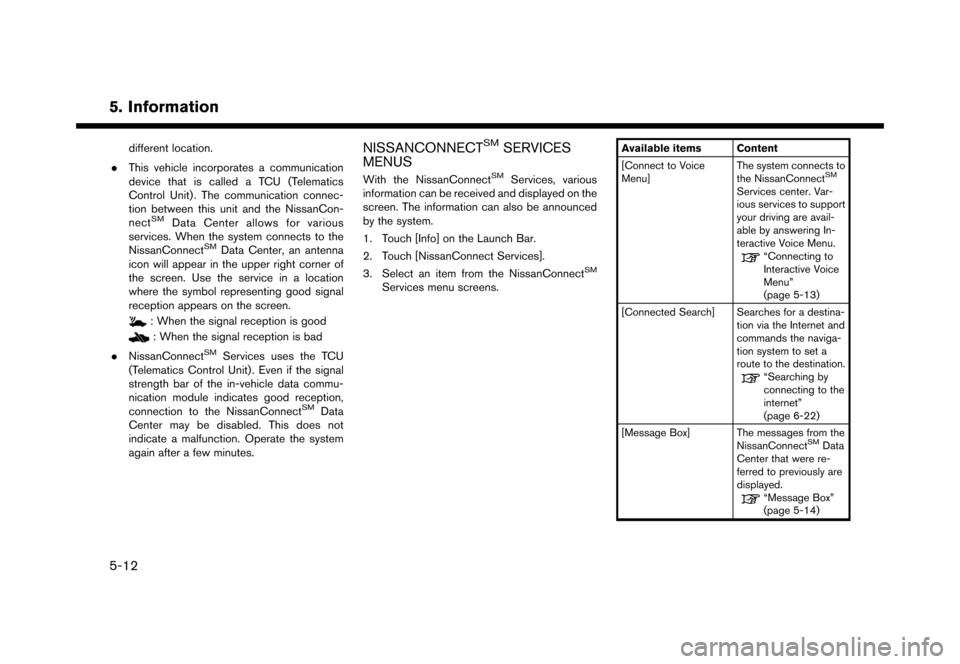

different location.
. This vehicle incorporates a communication
device that is called a TCU (Telematics
Control Unit) . The communication connec-
tion between this unit and the NissanCon-
nect
SMData Center allows for various
services. When the system connects to the
NissanConnect
SMData Center, an antenna
icon will appear in the upper right corner of
the screen. Use the service in a location
where the symbol representing good signal
reception appears on the screen.
: When the signal reception is good
: When the signal reception is bad
. NissanConnect
SMServices uses the TCU
(Telematics Control Unit) . Even if the signal
strength bar of the in-vehicle data commu-
nication module indicates good reception,
connection to the NissanConnect
SMData
Center may be disabled. This does not
indicate a malfunction. Operate the system
again after a few minutes.
NISSANCONNECTSMSERVICES
MENUS
GUID-F0273C25-12FE-4DB7-B66D-1C90E9FC4E99With the NissanConnectSMServices, various
information can be received and displayed on the
screen. The information can also be announced
by the system.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Select an item from the NissanConnect
SM
Services menu screens.
Available items Content
[Connect to Voice
Menu] The system connects to
the NissanConnect
SM
Services center. Var-
ious services to support
your driving are avail-
able by answering In-
teractive Voice Menu.
ªConnecting to
Interactive Voice
Menuº
(page 5-13)
[Connected Search] Searches for a destina- tion via the Internet and
commands the naviga-
tion system to set a
route to the destination.
ªSearching by
connecting to the
internetº
(page 6-22)
[Message Box] The messages from the NissanConnect
SMData
Center that were re-
ferred to previously are
displayed.
ªMessage Boxº
(page 5-14)
&RQGLWLRQ
5-12


> (GLW    0RGHO 1&*1-1 @
[All Information Feeds] Displays a list of avail-able information feeds.
ªViewing informa-
tion feedsº
(page 5-14)
[NissanConnect Ser-
vices Settings] NissanConnect
SMSer-
vices settings can be
changed.
ªNissanConnect-SMServices set-
tingsº
(page 5-18)
Connecting to Interactive Voice MenuNCGNJN1402-421A0B6E-1AA0-41D5-9584-32C3CFD22611Various services to support your driving are
available by using Interactive Voice Menu. For
more details, refer to the NissanConnect
SM
Services website or contact the NissanCon-
nectSMServices support line.
NissanConnect
SMServices website:
For U.S.
www.nissanusa.com/connect
For Canada
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
NissanConnect
SMServices support
line: 1-855-426-6628
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [Connect to Voice Menu].
4. The system connects to the NissanCon- nect
SMServices center and menu options
will be announced. Speak your preferred
option.
.Destination Assistance
Set a destination using an Interactive
operator system.
.Roadside AssistanceConnect to the Roadside Response
Specialist.
.Valet AlertTurns on the Valet Alert function and
monitors the vehicle movement within a
certain range.
.Personal AssistanceConnects to the NissanConnectSMSer-
vices Response Specialist.
5GB0431X
INFO:
. You can also connect to the NissanCon-
nect
SMServices Interactive Voice Menu by
touching the Voice Menu button
*1on the
map.
. After selecting [Connect to Voice Menu], it
may take some time until the system initiates
connection, depending on the technical
environment and whether the TCU (Tele-
matics Control Unit) is being used by other
services.
. To avoid disconnecting the line, do not turn
off the engine or the hybrid system.
5. Information
&RQGLWLRQ
5-13


> (GLW    0RGHO 1&*1-1 @
5. Information
Setting route to a searched destinationGUID-E5370E14-A583-429D-9D21-7959CCF8C310Use Connected Search to find destinations via
the internet and set a route to them directly from
your navigation system.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [Connected Search]. A keyboard isdisplayed.
4. Enter the keyword and touch [Search]. The system will connect to the Internet and the
search results will be displayed.
5. Touch a preferred destination from the list and touch [Start] to start the route guidance.
INFO:
The Connected Search can also be set by
touching [Navi] on the Launch Bar and then
touching [Connected Search].
Message BoxGUID-D3B19AAA-3DC2-4413-A9B6-ABCF17B88AC1The text messages from the NissanConnectSM
Data Center that were previously received to are
displayed.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services]. 3. Touch [Message Box].
4.
A history list is displayed. Highlight the
information.
Viewing information feedsNCGNJN1402-DD03B117-2CA4-4366-9B71-1D96791C490CContents of the various NissanConnectSMSer-
vices information can be downloaded.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [All Information Feeds]. A list screen is displayed.
4. Touch a preferred folder. A list of information feeds is displayed. The content is announced
by the system (Text-to-Speech) while the
vehicle is being driven, or if parked, you can
read the content on the display.
INFO:
. Touch [Stop] during communication with the
NissanConnect
SMServices Data Center to
cancel the connection.
. A message is displayed when the commu-
nication is disconnected while downloading
information due to a poor communication
status. Select [Yes] to restart the download. .
Laws in some jurisdictions may restrict the
use of ªText-to-Speech.º Check local reg-
ulations before using this feature.
. Some terminology such as personal names,
place names, special terms, symbols, etc.
may not be announced correctly. This is not a
malfunction.
. The system will pause announcements when
interrupted by the voice guidance given by
the navigation system. When the voice
guidance finishes, the system will restart
the announcement.
. The volume can be adjusted when the
system announces the information.
ªVolume and Beeps settingsº
(page 2-19)
. The selected content is read out while the
vehicle is being driven, or if parked, you can
read the content on the display.
. Content settings can be made using the
NissanConnect
SMServices website. For
more details, refer to the NissanConnectSM
Services website or contact the NissanCon-
nectSMServices support line.
NissanConnectSMServices website:
For U.S.
www.nissanusa.com/connect
&RQGLWLRQ
5-14


> (GLW    0RGHO 1&*1-1 @
For Canada
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
NissanConnect
SMServices support
line:
1-855-426-6628
Screen informationGUID-8FEB06C0-A569-4D23-BEF7-9414FB11CEC9When information is downloaded from the
NissanConnectSMServices Data Center, the
contents of the information are displayed while
the vehicle is stopped.
5GH0260X
*1Contents:
The contents of the NissanConnectSM
Services feeds are displayed.
*2Menu:
Stops the Text-to-Speech voice announce-
ments and displays the operation menu
items on the right side of the screen.
*3[]/[]:
Turns to the next or previous page if the
information has a number of content pages.
*4:
If the information contains map information,
the icon be displayed. It can be set as the
destination.
*5:
If the information contains phone number
information, the icon is displayed. It is
possible to make a phone call to the facility.
5GH0261X
After parking the vehicle in a safe location and
touching [Menu], the operation menu is dis-
played on the right side of the screen.
INFO:
The availability of the operation menu items
differs depending on the contents of the
selected information.
EMERGENCY SUPPORTNCGNJN1402-4CB95563-4BC2-4C4A-86CF-91272A2AE414NissanConnectSMServices provides various
services to support dealing with emergencies
of the subscribed vehicle and the driver.
For example, in case of an illness or serious
injury, you can seek support by pushing the in-
vehicle button and connecting to
NissanConnect
SMServices. NissanConnectSM
Services can specify the location of the vehicle
via GPS, and the information will be sent to the
police or other agencies as needed.
For information about other NissanConnect
SM
Services emergency support related services,
refer to the NissanConnectSMServices Services
website or contact the NissanConnectSMSer-
vices support line.
NissanConnect
SMServices website:
For U.S.
www.nissanusa.com/connect
For Canada
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
5. Information
&RQGLWLRQ
5-15
